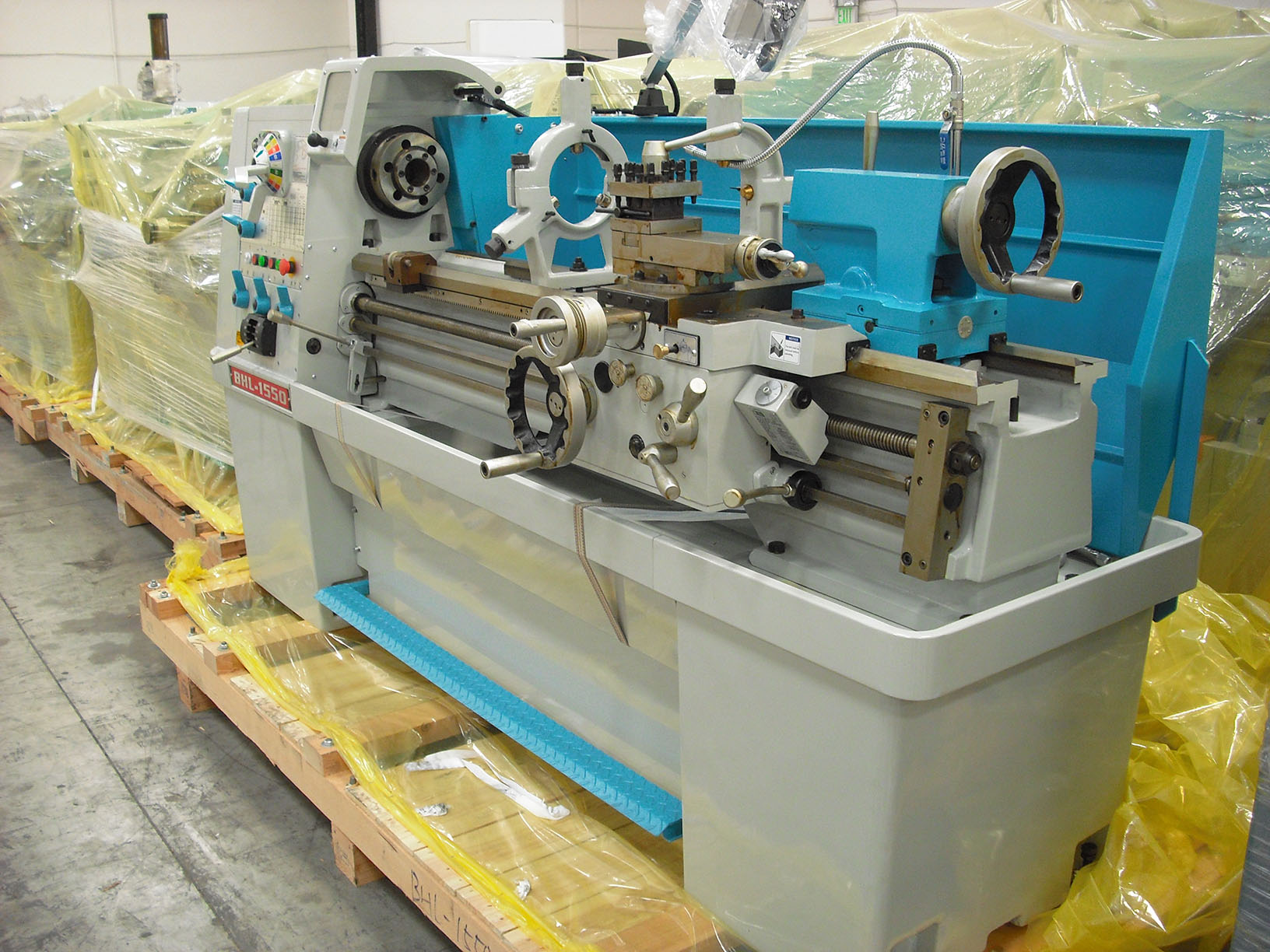

NEW ACRA ATEL 1550C
PRECISION GAP BED ENGINE LATHE WITH CLUTCH
MADE IN TAIWAN
SPECIFICATIONS:
CAPACITY: .................... 15"/24" X 50"
SWING OVER BED: .............. 15-1/4"
SWING OVER CROSS SLIDE: ...... 9-3/8"
SWING IN GAP: ................ 24"
DISTANCE BETWEEN CENTERS: .... 50"
BED WIDTH: ................... 11"
HEADSTOCK:
SPINDLE NOSE: ................ D1-6
SPINDLE BORE: ................ 2-3/16"
TAPER OF SPINDLE: ............ MT NO.5
SPINDLE SPEEDS €“ STEPS: .... 16 STEP
SPINDLE SPEEDS €“ RANGE: .... 25 ~ 2,000 RPM
CARRIAGE:
CROSS SLIDE TRAVEL: .......... 9-1/4"
COMPOUND SLIDE TRAVEL: ....... 4-3/4"
THREADS & FEEDS:
INCH THREADS: ................ 2~72 TPI
METRIC THREADS: .............. 0.2 ~ 14 MM
LONGITUDINAL FEEDS: .......... 0.002 ~ 0.067"/REV
CROSS FEEDS: ................. 0.001 ~ 0.0375"/REV
TAILSTOCK:
QUILL DIAMETER: .............. 2-5/16"
QUILL TRAVEL: ................ 5"
QUILL TAPER: ................. MT NO.4
POWER:
SPINDLE DRIVE MOTOR: ......... 7-1/2 HP
VOLTAGE: ..................... 230V/460V AC / 3 PH
STANDARD EQUIPMENT:
8" 3-JAW CHUCK
10" 4-JAW CHUCK
FULL LENGTH SPLASH GUARD
STEADY REST/FOLLOW REST
COOLANT SYSTEM
FOOT BRAKE
WORK LAMP
GAP BED
4 POSITION SQUARE TOOL POST
TOOL BOX WITH TOOLS
OPTIONAL ACCESSSORIES:
FACE PLATE
MICRO BED STOP
TAPER ATTACHMENT
LEVER TPE 5C COLLET CLOSER JFK
IMPORT COLLECT CLOSER (TAIWAN)
DIGITAL READOUT
NEWALL
ACU-RITE
SONY
FAGOR
IMPORT QUICK CHANGE TOOL HOLDER
LIVE CENTER MT4
DESCRIPTION
ACRA'S 1550C PRECISION GAP BED ENGINE LATHE FEATURES THE FOLLOWING:
BED:
BASE ONE PIECE CASTING.
MEEHANTE CASTING, VIBRATION STRESS RELIEVED.
INDUCTION HARDENED AND PRECISION GROUND BEDWAYS PRECISION HAND SCRAPED REMOVABLE GAP.
FOOT BRAKE.
TURCITE B COATING BETWEEN THE BED AND CARRIAGE.
UNIVERSAL GEAR BOX:
OIL BATH LUBRICATION.
HEAT TREATED PRECISION GROUND GEARS.
INCH, METRIC, MODULE AND DIAMETRICAL THREADS.
APRON AND SADDLE:
AUTOMATIC FEED AND THREADING, FULLY INTERLOCKED.
SADDLE AND TOP SLIDE LOCKING SYSTEM.
FORWARD-OFF-REVERSE LEVER.
4 WAY TOOL POST.
T-SLOT COMPOUND.
SPINDLE:
SUPPORTED BY 2 PRECISION TAPER ROLLER BEARINGS AND ONE BALL BEARING.
DYNAMICALLY BALANCED, HARDENED AND PRECISION GROUND.
HEADSTOCK:
FORWARD REVERSING CLUTCH.
ALL GEARS CHROMIUM MOLYBDENUM, HEAT TREATED AND PRECISION GROUND.
