Sharp 1118H Hardinge HLV-H Copy NEW PRECISION LATHES LIKE HARDINGE

Price on Request

Make:: Sharp

Model:: 1118H Hardinge HLV-H Copy

Year:: NEW

Ref #:: 136934

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

NEW SHARP PRECISION LATHE
MODEL: 1118H

SPECIFICATIONS:
CAPACITY
SWING OVER BED: ................... 11"
SWING OVER CARRIAGE: .............. 9"
SWING OVER CROSS SLIDE: ........... 6"
DISTANCE BETWEEN CENTERS: ......... 18"
SPINDLE
WITH ROUND 5C COLLETS: ............ 11/16"
WITH HEXAGON 5C COLLETS: .......... 7/8"
WITH SQUARE 5C COLLETS: ........... 3/4"
WITH EXPANDING CHUCKS: ............ 3"
WITH STEP CHUCKS: ................. 1 1/16-6"
WITH JAW CHUCKS: .................. 5"
SPINDLE SPEED RANGE (INF VAR): .... 130-4,000 RPM
SPINDLE NOSE TAPER (INSIDE): ...... 5C (10º)
SPINDLE NOSE TAPER (OUTSIDE): ..... 4º
SPINDLE BORE: ..................... 1"
TRAVEL AND FEED RANGE
CROSS SLIDE TRAVEL: ............... 6"
COMPOUND SLIDE TRAVEL: ............ 3"
QUICK-ACTION COMPOUND SLIDE TRAVEL: 0.1"
CARRIAGE POWER FEED RANGE: ........ 5/16-7"
CROSS SLIDE POWER FEED RANGE: ..... 4/16-4"
THEADING
LEADSCREW PITCH, DIAMETER: ........ 8 TPI, 1"
INCH THREADS(36): ................. 11-108
METRIC THREADS (36): .............. 0.275 - 2.7

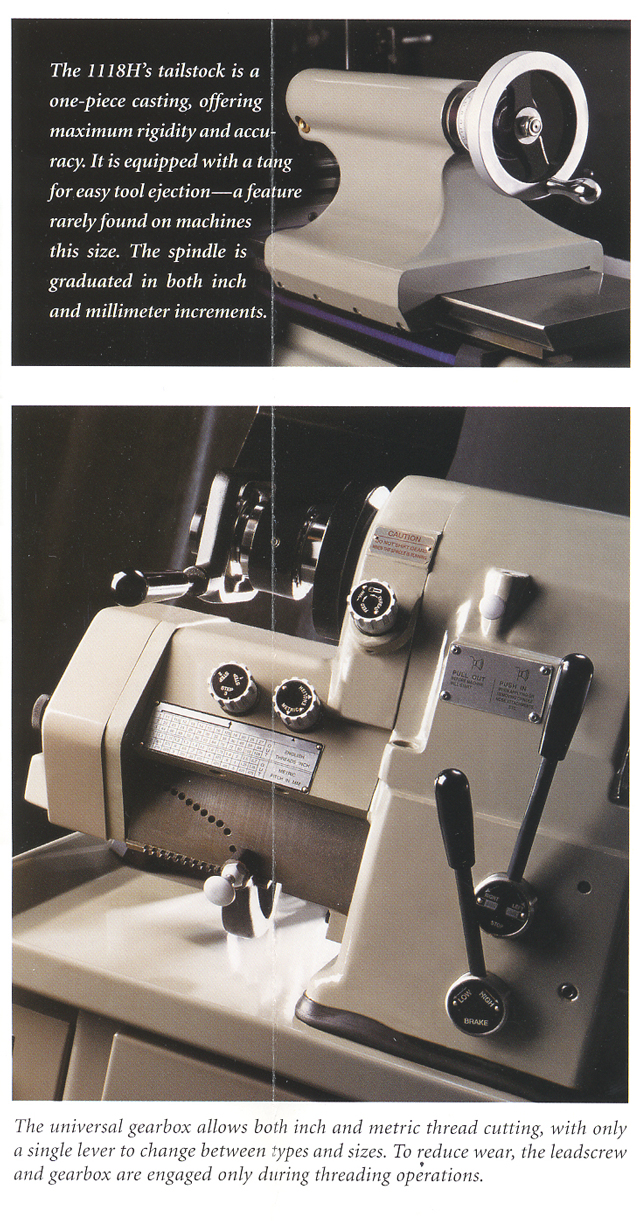

TAILSTOCK
TAILSTOCK SPINDLE DIAMETER: ....... 1.358"
TAILSTOCK SPINDLE TAPER: .......... MT #2
TAILSTOCK SPINDLE TRAVEL: ......... 3.75"
GENERAL
ELECTRICITY REQUIRED: 220V, 3 PHASE OR SINGLE PHASE
440V REQUIRES ADDITIONAL TRANSFORMER
MAIN MOTOR: 5 HP, (DIGITAL VARIABLE SPEED)
COOLANT PUMP MOTOR: 0.25 HP
FEED MOTOR (DC): 75 WATT, 110 VOLT
COOLANT TANK: 5 GALLON
DIMENSIONS: 73" X 30" X 75"
WEIGHT (APPROX): 2,300 LBS

STANDARD ACCESSORIES:
SPLASH GUARD
COOLANT SYSTEM
5C COLLET CLOSER
HEADSTOCK CENTER
TAILSTOCK
HALOGEN WORK LIGHT
CHUCK GUARD
SPINDLE NOSE COVER
LEADSCREW COVER
AMERICAN TOOL POST
WIRED 220V, SINGLE PHASE/3 PH (440V REQUIRES OPTIONAL TRANSFORMER)
TOOL BOX

FEATURES:
DIGITAL VARIABLE SPEED (D.V.S.) DRIVE SYSTEM
HIGH-SPEED SPINDLE (INFINITELY VARIABLE 130-4,000 RPM), ACCURACY WITHIN 50 MILLIONTHS TIR
HARDENED AND GROUND SPINDLE
INDEPENDENT ELECTRIC FEED-RATE CONTROL ON CARRIAGE AND CROSS SLIDE.
QUICK-CHANGE INCH/METRIC GEARBOX WITH 36 CHANGES.
SPINDLE SUPPORTED BY DOUBLE ANGULAR CONTACT BEARINGS.

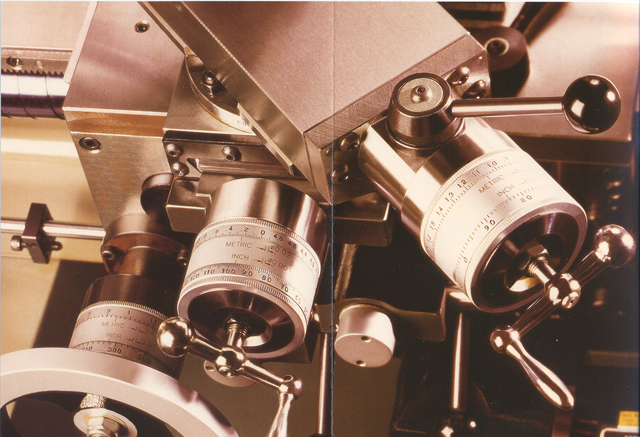

QUICK-ACTION COMPOUND SLIDE FOR THREADING.

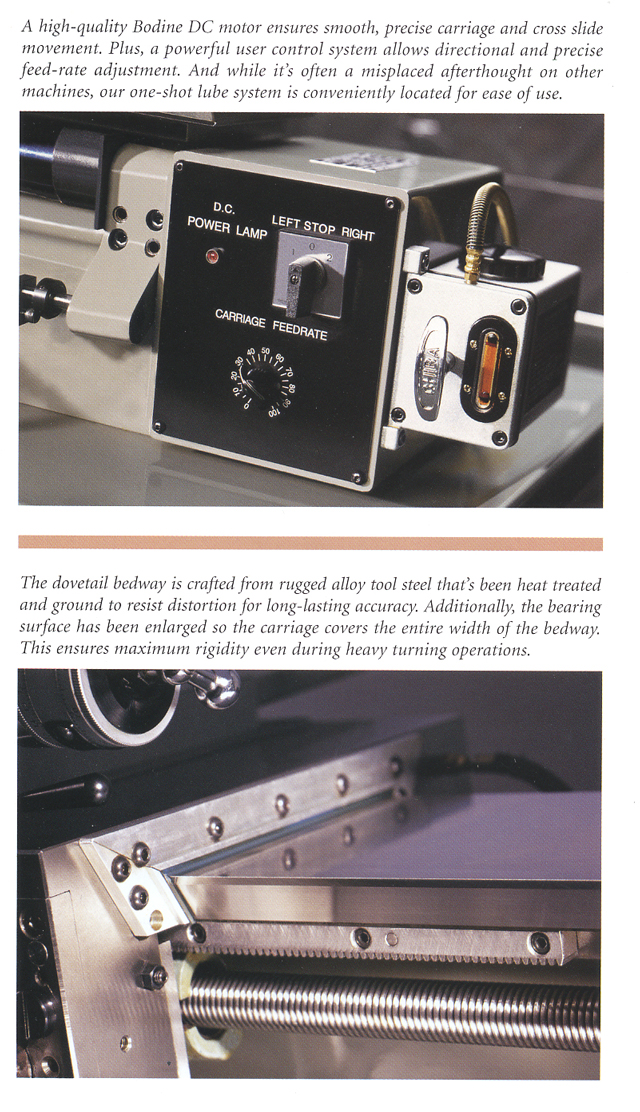

ONE PIECE ALLOY STEEL MATERIAL, HARDENED AND GROUND BEDWAYS, WITH TURCITE COATING ON CARRIAGE AND BED FOR SMOOTH MOVEMENTS.
ADJUSTABLE THREAD-LENGTH CONTROL STOPS
HARDENED AND GROUND LEADSCREWS.

OPTIONAL ACCESSORIES:
3-JAW 6” CHUCK W/6” FIXTURE PLATE (BISON)(866-0600)
4-JAW 6” CHUCK W/6” FIXTURE PLATE (BISON)(850-0600)
6-JAW 6” CHUCK W/6” FIXTURE PLATE (BISON)(868-0600)
3-JAW 6” CHUCK W/6” FIXTURE PLATE (QU)(TLE-008)
4-JAW 6” CHUCK W/6” FIXTURE PLATE (QU)(TLE-009)
6-JAW 6” CHUCK W/6” FIXTURE PLATE (QU)(TLE-024)
380V, 440V, 575V TRANSFORMER - 5HP(440T5-V1)
5C COLLET SET (1/8” TO 1-1/16” BY 1/16”) 16 PCS(ACC-5C)
7” FACE PLATE(FACE-7)
QUICK CHANGE TOOL HOLDER SET (ALORIS) 7 PCS(AXA-2511-7050)
VERTICAL CUT-OFF SLIDE(TLE-001)
TAPER ATTACHMENT(TLE-003)
STEADY REST(TLE-006)
FOLLOW REST(TLE-007)
MICROMETER CARRIAGE STOP WITH BRACKET(TLE-013)
DORIAN TOOL - MT2 MORSE TAPER, 1.89 INCH HEAD DIAMETER LIVE CENTER(DT 20189)
DORIAN TOOL - MT2 MORSE TAPER, 2.01 INCH HEAD DIAMETER LIVE CENTER(DT20201)
DRILL CHUCK & ARBOR (JACOBS)(1118H-D/A)
UL ELECTRICAL COMPONENTS AND CE ON AC MOTOR ( FACTORY ORDER ONLY) 1118 H -UL
SOLID STOP FOR COLLET(T-SS-1)
EJECTOR STOP(T-ES-1)
LONG STOP(T-LS-1)
UNIVERSAL COLLET STOP(T-UCS-25)
DIGITAL READOUT SYSTEMS:
FAGOR 20I D.R.O. (FG-1118)
FAGOR 40I D.R.O. (FG-40I-1118)
ACU-RITE 203S D.R.O. (AR-1118)
NEWALLDP700 D.R.O. (NWDP-1118)
