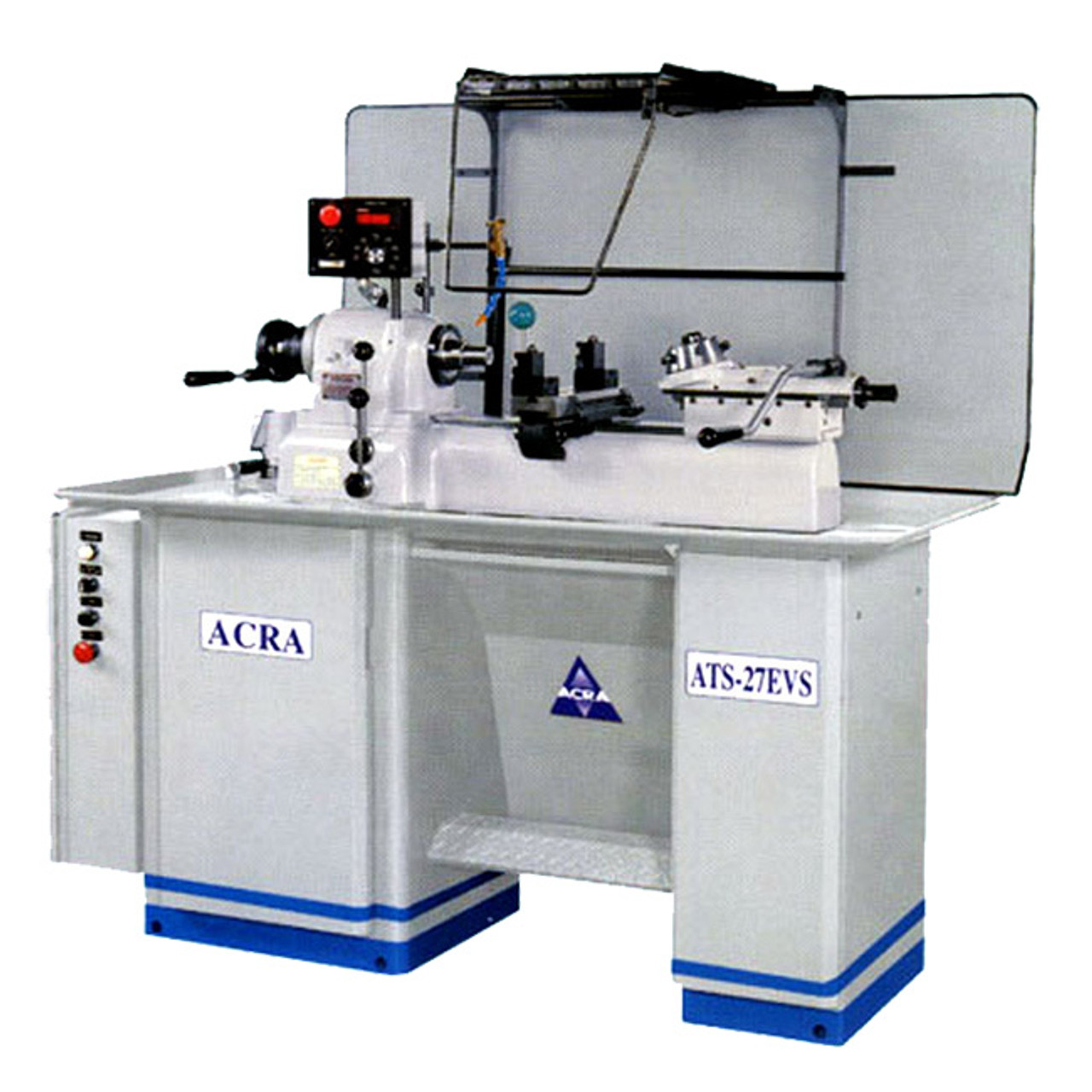

Acra ATS27EVS/ATL27EVS NEW PRECISION LATHES LIKE HARDINGE

Price on Request

Make:: Acra

Model:: ATS27EVS/ATL27EVS

Year:: NEW

Ref #:: 172474

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com


NEW ACRA HIGH SPEED/HIGH ACCURACY SECOND
OPERATION MACHINE/TOOLMAKER’S LATHE
MODEL: ATL-27EVS / ATS-27EVS

SPECIFICATIONS:
SPINDLE CAPACITY:
WITH CHUCK ........................... 6"
WITH EXPANDING COLLETS ............... 3"
WITH ROUND 5C COLLETS ................ 1-1/16"
WITH HEXAGON 5C COLLETS .............. 7/8"
WITH SQUARE 5C COLLETS ............... 3/4"
WITH STEP CHUCKS ..................... 1-1/16" - 6"
SPINDLE NOSE DIAMETER ................ 2-3/16"
SPINDLE NOSE ID/OD ................... 5C / 4°Xtaper
SPINDLE SPEEDS (VARIABLE) ............ 0-4000 RPM
HOLE THRU SPINDLE .................... 1-1/4"
DISTANCE BETWEEN CENTERS ............. 15"
SWING OVER BED ....................... 9"
TAILSTOCK SPINDLE TRAVEL (ATS MODEL) . 3-3/4"
APPROX WEIGHT ........................ 1364 LBS
DIMENSIONS ........................... 69" X 28" X 63"

STANDARD EQUIPMENT:
5C LEVER COLLET CLOSER
DOUBLE TOOL CROSS SLIDE (ATS)
COOLANT SYSTEM
SIX STATION BED TURRET (ATS)
TAILSTOCK (ATL)
AUTOMATIC SPINDLE BRAKE
COMPOUND AND CROSS SLIDE (ATL)

OPTIONAL ACCESSORIES:
RELEASING TAP HOLDER (T-RT-08)
ADJUSTABLE REVOLVING STOP (T-RS-201)
5C COLLET SET
VERTICAL CUT-OFF SLIDE WITHOUT BLADE ( CTS-27-08)
STRAIGHT AND TAPER TURNING SLIDE ( CTS-27-07)
6" 3 JAW ADJUST TRU CHUCK W / BACK PLATE
6" 4 JAW SCROLL CHUCK WITH BACK PLATE
COMPOUND AND CROSS SLIDE ( CTS-27-10)
TAILSTOCK ( CTS-27-11)
CHIP AND COOLANT SHIELD ( T-CS-10)
EVS 460V
ALORIS TOOL POST SET (AXA) 5 PC
SINGLE PHASE 220V
