Agie-Charmilles DRILL 300 WIRE EDM MACHINES

Price on Request

Make:: Agie-Charmilles

Model:: DRILL 300

Year:

Ref #:: 178088

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

AGIE CHARMILLES DRILL 300
NEW: 2015

SPECIFICATIONS:
ELECTRODE DIAMETER (MIN):....... 0.012"
ELECTRODE DIAMETER (MAX):....... 0.118"
WORK WIDTH:..................... 13.78"
WORK LENGTH:.................... 12.6"
X-AXIS TRAVEL:.................. 23.6"
Y-AXIS TRAVEL:.................. 15.8"
Z-AXIS TRAVEL:.................. 17.72"
MAX WORKPIECE WEIGHT:........... 55 LB
DIMENSIONS:..................... 91.35" X 74.8" X 85.84"H
WEIGHT:......................... 5,512 LBS

EQUIPPED WITH:

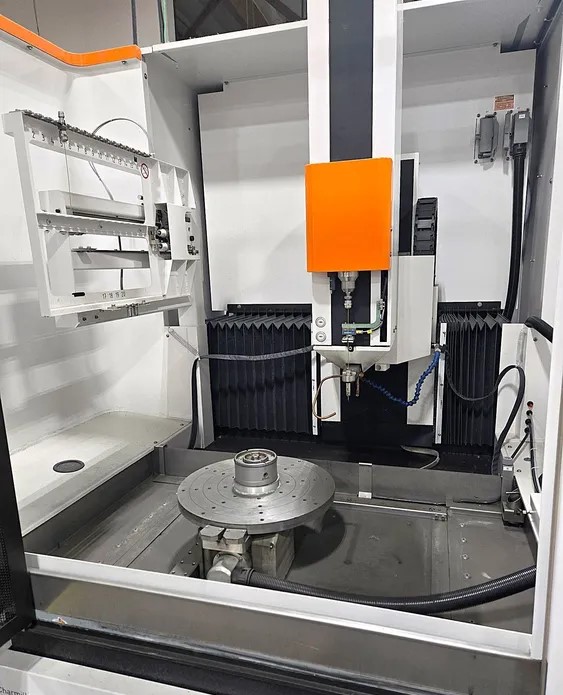

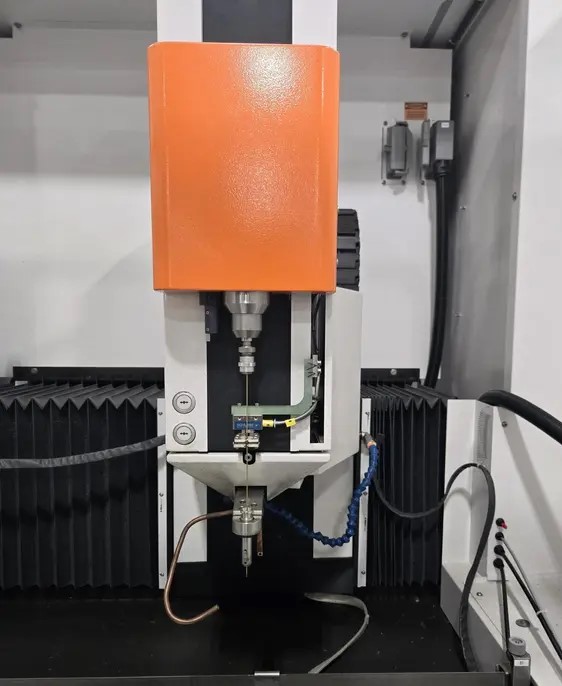

MACHINE HAS TILTING HEAD CAPABILITY AND ROTARY TABLE
TILTING HEAD CAPABLE: +/- 100 DEG / 0 - 360 DEG

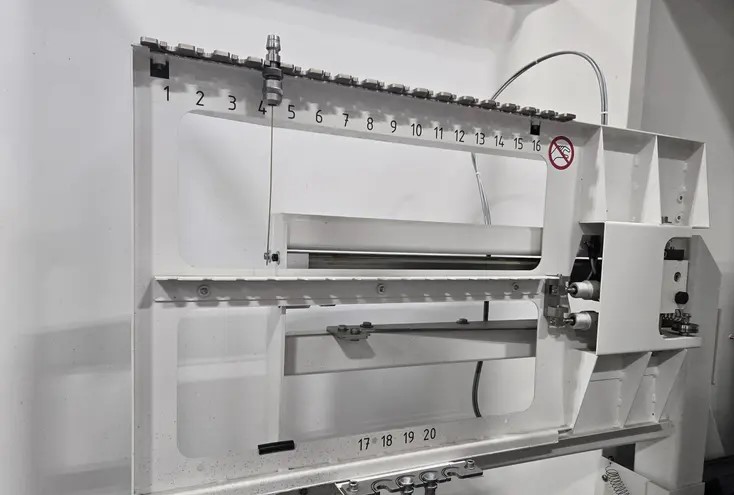

20POSITION ELECTRODE CHANGER

MACHINE CAME OUT OF A GENERAL ELECTRIC FACILITY.  HAS VERY LITTLE TIME OF USE.

FROM BROCHURE:
THE DRILL 300 EASILY DRILLS COOLING HOLES IN TURBINE BLADES
THE WINNING SOLUTION FOR COOLING HOLE MACHING OF COMPONENTS IN AIRCRAFT ENGINES
WITH SIX-AXIS CONFIGURATION, HOLES WITH DIFFERENT POSITIONS AND ANGLES
CAN BE FREELY PROGRAMMED AND MACHINED, ALLOWING FOR GREATER
PART FLEXIBILITY AND DESIGN.  SINGLE SET UP MACHINING
REDUCES UNPRODUCTIVE TIME
