Hansvedt DS-2, NEW 1989, COMPLETE AND RUNNING PROPERLY WIRE EDM MACHINES

Price on Request

Make:: Hansvedt

Model:: DS-2, NEW 1989, COMPLETE AND RUNNING PROPERLY

Year:: 1989

Ref #:: 161354

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

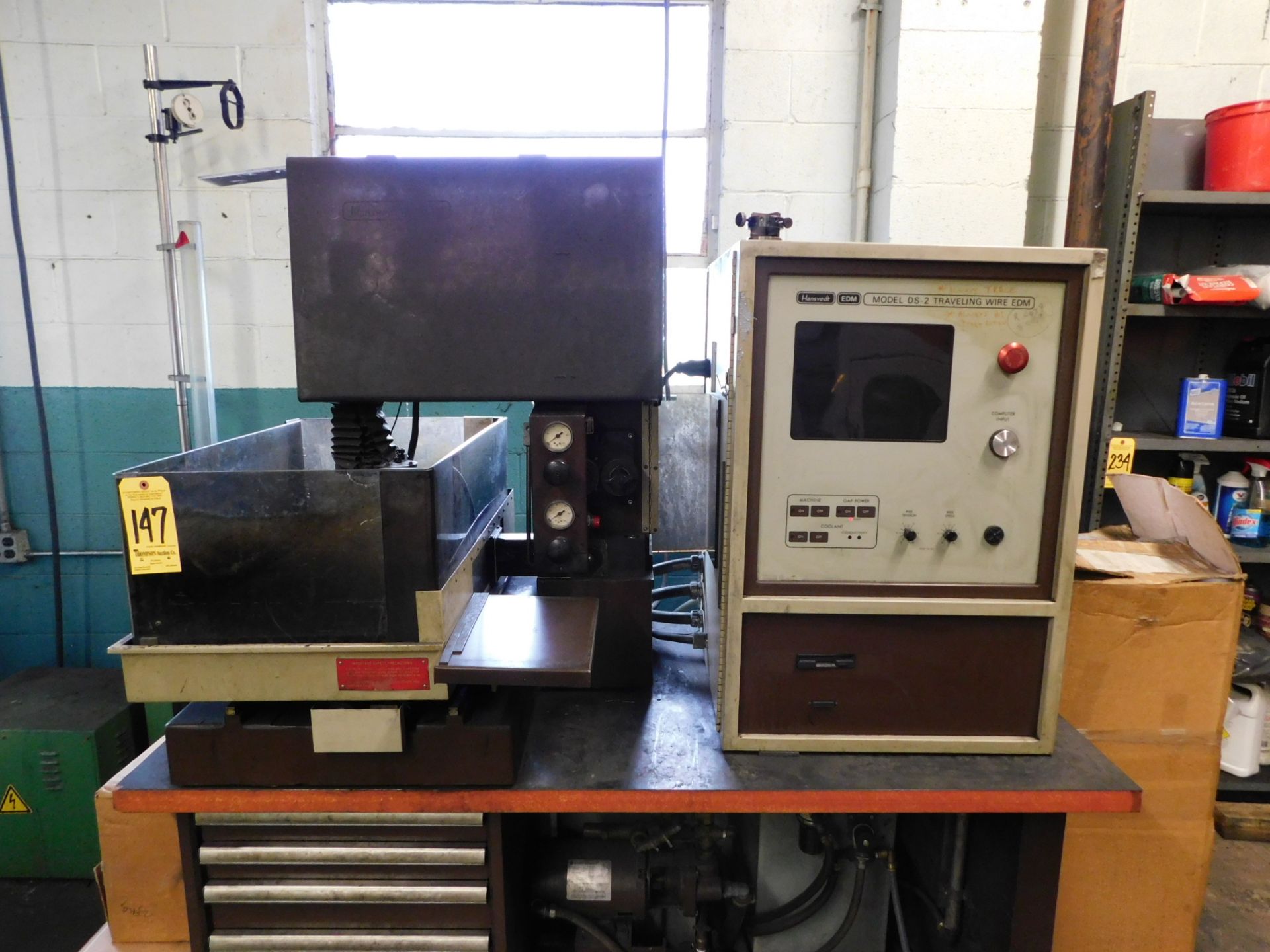

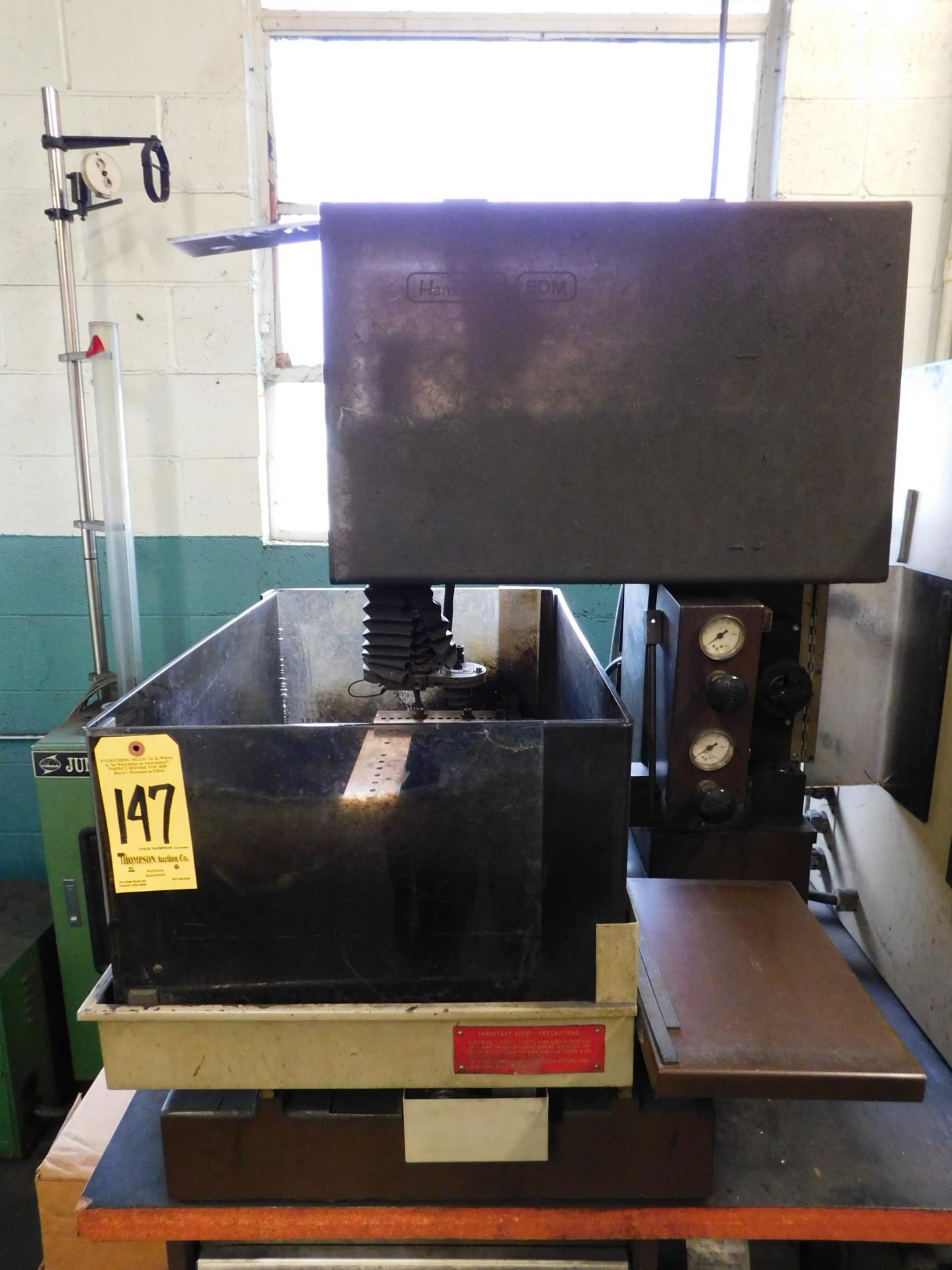

  Hansvedt/Hardinge Model #DS-2 CNC Wire EDM

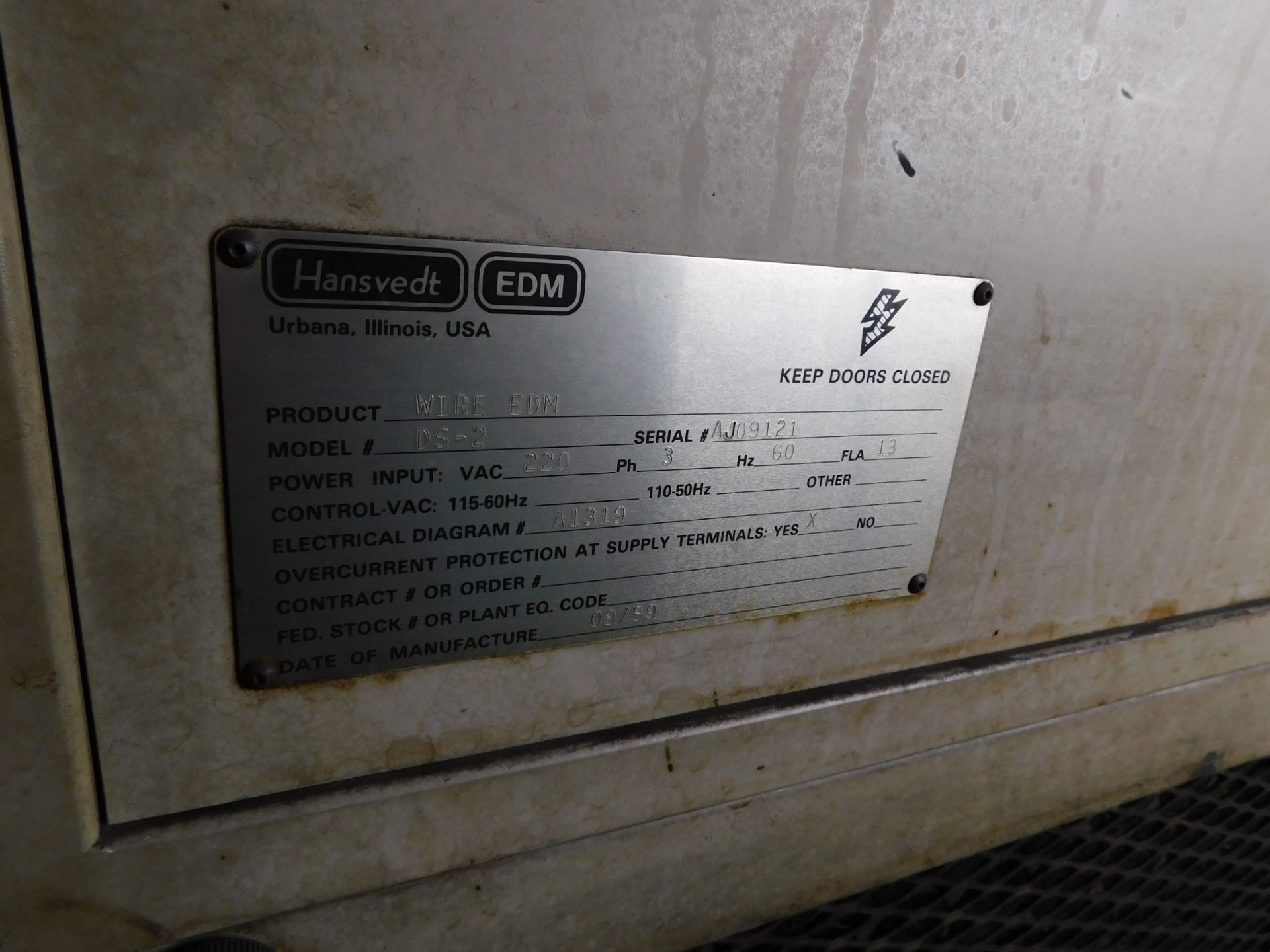

S/N: AJ09121         New:  1989


Specifications:
Max. Workpiece Dimension       18" x 27"

Travels:
X:                             6.5"
Y:                             10.5"
Z:                             6" Max Thickness
Positioning Accuracy           +/- .0002"

Max. Workpiece Weight          300 Lbs.

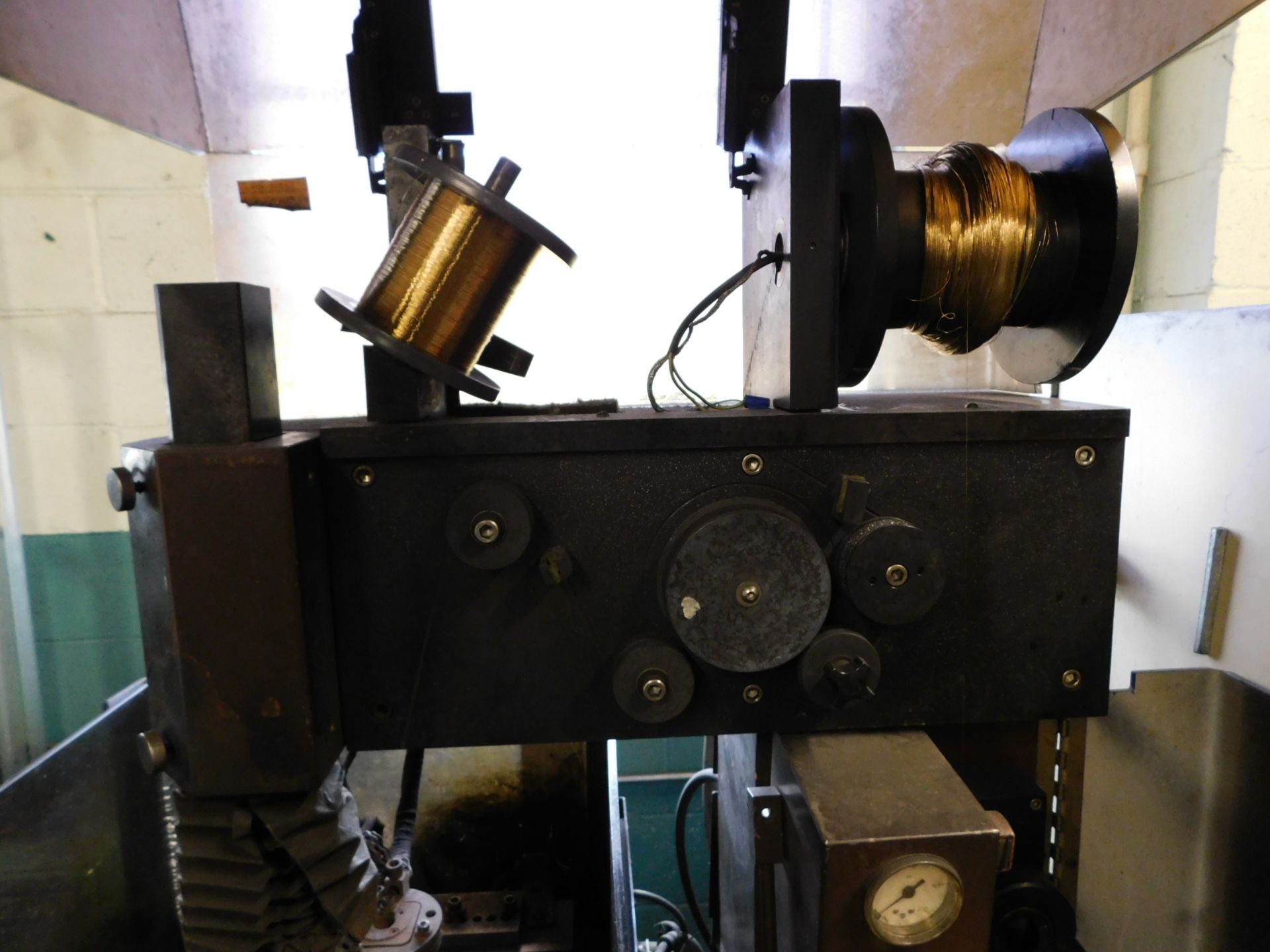

Wire Diameter Range            0.004" to .012"
Power Supply:                  20 Amps
Max. Cutting Speed             14 In./Hour
NC Unit:                       Hansvedt w/RS-232 Port
Maximum Input:                 208/240 VAC, 3 PH, 60 HZ

Equipped With:
Precision Linear Guideways for X & Y Axes
Turcite Lined Z Axis Guideway

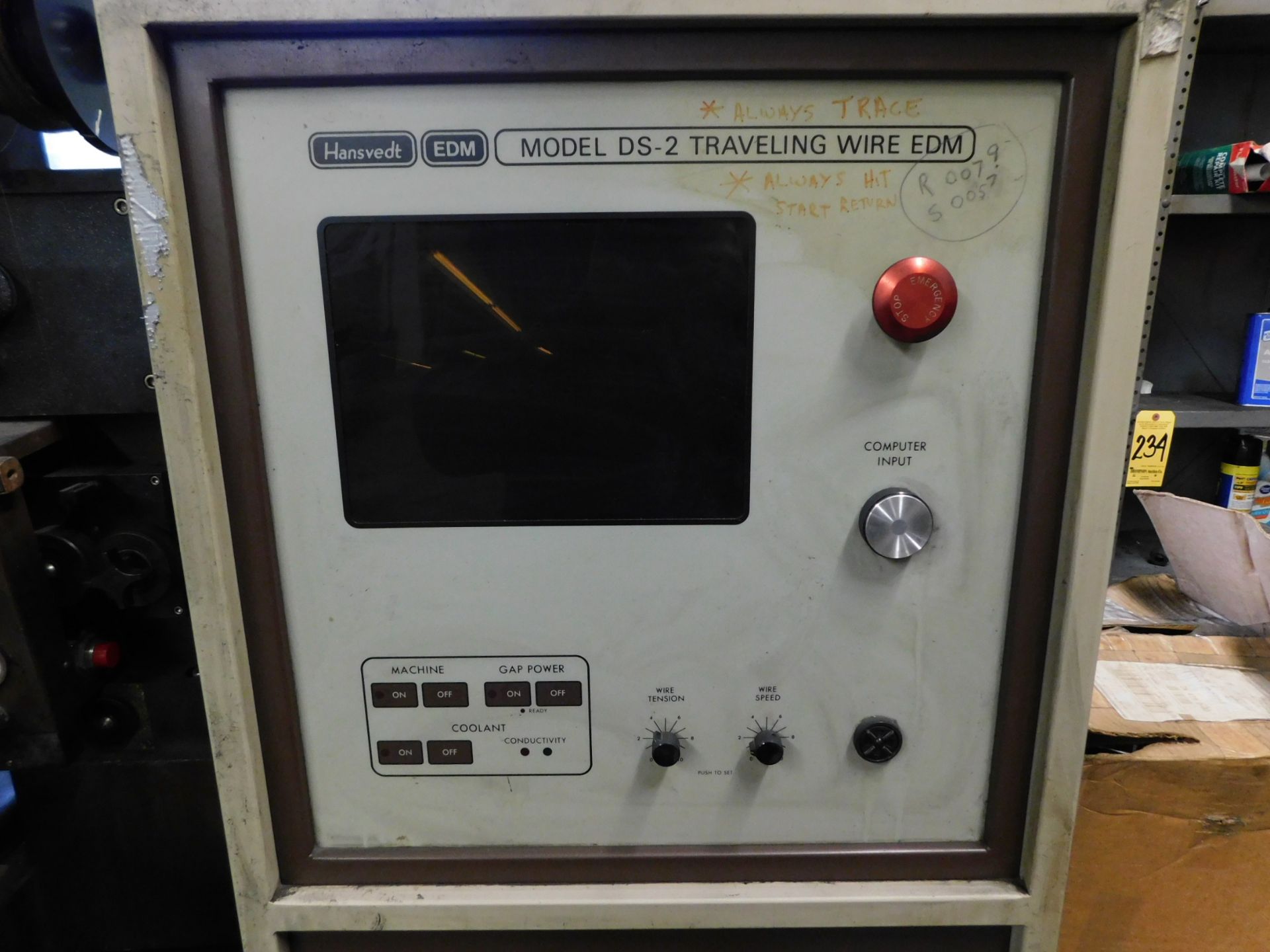

M-Pulse CNC Power Supply w/Flexible, User-Friendly Softtware,
XY Simultaneous Controlled Axes
CRT Display
3.5 Floppy Disk Drive & RS-232 Port


** SUPERB CONDITION & APPEARANCE **
** COMING DIRECTLY FROM A SHOP IN INDIANA **
