Mitsubishi MV-2400R, "Revolutionary" Series, Factory 2017 WIRE EDM MACHINES

Price on Request

Make:: Mitsubishi

Model:: MV-2400R, "Revolutionary" Series, Factory 2017

Year:: 2017

Ref #:: 164150

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

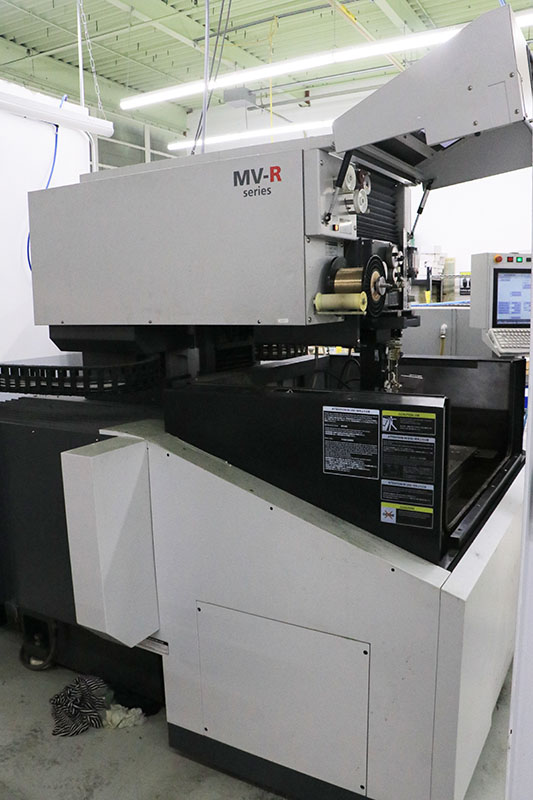

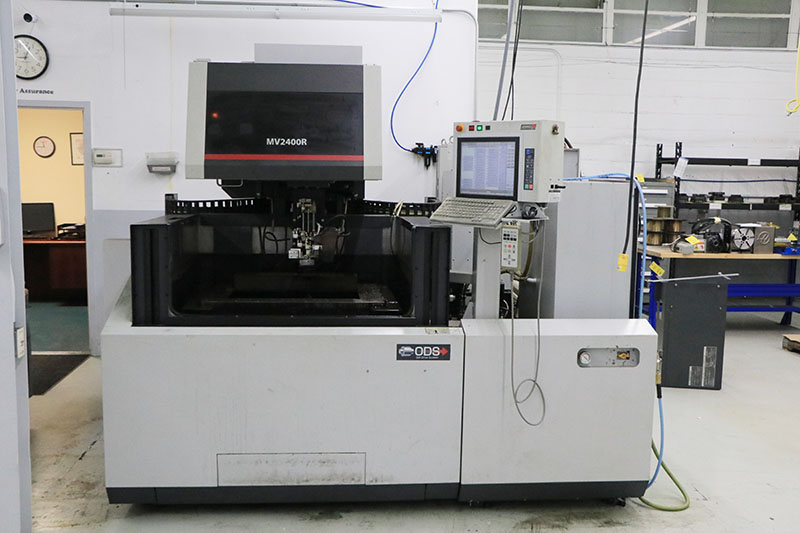

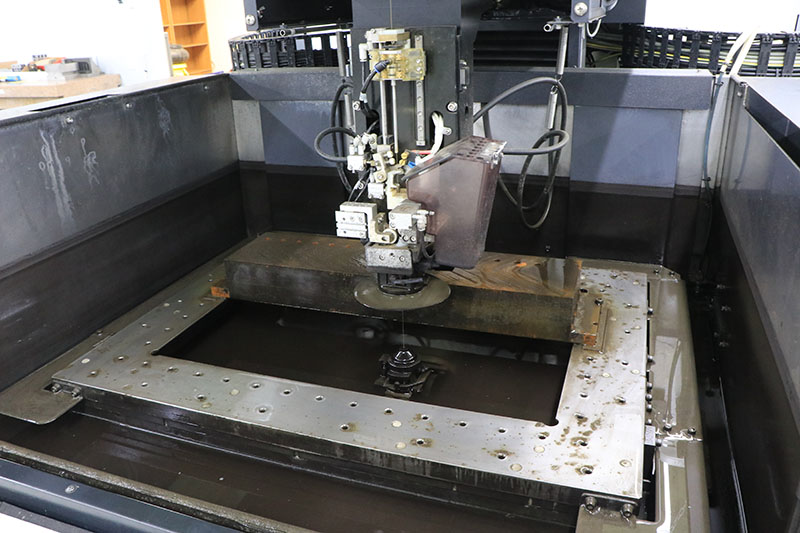

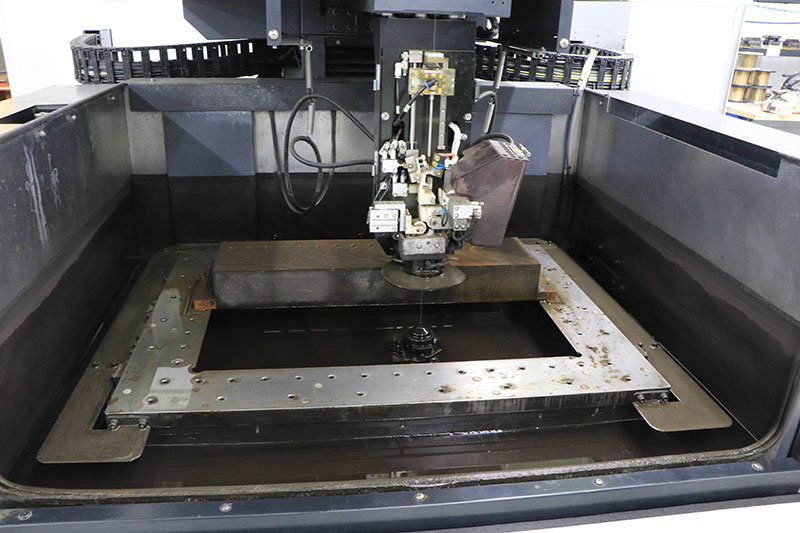

Mitsubishi MV-2400R CNC Wire EDM
4-AXIS (X/Y/UV) LINEAR SHAFT MOTORS

"REVOLUTIONARY SERIES" "HIGH-PERFORMANCE"
 (NOT THE "S" MODEL, "STANDARD")
 ... WITH MANY HIGH VALUE,
 HIGH PRODUCTIVITY FEATURES
 THIS SERIES IS A MORE ADVANCED,
 A MORE PRODUCTIVE MACHINE,
 THAN THE "S" SERIES.

MACHINING SPEED, CORNER ACCURACY,
 CIRCULAR ACCURACY, SECURITY, ENERGY SAVINGS,
 "ODS", AND SO MUCH MORE!

 New: 2012,
REFURBISHED MACHINE BY MITSUBISHI IN 2017

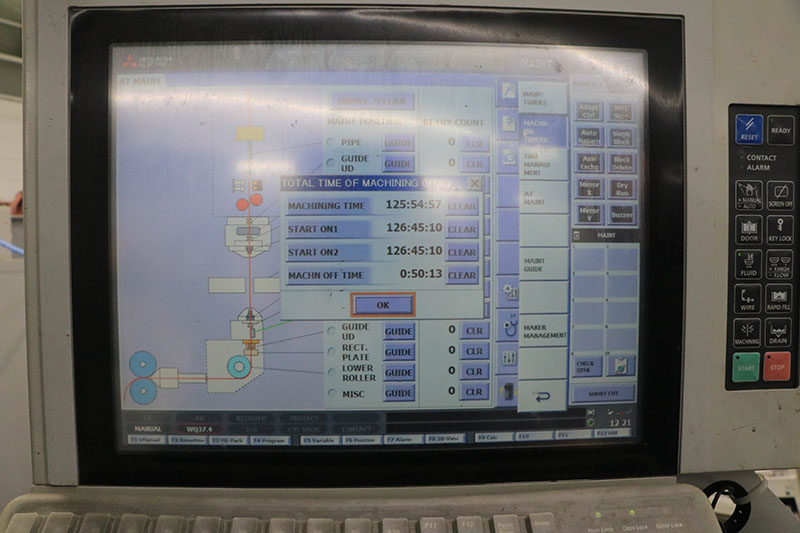

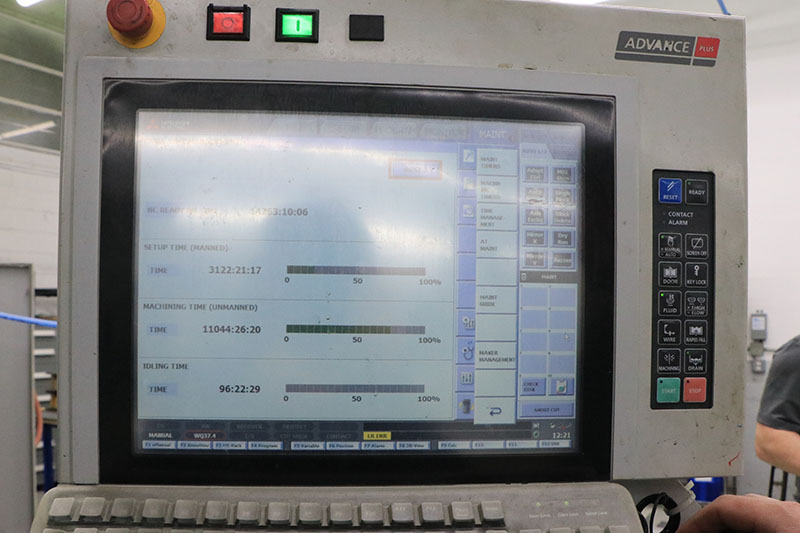

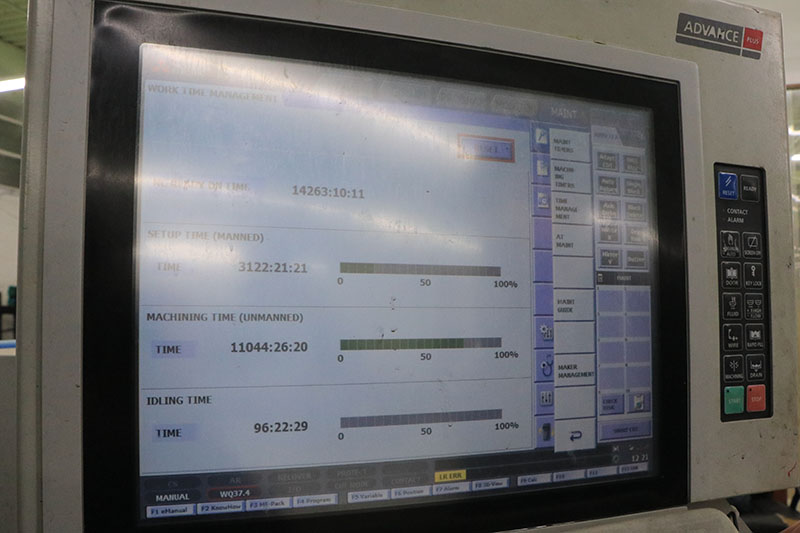

LOW HOURS WITH 11,044 MACHINING TIME



Specifications:

X:......................... 23.6"
Y:......................... 15.7"
Z:......................... 12.2"
Auto Threading (Yes/No:.... Yes
Dimensions:................ 105" W x 119.3" D x 84.6" H
Weight:.................... 7,716 lbs
Max Workpiece Dimensions:.. 41.3" x 32.3" x 12"
Max Workpiece Weight:...... 3,307 lbs
Table Dimensions:.......... 33" x 25.2" (4-Sided)
Machine Travels (XxYxZ):... 23.6" x 15.7" x 12.2"
Machine Travels (UxV):..... 2.9" x 2.9"
Max Taper Angle:........... 10.2"
Wire Diameter:............. 0.004" to 0.012"

Equipped with:

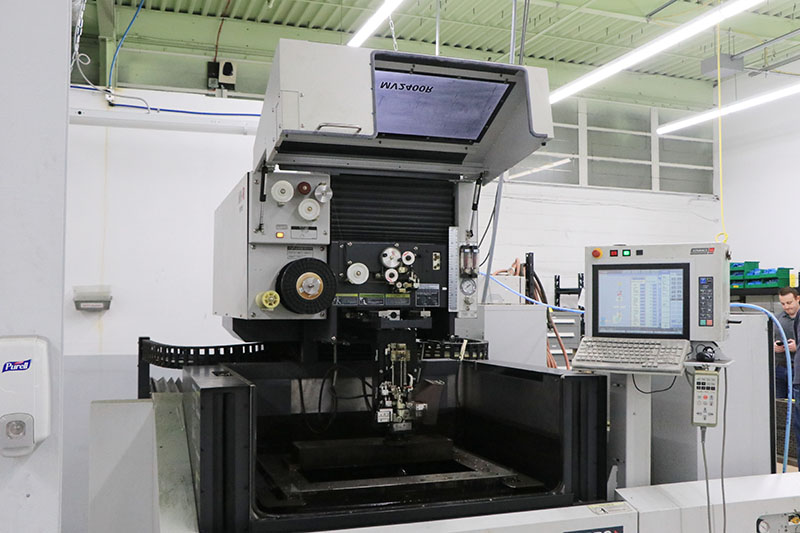

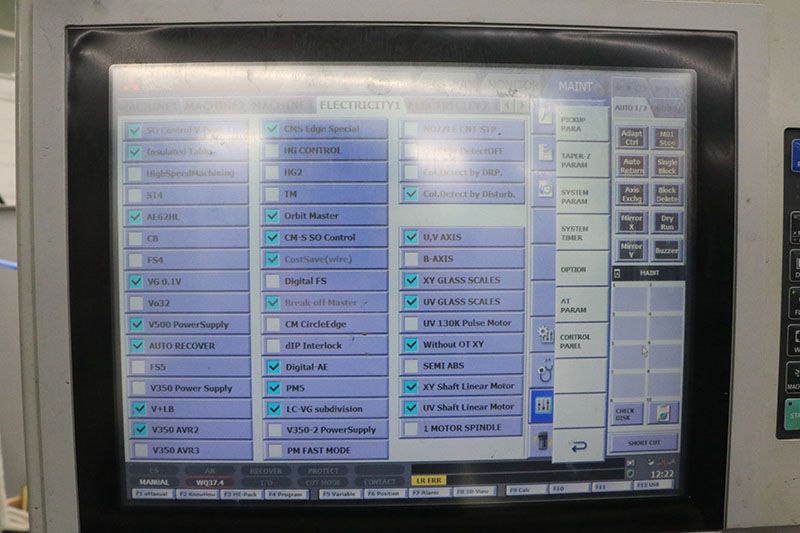

MITSUBISHI ADVANCE M700 PLUS CNC Control

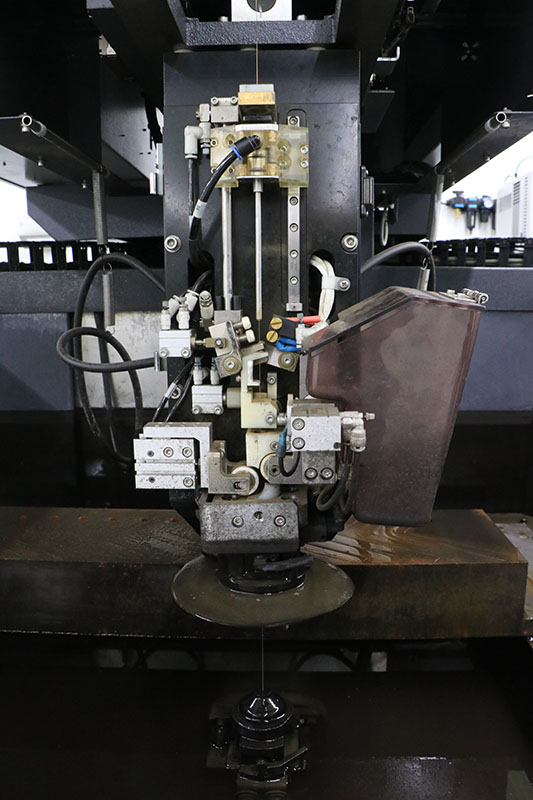

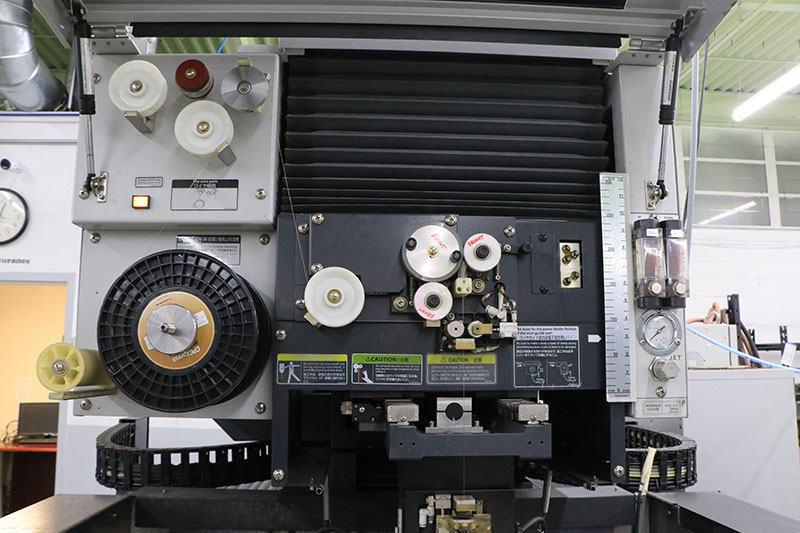

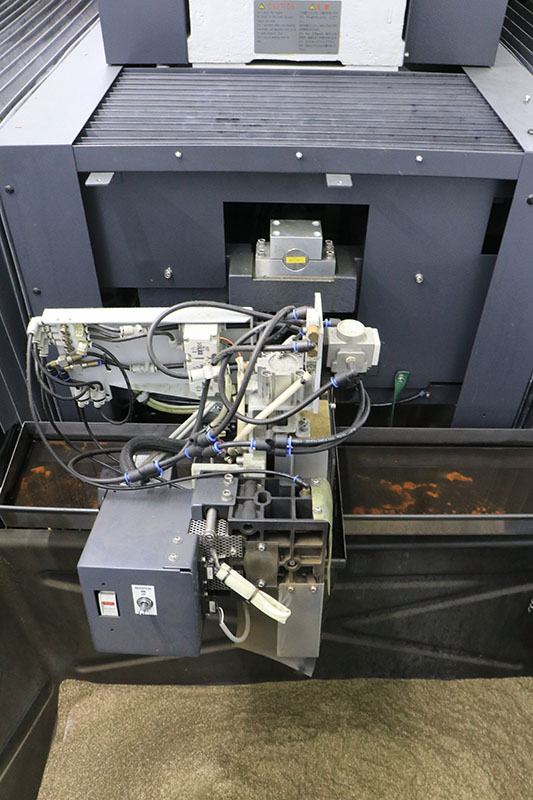

Automatic Wire Threading

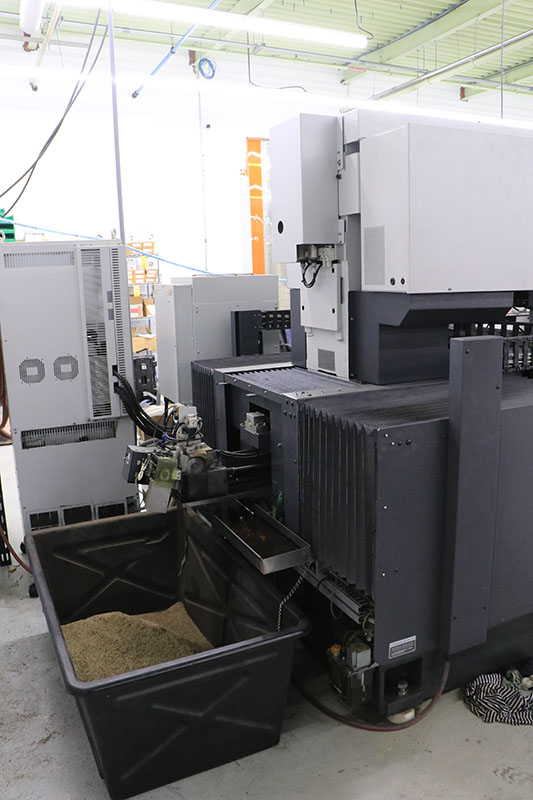

Wire Chopper

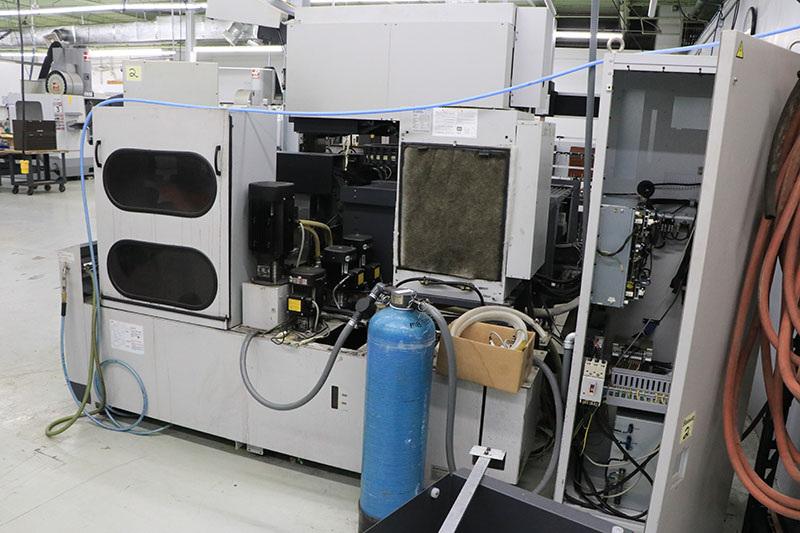

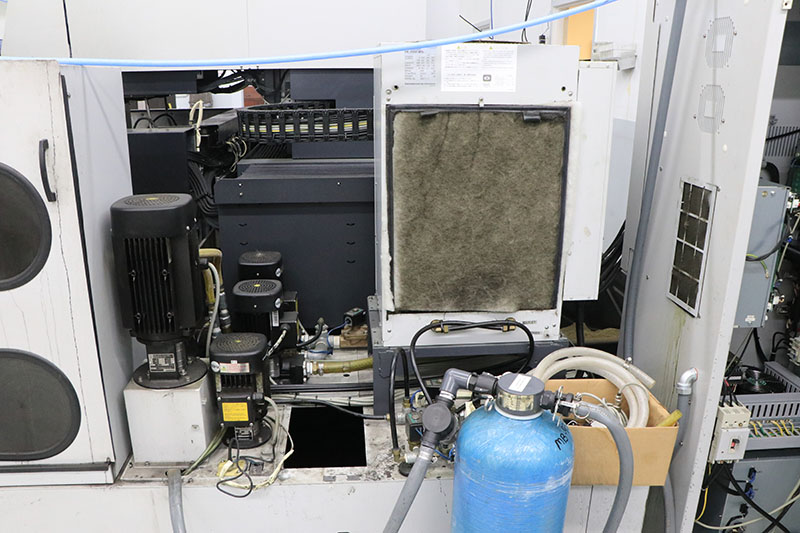

Chiller

Special Note:
Please see the following brochure, it is very detailed,
 our machine is the "Revolutionary Series", so much
 more is provided than a entry-level machine tool!

http://dl.mitsubishielectric.com/dl/fa/document/catalog/edm/k-kl2-2-c0088/K-KL2-2-C0088-C.pdf

Link to video: https://youtu.be/okYqM3m6qoM
