Birmingham BPS-1649 Belt Drive Head NEW VERTICAL MILLS

Price on Request

Make:: Birmingham

Model:: BPS-1649 Belt Drive Head

Year:: NEW

Ref #:: 139430

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

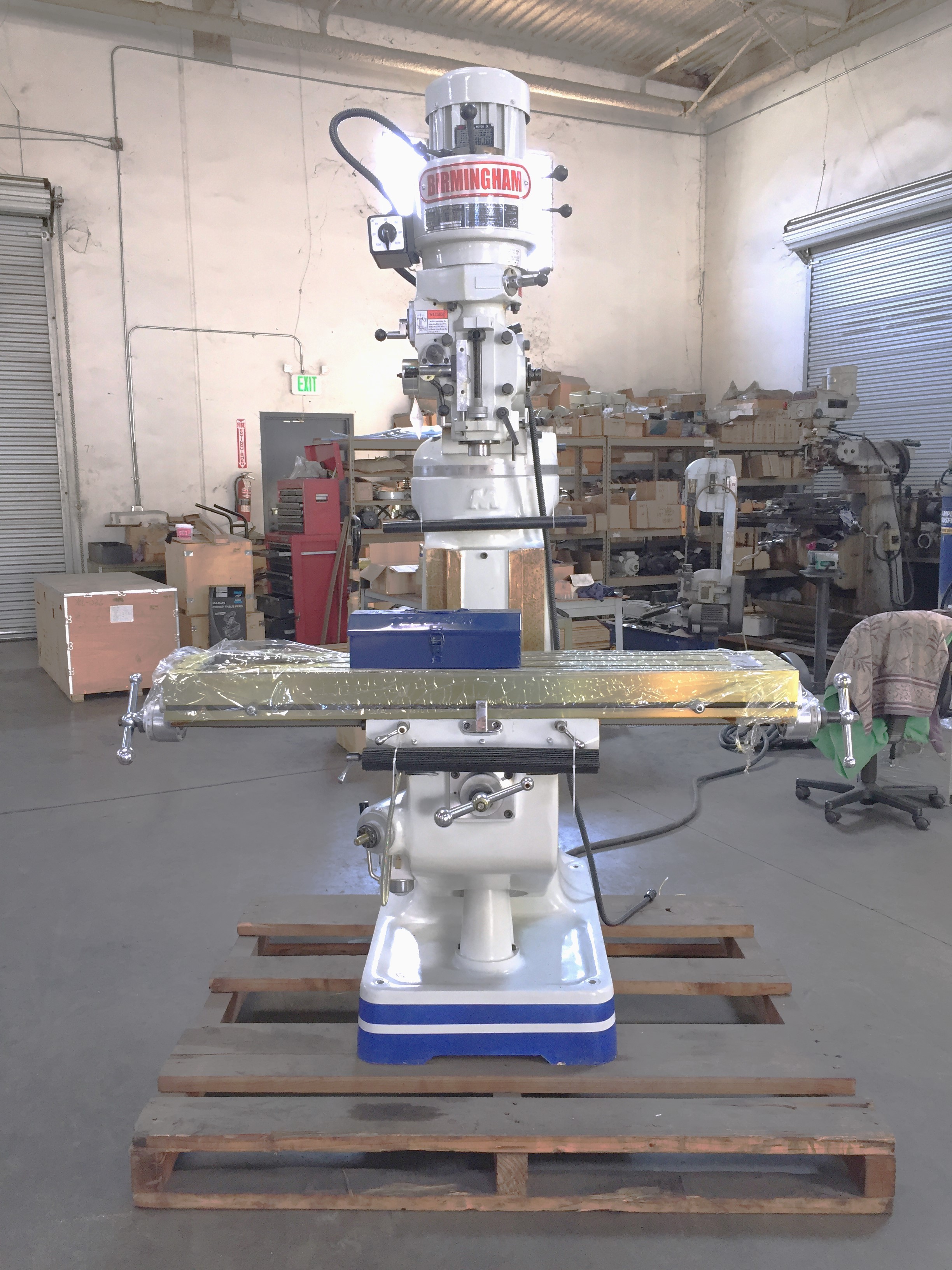

NEW BIRMINGHAM 9" X 49" VERTICAL MILLING MACHINE
MODEL: BPS-1649

SPECIFICATIONS:
TABLE SIZE: ........................... 9" X 49"
TABLE LOAD CAPACITY: .................. 600 LBS.
TABLE T-SLOT SIZE: .................... 5/8" X 3
LONGITUDINAL TRAVEL HAND ONLY: ........ 35-1/2"
LONGITUDINAL TRAVEL W/ POWER FEED: .... 33"
CROSS TRAVEL: ......................... 13-1/4"
VERTICAL TRAVEL: ...................... 16"
RAM TRAVEL: ........................... 12"
QUILL FEED SPEEDS: .................... 0.0015", 0.003", 0.006"/REV.
QUILL TRAVEL: ......................... 5"
SPINDLE TAPER: ........................ R8
QUILL DIAMETER: ....................... 3-3/8"
HEAD SWIVEL RH/LH: .................... 90 DEG / 90 DEG
HEAD TILTING F/B: ..................... 45 DEG / 45 DEG
RAM TURRET SWIVEL: .................... 360 DEGREES
SPINDLE SPEEDS TYPE: .................. STEP PULLEY
SPINDLE SPEEDS (RPM): ................. 90-5600 (16 SPEEDS)
NET WEIGHT: ........................... 2,500 LBS.
H X D X W: ............................ 86" X 68" X 67"

STANDARD FEATURES:
- HIGH QUALITY TAIWAN-MADE MILL HEAD
- HIGH PRECISION CHINA-MADE MILL BODY
- SUPER STRONG COLUMN AND BASE
- LOW MAINTENANCE MACHINES
- HIGH PRECISION LEADSCREWS
- SATIN CHROME FINISHED DIALS
- BUILT-IN COOLANT COLUMN BASE
- DOUBLE KNEE AND TABLE LOCKS
- RAM EQUIPPED W/ DOUBLE LOCKS
- LARGE DIAMETER QUILL IS CHROMED
- ONE-PIECE QUILL PINION AND SHAFT
- SPINDLE HEAD IS INTERNALLY COOLED
- HARDENED & GROUND WAYS
- HEAVY-DUTY 3HP MOTOR 3 PHASE
- HIGH PRECISION CLASS 7 SPINDLE BEARINGS
- THREE-STAGE POWER DOWNFEED W/ AUTO STOP
- ONE YEAR WARRANTY AND 2ND YEAR EXTENDED

STANDARD EQUIPMENT:
- TOOL BOX 1 SET
- FRONT CHIP GUARD 1 PC
- REAR CHIP GUARD 1 PC
- DRAW BAR 1 PC
- ONE SHOT LUBE

OPTIONAL EQUIPMENT:
- COOLANT SYSTEM
- POWER FEED FOR X,Y,Z
- HALOGEN WORKLIGHT
- ELECTRIC CONTROL BOX
- CUTTER HOLDER
- VISE
- CLAMPING KIT SET
- DIGITAL READOUT
- BASE COOLANT DROP PAN
- POWER AIR DRAW BAR UNIT
- NMTB #30 SPINDLE
