Clausing CNC 1440PT CNC LATHES, FLAT BED (ENGINE LATHE STYLE)

$24,500

Make:: Clausing

Model:: CNC 1440PT

Year:: 2021

Ref #:: 177810

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

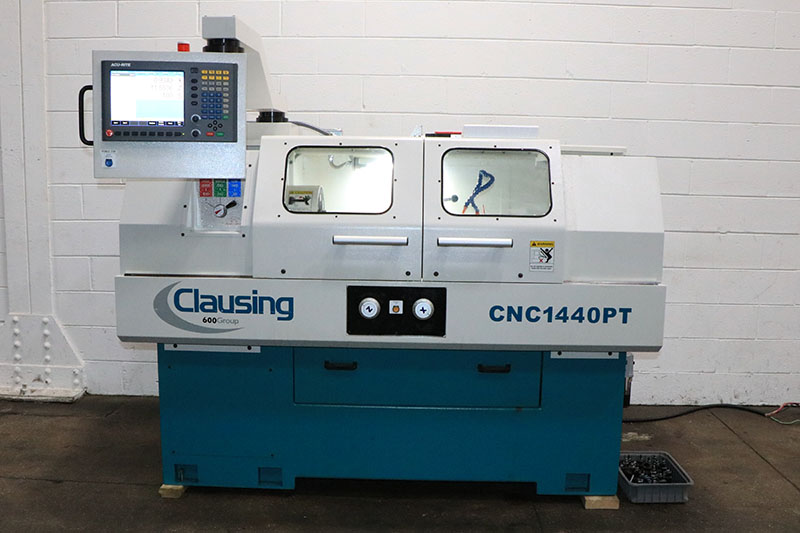

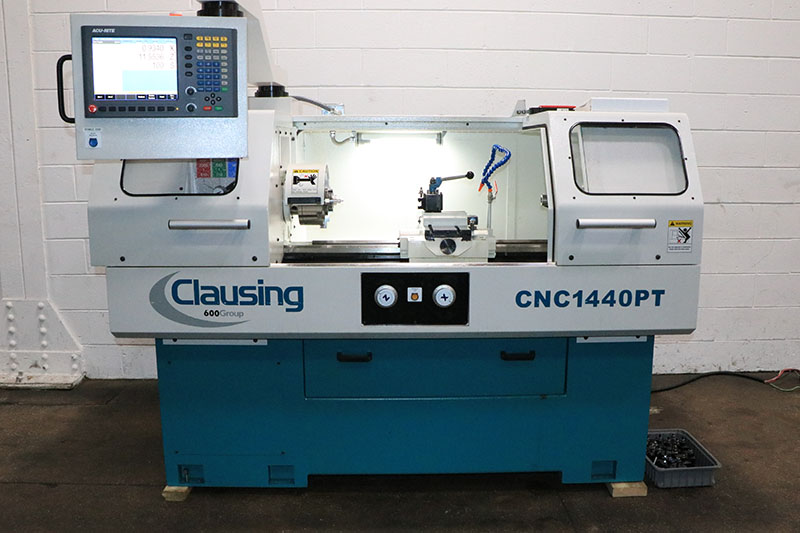

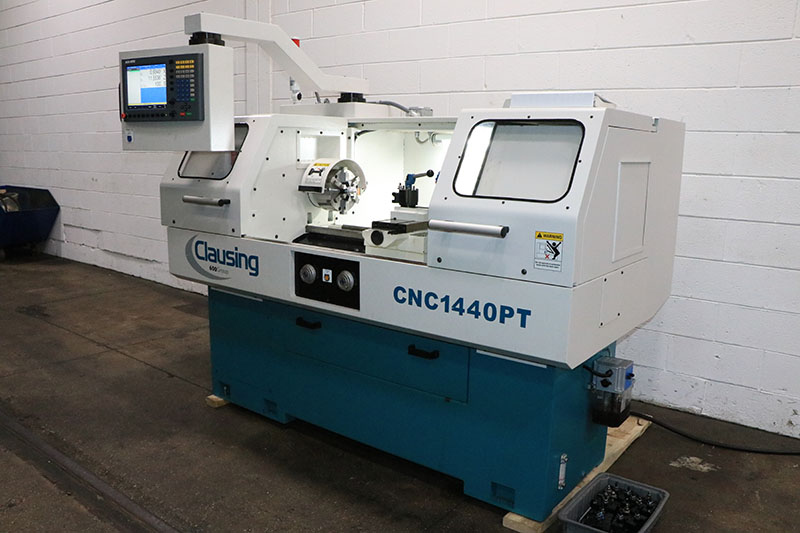

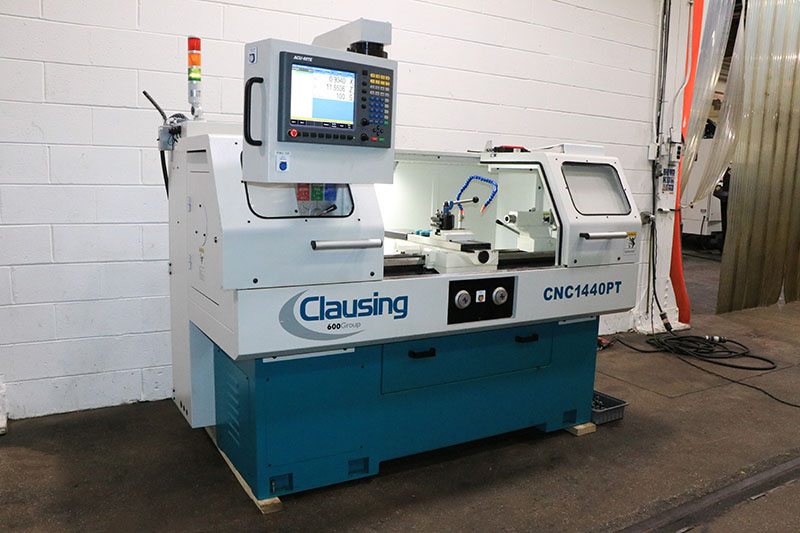

14" X 40" CLAUSING CNC TEACH LATHE
MODEL: CNC 1440PT, NEW: 2021

SPECIFICATIONS:
SWING OVER BED ........................ 14"
SWING OVER CROSS SLIDE ................ 6.7"
HEIGHT OF CENTER ...................... 6.8"
DISTANCE BETWEEN CENTERS .............. 40"
CROSS SLIDE WIDTH ..................... 6.625”

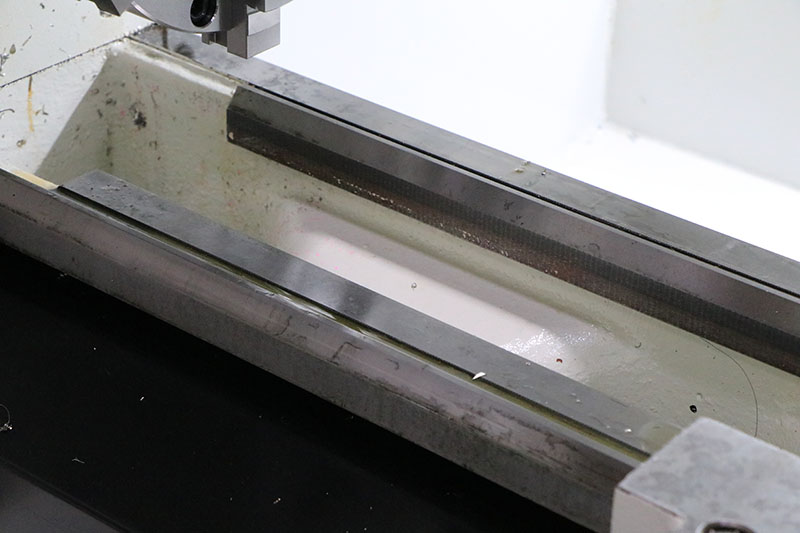

BED WIDTH & DEPTH ..................... 8.5" x 10"
SPINDLE NOSE CAMLOCK .................. D1-4
SPINDLE BORE .......................... 1.5"

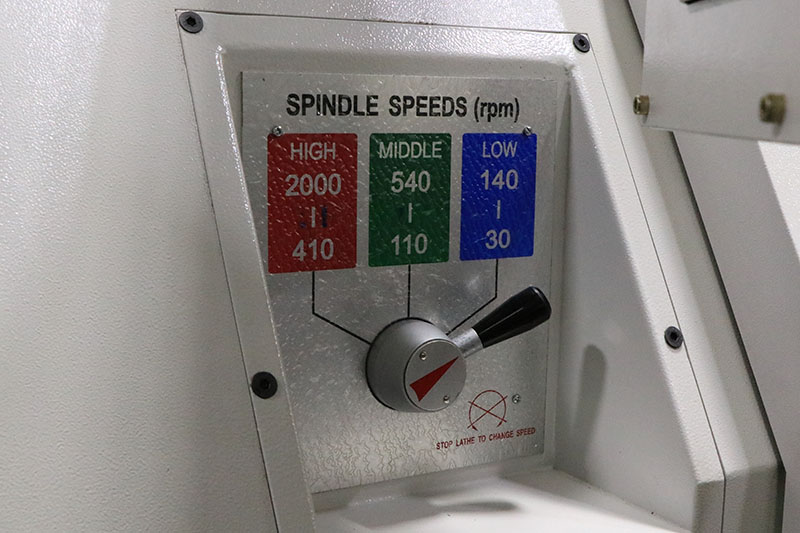

SPINDLE SPEEDS INFINITELY VARIABLE 3 RANGES
  - LOW RANGE ......................... 30 - 140 RPM
  - MEDIUM RANGE ...................... 110 - 540 RPM
  - HIGH RANGE ........................ 410 - 2000 RPM
SPINDLE TAPER ......................... #5MT
SPINDLE MOTOR ......................... 5 HP
MIN SPINDLE SPEED FOR FULL POWER ...... 70 RPM
AXES X-AXIS RAPID TRAVERSE ............ 100 IPM
Z-AXIS RAPID TRAVERSE ................. 100 IPM
X, Z SERVO MOTOR ...................... 1.6 HP

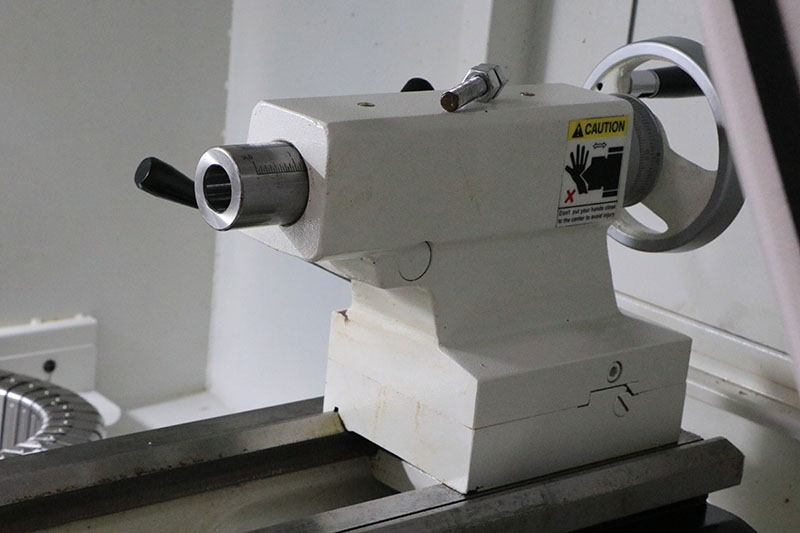

TAILSTOCK TAILSTOCK QUILL DIAMETER .... 1.75"
TAILSTOCK QUILL TAPER ................. 3MT
TAILSTOCK QUILL STROKE ................ 4.75"
FLOOR DIMENSIONS ...................... 81.5" X 53.5" X 66.3"
APPROXIMATE MACHINE WEIGHT ............ 2,750 LBS.

EQUIPPED WITH:

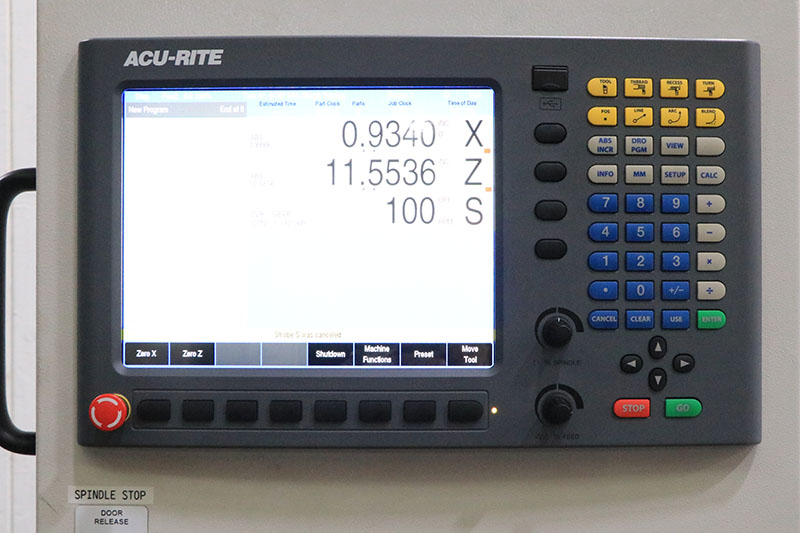

ACU-RITE TURN POWER CONTROL
THE TURNPWR IS A CONTOURING CONTROL THAT ENABLES YOU TO
PROGRAM CONVENTIONAL
MACHINING OPERATIONS RIGHT AT THE MACHINE IN AN EASY-TO-USE CONVERSATIONAL LANGUAGE.
12.1” COLOR LED DISPLAY, 1.4 GHZ DUAL CORE CELERON PROCESSOR, 2.5GB CFAST (SATS)
USER INTERNAL STORAGE.

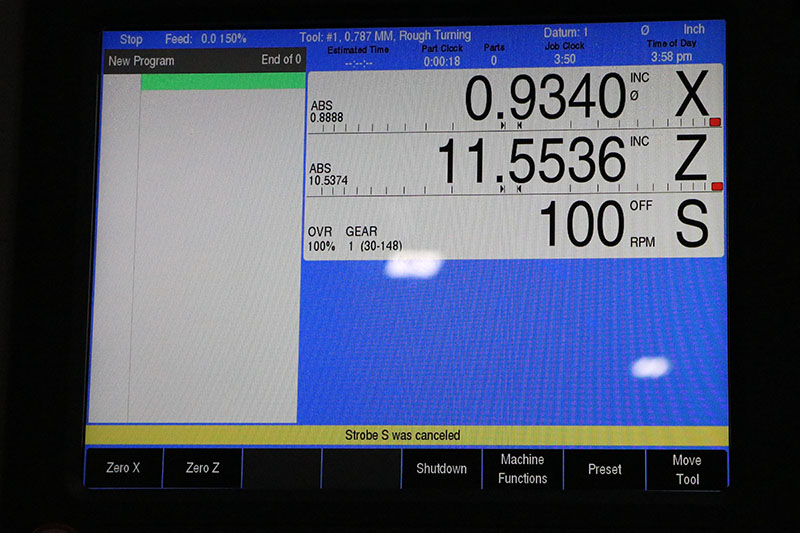

DRO MODE
• MULTIPLE DATUMS (FIXTURE OFFSET):99
• ZERO RESET
• NEAR ZERO WARNING

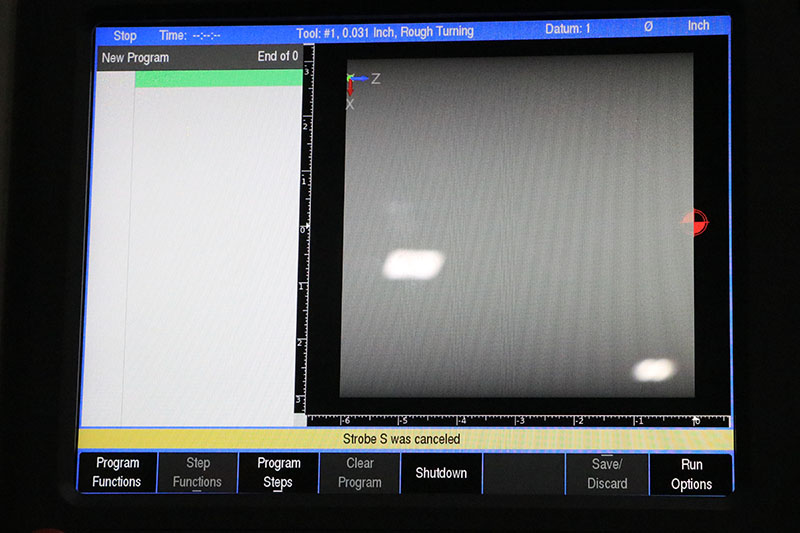

PGM MODE
• THREAD CYCLES, RECESS CYCLES,
TURNING CYCLES
• POSITION/DRILL, LINE, ARC, BLEND
(BLEND/CHAMFER)
• ESTIMATED MACHINING TIME
• VIEW GRAPHICS: 2DLINE / 3D LINE /
3D SOLID
• BLOCK FORM W/USER OVERIDE
• REPLICATION (REPEAT)
• COMMENT STEP – EVENT COMMENTS
• PROGRAM MANAGER NAVIGATION TREE
W/PROGRAM TYPE FILTER
• LONG PROGRAM NAMES
• PROGRAM PREVIEW: LISTING AND
GRAPHIC W/ESTIMATED MACHINE TIME
• EXPLODE STEP: REPEAT
• REVERSE (STEP / PATH)
• SHIFT STEPS
• AUTO SAVE (PROGRAM)
• PROGRAM SIZE LIMIT (TPT ONLY):9999
STEPS
• DXF FILE IMPORT
• G-CODE PROGRAM: W/GRAPHICS
SUPPORT / SIMPLE EDIT
• ON SCREEN HELP: USER MANUAL
VIEWER (TEXT AND GRAPHICS)
• PARTS COUNTER AND CLOCK
• OPTIONAL STOP (G-CODE ONLY)
• FEED OVERRIDE BY POTENTIOMETER
• ERROR COMPENSATION: LINEAR AND
BIDIRECTIONAL NON-LINEAR
• COMMUNICATION PORTS – (2) USB AND
ETHERNET
* COOLANT SYSTEM

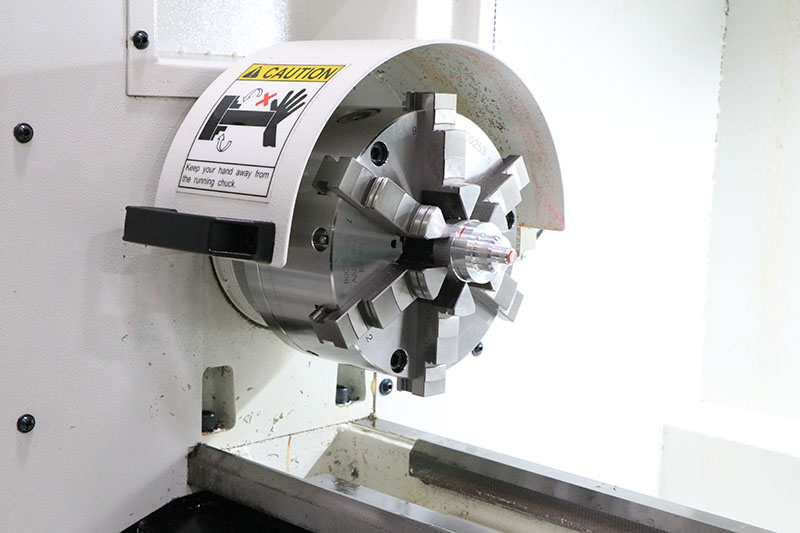

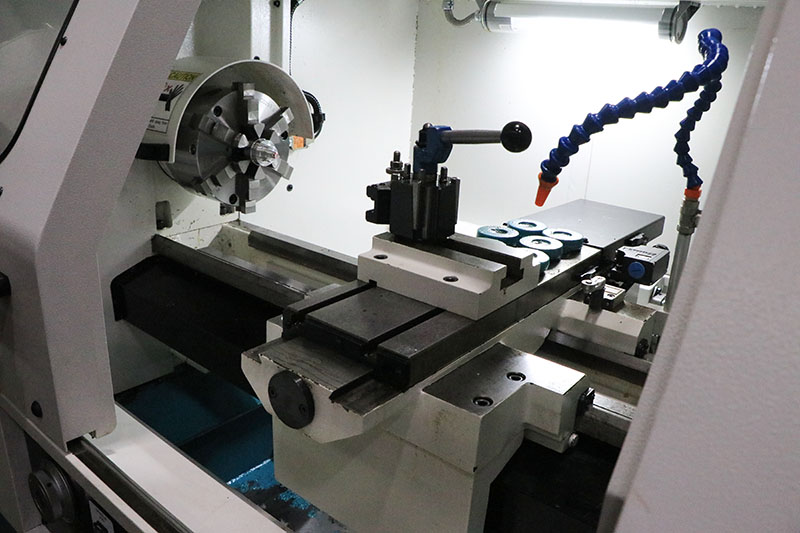

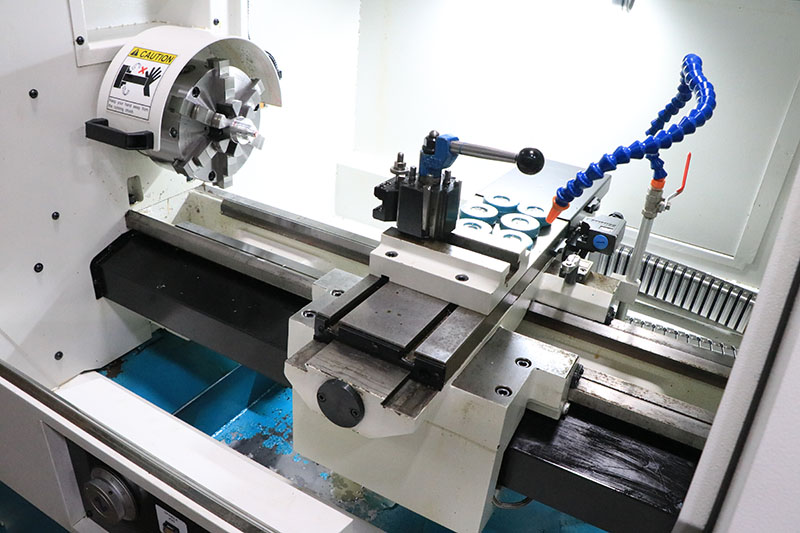

* 6-JAW BUCK CHUCK

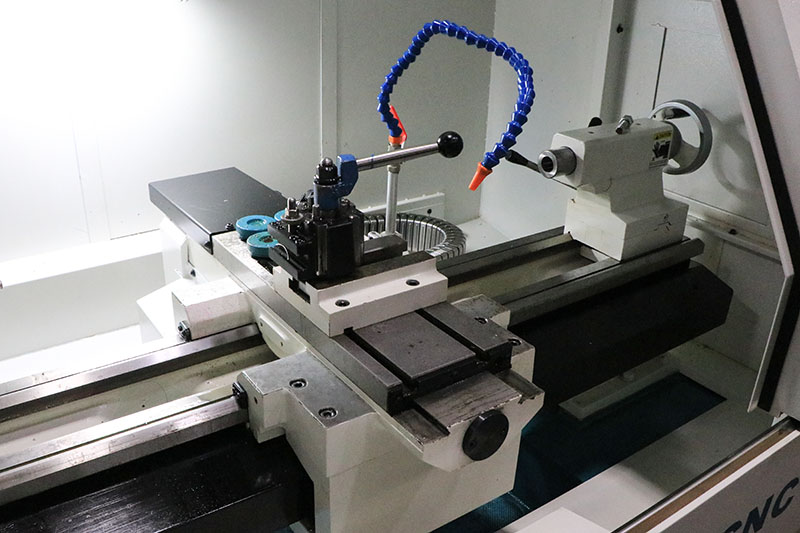

* ALORIS QUICK CHANGE TOOLPOST w/HOLDERS
* 5 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:   ****  LIKE NEW  ****
