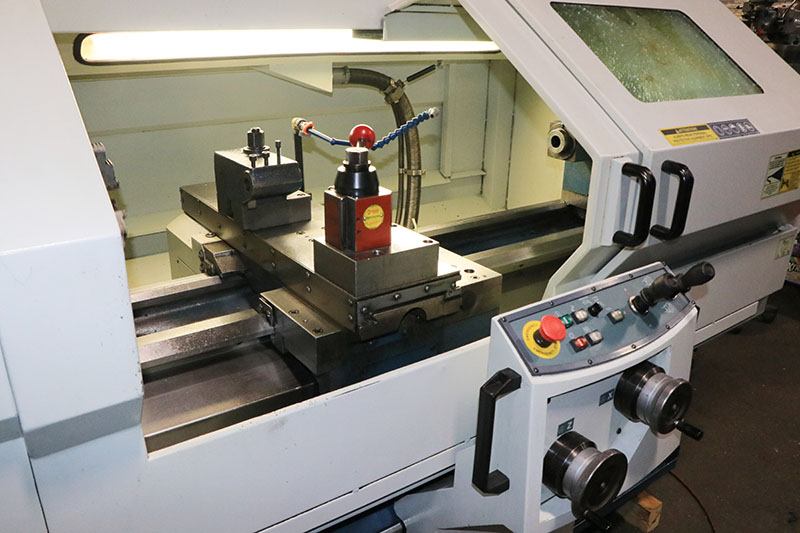

Romi C420 CNC LATHES, FLAT BED (ENGINE LATHE STYLE)

$29,500

Make:: Romi

Model:: C420

Year:: 2010

Ref #:: 163816

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

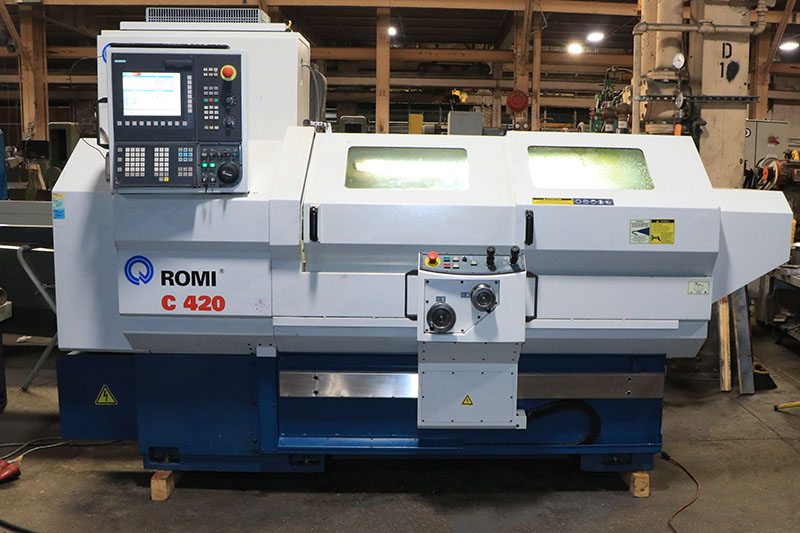

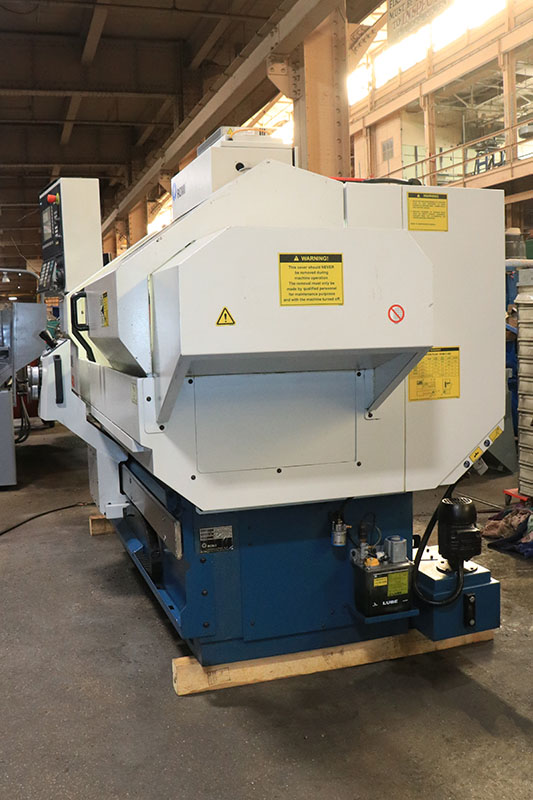

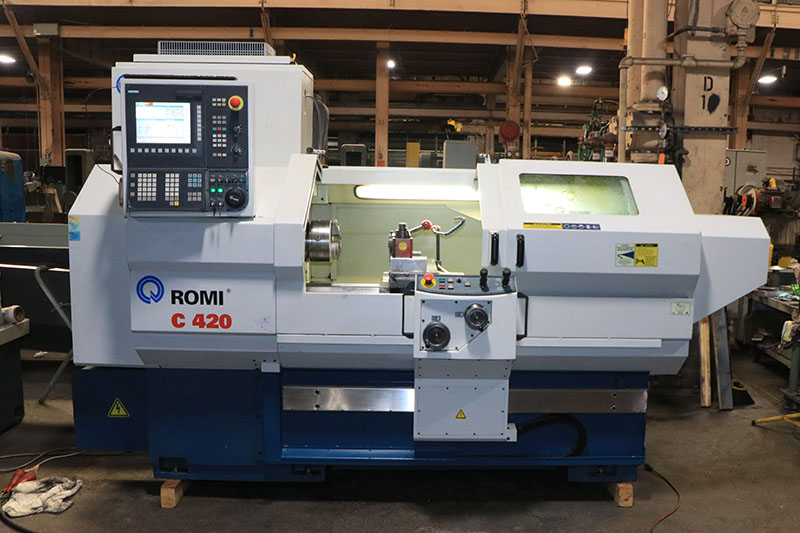

17" X 40" ROMI CNC COMBINATION LATHE

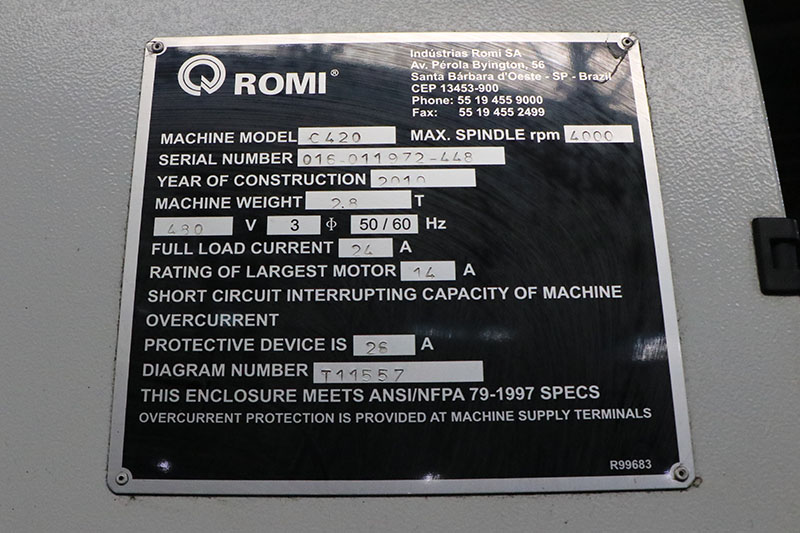

MODEL: C420,  S/N: 016-011972-448,  NEW: 2010

SPECIFICATIONS:
DISTANCE BETWEEN CENTERS..................... 43.46"
SWING OVER BED............................... 16.92"
SWING OVER CROSS SLIDE....................... 7.87"
CROSS SLIDE (X) TRAVEL....................... 8.66"
BED WIDTH.................................... 12.00"
BED HEIGHT................................... 13.77"
SPINDLE NOSE................................. A2-5 ASA
HOLE THROUGH SPINDLE......................... 2.08"
RANGE OF SPINDLE SPEEDS (INF VARIABLE)....... 4 - 4000 RPM
RAPID TRAVERSE (Z)........................... 393.70 IPM
RAPID TRAVERSE (X)........................... 393.70 IPM

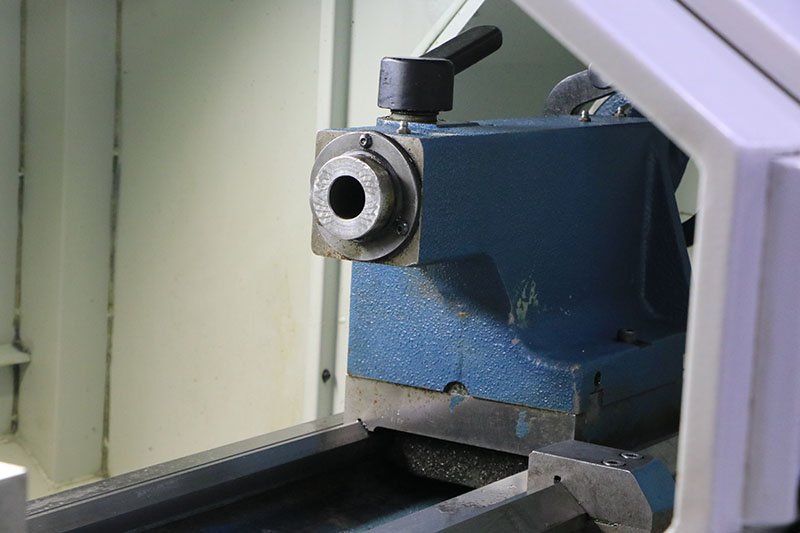

TAILSOCK QUILL TRAVEL........................ 4.72"
QUILL DIAMETER............................... 2.36"
QUILL TAPER HOLE............................. 4MT
MAIN MOTOR................................... 10 HP
APPROXIMATE FLOOR SPACE ..................... 122" x 50"
APPROXIMATE WEIGHT .......................... 5,500 LBS

EQUIPPED WITH:

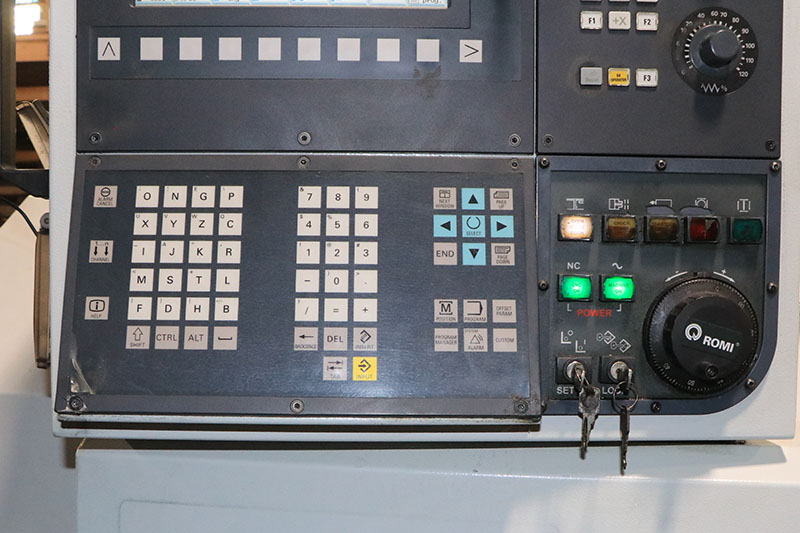

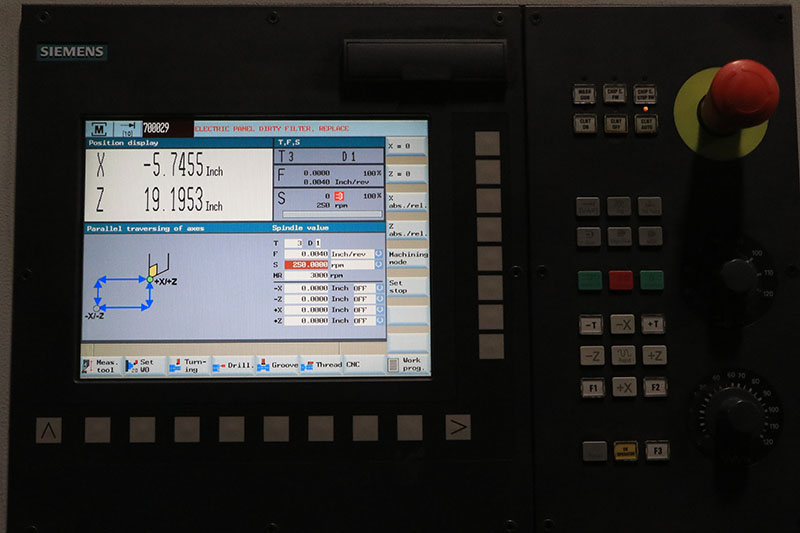

  - SIEMENS 802D CONTROL w/MANUAL GUIDANCE SOFTWARE, TOOL
  PATH& 3D PART SHAPE GRAPHICS, TEACH MODE, CONVERSATIONAL
  PROGRAMMING, G CODE PROGRAMMING, BUILT-IN DRO
  - 10 HP VARIABLE SPEED SPINDLE DRIVE
  - TURN PARTS MANUALLY OR AUTOMATICALLY

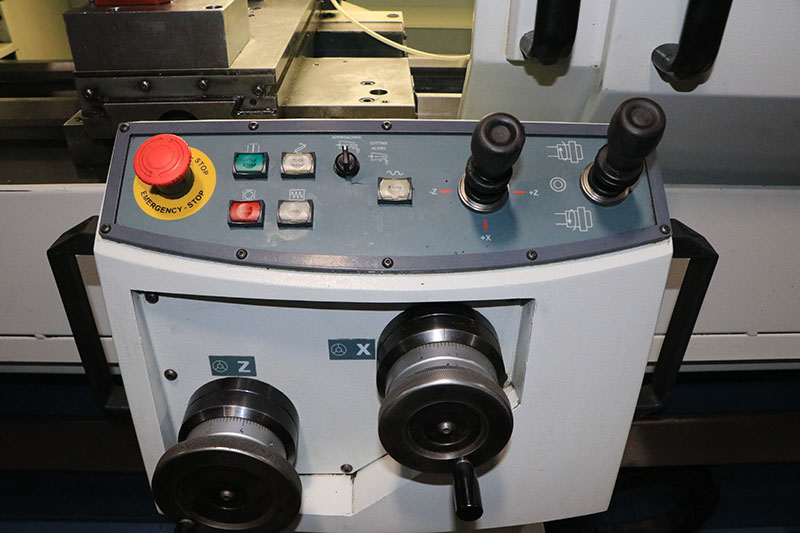

  - DUAL ELECTRONIC HANDWHEEL CONTROLS
  - "TEACH" 1ST PART, RUN REMAINING PARTS AUTOMATICALLY
  - USB PORT<, FLASH MEMORY CARD SLOT & RS 232 PORT
  - 10.4" COLOR LCD DISPLAY

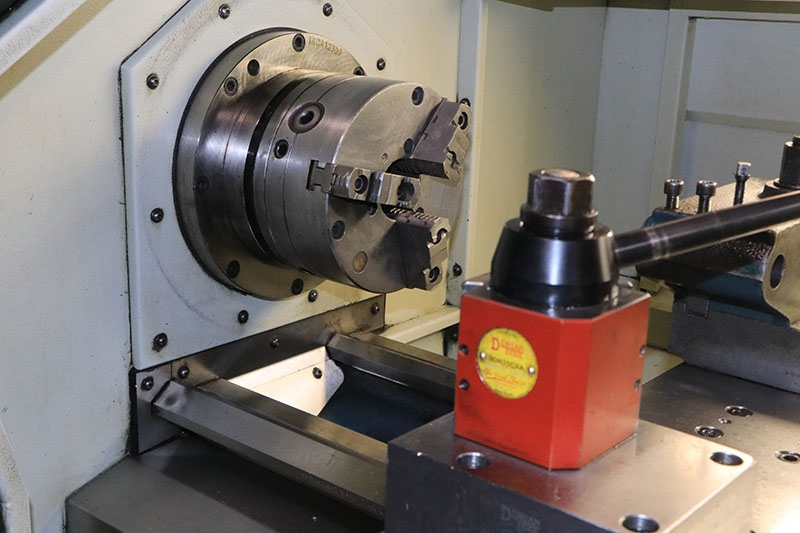

  - 8" 3-JAW CHUCK
  - RIGID TAPPING
  - CONSTANT SURFACE SPEED
  - INCH/METRIC CONVERSION
  - MULTI-START THREADING, THREAD REPAIR

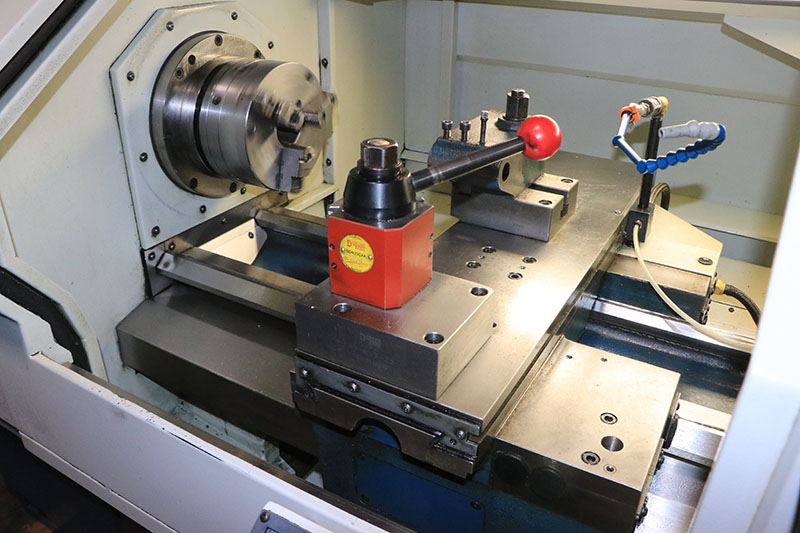

  - DORIAN MODEL: CXA QUICK CHANGE TOOLPOST
  - BORING BAR HOLDER
  - COOLANT SYSTEM

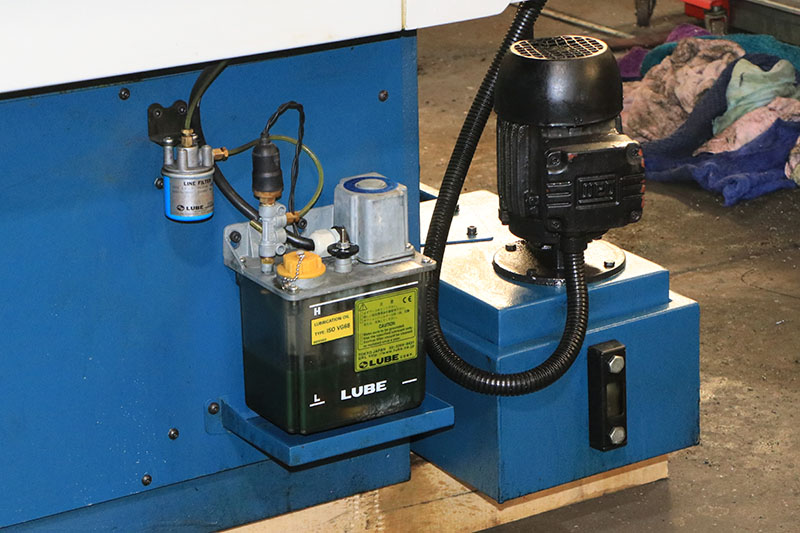

  - AUTOMATIC LUBRICATION SYSTEM

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
