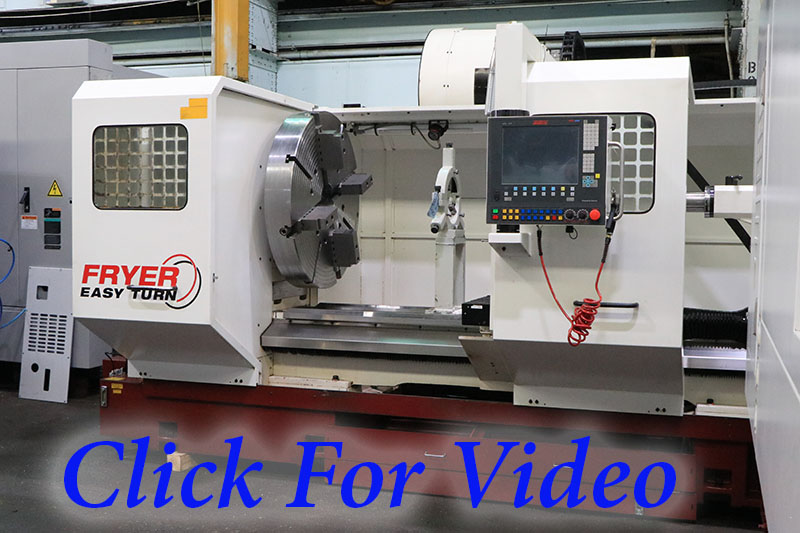

Watch Video:

Fryer ET-40 CNC LATHES, FLAT BED (ENGINE LATHE STYLE)

Price on Request

Make:: Fryer

Model:: ET-40

Year:: 2019

Ref #:: 164378

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

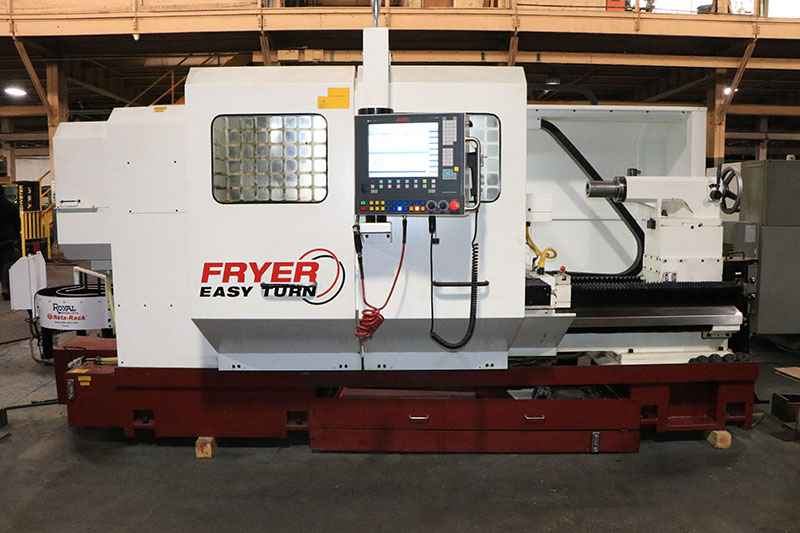

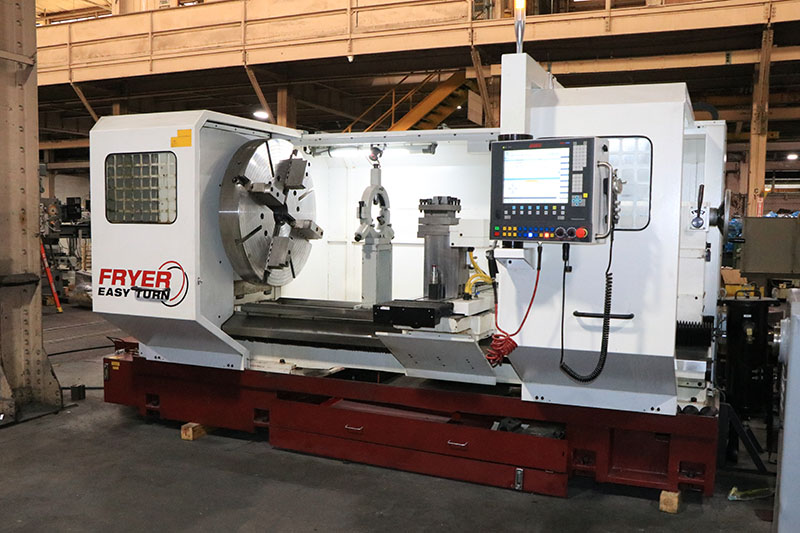

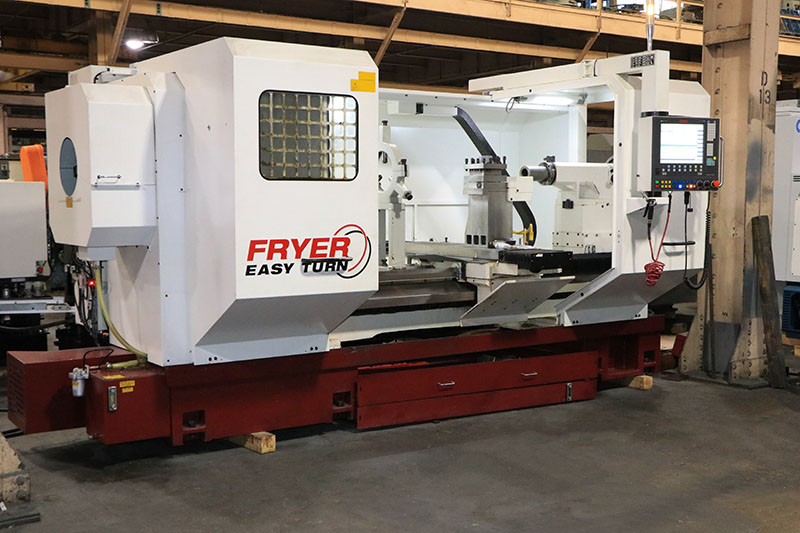

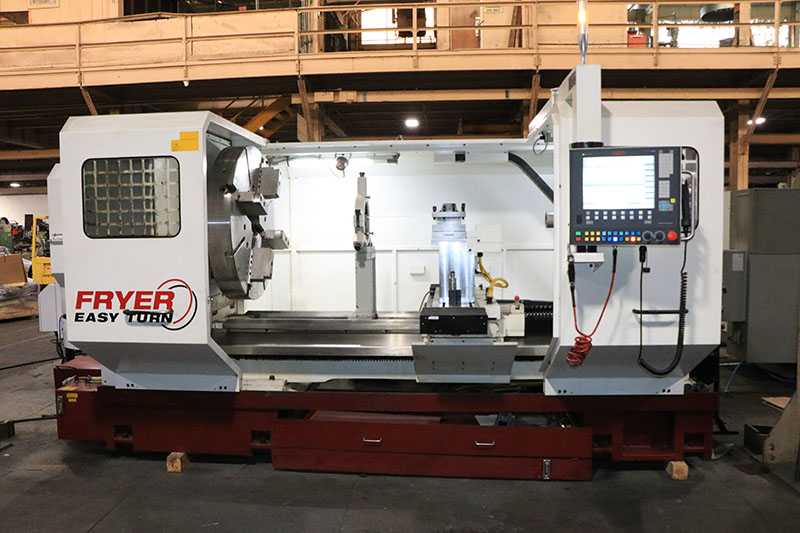

40" x 80" FRYER EASY TURN CNC LATHE

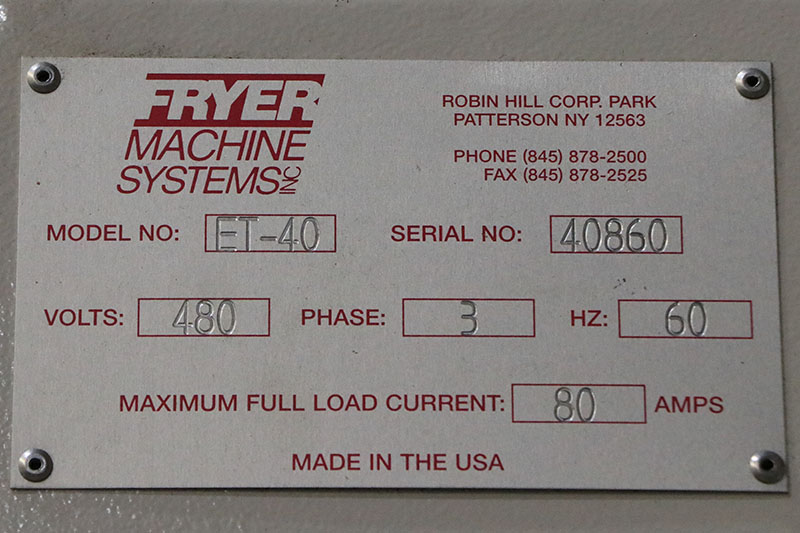

MODEL: ET - 40,  S/N: 40860,  NEW: 2019
WITH TOUCH 2200 CNC GRAPHIC CONVERSATIONAL CONTROL

SPECIFICATIONS:
SWING OVER BED ............................ 40" SWING
SWING OVER CROSS-SLIDE .................... 28"
DISTANCE BETWEEN CENTERS .................. 80"
CROSS SLIDE TRAVEL ........................ 18"
BED WIDTH ................................. 19"
SPINDLE NOSE (CAMLOCK) .................... A2-11
SPINDLE THROUGH HOLE ...................... 6.15"
INFINITELY VARIABLE THRU 4-SPEED AUTO SHIFT HEADSTOCK
SPINDLE SPEED RANGE ........................ 10 - 1,000 RPM
TAILSTOCK:
QUILL TRAVEL ............................... 8"
QUILL DIAMETER ............................. 4.1"
QUILL TAPER HOLE ........................... #6 MORSE TAPER
MACHINE DIMENSIONS ......................... 175"L X  82"W X 78"H
APPROXIMATE WEIGHT ......................... 16,500 LBS

EQUIPPED WITH:

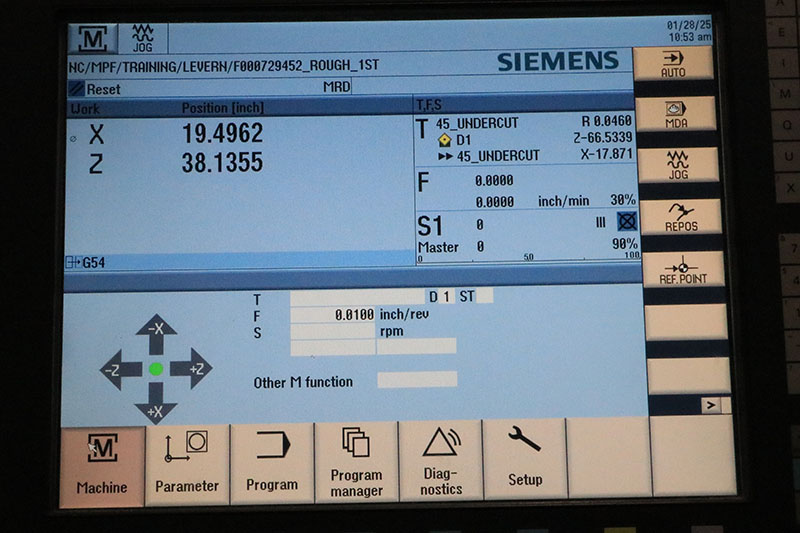

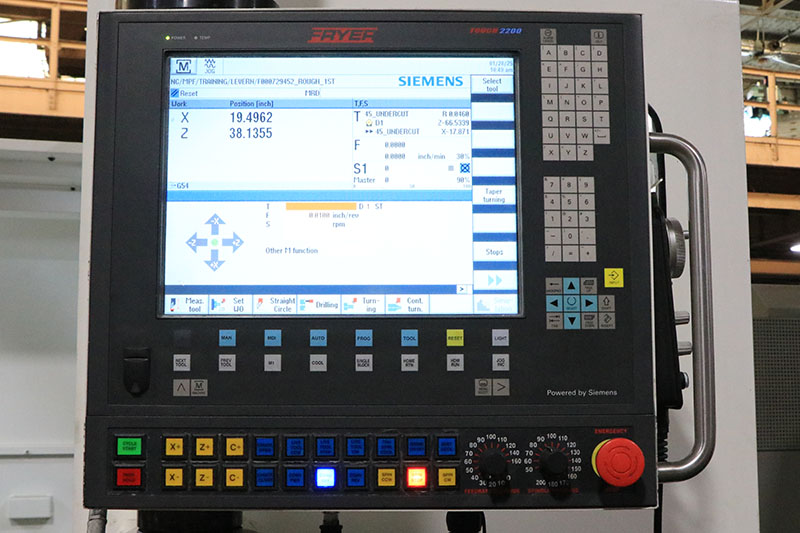

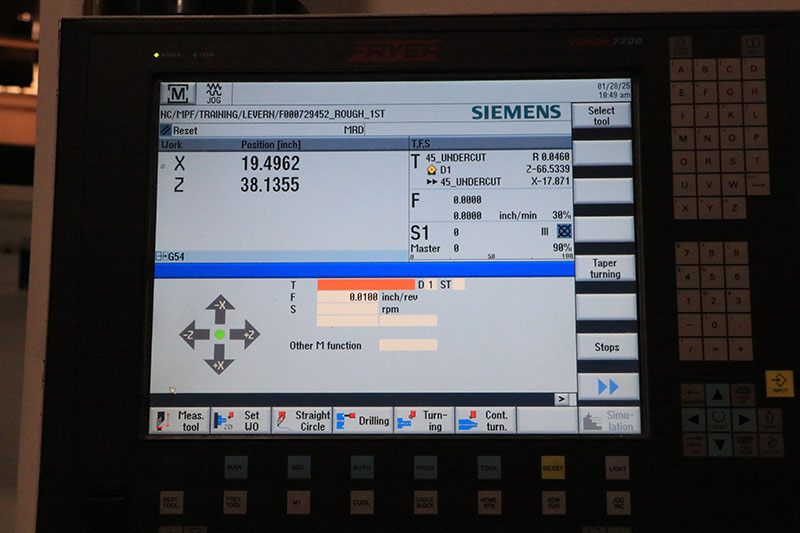

FRYER-SIEMENS MODEL: TOUCH 2200 CNC CONTROL WITH CONVERSATIONAL GRAPHICS
C AXIS CONTOURING & INDEXING SPINDLE
6" BIG BORE OPTION

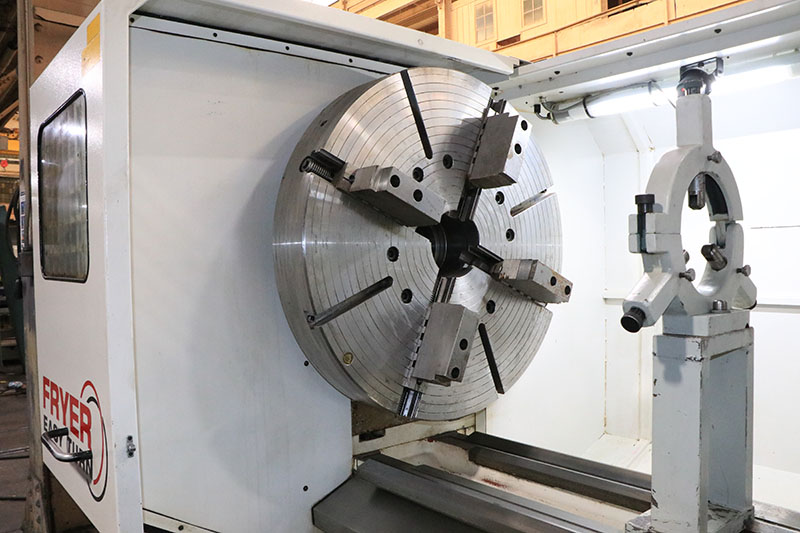

40" 4-JAW FRONT CHUCK
20" 3-JAW REAR CHUCK

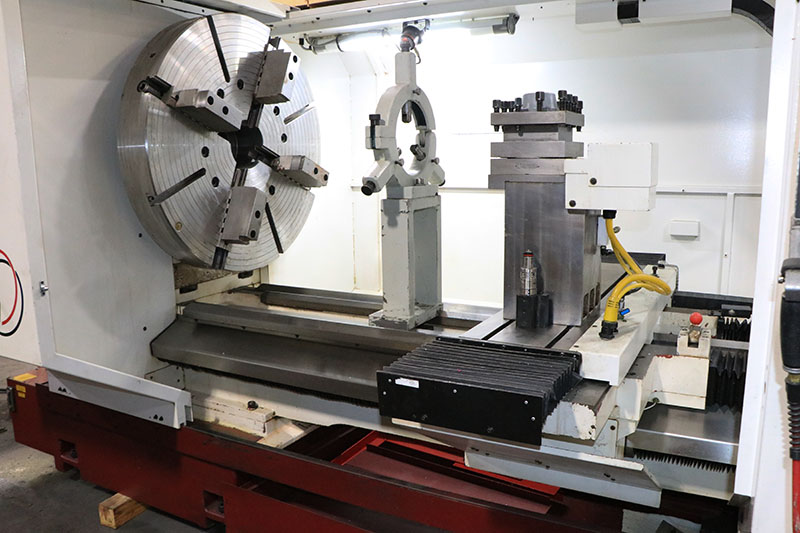

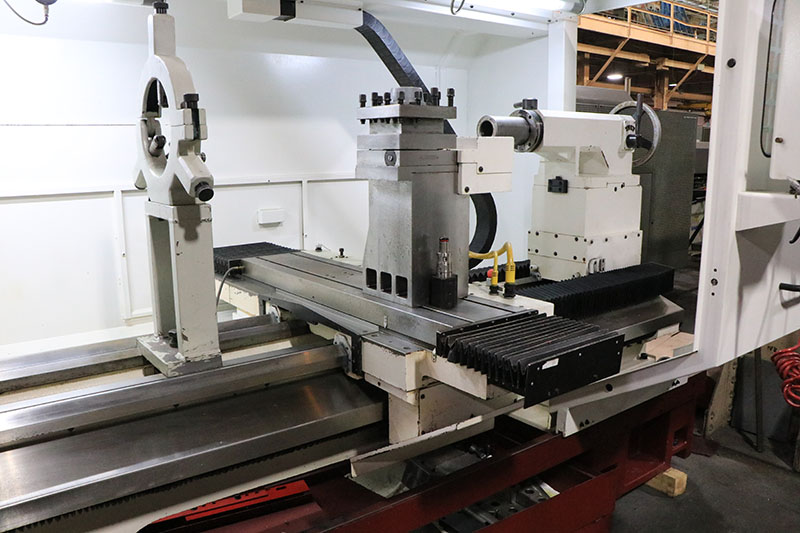

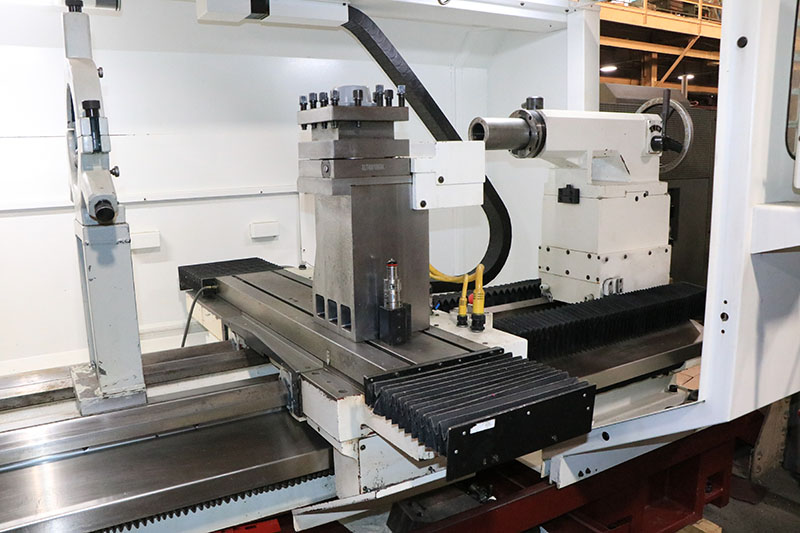

FOUR POSITION PROGRAMMABLE TURRET
DUMORE OD GRINDING SPINDLE w/DRESSER FIXTURE ABOVE SPINDLE
STEADY REST

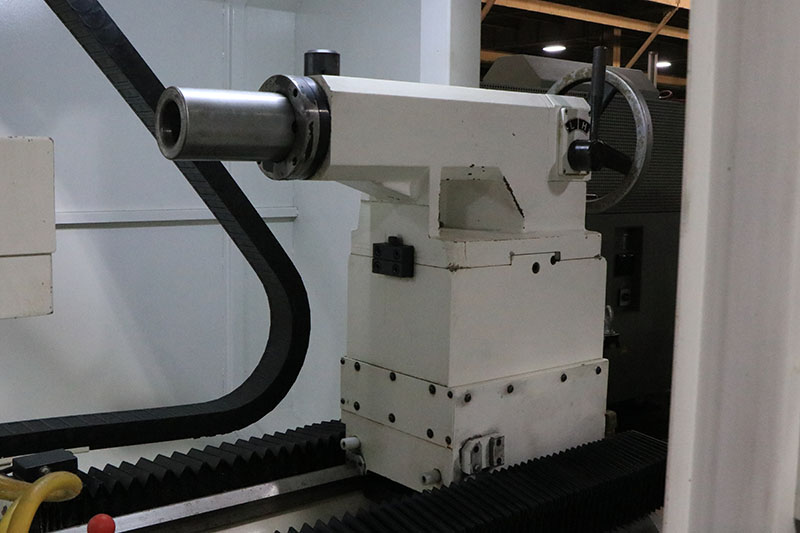

TWO SPEED MANUAL TAILSTOCK
FLOOD COOLANT SYSTEM W/ SLIDING FRONT GUARDS AND REAR COOLANT SPLASH GUARD
SET OF MANUALS FOR MACHINE AND PROGRAMMING
30 HORSEPOWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
