Daewoo Puma 8S CNC TURNING CENTERS - CNC LATHES

$9,500

Make:: Daewoo

Model:: Puma 8S

Year:: 1996

Ref #:: 177743

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

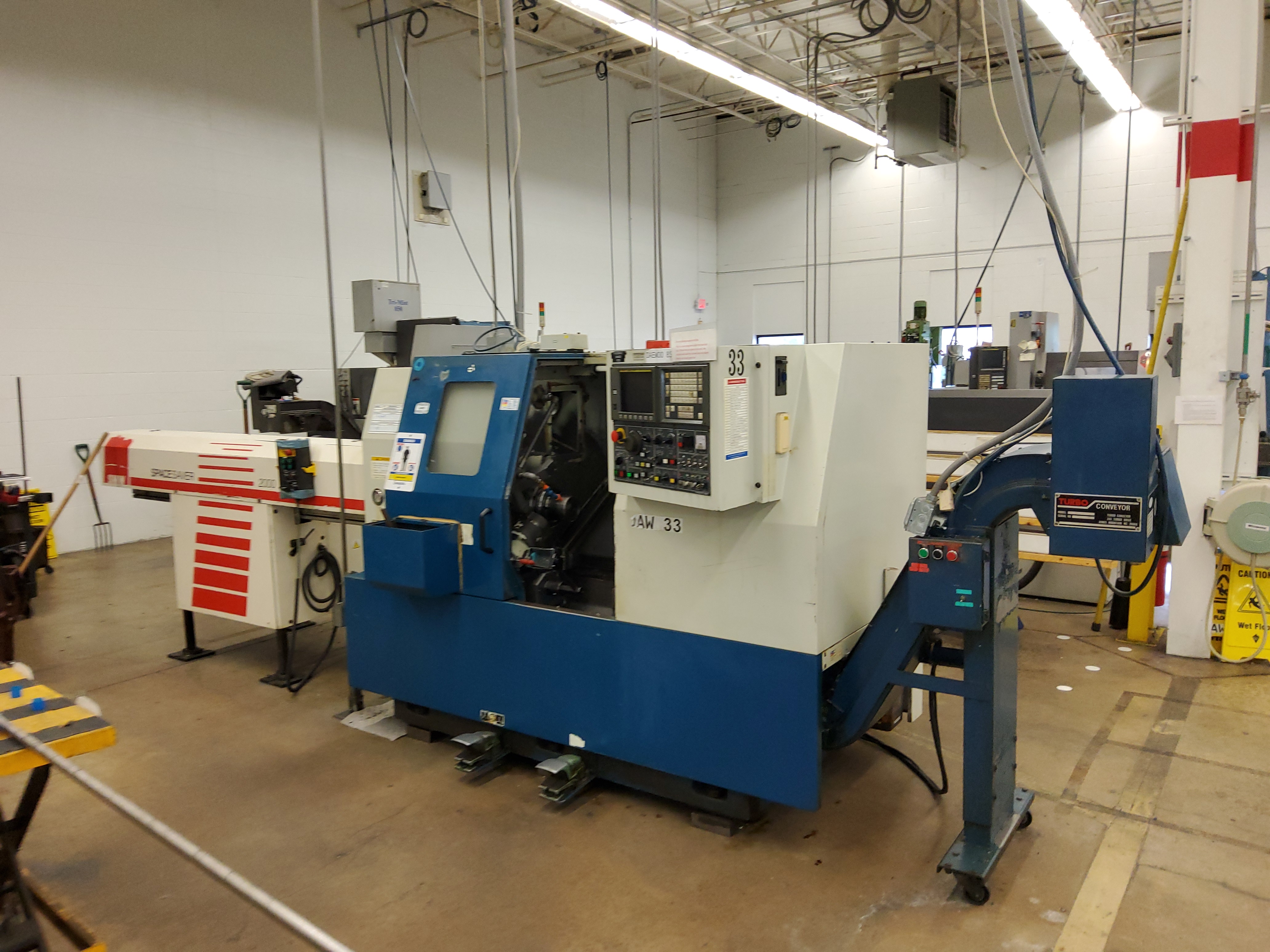

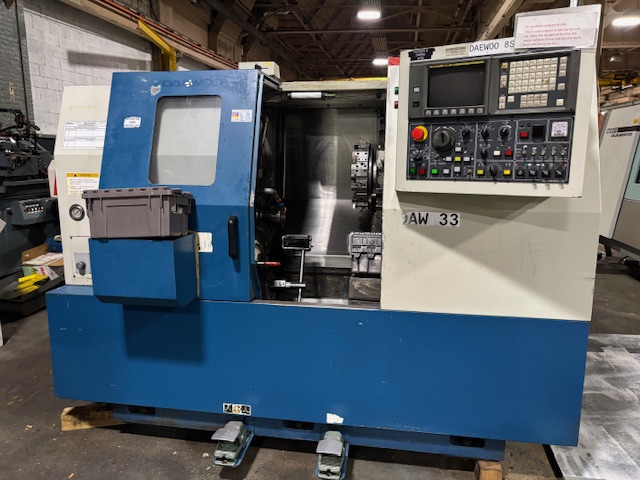

DAEWOO PUNA 8S CNC LATHE
NEW: 1996

Specifications:
Max Turning Diameter ................. 14.2"
Max Turning Length ................... 14.6"
Max Swing Over Bed / Carriage ........ 19.7" / 10.8"
X-Axis Travels ....................... 7.9"
Z-Axis Travels ....................... 15"
Spindle Speed ........................ 50-5000 RPM
Spindle Motor ........................ 20 HP
Spindle Nose ......................... A2-6
Spindle Bore ......................... 2.44"

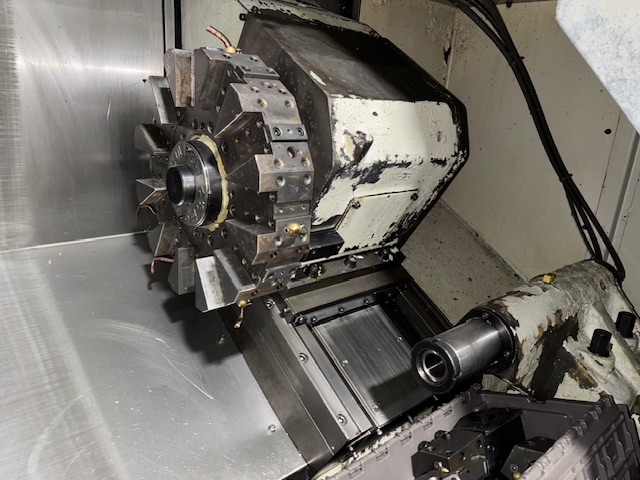

Turret Stations ...................... 12 POSITIONS
Tailstock Taper ...................... MT#4
Machine Dimensions (L x W x H) ....... 90.5" x 70.5" x 67.9"
Machine Weight ....................... 8317 LBS

Equipped With:
Fanuc OT CNC Control
Hydraulic Collet Chuck
Tool Presetter
Tailstock
Chip Conveyor

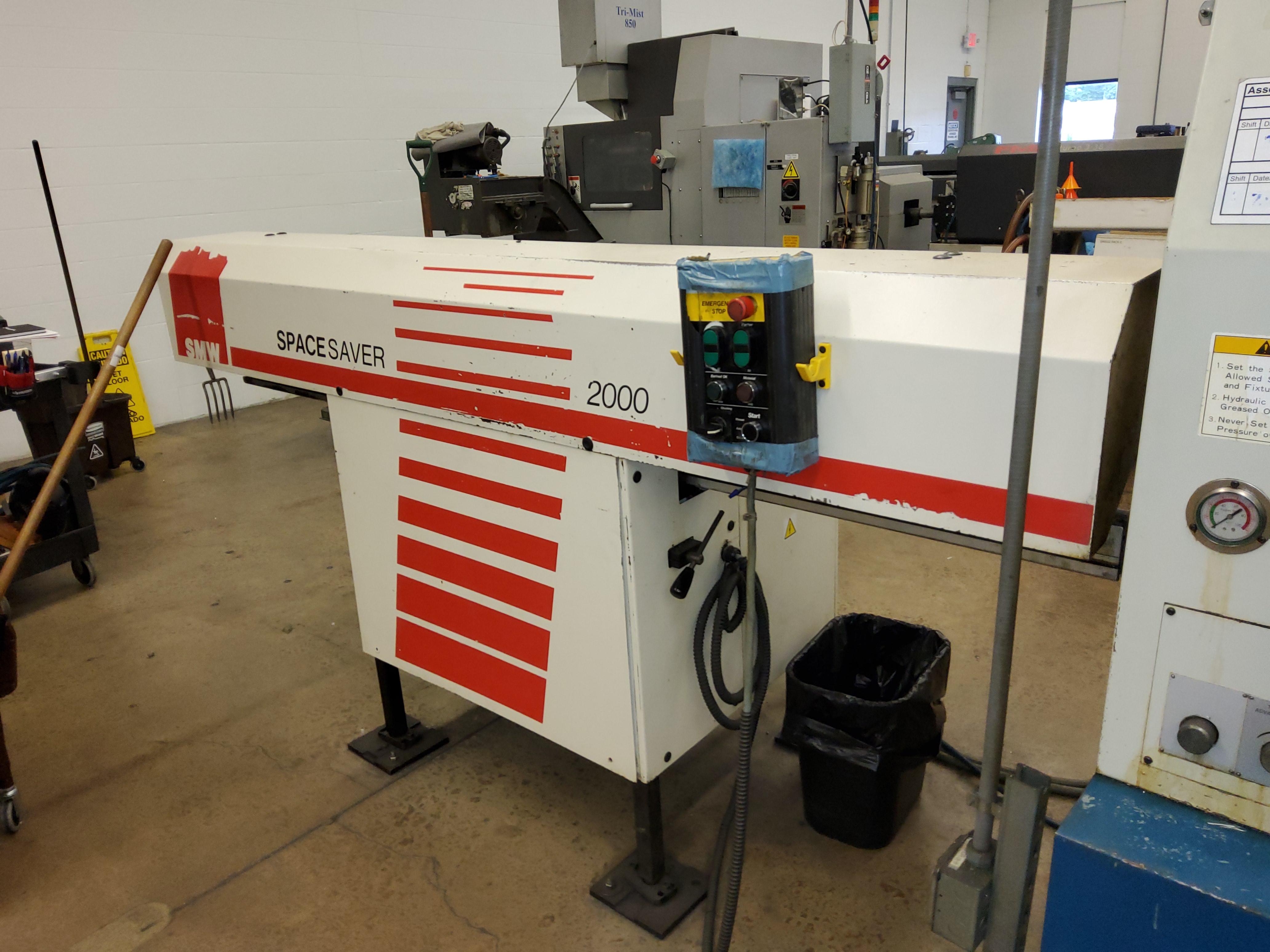

SMW Spacesaver 2000 Barfeed
