Dake Euromatic 370S Semi-Auto *Made in Italy* NEW COLD SAWS

Price on Request

Make:

Dake

Model:

Euromatic 370S Semi-Auto *Made in Italy*

Year:

NEW

Ref #:

153331

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

---

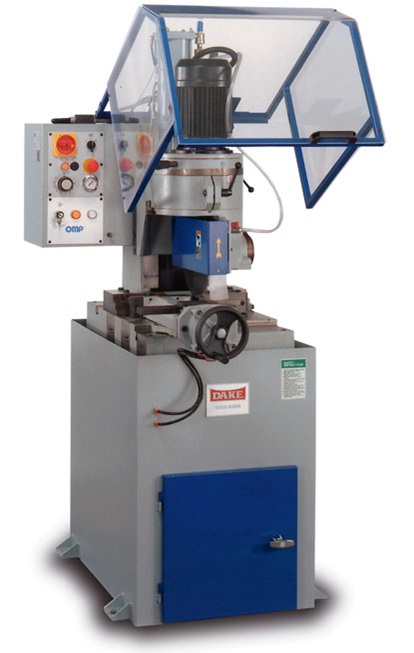

DAKE EUROMATIC 370S

SEMI-AUTO COLD SAW



*MADE IN ITALY*



The Dake Euromatic 370S Semi-Automatic Cold Saw is a cast iron cold saw that has a head that can rotate 45 degrees right for miter cuts and 90 degrees left for slotting operations. Dake's industry leading dependability is achieved using an oversized spindle that features a splined steel shaft and heavy duty bronze gear that is supported with tapered roller bearings.



Material clamping is done with the automatic vise featuring adjustable gib guides, removable face plates and an anti-burr arm. The blade has a built in safety to shut off the saw, if the preset amp peak is exceeding during the cutting process.



FEATURES

Head rotates 45º right of center for miter cutting and up to 90º left of center for miter cutting and slotting.

Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute.

Manual oiler to lubricate 1" thick, hardened vertical ways.

3.5/4.5 HP motor has the muscle to drive a 14-1/2" or 12" blade quickly and quietly through solids.

Clear acrylic hood has shock assists for raising and lowering and electrical interlocks.

Table features two removable surface wear plates to support longer cut lengths.

Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment.

Rear surface of the gear box is machined with interlocking circles to evenly distribute oil over the ways.

Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm.

Self-adjusting, metal chip brush fills removable chip drawer.



STANDARD EQUIPMENT

Blade

Coolant

Instruction and service manual

Tool kit for changing blades

Adjustable positive stop

Saw blade selector calculator



SPECIFICATIONS

Maximum blade size ................................ 14-1/2

Maximum vise opening .............................. 8-3/4

Motor horsepower .................................. 3.5/4.5

Voltage ........................................... 220/440

Phase ............................................. 3

Speeds ............................................ 25/50

Weight ............................................ 1,360

Solid round 90° capacity (inches) ................. 4

Solid round 45° capacity (inches) ................. 3-5/8

Tube 90° capacity (inches) ........................ 5-1/16

Tube 45° capacity (inches) ........................ 5

Square 90° capacity (inches) ...................... 4

Square 45° capacity (inches) ...................... 3-7/8

Rectangle 90° capacity (inches) ................... 4 x 7

Rectangle 45° capacity (inches) ................... 4 x 6
