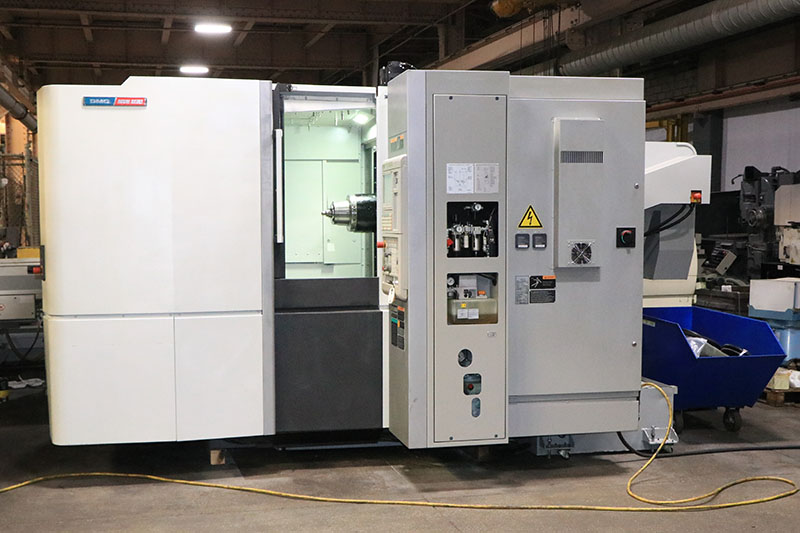

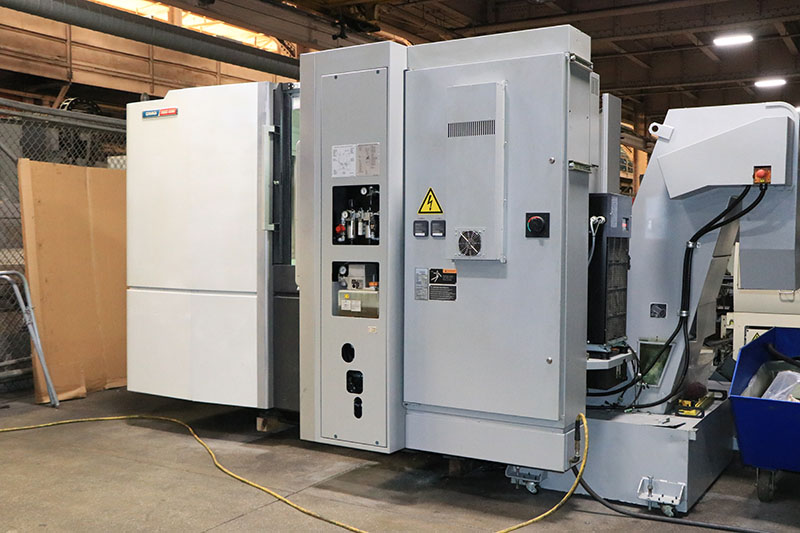

DMG-Mori NHX 4000 HORIZONTAL MACHINING CENTERS (HMC's)

Price on Request

Make:: DMG-Mori

Model:: NHX 4000

Year:: 2013

Ref #:: 177721

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

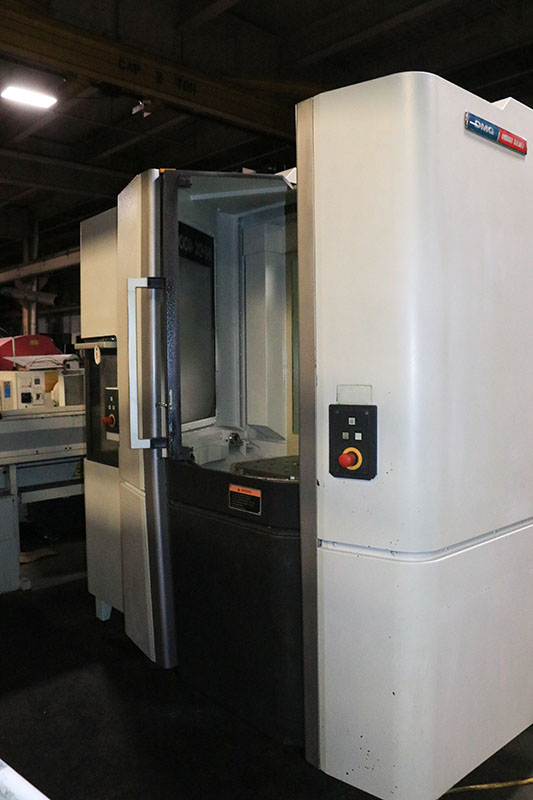

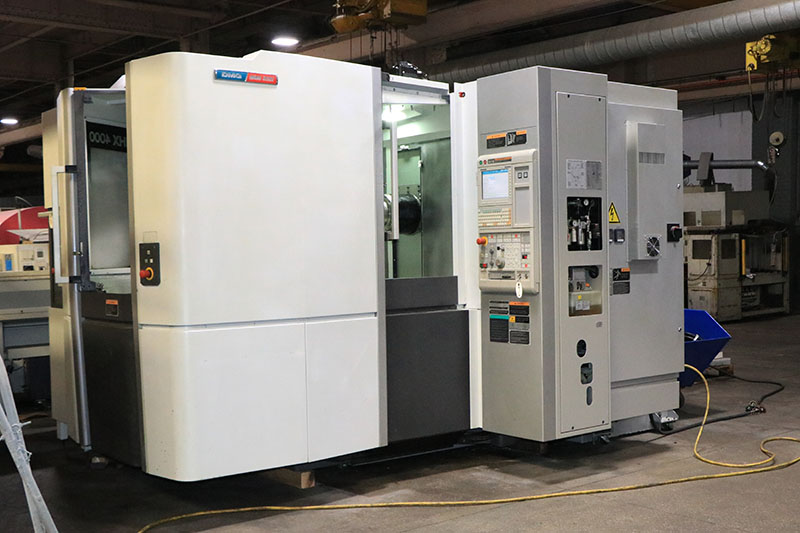

DMG-MORI 4-AXIS HORIZONTAL MACHINING CENTER

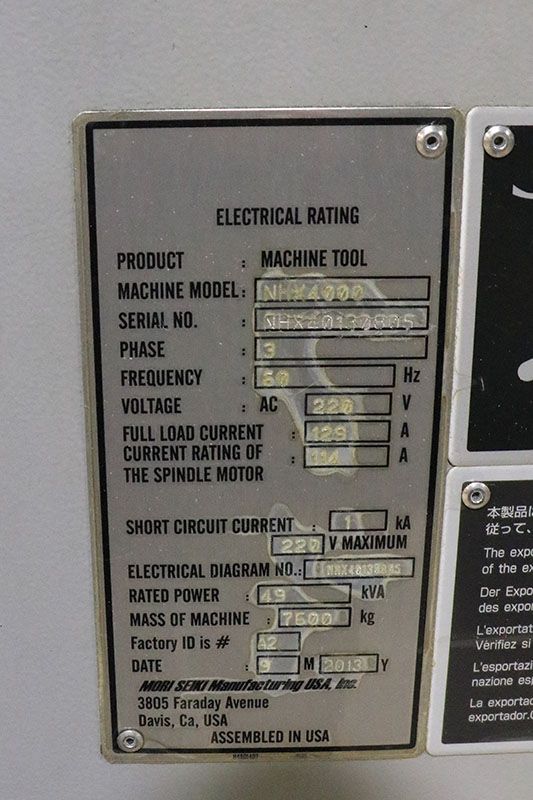

MODEL: NHX 4000,  S/N: NHX40130805,  NEW: 2013

SPECIFICATIONS:

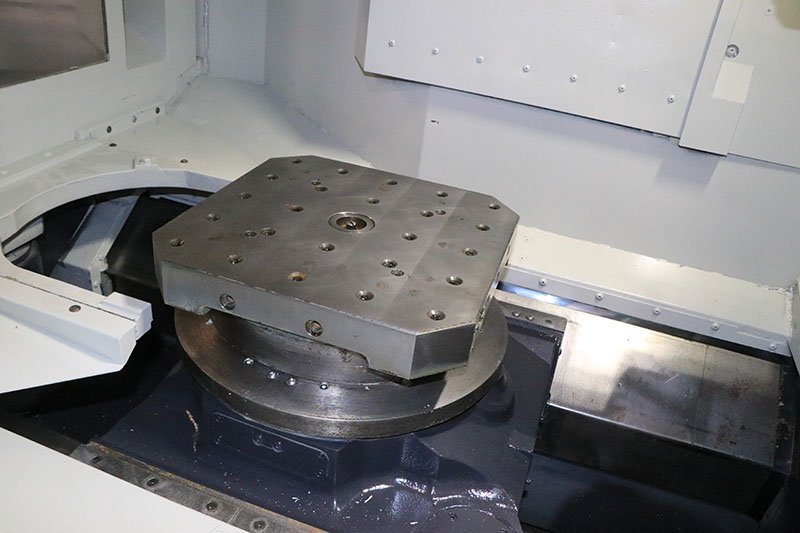

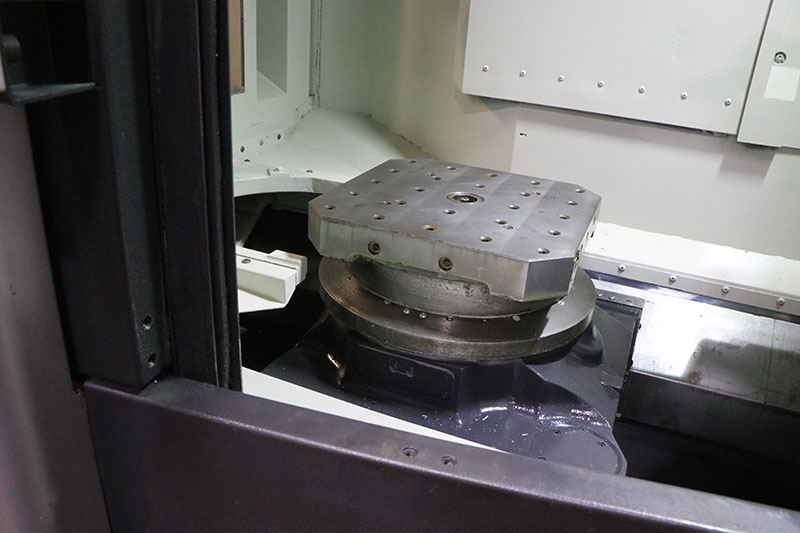

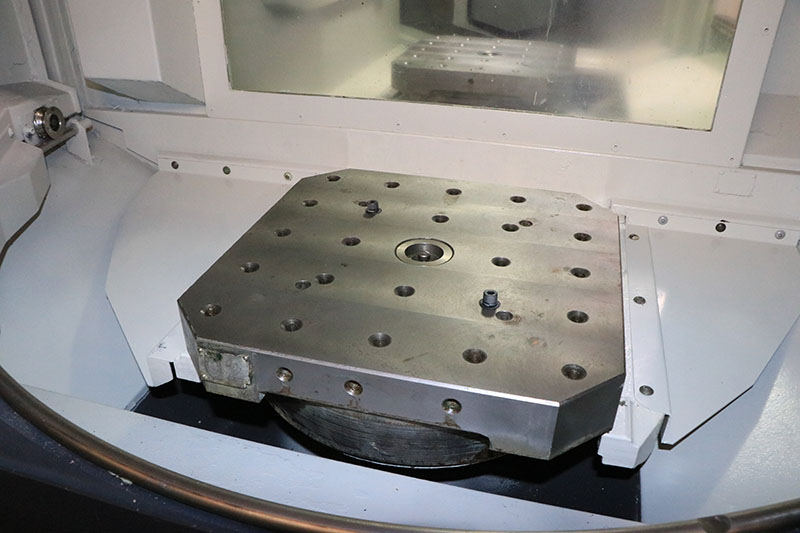

PALLET SIZE .......................... 15.7" X 15.7" (400MM)
PALLET LOAD CAPACITY ................. 881.8 LBS
MACHINE TRAVELS:
  X-AXIS TRAVEL ...................... 22"
  Y-AXIS TRAVEL ...................... 22"
  Z-AXIS TRAVEL ...................... 26"
PALLET SURFACE TO SPINDLE CENTER ..... 3.15" - 25"
PALLET CENTER TO SPINDLE GAUGE PLANE . 2.8" - 28.7"
NUMBER OF PALLET STATIONS ............ 2
PALLET INDEXING (FULL FOURTH) ........ .001 DEGREE
SPINDLE TAPER ........................ CAT #40
SPINDLE SPEEDS ....................... 0 - 12,000 RPM
CUTTING FEEDRATE ..................... 0 - 1968.5 IPM
POWER RAPID TRAVERSE ................. 2362 IPM
TOOLCHANGER CAPACITY ................. 60 STATIONS
SPINDLE DRIVE ........................ 25 HP
APPROXIMATE WEIGHT ................... 16,750 LBS

EQUIPPED WITH:

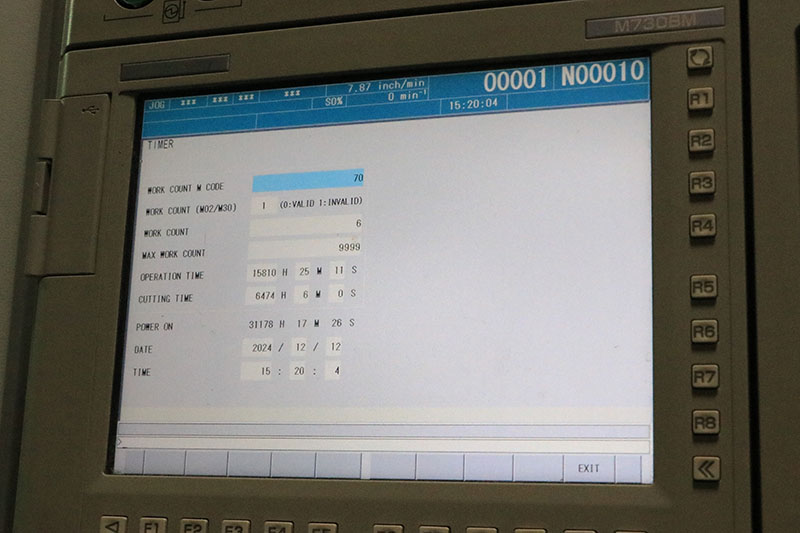

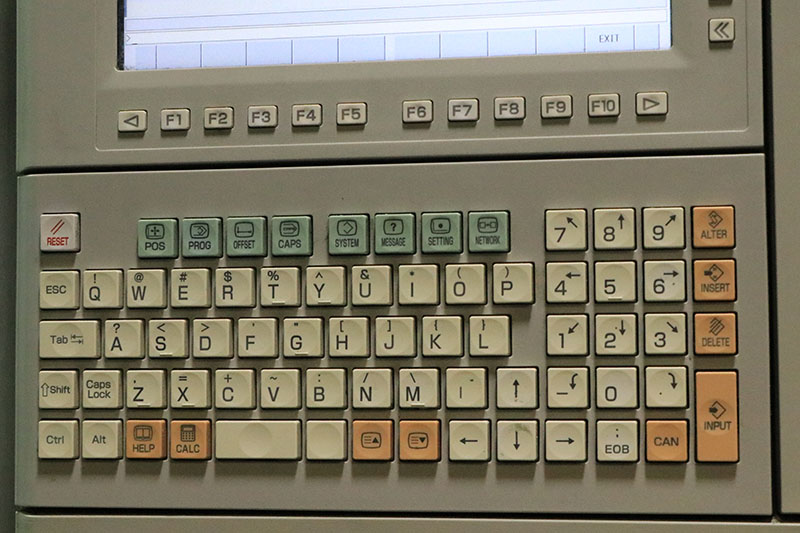

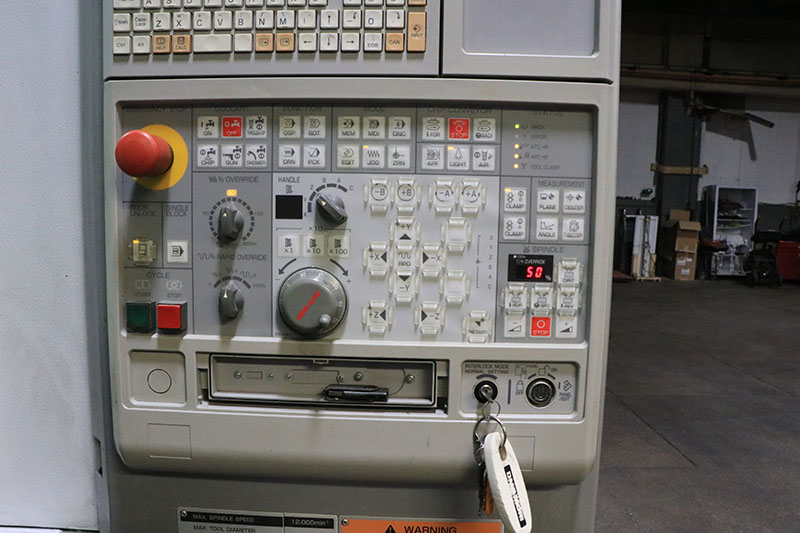

- DMG-MORI MODEL: M730BM CONTROL w/MAPPS (FULL FOURTH)
    COORIDINATE SYSTEM ROTATION, 48 WORKPIECE OFFSETS
    PART PROGRAM STORAGE LENGTH 512 KB
    1000 REGISTERABLE PART PROGRAMS IN TOTAL

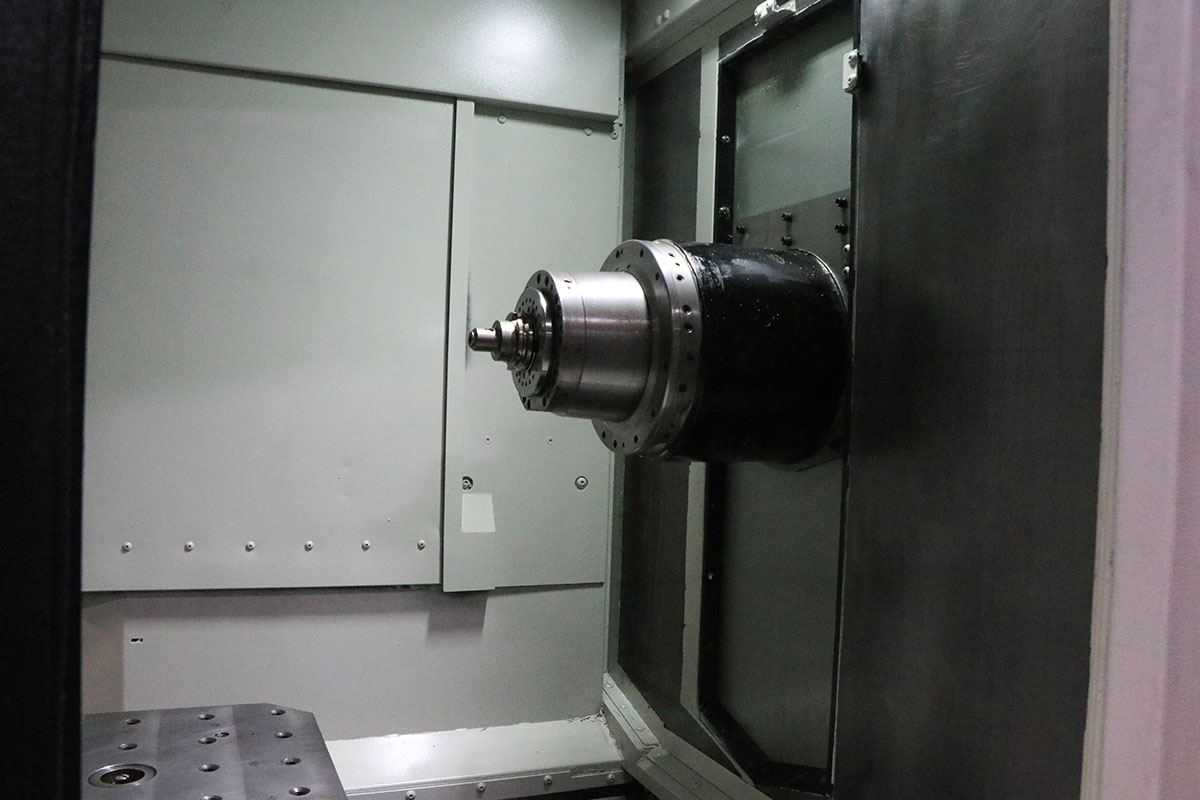

- 12,000 RPM SPINDLE
- COOLANT SYSTEM
- 2 PALLETS
- 60 STATION AUTOMATIC TOOL CHANGER

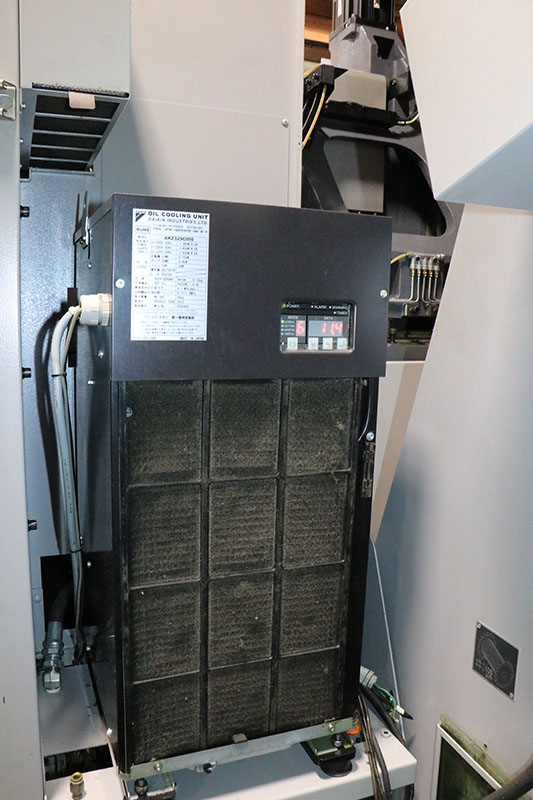

- DAIKIN CHILLER

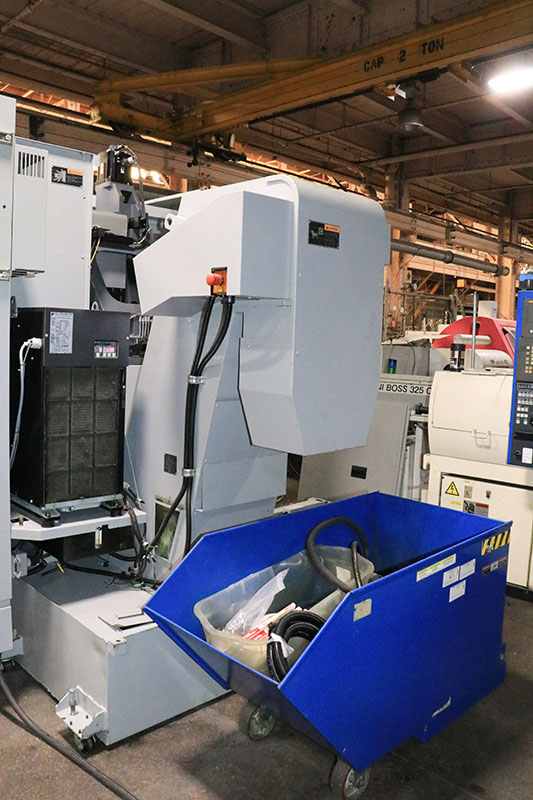

- CHIP CONVEYOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
