Doosan DHP 4000 HORIZONTAL MACHINING CENTERS (HMC's)

Price on Request

Make:: Doosan

Model:: DHP 4000

Year:: 2005

Ref #:: 178091

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

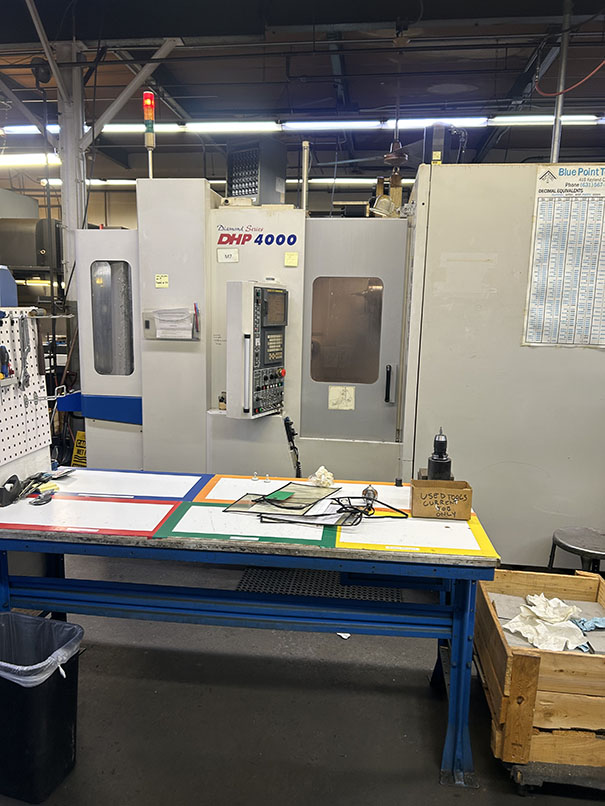

DOOSAN HORIZONTAL MACHINING CENTER
MODEL: DHP 4000,   NEW: 2005

SPECIFICATIONS:
PALLET SIZE .......................... 15.75" X 15.75" (400MM)
MACHINE TRAVELS:
  X-AXIS TRAVEL ...................... 23.62"
  Y-AXIS TRAVEL ...................... 22.05"
  Z-AXIS TRAVEL ...................... 23.62"
SPINDLE NOSE TO PALLET CENTER  ....... 5.91" - 29.53"
SPINDLE CENTER TO PALLET TOP ......... 1.97" - 24.02"
MAXIMUM WORPIECE SIZE ................ 23.6"D, 31.5"H
NUMBER OF PALLET STATIONS ............ 2
PALLET INDEXING ...................... 1 DEGREE
MAXIMUM WORKPIECE WEIGHT .............. 880 LBS
RAPID TRAVERSE RATE (X/Y/Z) .......... 2,362 IPM
MAX CUTTING FEED RATE ................ 1,181 IPM
SPINDLE TAPER ........................ CAT #40
SPINDLE SPEEDS ....................... 140 - 14,000 RPM
TOOLCHANGER CAPACITY ................. 60 STATIONS
MAXIMUM TOOL DIAMETER ................ 3"
MAX. TOOL DIA. WITHOUT ADJACENT TOOLS. 5.5"
MAXIMUM TOOL WEIGHT .................. 22 LBS
SPINDLE DRIVE ........................ 30 HP
APPROXIMATE DIMENSIONS ............... 224" x 104" x 113"
APPROXIMATE WEIGHT ................... 30,000 LBS.

EQUIPPED WITH:

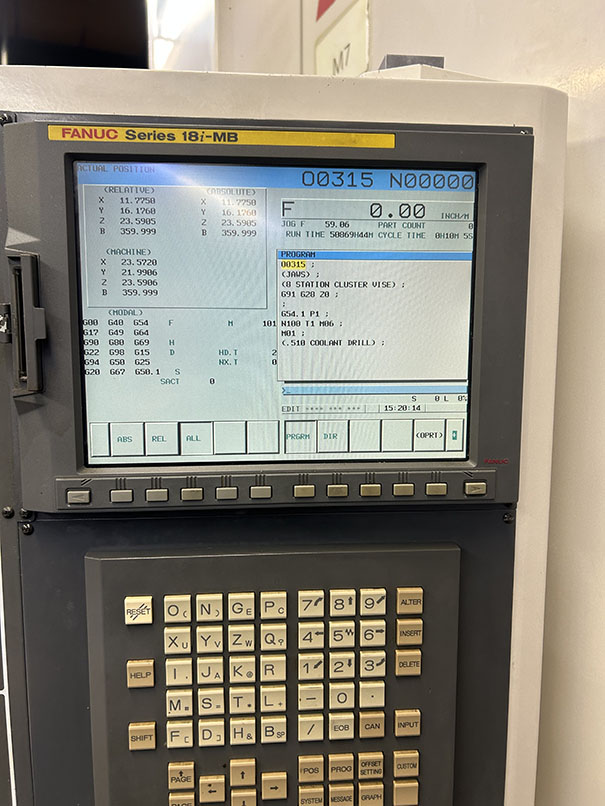

- FANUC MODEL: 18iMB CONTROL
- THRU-SPINDLE COOLANT, 284 PSI
- 2 PALLETS
- 60 STATION AUTOMATIC TOOL CHANGER

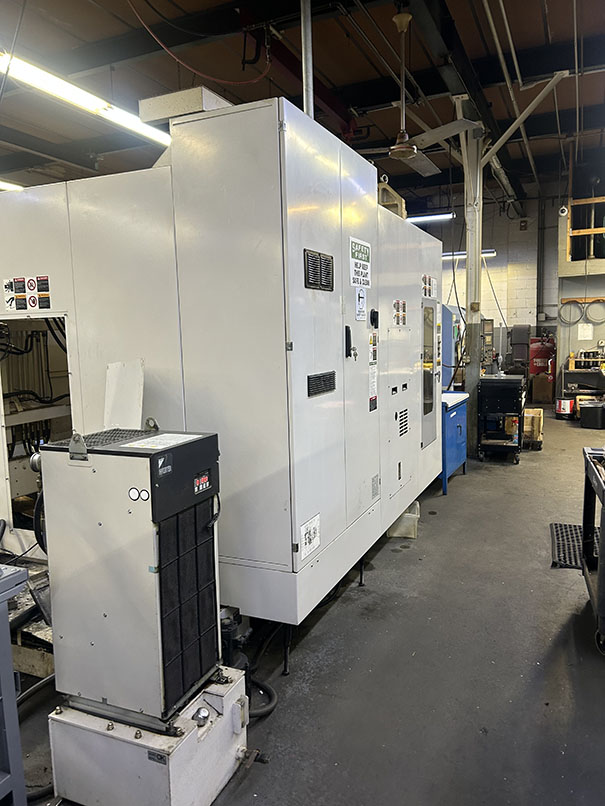

- SPINDLE CHILLER
- CHIP CONVEYOR
- 30 HP HIGHPOWER SPINDLE DRIVE, 14,000 RPM SPINDLE
