Hyundai-Wia HS5000i w/Fastems 12 Station Palletech HORIZONTAL MACHINING CENTERS (HMC's)

Price on Request

Make:
Hyundai-Wia
Model:
HS5000i w/Fastems 12 Station Palletech
Year:
2020
Ref #:
171423

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

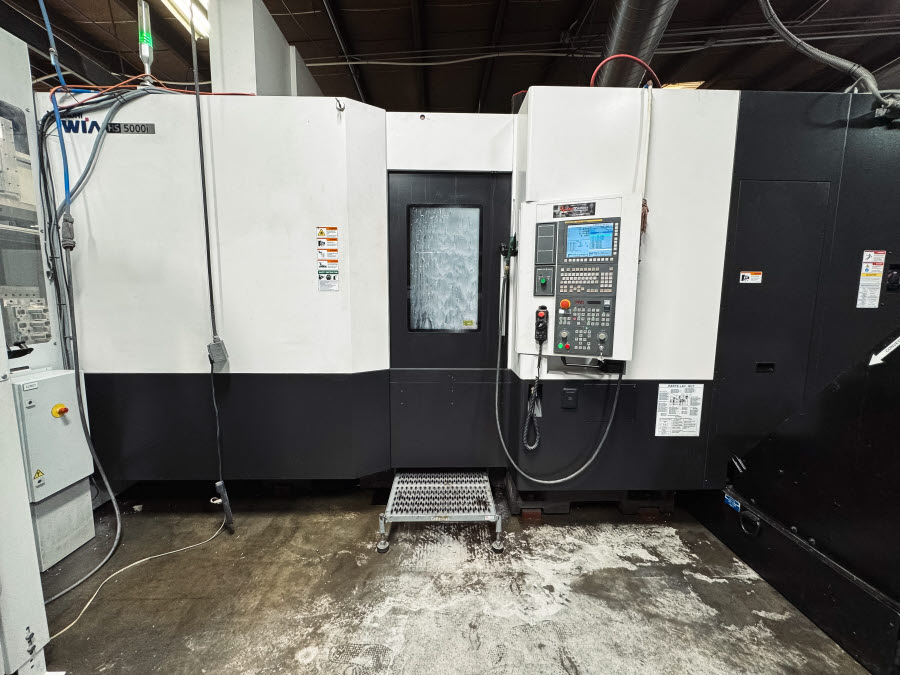

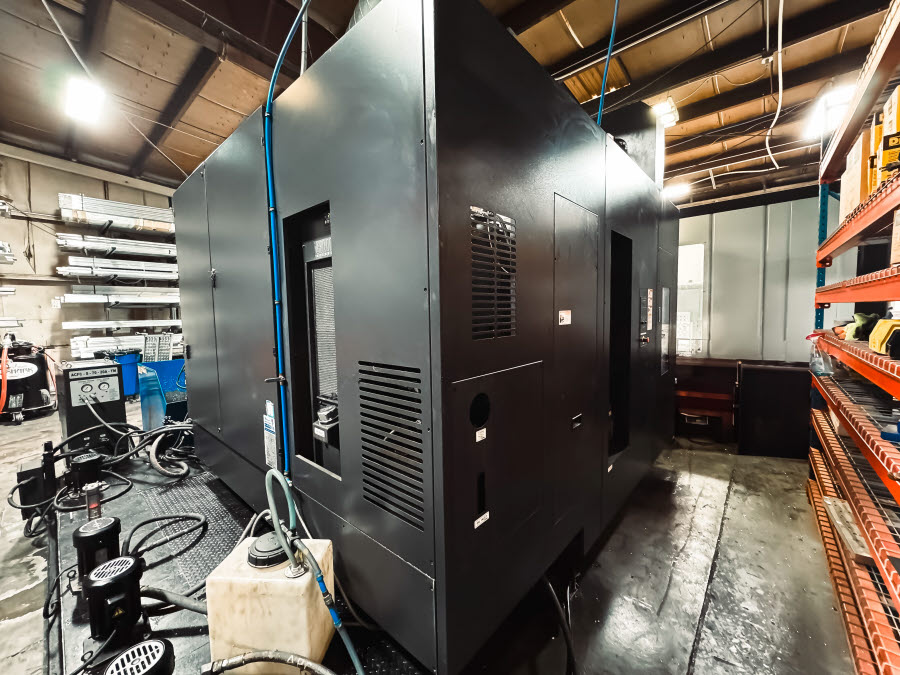

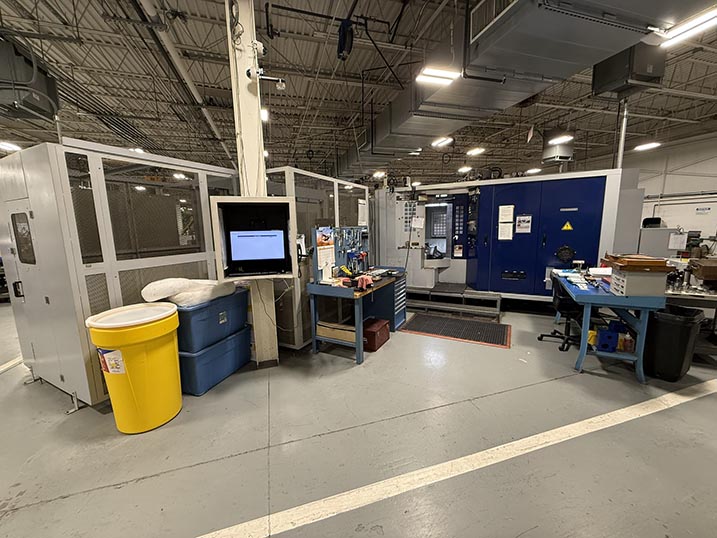

HYUNDAI WIA CNC HORIZONTAL MACHINING CENTER
MODEL: HS5000I, NEW: 2020

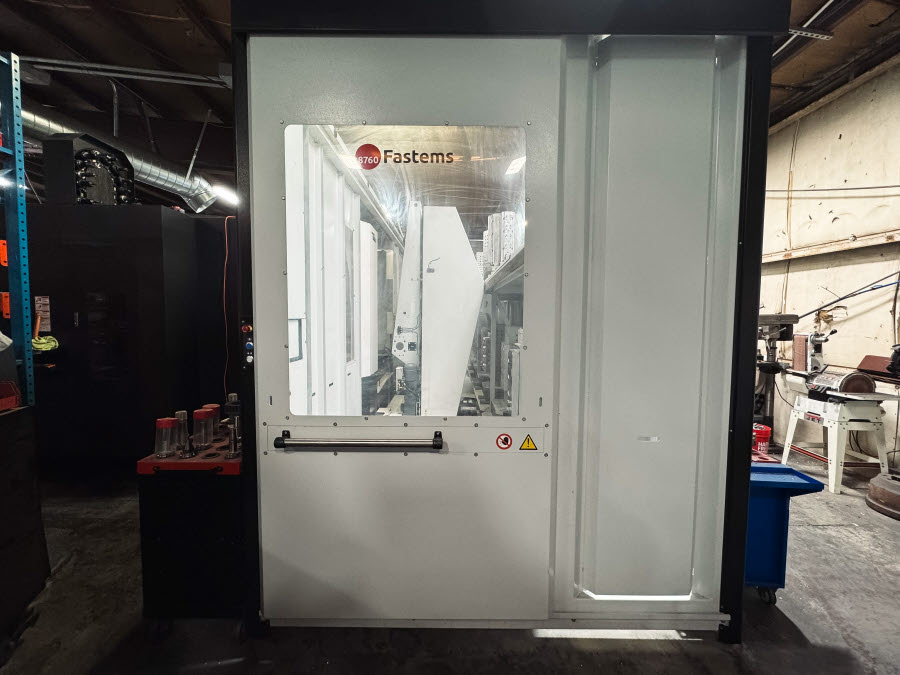

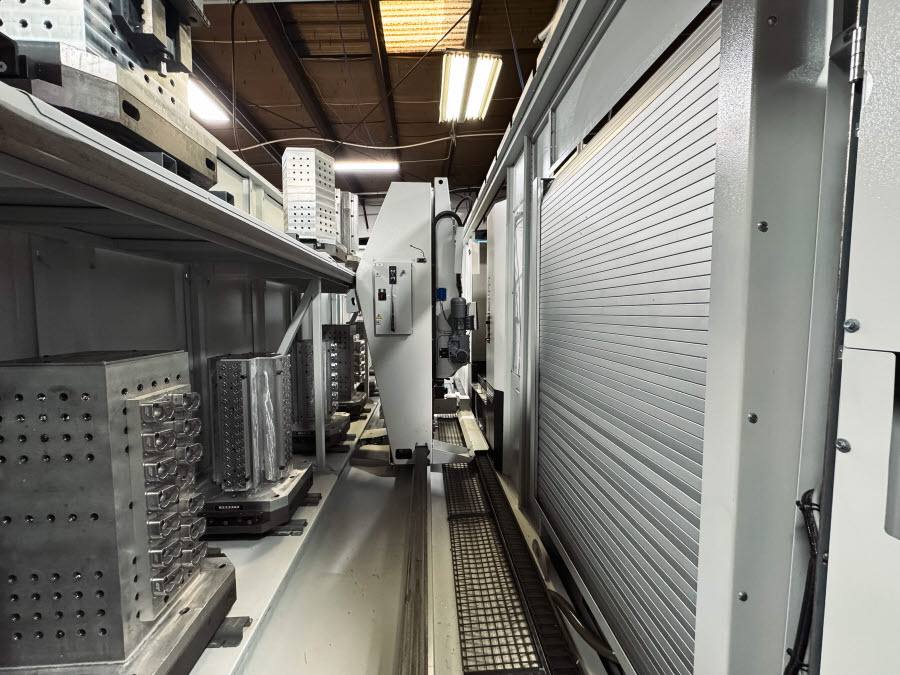

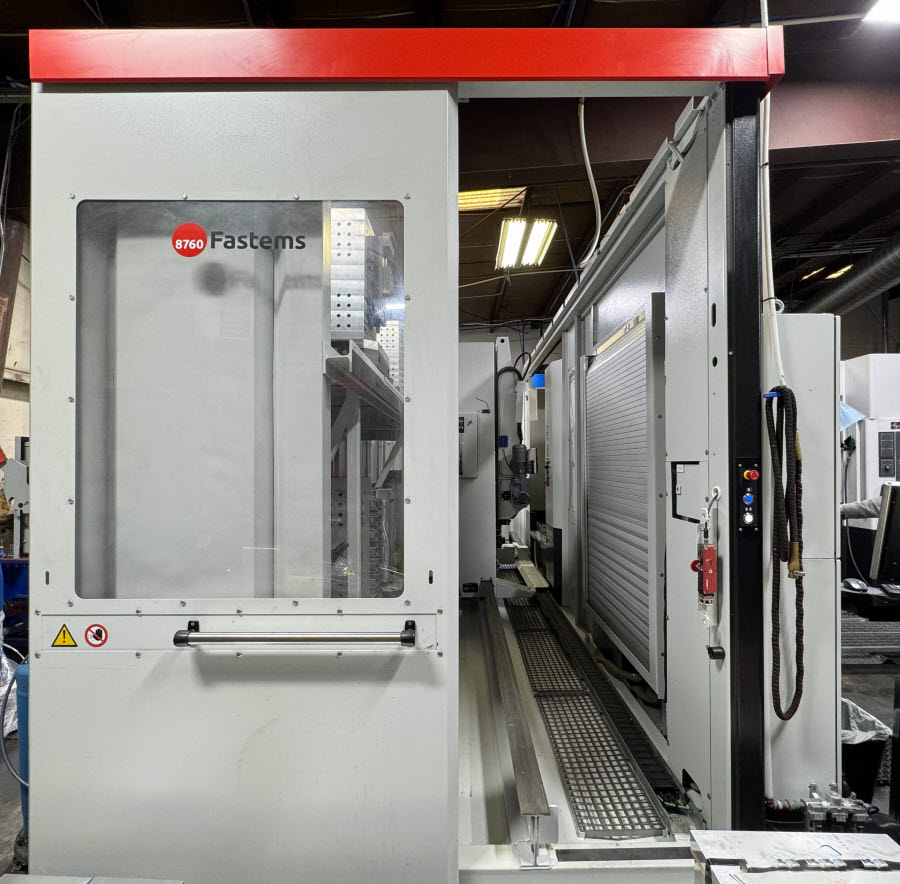

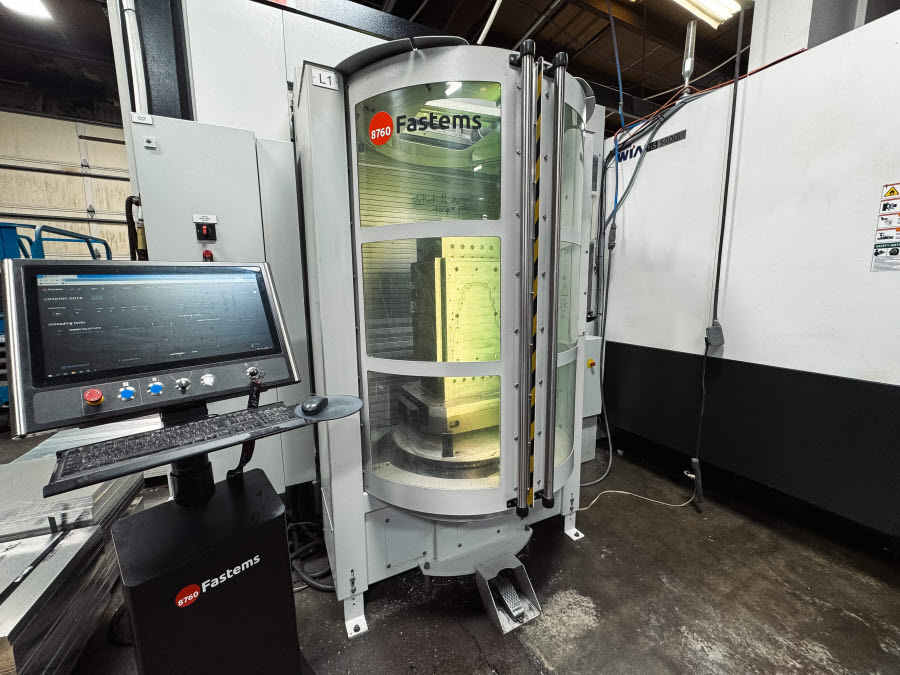

WITH FASTEMS FPC-750 12 STATION PALLETECH

SPECIFICATIONS:
PALLET
PALLET SIZE: ..................... 19.7″ × 19.7″
MAXIMUM LOAD CAPACITY: ........... 0.001˚ : 992LBF
MAXIMUM WORKING SIZE: ............ 30.7″ × H38.6″
MIN. INDEXING ANGLE: ............. 0.001°
SPINDLE
SPINDLE TAPER: ................... CAT40
SPINDLE SPEED: ................... 15,000 RPM
SPINDLE MOTOR OUTPUT (MAX./CONT.). 33.5/30 HP
SPINDLE TORQUE (MAX./CONT.) ...... 123.1/70.1) LBF-FT
SPINDLE DRIVING METHOD: .......... BUILT-IN
FEED
X-AXIS TRAVEL: ................... 33.5”
Y-AXIS TRAVEL: ................... 27.6”
Z-AXIS TRAVEL: ................... 29.5”
DISTANCE:TABLE TOP TO SP. CENTER:. 2″~29.5″
DISTANCE:TABLE CENTER TO SP. NOSE: 5.9″ ~ 35.4″
RAPID TRAVERSE RATE (X/Y/Z) ...... 1,968/1,968/1,968 IPM
ATC
NUMBER OF TOOLS: ................. 60
TOOL SHANK ....................... CAT40
MAX. TOOL DIA.: .................. (W.T/W.O) 3″/5.5″
MAX. TOOL LENGTH: ................ 17.7″
MAX. TOOL WEIGHT: ................ 17.6 LBS
TOOL CHANGE TIME ................. T-T SEC 1.1 / C-C SEC 3.8
FLOOR SPACE (MACHINE ONLY) ....... 120.5″×210.2″ X 123.8”
WEIGHT (MACHINE ONLY) ............ 33,069 LBS

EQUIPPED WITH:

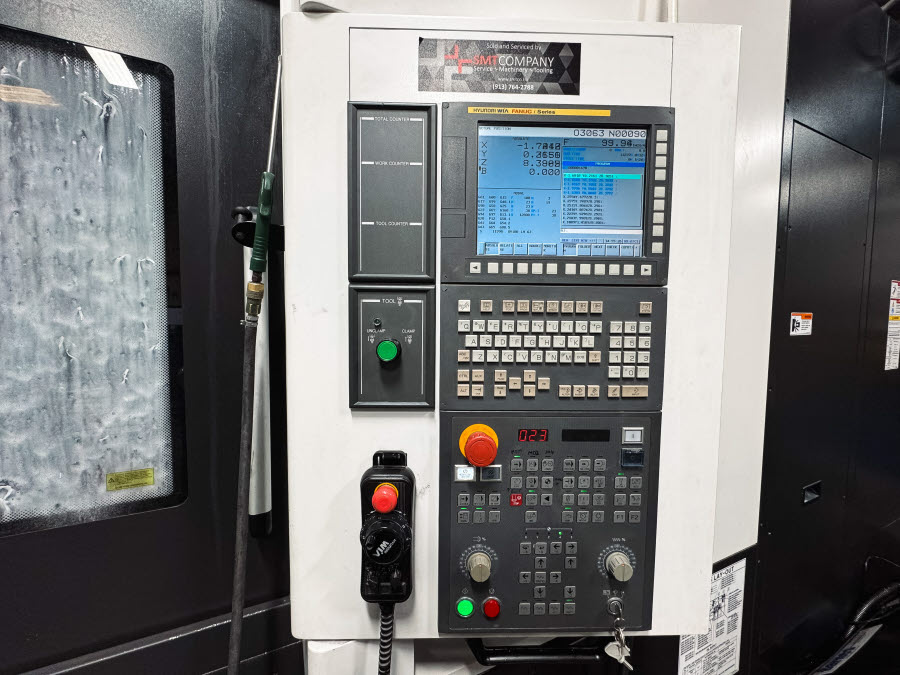

HYUNDAI WIA FANUC I SERIES (FANUC 31I-B)

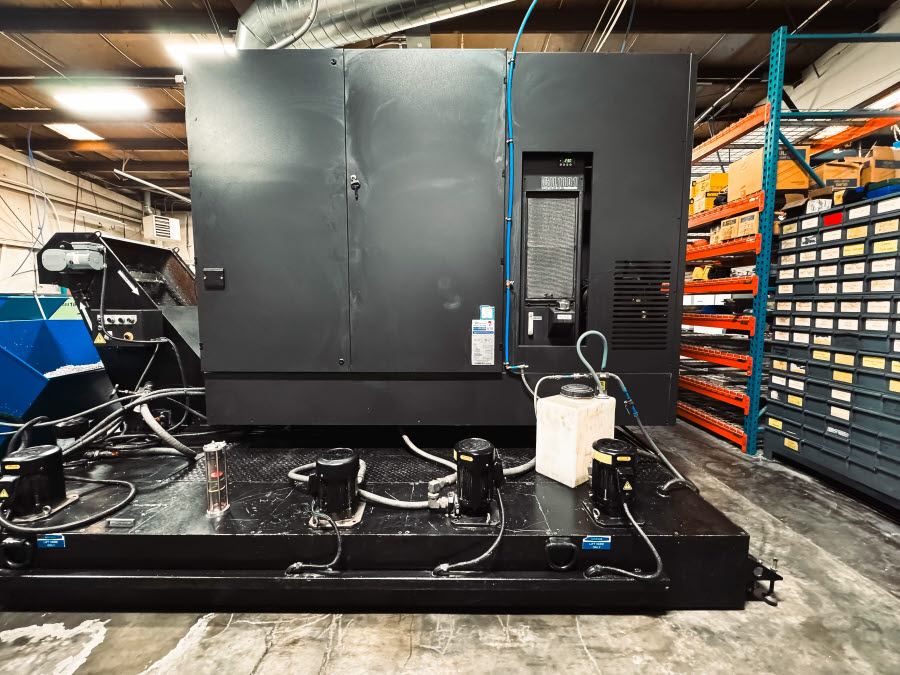

UPGRADED BARNES DRAG STYLE CONVEYOR
RENISHAW NC4 PROBE, LASER TOOL SETTER
1,000PSI COOLANT
60T MAGAZINE MAX CALL TIME : 2.9 SEC
CAT40
4 AXIS
500MM PALLET

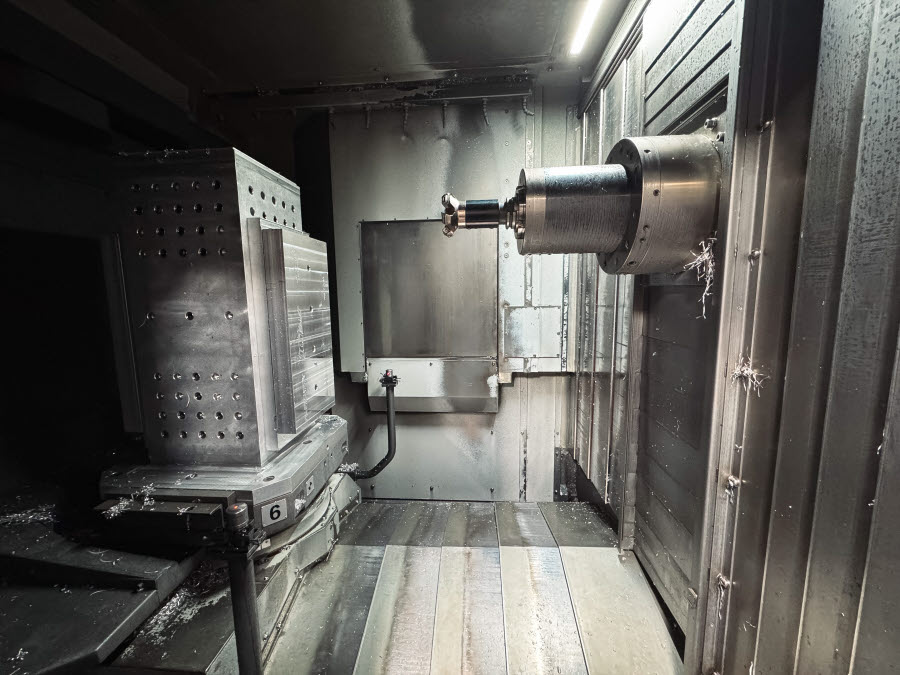

15,000 RPM HIGH-PERFORMANCE BUILT-IN SPINDLE
X/Y/Z AXIS RAPID TRAVERSE RATE : 60M/MIN
BALL SCREW SHAFT COOLING SYSTEM APPLIED
HIGH RIGIDITY 3-POINT SUPPORT BED STRUCTURE
LARGE DIA. Ø50 MM (2″) BALL SCREW APPLIED
RING TYPE MAGAZINE STANDARD APPLICATION
BEST-IN-CLASS TOOL CHANGE TIME (C-C) : 2.6 SEC

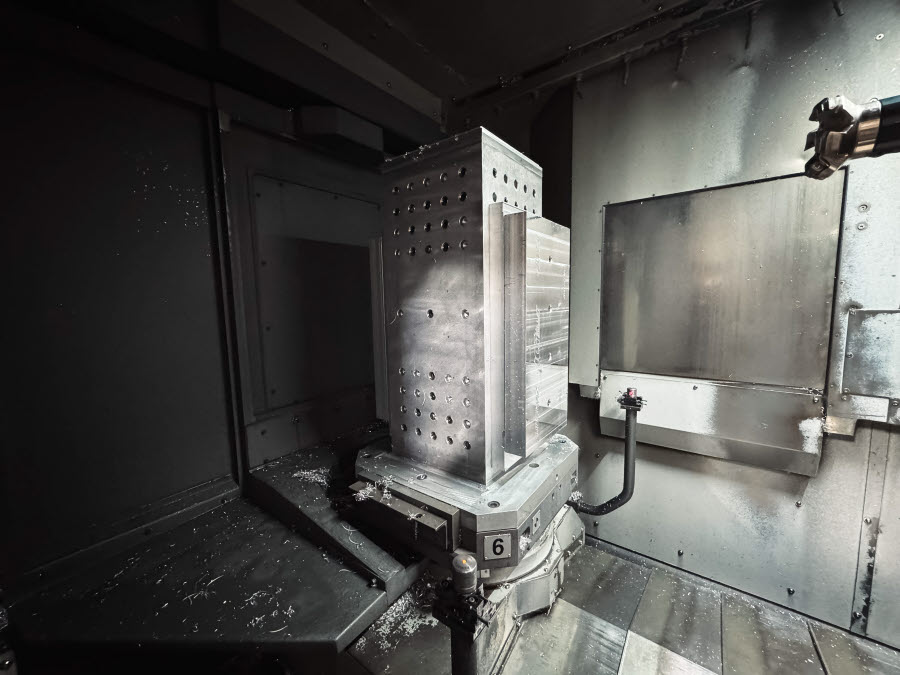

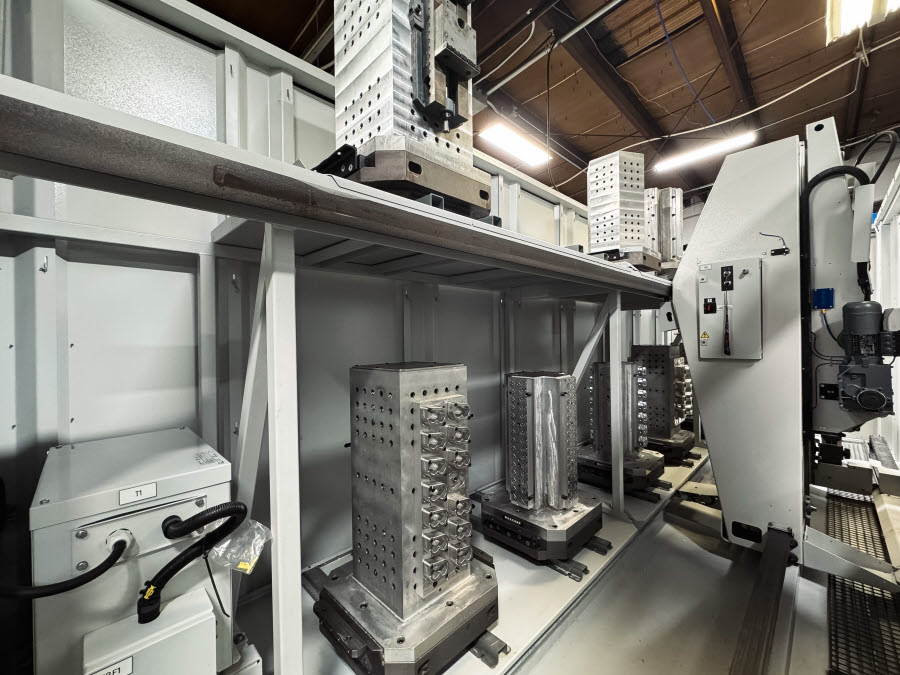

COMES WITH (12) 500MM PALLETS AND TOMBSTONES

ABBOTT TOMBSTONES WITH 2" ON CENTER HOLES BOLT PATTERNS.
1) ABBOTT 12" SQUARE TOMBSTONE X6
2) ABBOTT 14" SQUARE TOMBSTONE X2
3) ABBOTT 10" CROSS (AKA + SHAPED) TOMBSTONE X1
3) ABBOTT 12" CROSS (AKA + SHAPED) TOMBSTONE X2
5) ABBOTT 8" HEX TOMBSTONE X1

INSPECT IN OUR NEW JERSEY WAREHOUSE
