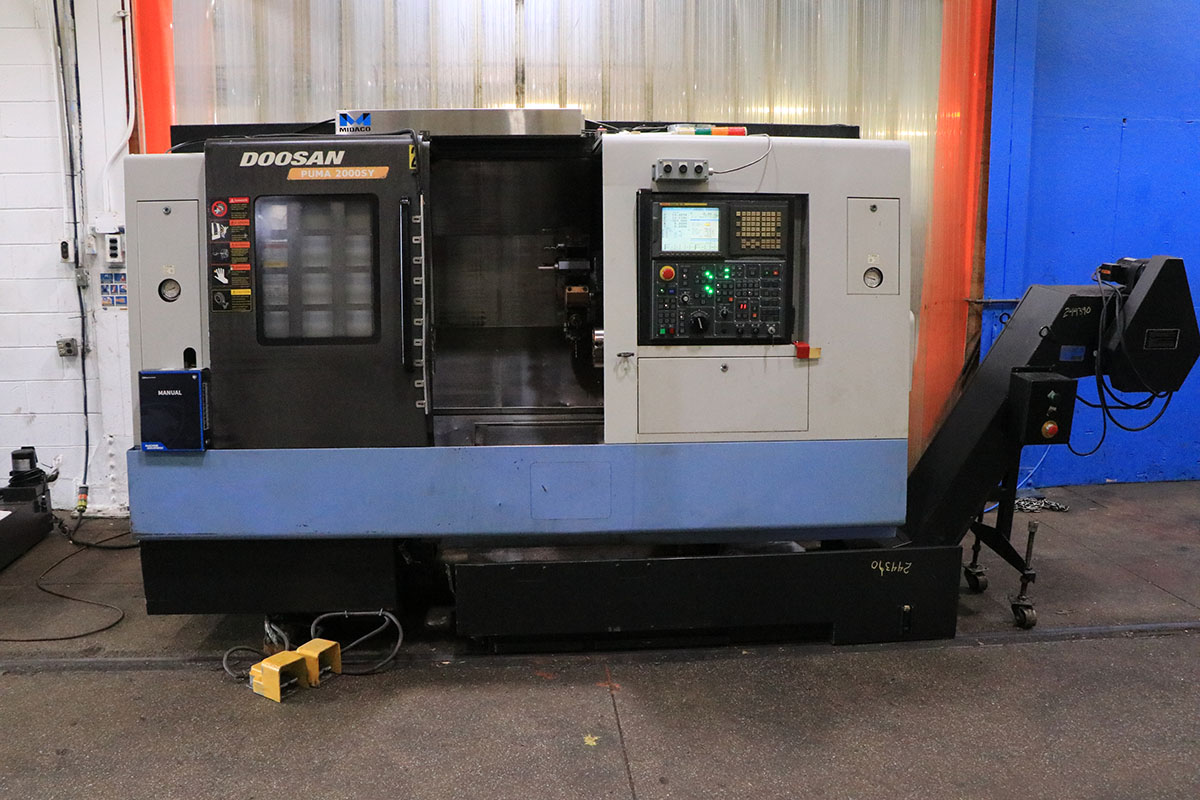

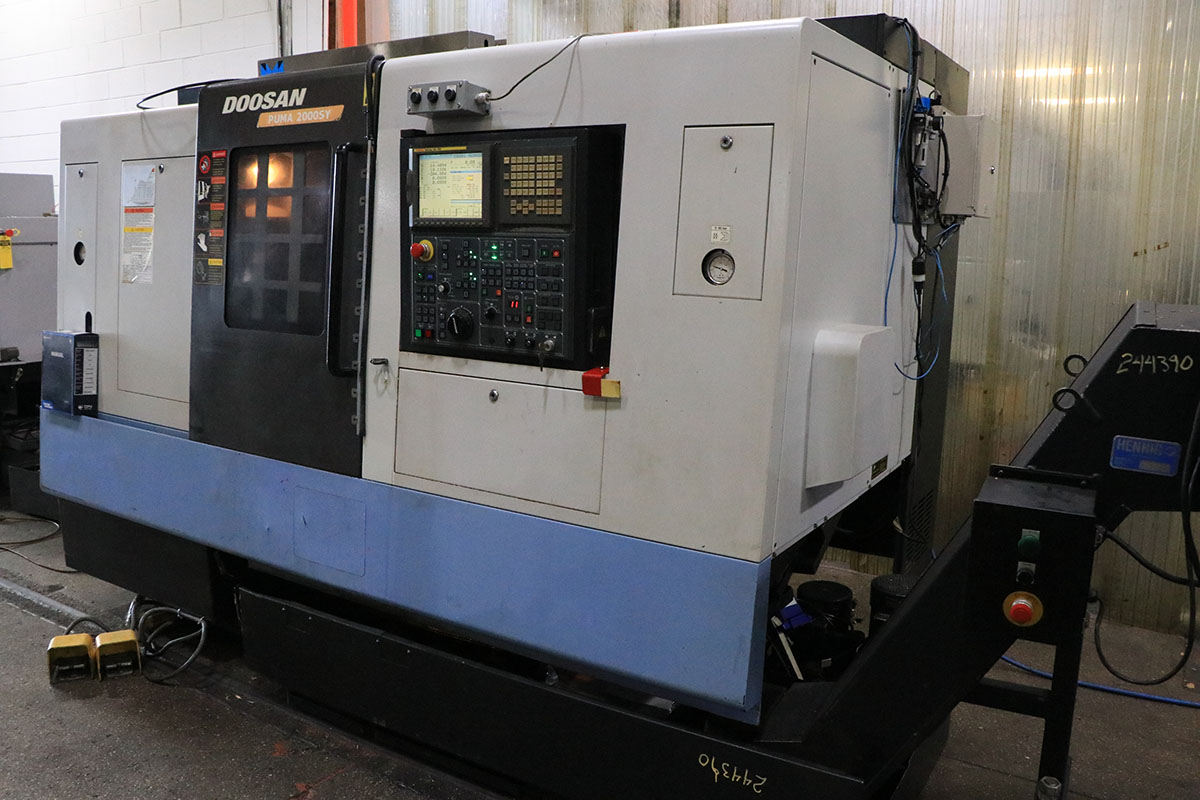

DOOSAN PUMA 2000SY MULTI-AXIS CNC TURNING CENTER
NEW: 2008

SPECIFICATIONS
CAPACITY:
Swing over bed                                23.6"
Swing over carriage                           21.6"
Maximum bar capacity                          2.625”
Maximum turning diameter, main spindle        13.0"
Distance between main & subspindle face       33.8”

MAIN SPINDLE:
Spindle speed                                 45 - 5,000 RPM
Spindle nose                                  ASA-A2-6
Draw tube I.D.                                2.677"
Spindle bore diameter                         2.99"
AC high torque spindle motor (20 min rating)  20 HP
Maximum spindle torque                        351 ft-lbs

MAIN SPINDLE C-AXIS:
Minimum programmable angle (degrees)          .001
Rapid traverse rate (RPM)                     200
C-axis repeatability                          +/- .006 deg.
C-axis positioning accuracy                   .0167 deg.

Y-AXIS:
Y-axis travel                                 3.94”
Y-axis rapid traverse rate                    295 IPM
Y-axis repeatability                          .00012”

BED, SADDLE, & CROSS SLIDE:
X axis travel                                 9.8”
Z axis travel                                 22.8”
Angle of slant bed                            30 degrees
X axis guideway span                          8.9”
Z axis guideway span                          14.2”
X axis rapid traverse rate                    790 IPM
Z axis rapid traverse rate                    945 IPM
X axis ball screw diameter                    1.3"
Z axis ball screw diameter                    1.3”
Maximum X axis feed thrust                    2,170 lbs.
Maximum Z axis feed thrust                    2,170 lbs.
X axis repeatability                          + 0.00006"
Z axis repeatability                          + 0.00008"

TURRET:

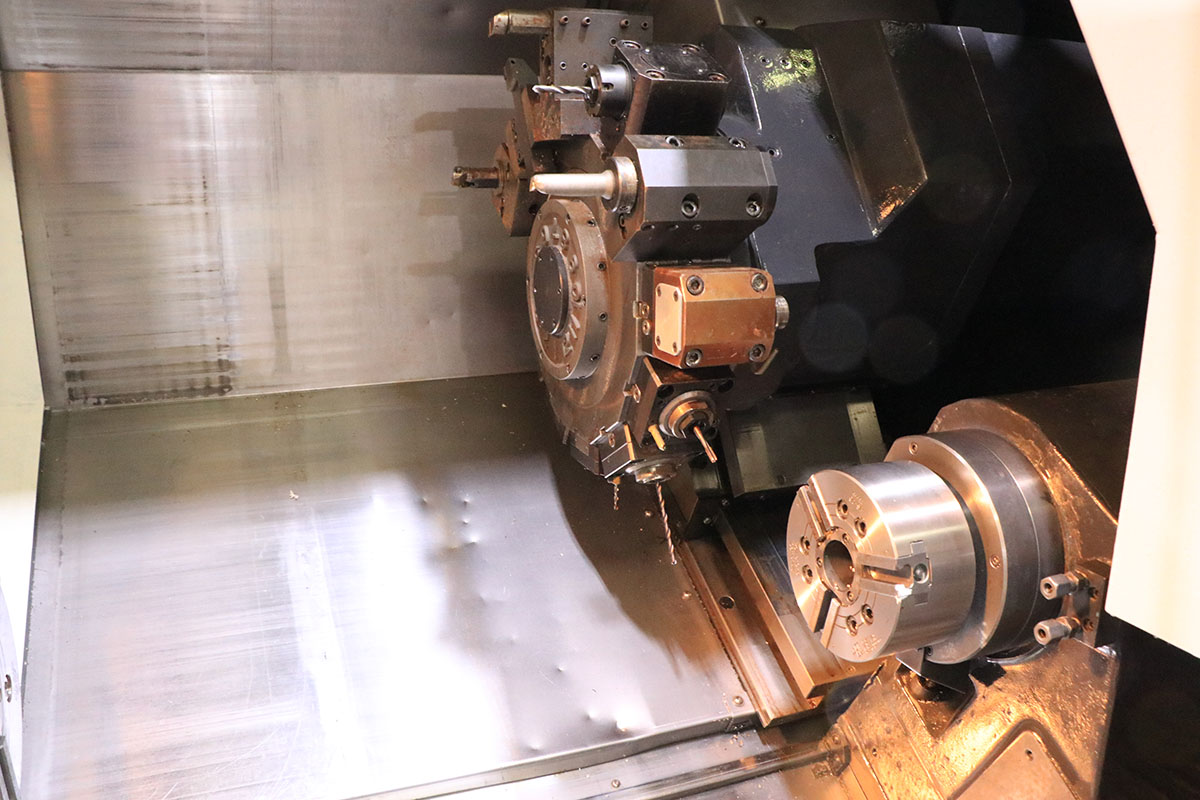

Number of tools                               12
Tool holder type                              BMT 55
Turning tool shank size                       1.0"
Boring bar diameter, main spindle             1.5"
Boring bar diameter, sub spindle              1.0”
Turret index time (next station swivel time)  0.1 sec.
Tool selection                                Bi-directional
Turret index repeatability                    + .0005 degree

ROTATING TOOLS:
Rotating tool RPM                             50 - 5,000 RPM
Rotating tool spindle motor (15 min rating)   7.5 Hp
Rotating tool torque                          34.7 ft-lbs
Rotating tool collet type                     ER25
Milling collet capacity                       1/16” to 5/8"

SUB-SPINDLE:
B axis travel (sub-spindle)                   22.8”
Sub-spindle guideway span                     9.8”
Spindle speed                                 60 – 6,000 RPM
Spindle motor                                 10 HP
Maximum torque                                34.7 ft-lbs.
Spindle nose                                  A2#5
Spindle bore                                  1.77”
Draw tube ID                                  1.38"
Rapid traverse rate                           787 IPM
Minimum programmable angle                    .001 degree

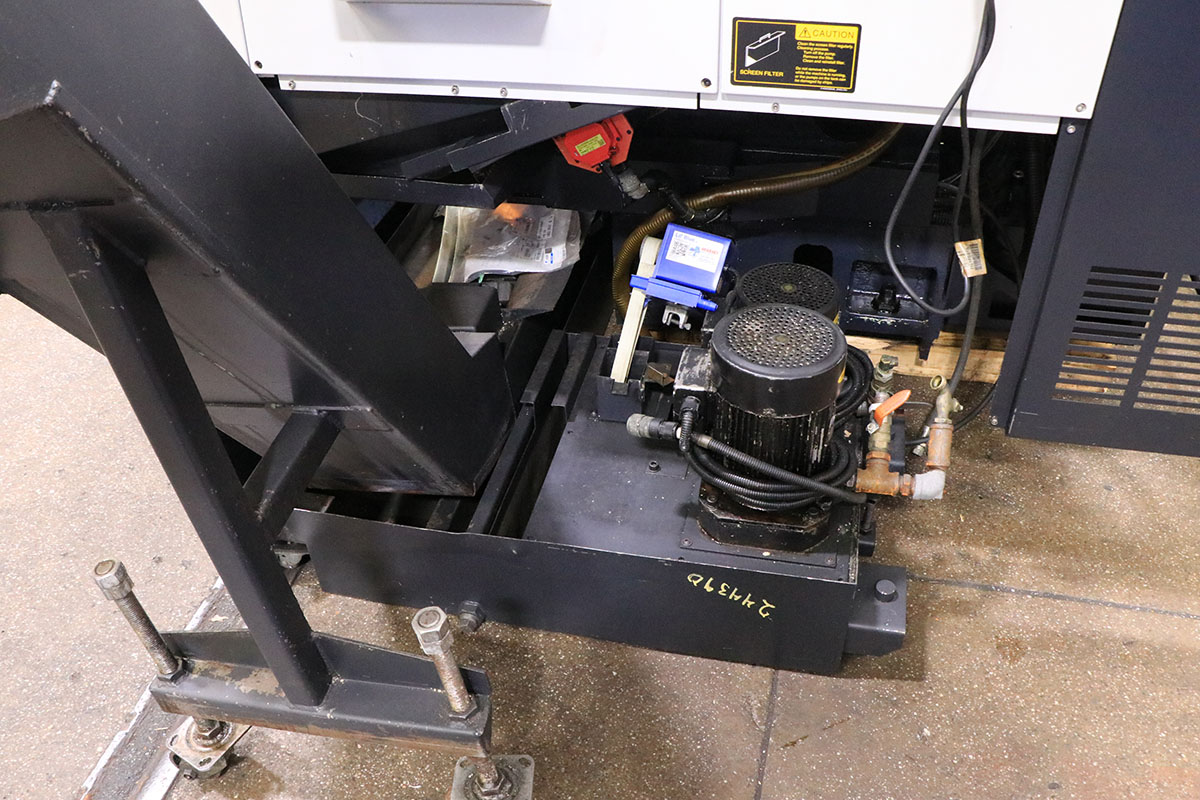

COOLANT SYSTEM:
Coolant pump pressure                         65 PSI
Coolant pump motor                            1.2 HP
Coolant tank capacity                         39 gallons

GENERAL:
Floor space (Length X Width) 123” x 67” (w/o Chip Conveyor)

Approximate Weight 10,670 lbs

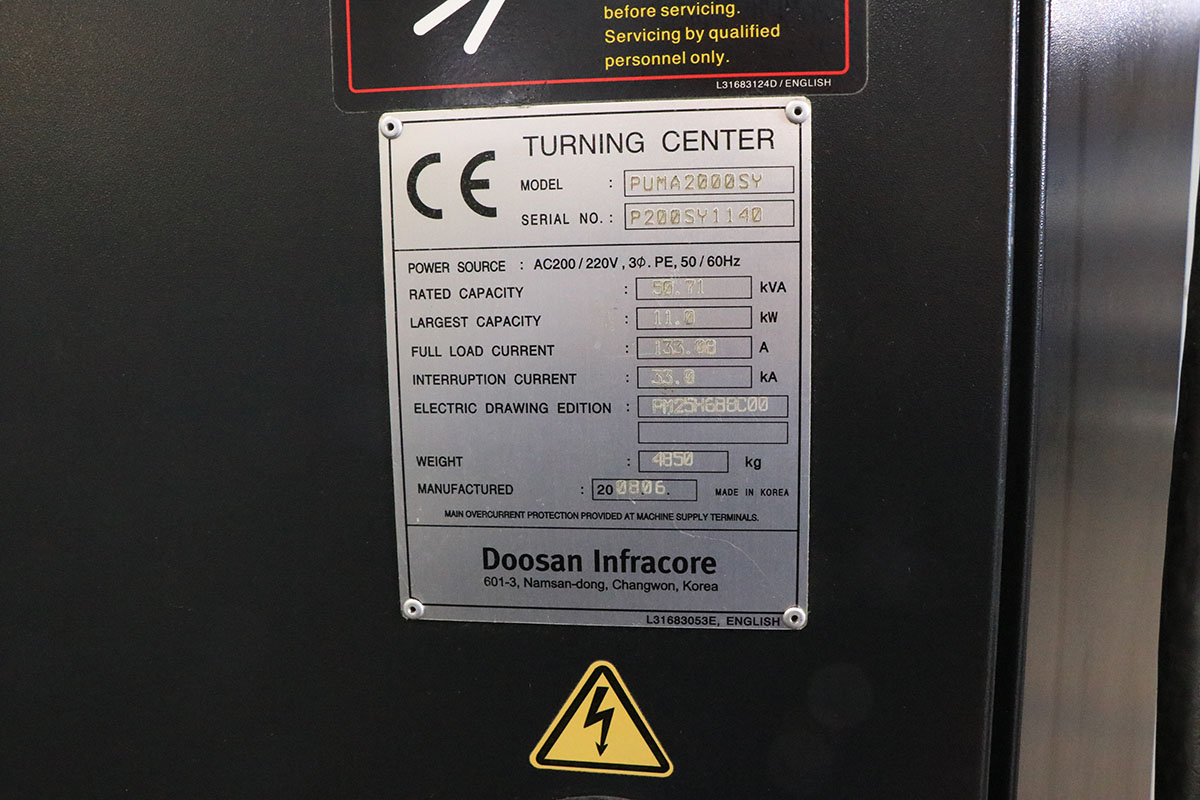

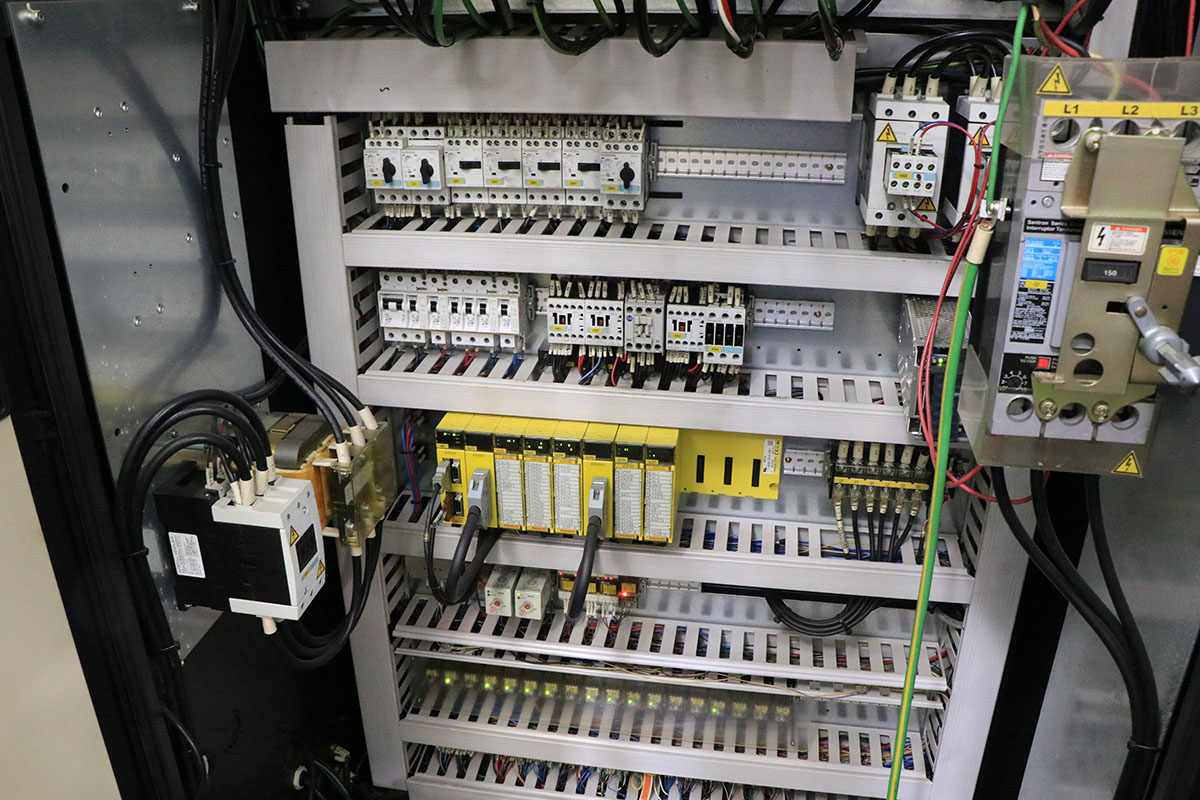

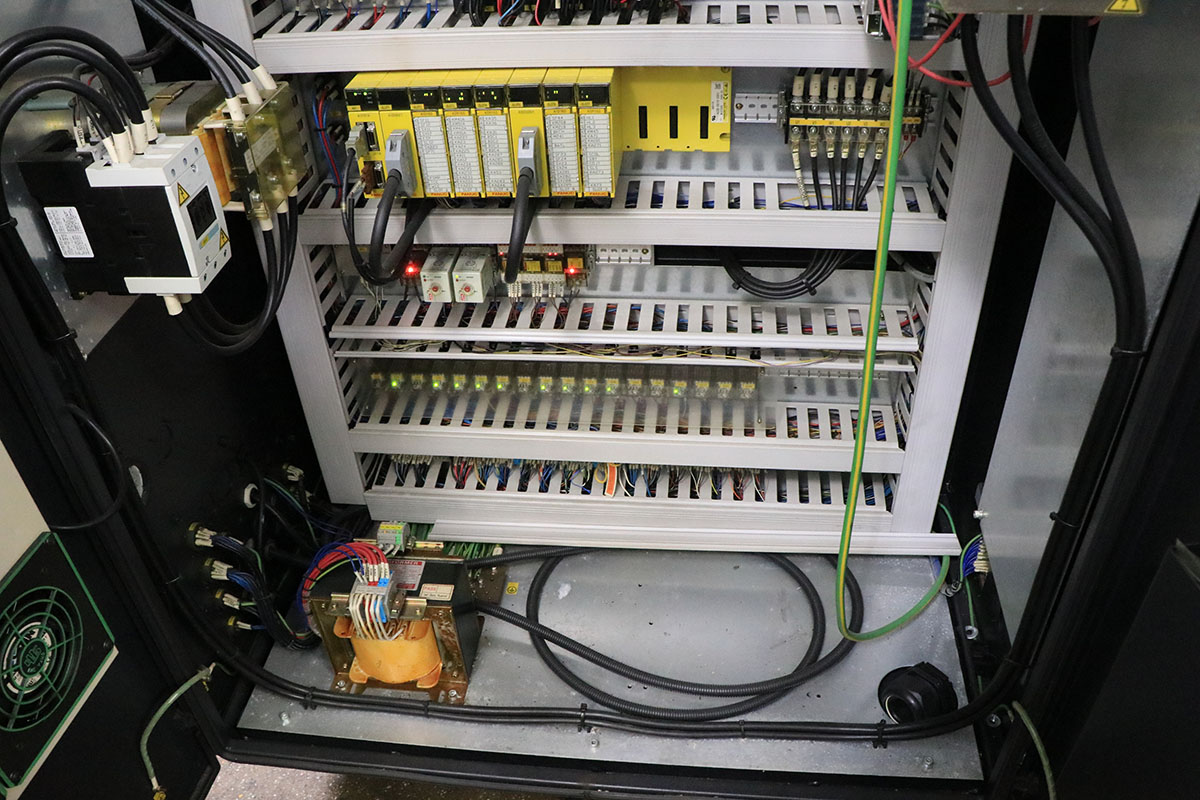

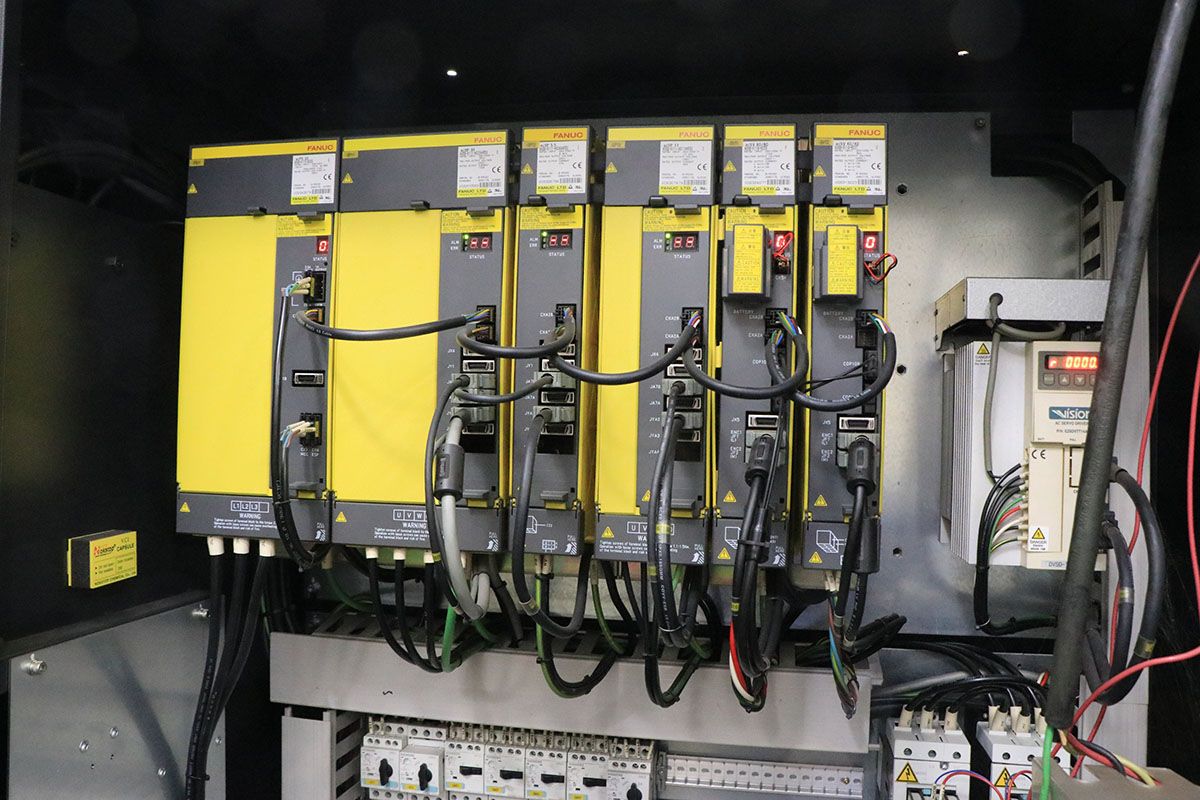

Voltage required 205 - 235 volt / 3 phase
Power requirement: 51 KVA  (134 amps at 220 volts)

EQUIPPED WITH:

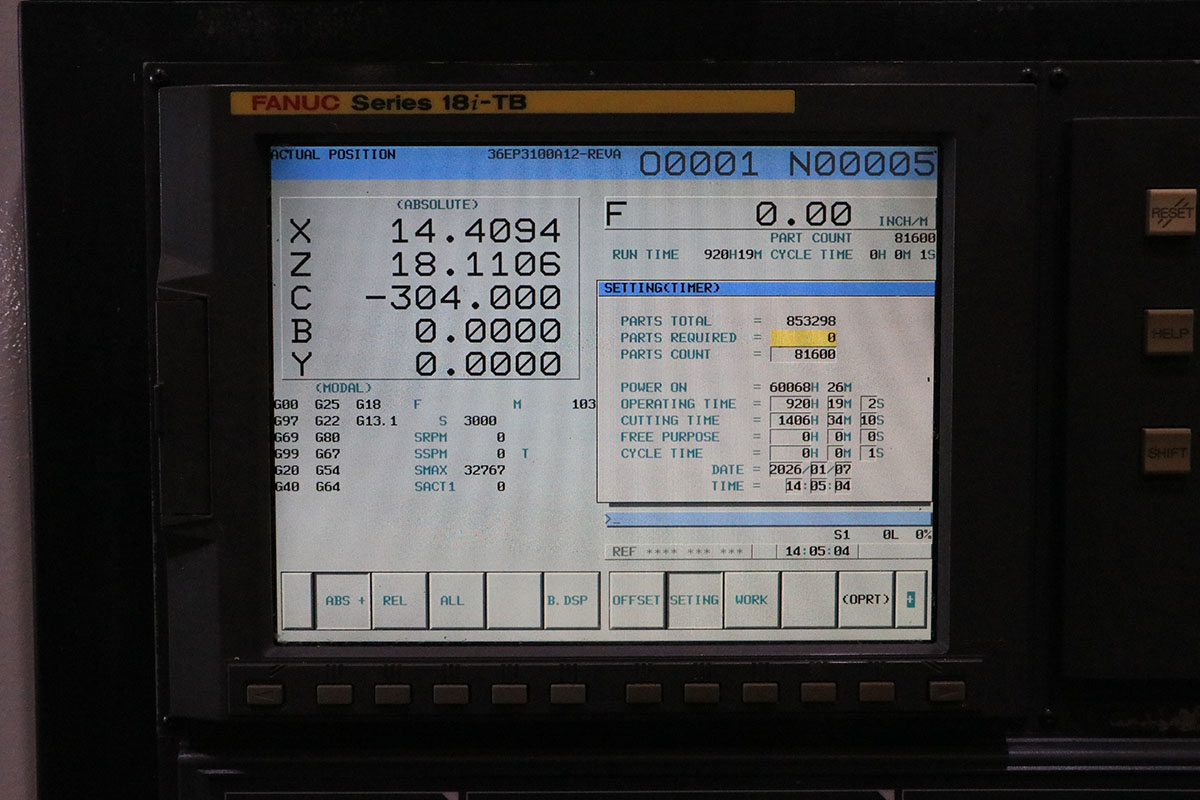

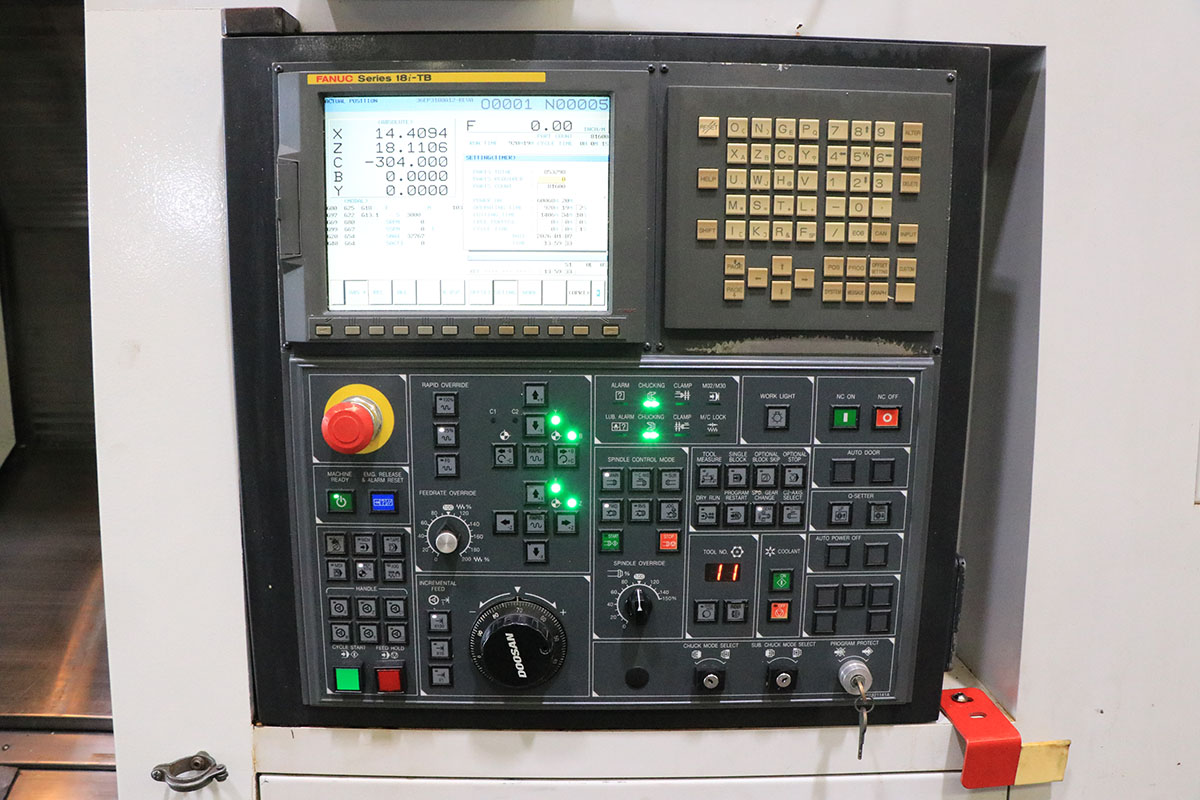

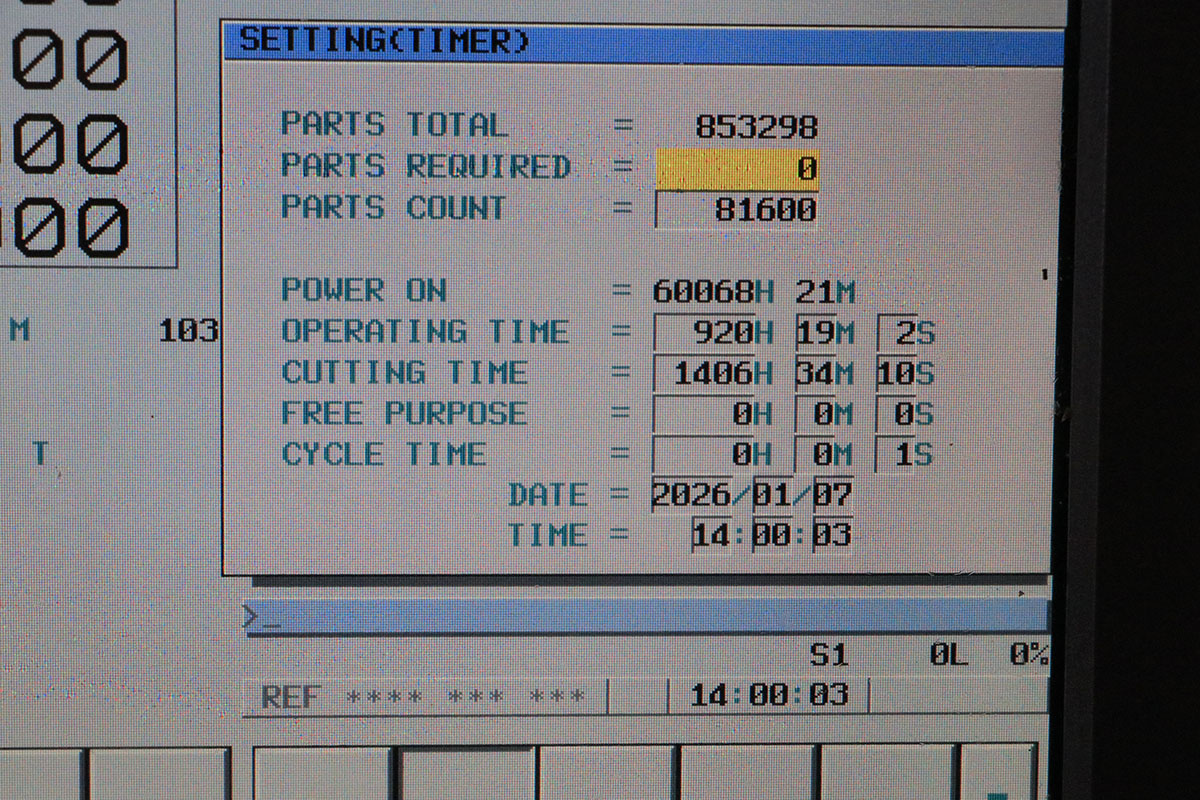

 - FANUC 18iTB CNC CONTROL
 - TOOLSETTER

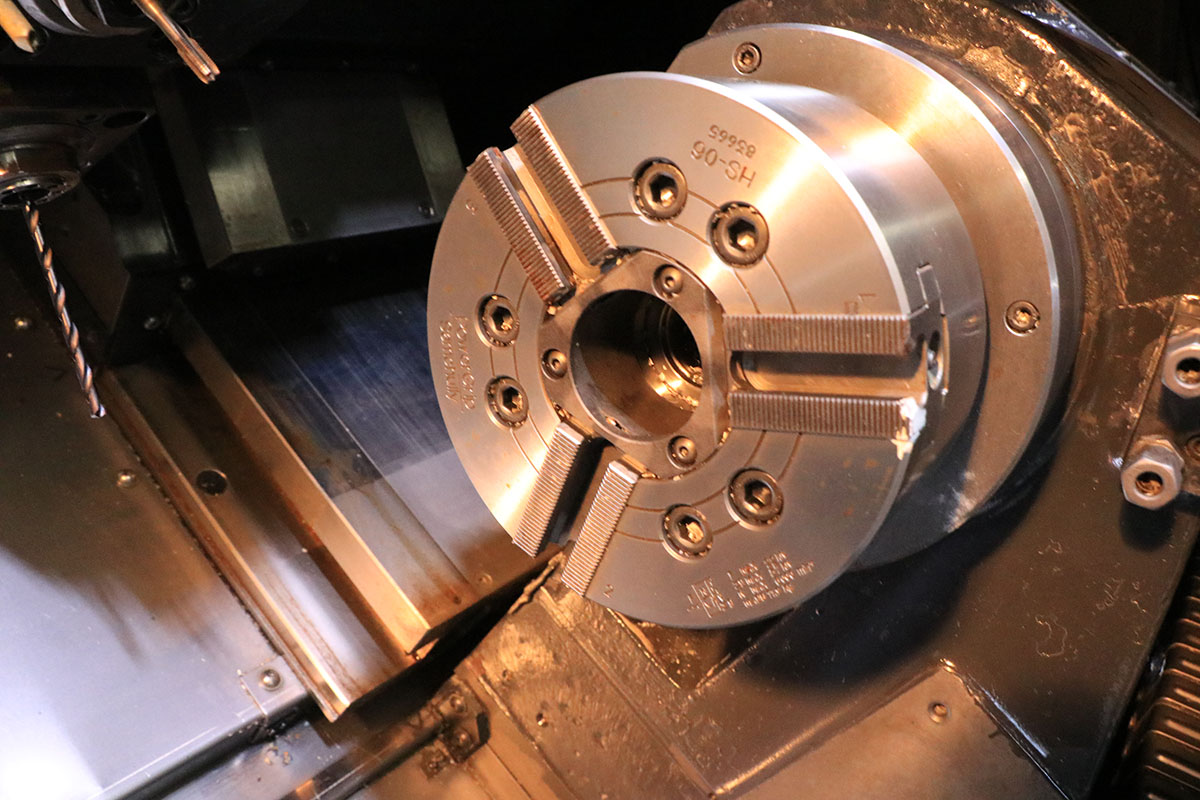

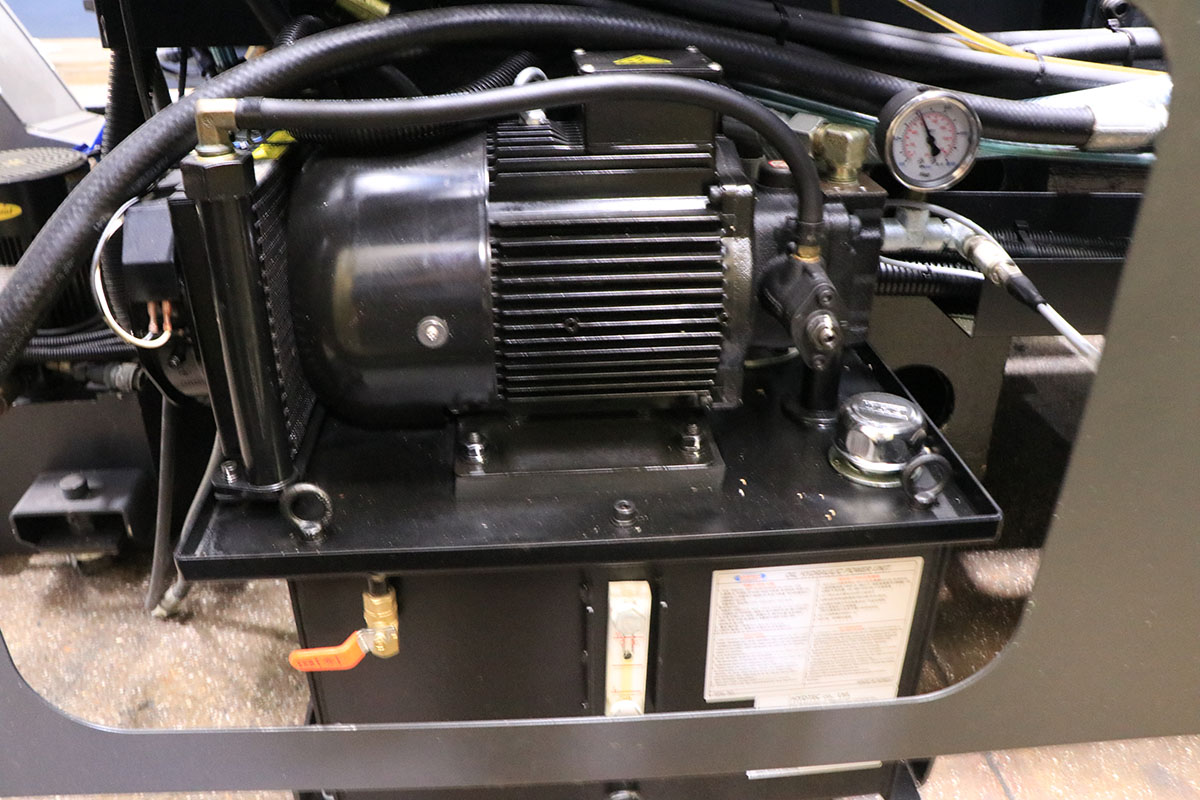

 - 8" 3-JAW HYD. CHUCK ON MAINSPINDLE

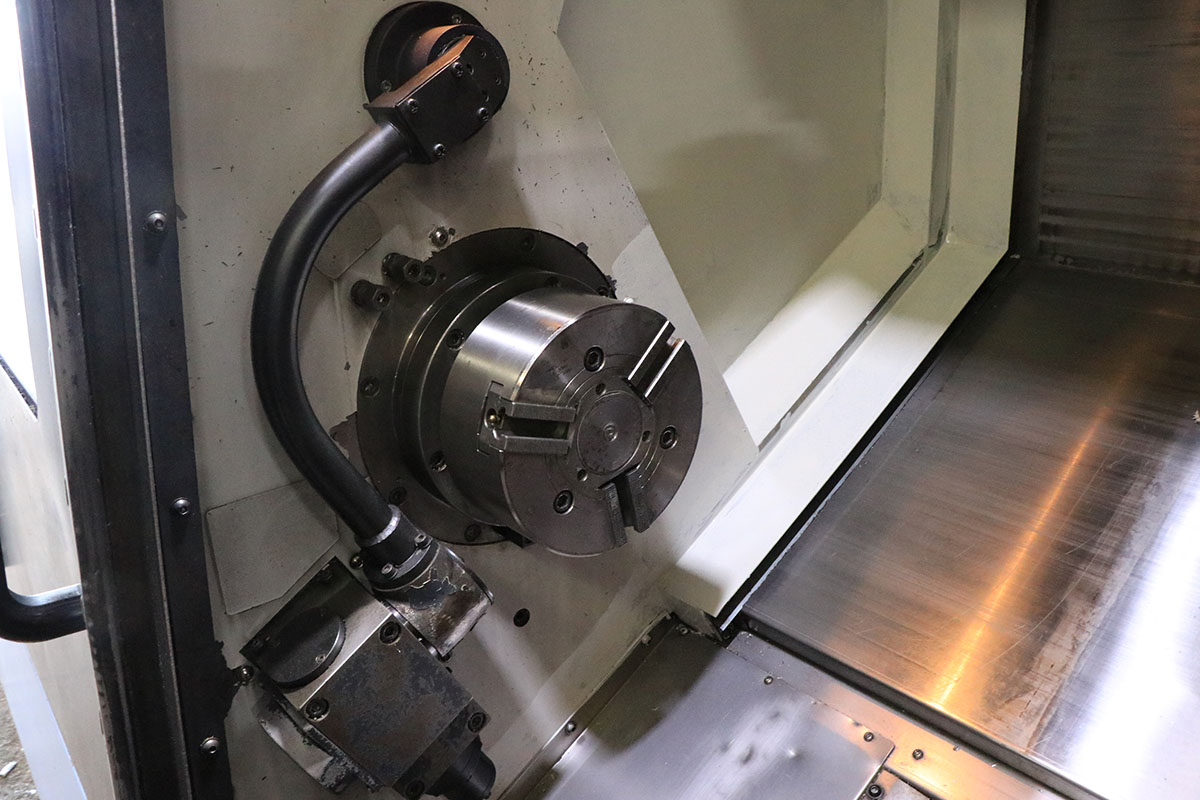

 - 6" 3-JAW HYD. CHUCK ON SUBSPINDLE

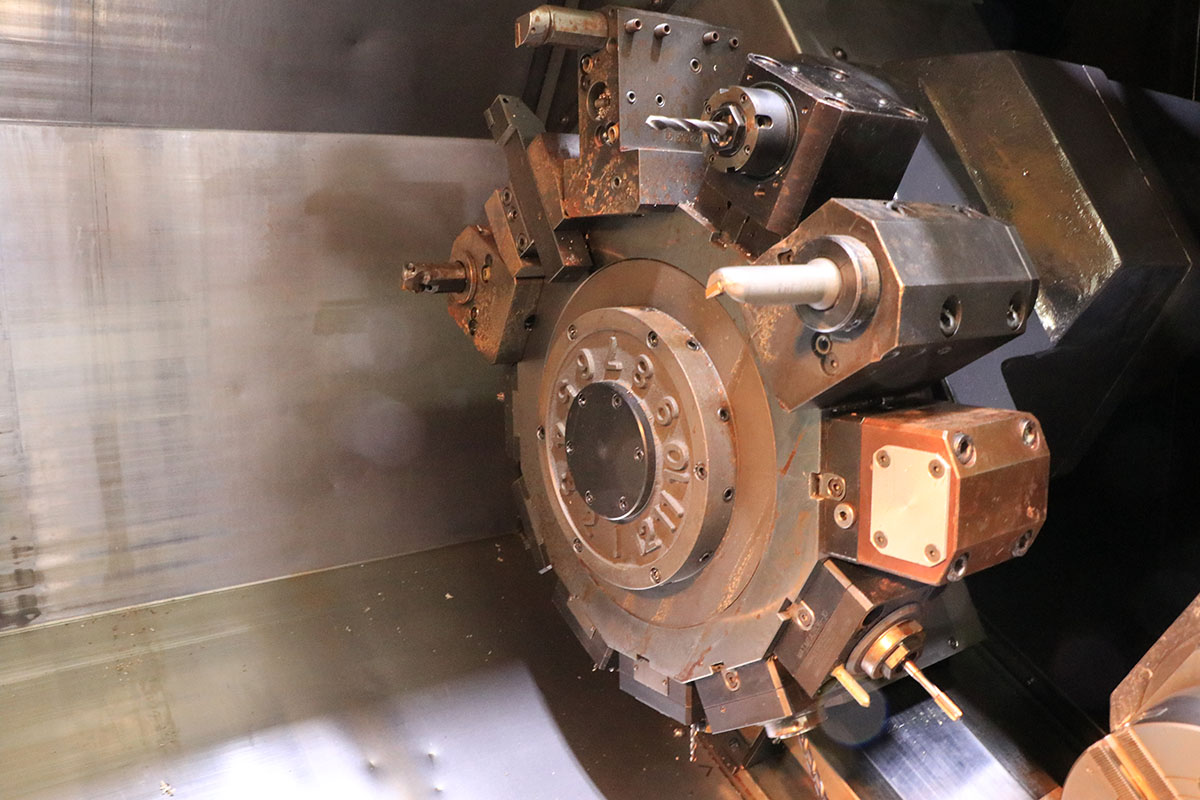

 - 12 POSITION TURRET

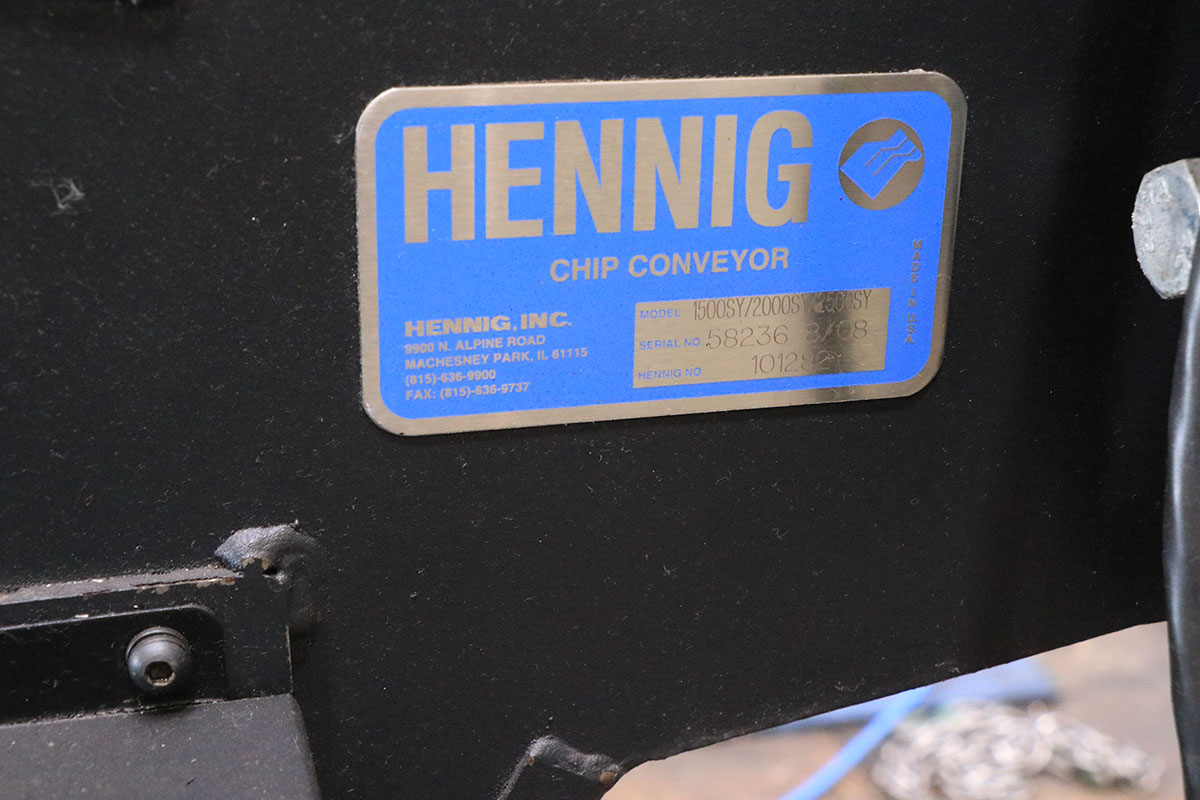

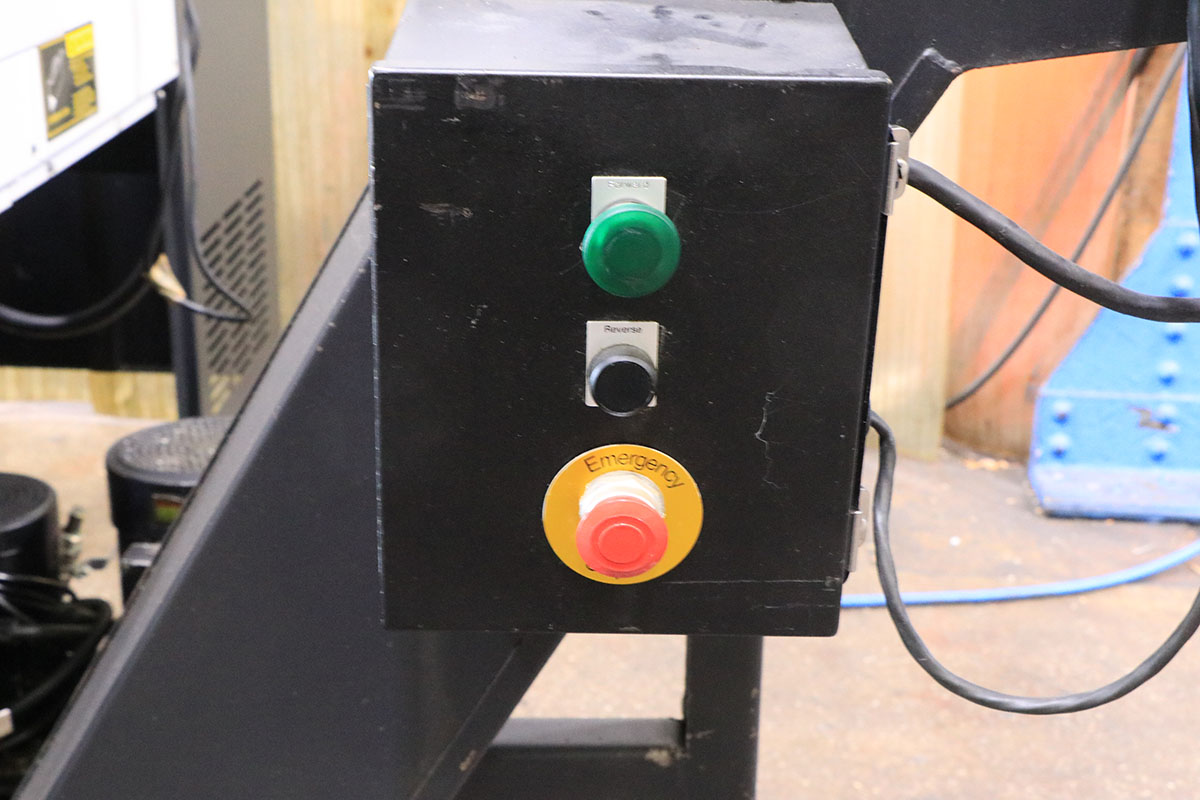

 - CHIP CONVEYOR
 - ALL AVAILABLE STATIC AND LIVE TOOLHOLDERS
