Doosan Puma 3100ULY CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Doosan

Model:: Puma 3100ULY

Year:: 2010

Ref #:: 177885

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

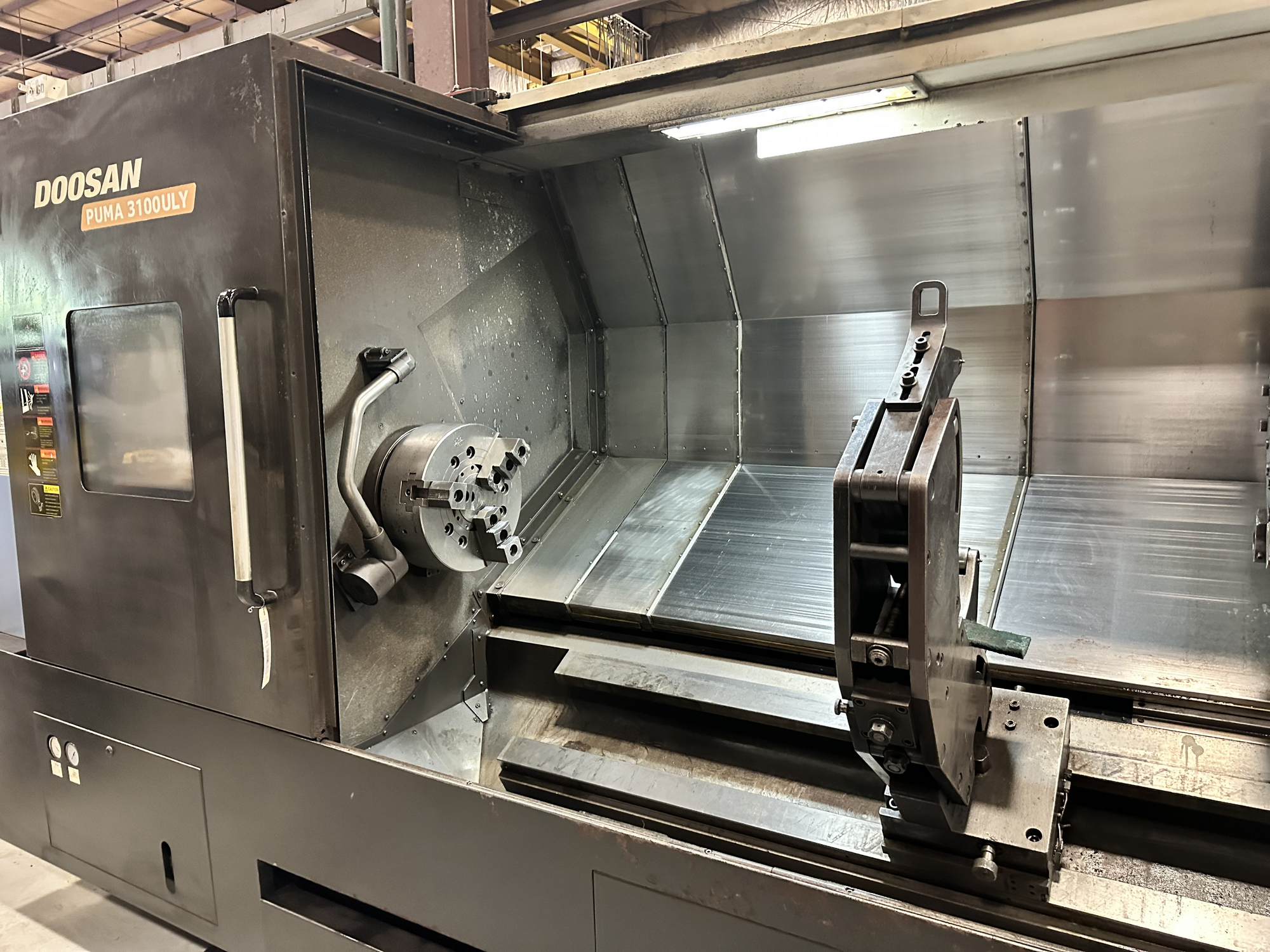

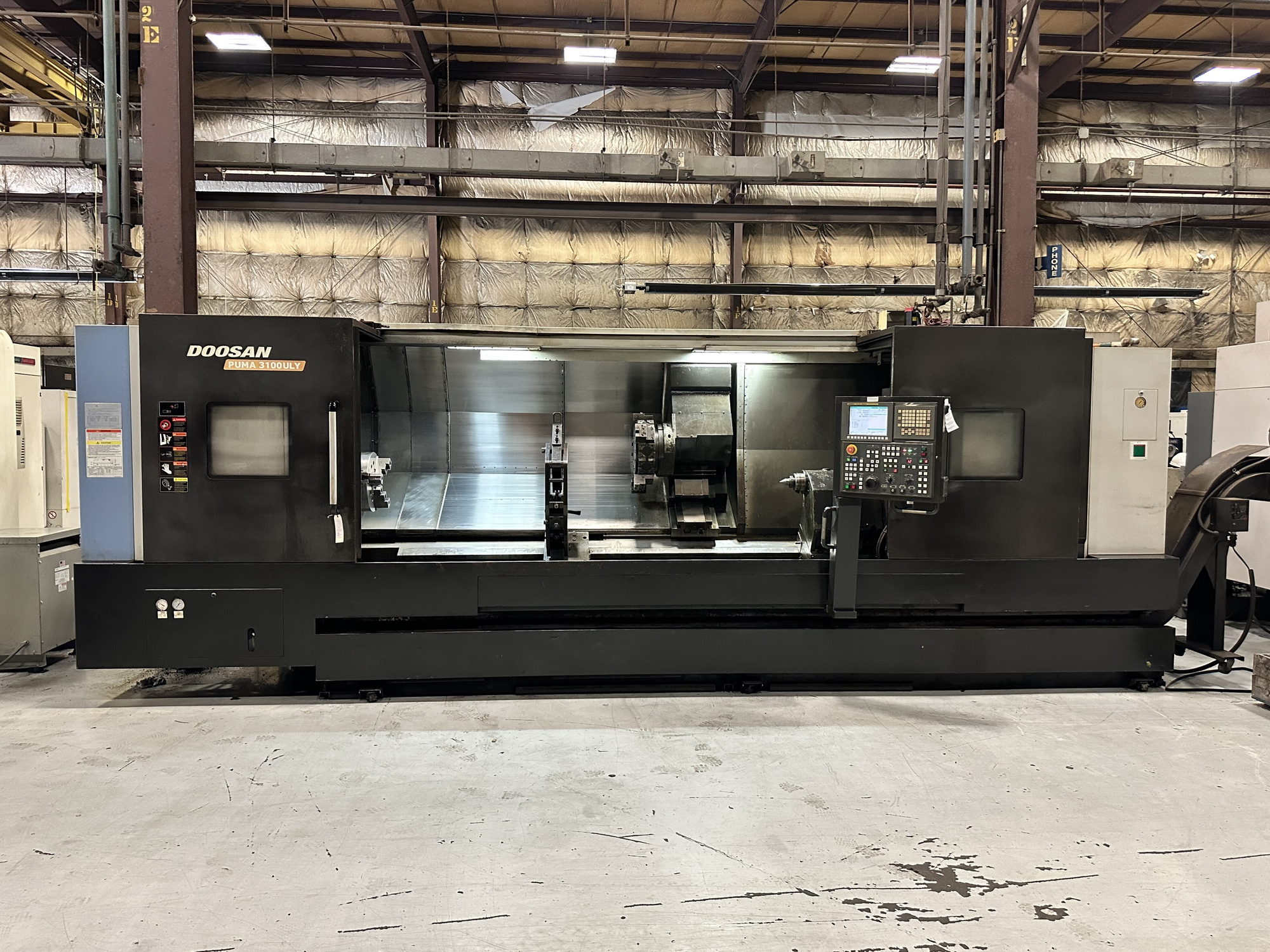

2010 DOOSAN PUMA 3100ULY CNC TURNING CENTER

SPECIFICATIONS:

SWING OVER BED	        33.46"
MAX CUTTING DIAMETER	  16.54"
MAX CUTTING LENGTH	  123.03"
X-AXIS TRAVEL	        11.5"
Y-AXIS TRAVEL	        5.1
Z-AXIS TRAVEL	        123.6"
C-AXIS INDEXING	        0.001
CHUCK SIZE	              15"
BAR CAPACITY	        4"
SPINDLE NOSE	        A2-11
SPINDLE MOTOR	        30 kW
SPINDLE SPEED	        3,000 RPM
TURRET CAPACITY	        12
LIVE MILLING	        Yes
LIVE MILLING SPEED	  5,000 RPM
LIVE MILLING MOTOR	  10 hp
Y-AXIS	              Yes
DIMENSIONS	              300" X 90" X 91"
WEIGHT	              29,000

EQUIPPED WITH:

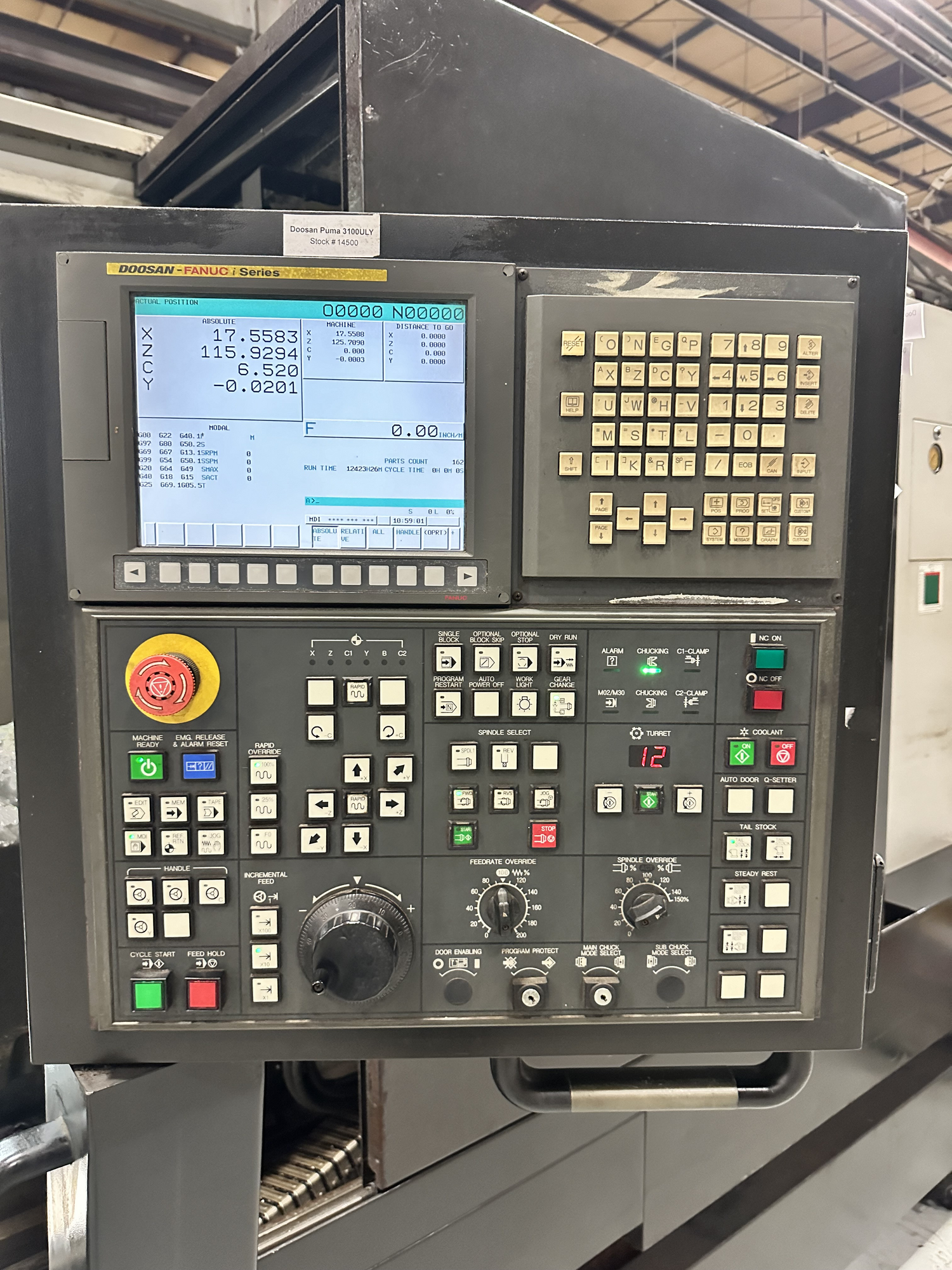

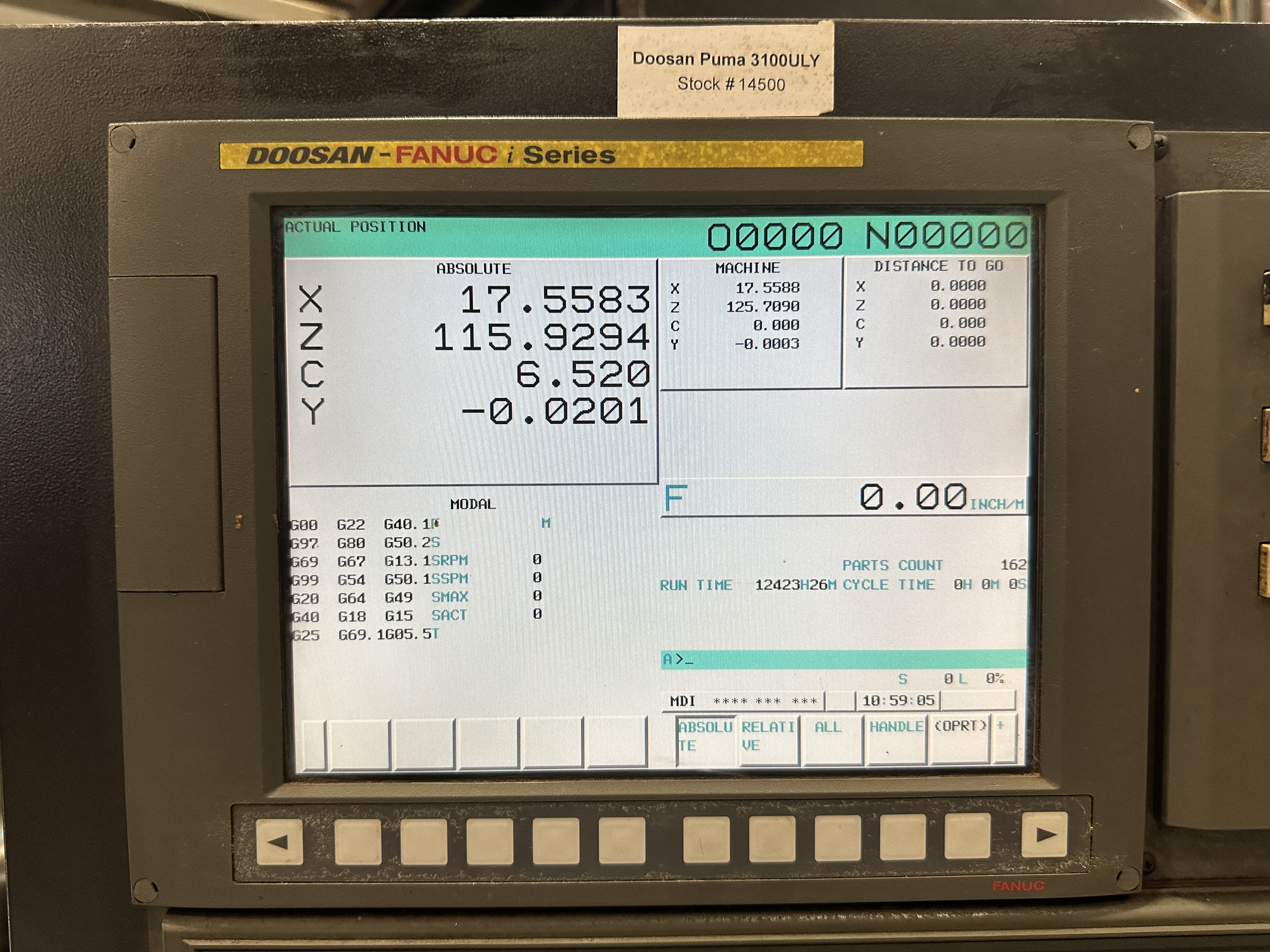

FANUC Oi-TD CNC CONTROL
MANUAL GUIDE i
Y-AXIS
LIVE MILLING
15", 3-JAW KITAGAWA B-15 HYDRAULIC CHUCK

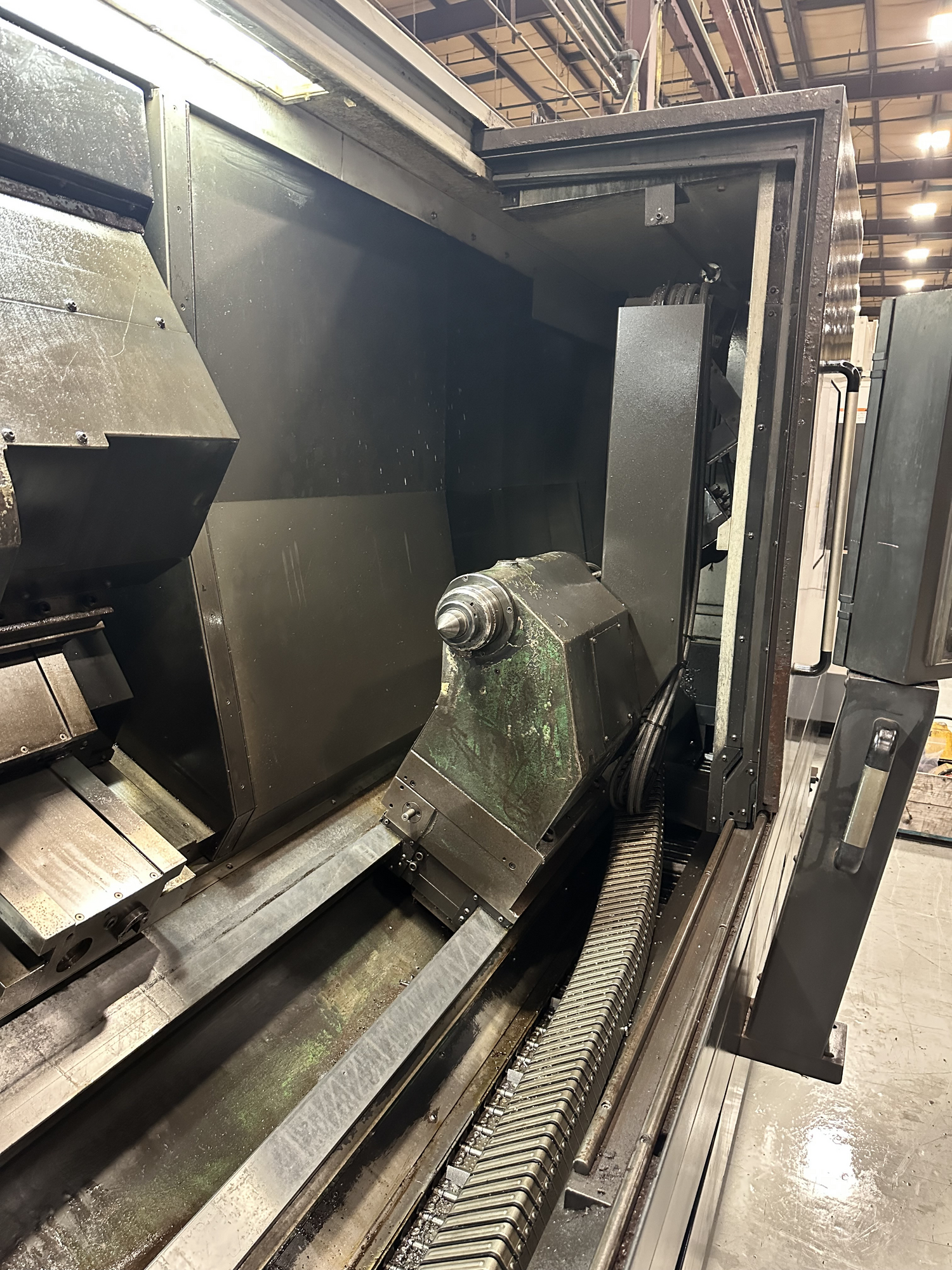

TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR

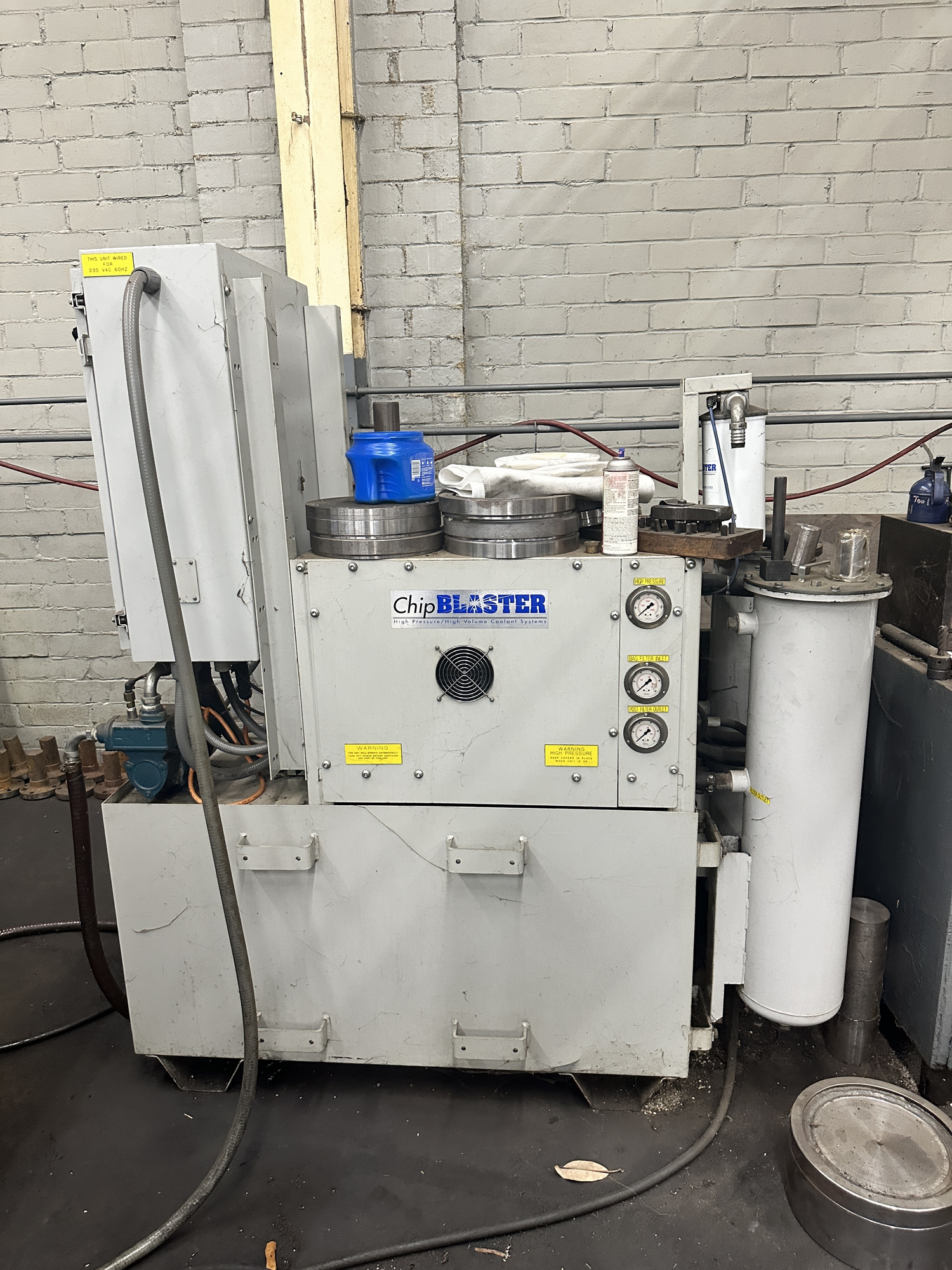

CHIP BLASTER MODEL JV40 HIGH-PRESSURE COOLANT UNIT

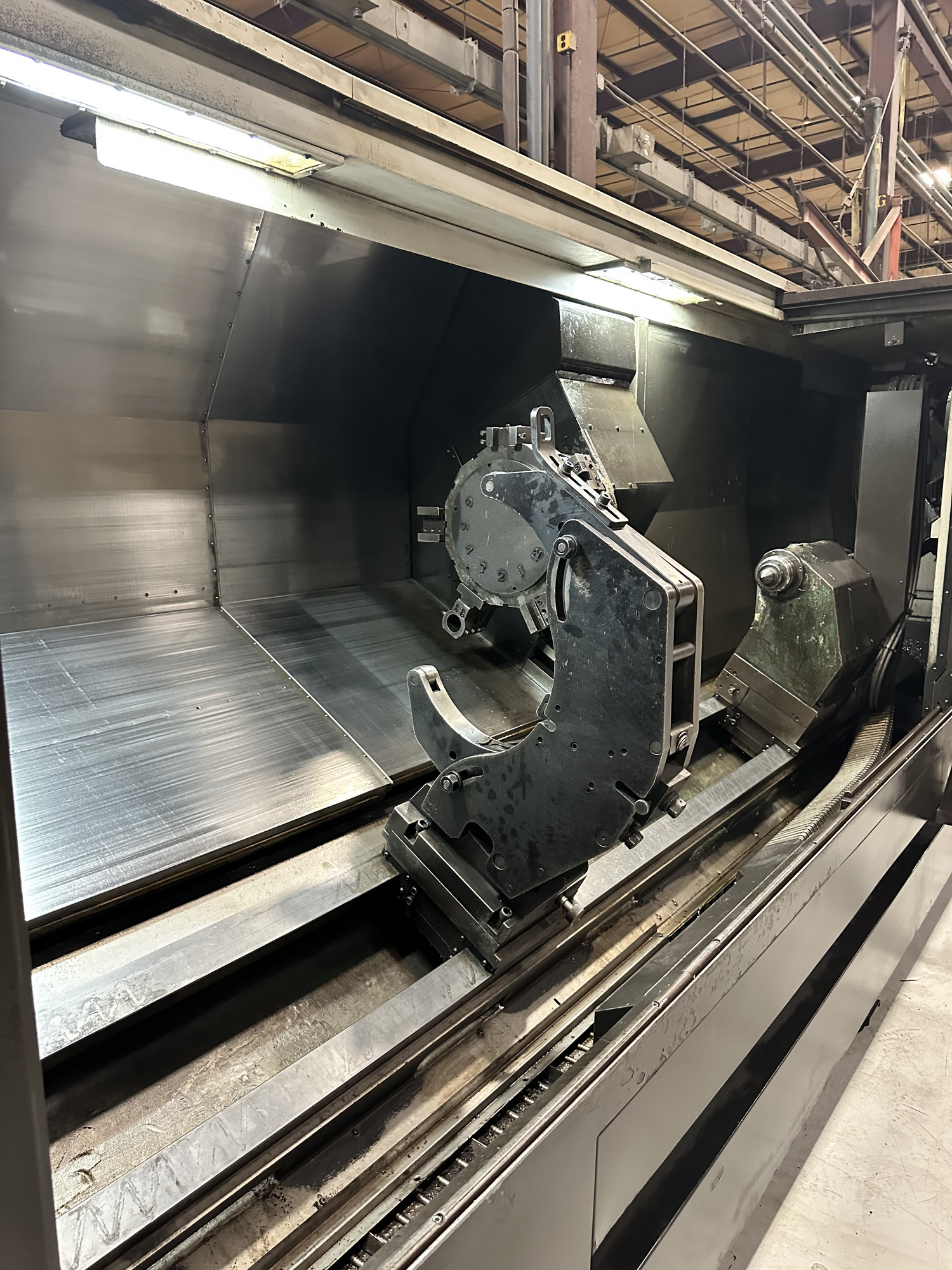

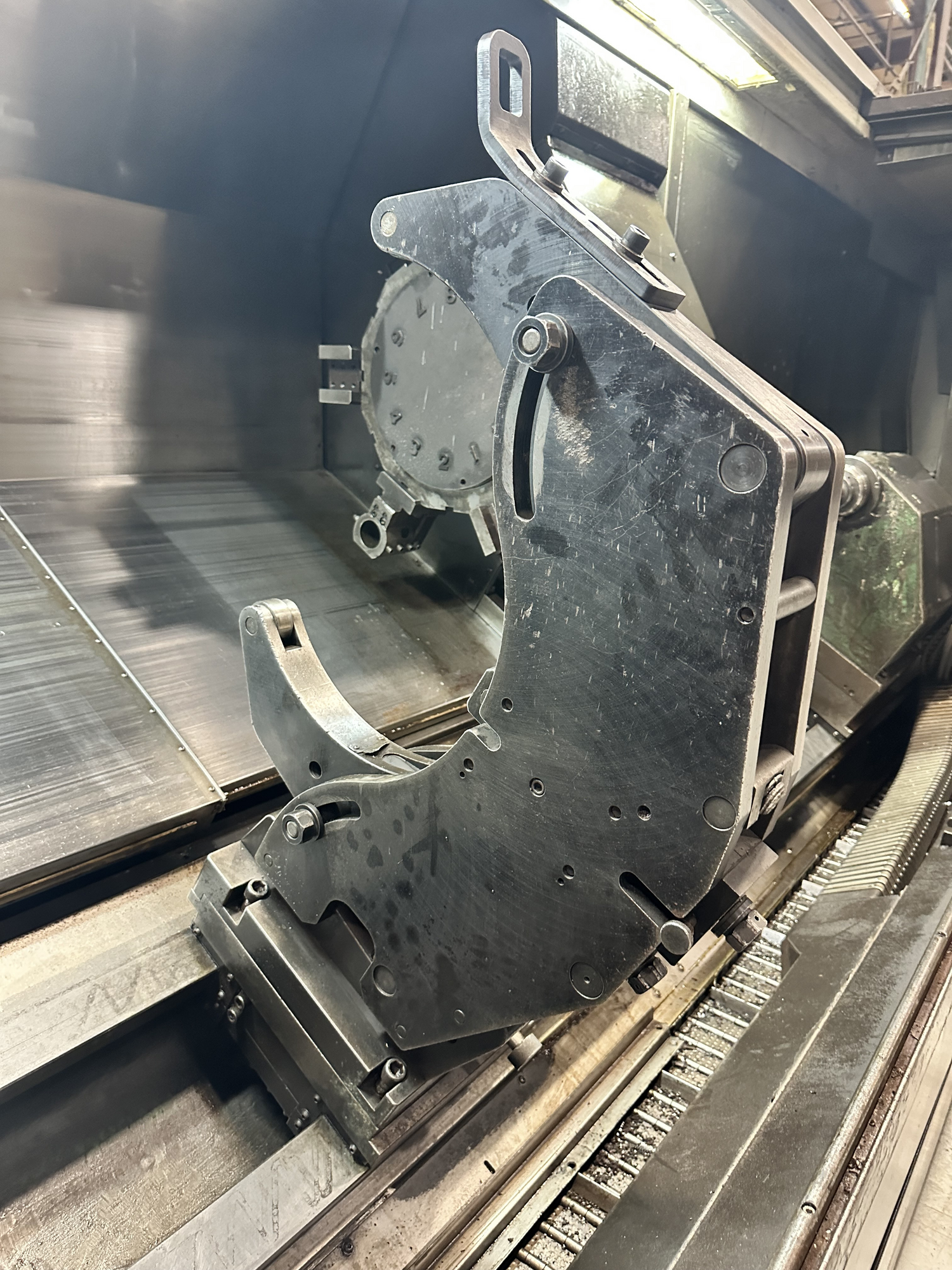

RIP 216 MANUAL STEADY REST W/BASE
* CAPACITY: 0.5" - 16"

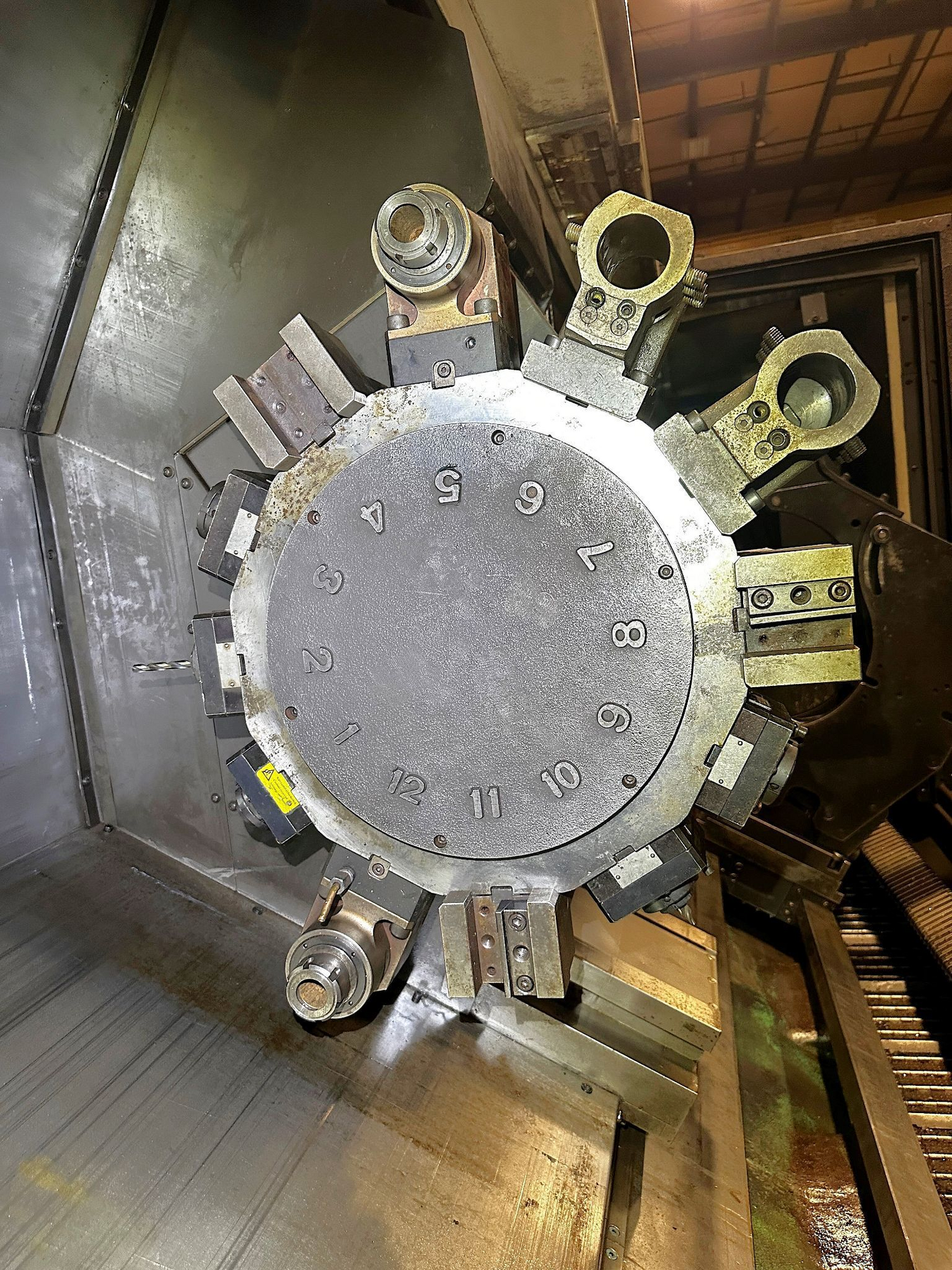

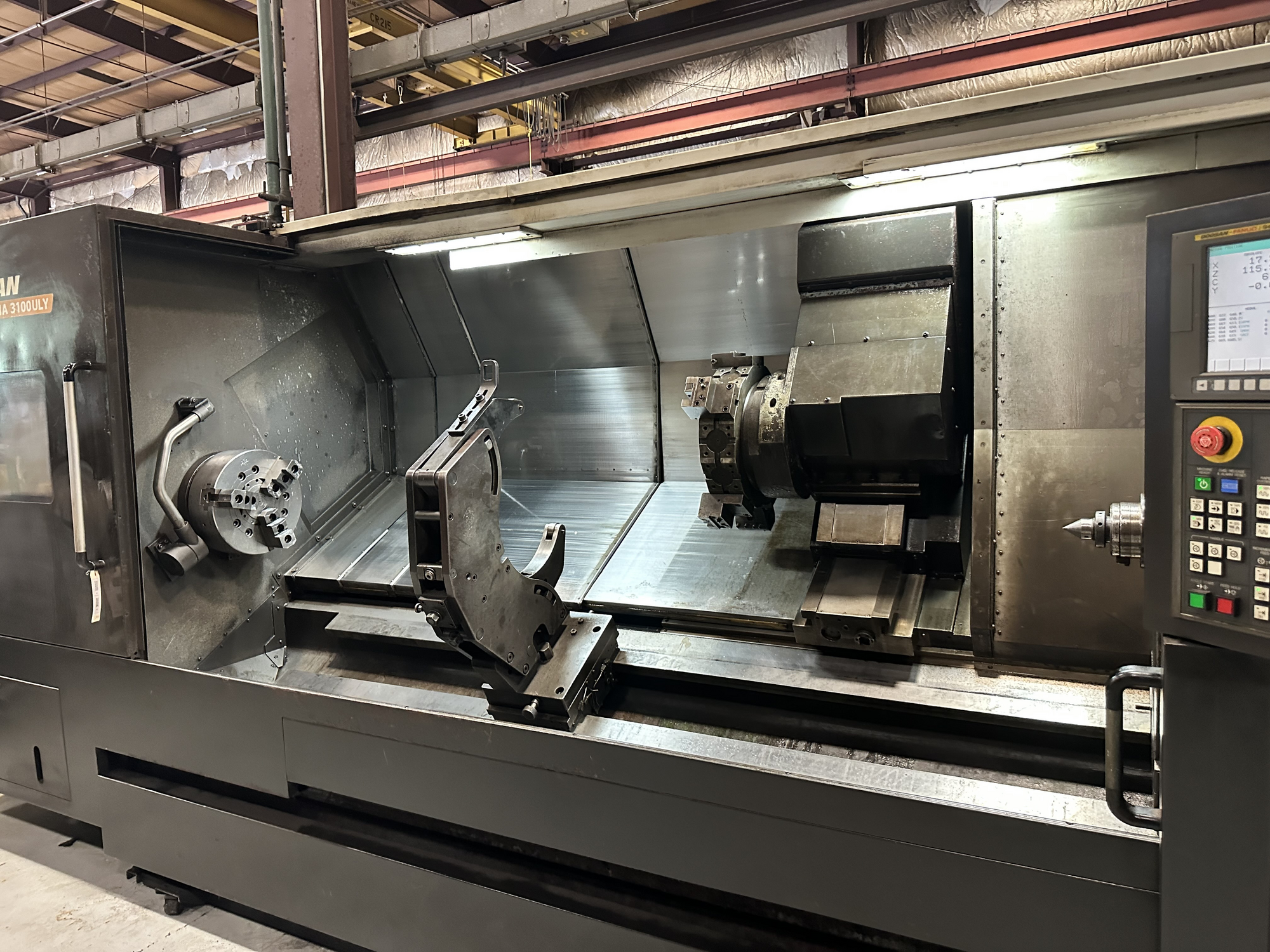

MISC. STATIC AND DRIVEN TOOL HOLDERS INCLUDED (AS SEEN IN TURRET PHOTO)
*** MACHINE IS IN STOCK, AVAILABLE FOR IMMEDIATE SALE
** PREP AND LOADING INCLUDED IN SALE
