Fanuc ROBOCUT ALPHA C400iA, 2012, 31i-WB CNC Control WIRE EDM MACHINES

Price on Request

Make:: Fanuc

Model:: ROBOCUT ALPHA C400iA, 2012, 31i-WB CNC Control

Year:: 2012

Ref #:: 172480

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

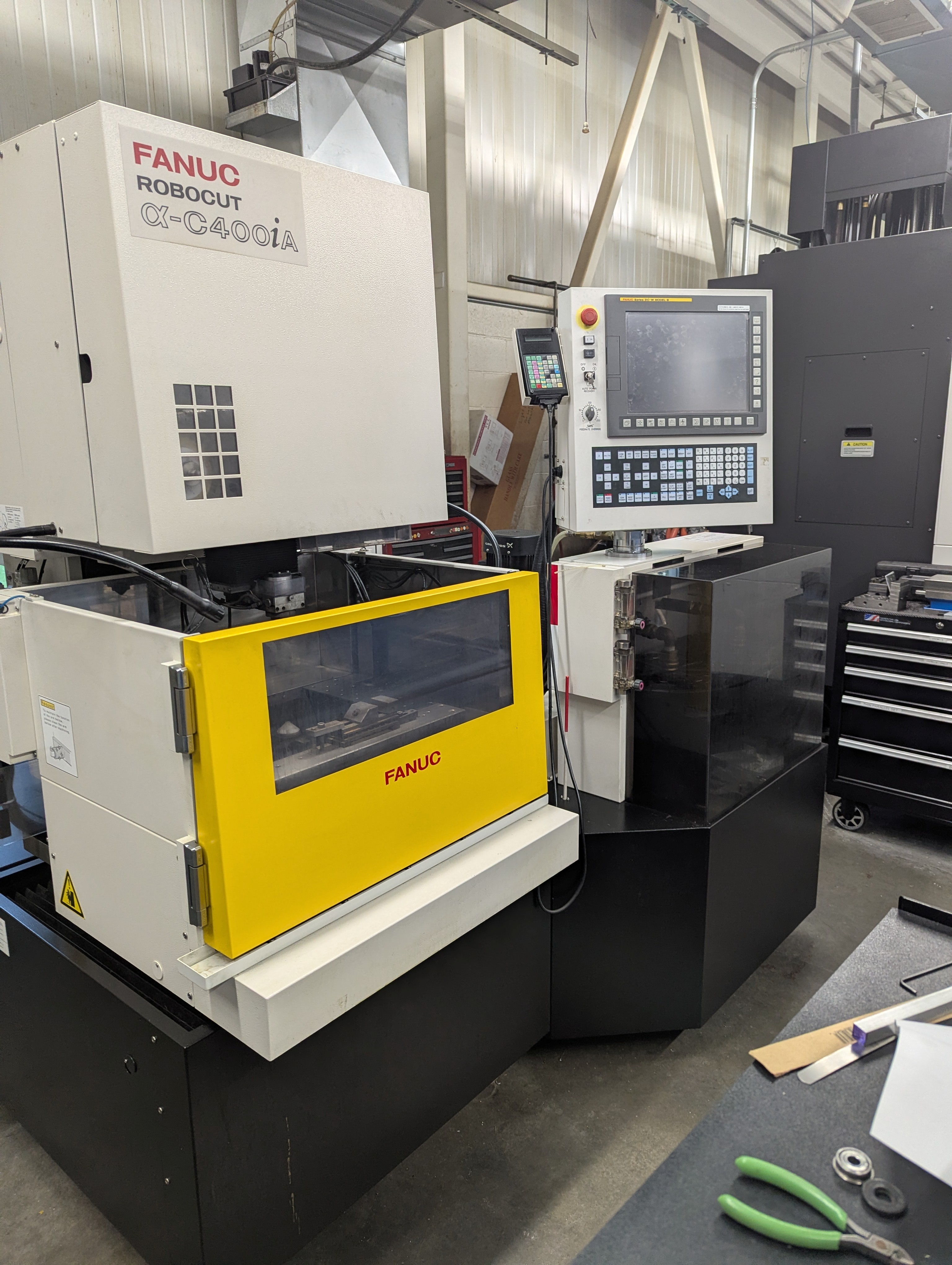

Fanuc Robocut Alpha C400iA CNC Wire EDM
with Fanuc 31i-WB CNC Control

*** Made in Japan ***

S/N: P12Y4A139      New:  2012

Special Note, Low Hours Machine:
Cycle Start Hours:  17,378
Cutting Hours:  16,864

Machine Tool Features:
• Travel
   X Axis............................... 14.6”
   Y Axis............................... 10.6”
   Z Axis .............................. 10.2”
   UV axes travel ...................... ± 2.362”
   Rapid traverse ...................... 1 ~ 50/ min.
   Work piece thickness @ taper Angle .. ± 12 @ 10 in
   Manual threading (jet nozzle removed) ± 30 @ 3.26 in
    * Requires optional Diamond guides ± 45 @ 1.6 in
• Positioning accuracy (X, Y) .......... ± 0.0001
• Repeatability (X, Y )................. ±0.000050
• Axes drive motors..................... AC Servo Motors
                                          Direct coupled to ball screw
• Maximum cutting speed***
   0.012” brass wire guides 2.4 in.
     thick tool steel .................. 31 square in./hour
   0.012” Coated wire 2.4”
     thick D2 tool steel ............... 33.5 square in./hour
• Internal Worktank Size (X x Y x Z) ... 30.5” x 23.6” x 9.8”
• Maximum submerged cutting depth ...... 9.84”
• Maximum work piece weight ............ 1,100 lbs
• Wire feed system
    Wire feed rate ..................... 0 ~ 590 IPM
    Wire tension ....................... 200 ~ 2,500 g
    Maximum wire spool weight .......... 35 lbs
    Wire diameter (min. to max.) ....... 0.004 to 0.012”
• Wire guide – upper & lower guide ..... Round diamond die guide
• Dielectric fluid system
    Tank cap. .......................... 145 gal
    Chiller ............................ Standard
    Dielectric fluid ................... Deionized water
    Resin bottle (one plus a spare) .... 1 cu. ft
    Filters (2 each).................... Cartridge
    Filtering precision ................ 3 Micron
    Dielectric fluid,
     resistively control ............... NC Controlled
• Cutting conditions
  Auto selection of 9 choices for 1 Cut ... Standard
  Automatic selection of 9 choices
   for multiple cut .................... Standard
  Automatic selection of 3 choices
    for micro finish cut ............... Standard
• Programming methods
  G-Code Programming.................... Standard
  Built-in easy conversational ......... Standard
  Off-line system via RS232 or
    Ethernet interface ................. Standard

Power Supply Features:
* Power Supply
   Pulse generator type ................ Transistor driven
  AC or DC.............................. Switchable
  Power supply circuit ................. Transistor pulse circuit
  No loading voltage ................... Setting range 0 – 13
  Cutting voltage....................... Setting range 3 – 18
  On time .............................. Setting range 1 – 255
  Off time ............................. Setting range 2 – 300
  Servo voltage ........................ Setting range 0 – 255
  Programmable flushing ................ Setting range 1 - 18
  Pulse mode............. Setting range – 1, 2, 3, 4, 11, 12, 13,
                                          14 21, 31, 33, 41, 43
• Total power required ................. 13 KVA
    (200/220 V ± 10%, 3 Phase, 60 Hz)
• Floorpace............................. 92” x 105”
• Machine weight........................ 4,000 lbs.

• Controlled axes ...................... X, Y, U, V, Z Plus optional rotary axis
• Least input increment ................ 0.000004”
• Least command increment .............. 0.00000004”
• Interpolation ........................ Linear, Circular

Additional Features of the FANUC C400iA Series
• Fanuc series 31i-WB CNC control with (1) 64bit and
   (3) 32 bit processors
• 15” Color LCD with advanced Touch Screen technology
• Swivel Control Panel for easier operation
• Heidenhain linear glass scales – X and Y Axis only
• Fanuc serial/digital AC servo motors
• NC Command Resolution of 0.00000004”
• Seven (7) controlable axes (X, Y, U, V, Z, A & B)
• 30 degree + taper cutting capability (optional guides required)
• Absolute position encoder system for X, Y, U, V & Z axes
   (no need to home the machine after start-up)
• Wire Tension Controlled via Twin Servo Motors (no powder brakes)
• Independent column mounted U and V axis slides
• Anti-Crash protection (X, Y, U, V, Z)
• Fanuc high speed fully digital / AC power supply
• Full Function Hand Held Pendant
• Simple and Quick On-Board Conversational Programming
• Servo Controlled automatic water level control in work tank
• Operator guidance screens for operation, alarms,
   maintenance and parts
• (1) RS232C • (1) Ethernet port • (2) USB Ports
• (1) PCMCIA slot • Part program storage capacity
    4 Megabyte (in control memory)
• Automatic power recovery
• Automatic restart
• Wire center path calculation G41/42
• Programmable Flushing

• AWF2 Function:

  Fanuc is world renowned for having the
  best AWF system on the market. The simplicity and
  reliability make unattended operation a true reality.
  Further upgraded for the iE series, the AWF2 offers the
  following enhancements: ü Submerged initial threading up
  to 200mm thick work pieces ü Improved Ai Automatic Wire
  Repair in the cutting gap up to 150mm thick work pieces
  AWF monitor screen allows easy set-up of the following
  advanced functions: ü AWF skip function ü Retry skip
  function ü AWF result screen ü RE-machining function
  ü Pecking retry function ü Full-Retry function ü Retry
  locations display ü Wire breakage locations display.

Link to video: https://youtu.be/JTe6s8WIgFA?si=k5O6lUxeJyS7a7hP

** Superior Condition & Appearance **
F.O.B. Our Harrison, NJ warehouse
Properly De-Installed by Fanuc EDM Including with Shipping Brackets
