GMC GMM-1054VPKG NEW VERTICAL MILLS

Price on Request

Make:

GMC

Model:

GMM-1054VPKG

Year:

NEW

Ref #:

143786

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

---

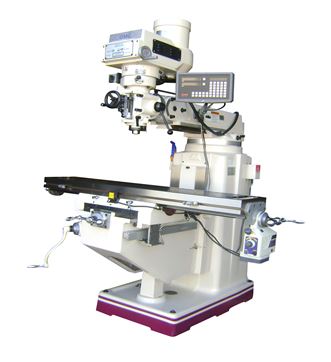

NEW GMC Manual Knee Type Vertical Milling Machine

Model # GMM-1054VPKG , Taiwan Mill



Machine Standard Features and Equipment:

 Taiwan mill

• “Meehanite” casting
• Turcite “B” coating on X/Y ways like CNC mills
• ISO 9001 certified
• Mechanical variable spindle speeds from 70-4,300 rpm
• Heavy duty 3 HP AC spindle motor, 3 phase  ( for ideal of tapping jobs, we strongly recommend to take 3 phase mill with phase converter )
• Heavy Duty high grade castings
• Hardened & ground ways, square ways on knee and column
• Hardened & ground table and Ground table T-slots
• Precision ground ACME Leadscrews
• Chromed ground quill ( spindle )
• Chromed dials
• Adjustable ways
• Hand brake on mill head
• Tilting & rotating head
• Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
• One shot lube system
• front and rear rubber chip guards, and (1) manual draw bar
• Tool box kit and leveling pads
• Power source 220V OR 440V , 3 phase
• One year industrial warranty for parts



Manual Knee Type Mills Specifications:

Table Size: 10” x 54”

Table Load Capacity: 750 LBS

X Axis Travel: 36-1/2”

X travel with power feed: 33-1/2”

Y Axis Travel: 16”

Z Axis Travel: 16”

Spindle Taper Type: R8

AC Spindle Motor: 3 HP

Variable spindle speeds: 70-4,300 rpm

Quill ( Spindle ) diameter: 3 3/8”

Quill ( Spindle ) travel: 5”

Ram travel: 18”

Table T-slot size: 5/8” x 3 slots

Head Swivel, R/H , L/H: 90 degree

Net weight:  3,250 LBS



Standard Equipment:

1. Free SINO DRO
2. Free table power feed X for # GMM-1054VPKG
3. One shot lube
4. Draw bar
5. Rubber way covers
6. Tool box

 Optional Equipment for  Manual Knee Type Mill # GMM-1054V :



• DRO, NEWALL C80 # NW-949-2, 2 axis, free installation
• DRO, NEWALL C80,# NW-949-3, 3axis, 3rd on quill or column
• Power air draw bar, High Quality( USA)# HQR8
• Coolant system
•  Base coolant/chip drop pan# COOL-PAN
•  Power feed # FP-180X, Taiwan ALIGN, x axis , free install
• Power feed # FP-180Y, Taiwan ALIGN, y axis, free install
• Power feed # FP-180Z, Taiwan ALIGN, Z axis, free install
•  Halogen work light
•  6” vise, part# 900-0021
• 52 pcs clamping kit # # 900-0001, ½”-13NC stud, 5/8” T-slot
• 11 pcs R8 collets set # 900-0007, 1/8” – 7/8”
•  Phase converter # PAM-300HD, USA, for single phase conversion
•  Mill package # 3, incl 6” vise # 900-0021, collet set # 900-0007 Clamping Kit# 900-0001, 20pc Titanium end mill set # 8000-0020,29pc Titanium drill bit set # 5000-0001T
