Haas ST-20Y CNC TURNING CENTERS - CNC LATHES

$79,500

Make:
Haas
Model:
ST-20Y
Year:
2019
Ref #:
163735

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

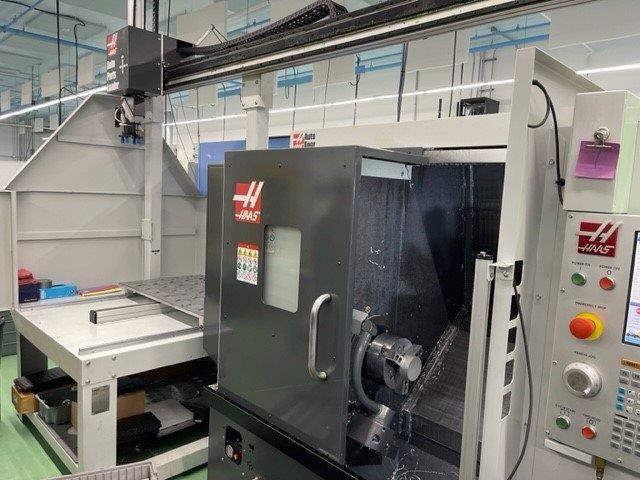

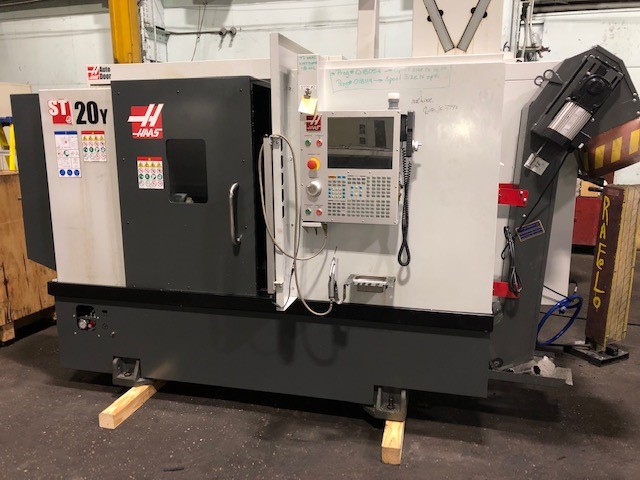

HAAS ST-20Y CNC TURNING CENTER w/Y-AXIS MILLING
NEW: 2019

SPECIFICATIONS:
CHUCK SIZE ....................... 8"
MAX. PART SWING .................. 21.0"
MAX. CUTTING DIA. ................ 11.75"
MAX. CUTTING LENGTH .............. 22.5"
BAR CAPACITY ..................... 2.5"
X-AXIS TRAVEL .................... 8.4"
Y-AXIS TRAVEL .................... +/- 2.0"
Z-AXIS TRAVEL .................... 22.5"
RAPID FEEDRATE X/Y/Z ............. 472/472/945 IPM
SPINDLE NOSE ..................... A2-6
SPINDLE MOTOR RATING ............. 20.0 HP
SPINDLE SPEED MAX. ............... 4000 RPM
SPINDLE BORE ..................... 3.5"
MAIN SPINDLE C-AXIS MOTOR ........ 5.0 HP
C-AXIS POSITIONING ............... 0.01 DEG.
LIVE TOOL MAX. RPM ............... 4000 RPM
NUMBER OF TOOL STATIONS .......... 12
APPROX. MACHINE WEIGHT ........... 10,840 LBS


EQUIPPED WITH:

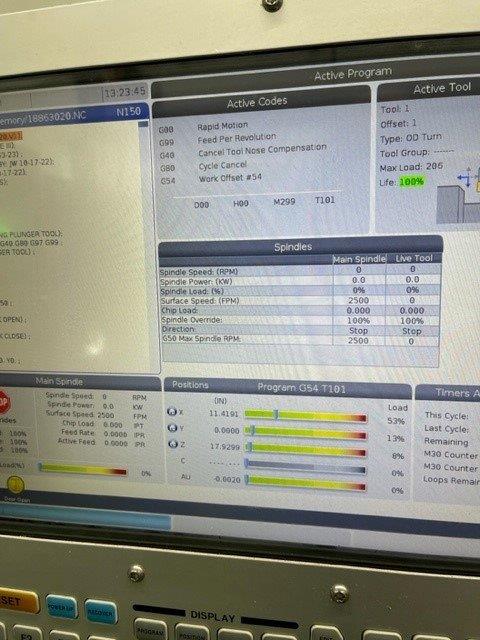

 - HAAS CNC CONTROL

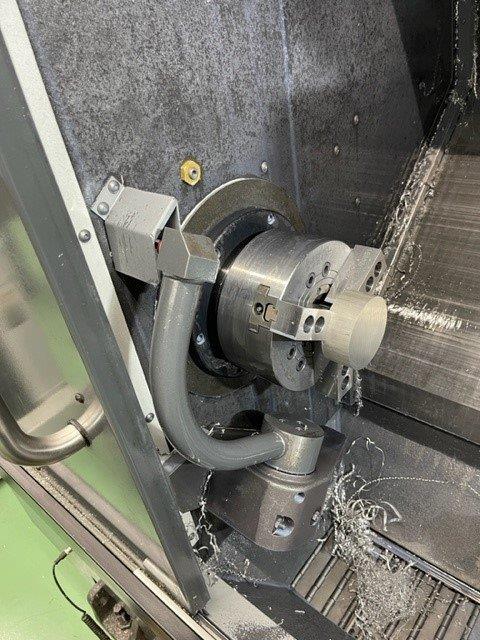

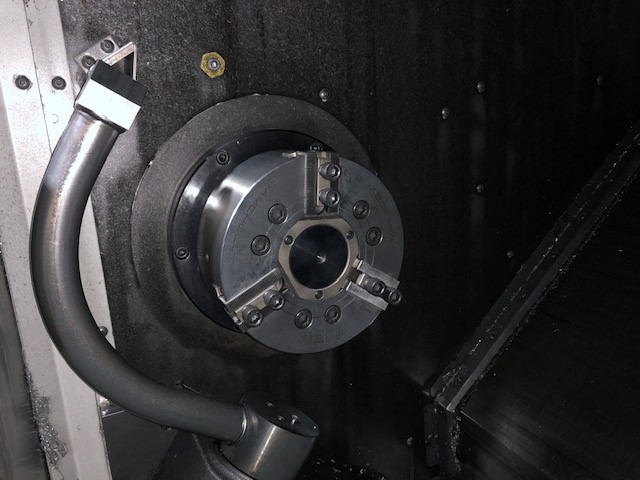

 - 8" 3-JAW HYDRAULIC CHUCK
 - AUTOMATIC TOOL PRESETTER

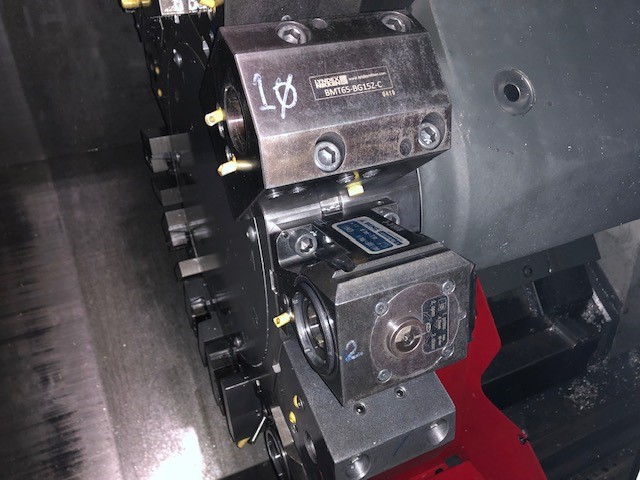

 - LIVE TOOL w/ FULL C-AXIS
 - Y-AXIS MILLING
 - AUTO DOOR

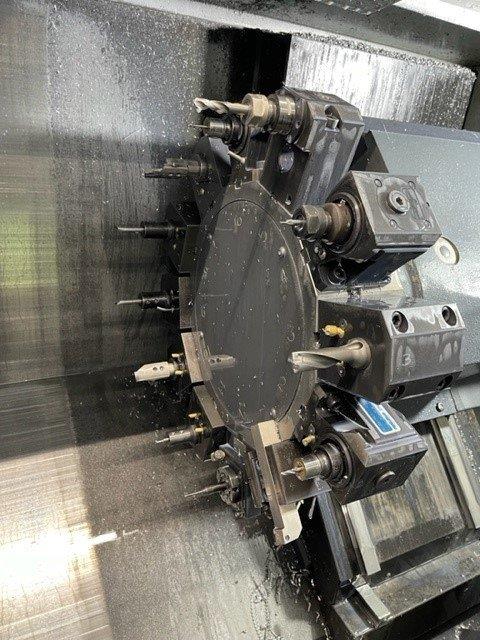

 - ALL AVAILABLE LIVE AND STATIC TOOLHOLDERS

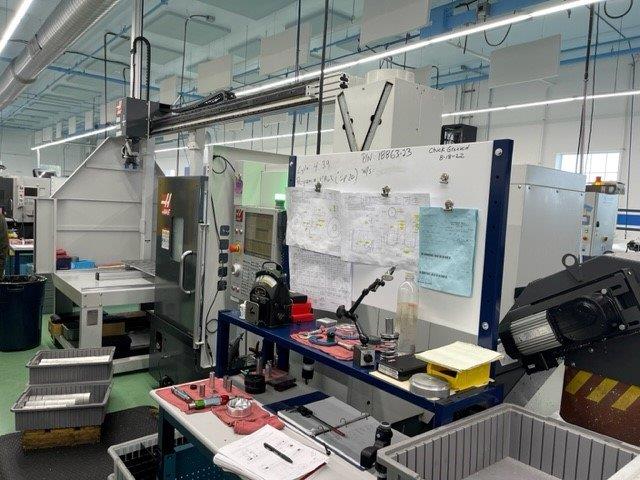

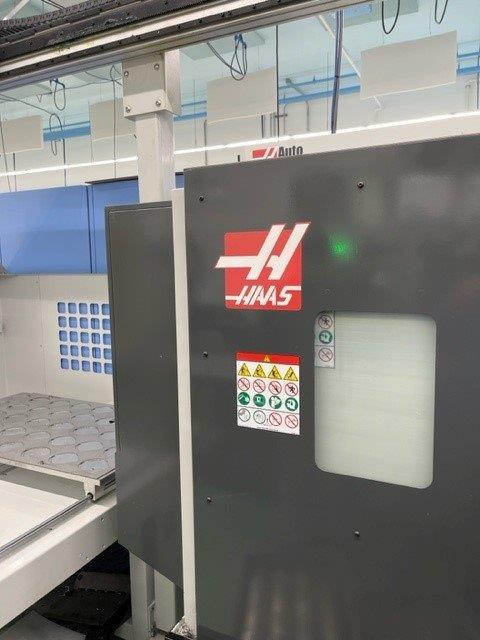

THIS MACHINE WAS ORIGINALLY PURCHASED WITH A HAAS AUTOMATIC PARTS LOADER. IT CAN BE SOLD WITH OR WITHOUT THE PARTS LOADER.

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
