Hardinge Conquest GT-27SP CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Hardinge

Model:: Conquest GT-27SP

Year:

Ref #:: 168987

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

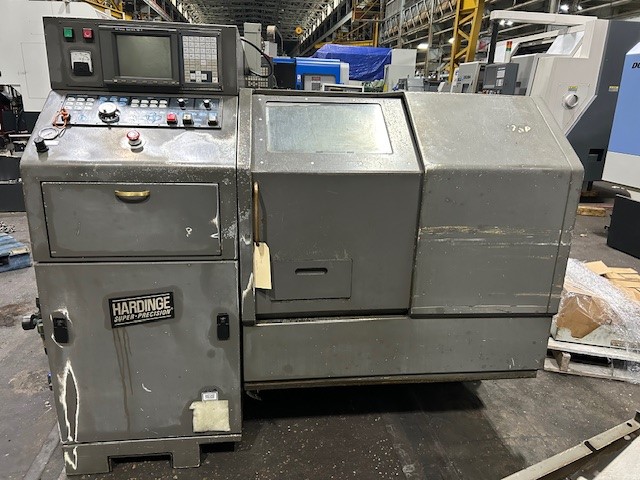

HARDINGE CONQUEST GT-27SP "Super Precision" CNC LATHE
MODEL:  2001

SPECIFICATIONS:
MAX SWING OVER WAY COVER ...................... 11.76"
MAX SWING OVER TOP PLATE ...................... 2.65"
X-AXIS TRAVEL ................................. 11.96"
Z-AXIS TRAVEL ................................. 10.42"
MAX SQUARE SHANK TOOL SIZE .................... 1/2"
MAX ROUND SHANK TOOL SIZE ..................... 3/4"
CAPACITY THRU 16C COLLET ...................... 1.625"
SPINDLE CONFIGURATION ......................... A2-4"
SPINDLE SPEEDS ................................ 50-5000 RPM
RAPID TRAVERSE RATE X/Z ....................... 472/630 IPM
MAX DISTANCE FROM SPINDLE FACE TO TOP PLATE ... 10.609"
AC DIGITAL SPINDLE DRIVE SYTEM ................ 5 HP
APPROX. WEIGHT ................................ 5,700 LBS.

EQUIPPED WITH:
FANUC 18iT CNC CONTROL

OVERALL DIMENSIONS (MACHINE): 72" (LR) x 60" (FB) x 72" (H)
APPROX WEIGHT ................................ 5,700
