Kingston CL38 / Dual Turret Versatility NEW CNC LATHES

Price on Request

Make:: Kingston

Model:: CL38 / Dual Turret Versatility

Year:: NEW

Ref #:: 168999

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

NEW KINGSTON CNC FLAT BED LATHE
MODEL: CL38

SPECIFICATIONS:
CAPACITY
SWING OVER BED ................... 26"
MAX. CUTTING DIAMETER ............ 14.5"
DISTANCE BETWEEN CENTERS ......... 40"/60"/80"/120"/160"
WIDTH OF BED ..................... 18"

HEADSTOCK
SPINDLE BORE ..................... 7.3"
SPINDLE MOTOR .................... 25 HP / 30 HP (30 min)
TYPE OF SPINDLE NOSE ............. A2-15

GEAR BOX
NUMBER OF SPEED RANGES ........... 2
SPINDLE SPEED (RPM) .............. 3 – 1000

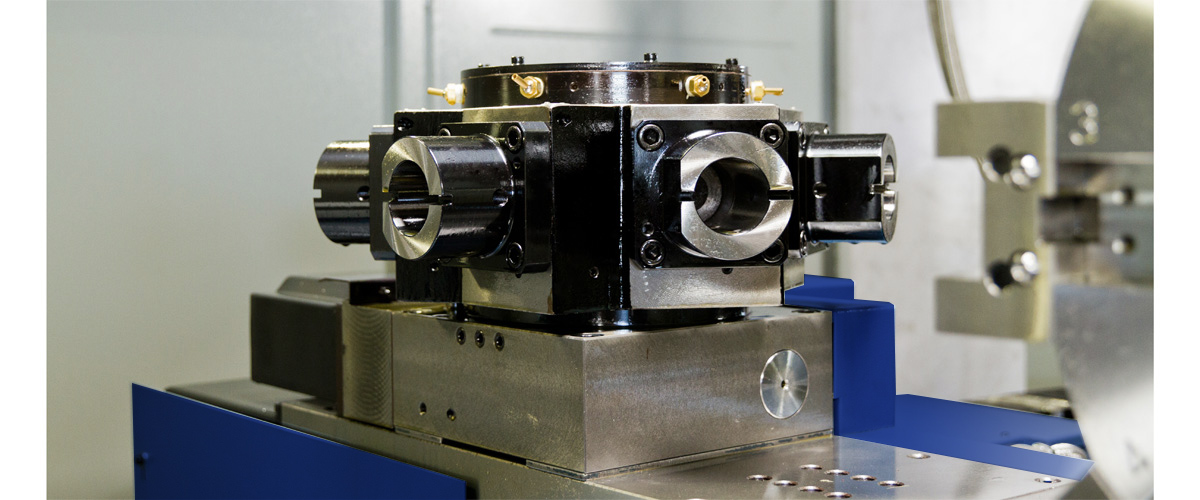

TURRET ........................... V8 HYDRAULIC & H6 SERVO (STD)

TRAVERSE
MAX. STROKE X-AXIS ............... 21.2"
MAX. STROKE Z-AXIS ............... 37.4"/57.1"/76.8"/126.8"/164.2"
RAPID TRAVERSE X-AXIS ............ 394"/min
RAPID TRAVERSE Z-AXIS ............ 394"/min

MOTOR
SERVO MOTOR X-AXIS ............... 3.6 HP
SERVO MOTOR Z-AXIS ............... 5.4 HP

BALL SCREW
X-AXIS ........................... Ø1.41”, P6
Z-AXIS ........................... Ø1.97",P8(80")/P12(120")/P16(160")

TAILSTOCK
TAILSTOCK QUILL CENTER ........... M.T. #5
TAILSTOCK QUILL DIAMETER ......... Ø5.9”
TAILSTOCK QUILL TRAVEL ........... 8.6”

EQUIPPED WITH:
BORE: 4.7" OR 7.3"
SWING: 26"
C.C.: 40" — 160"
25 HP / 30 HP (30 MIN)
REAR CHUCK ADAPTER FOR CL38C (7.3" BORE)

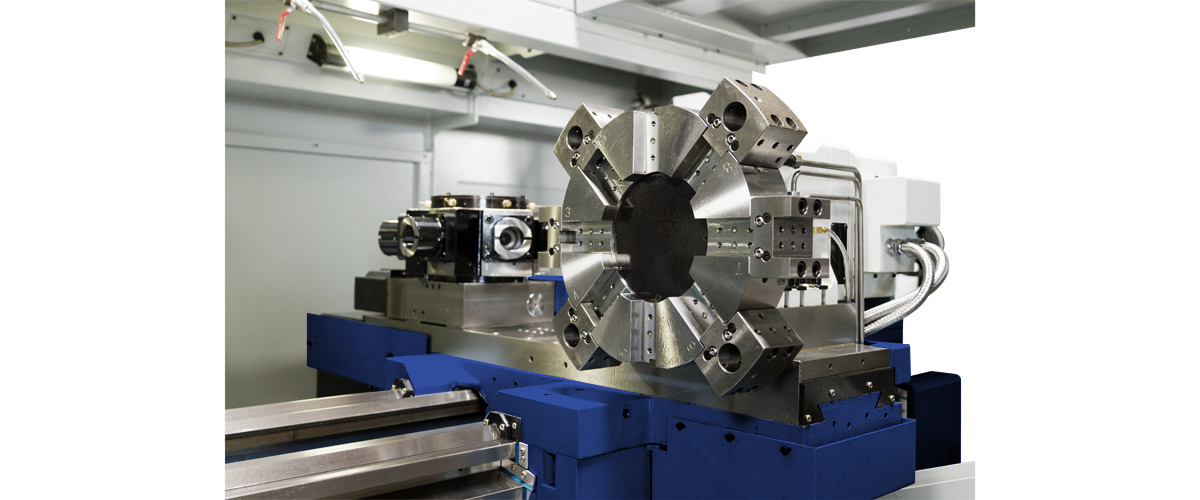

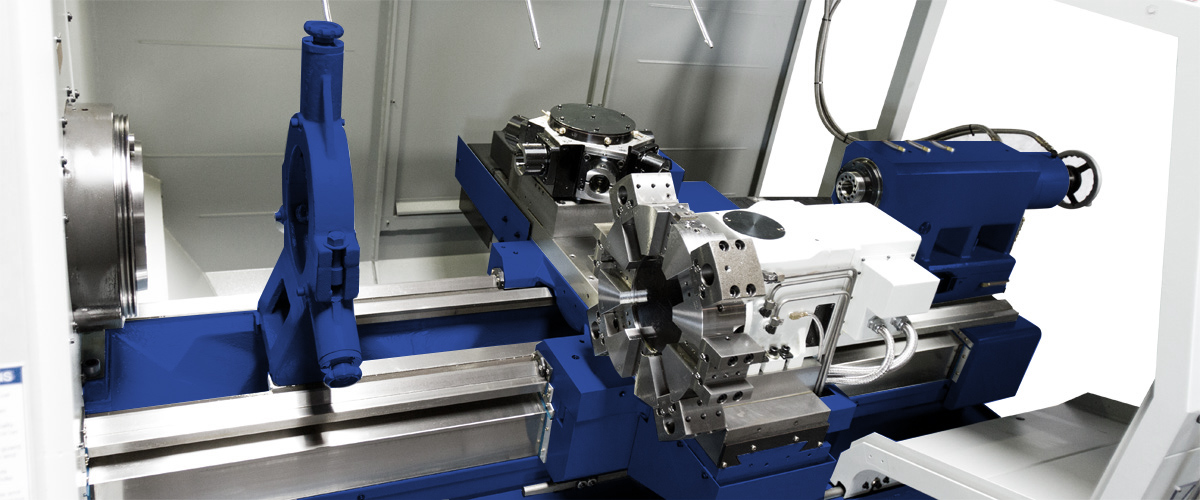

V8 FRONT & H6 REAR TURRETS

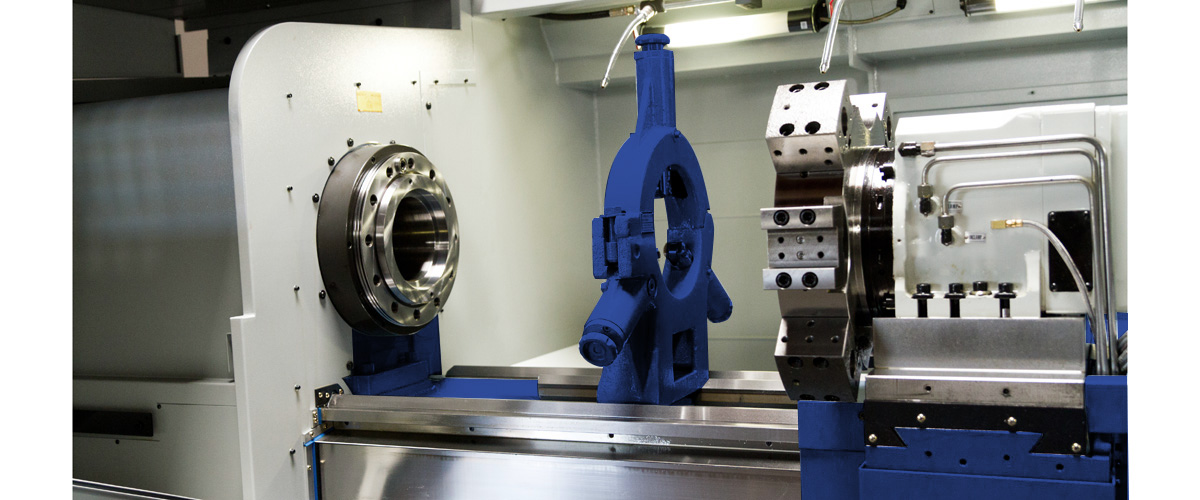

9.25" STEADY REST WITH ROLLER JAWS

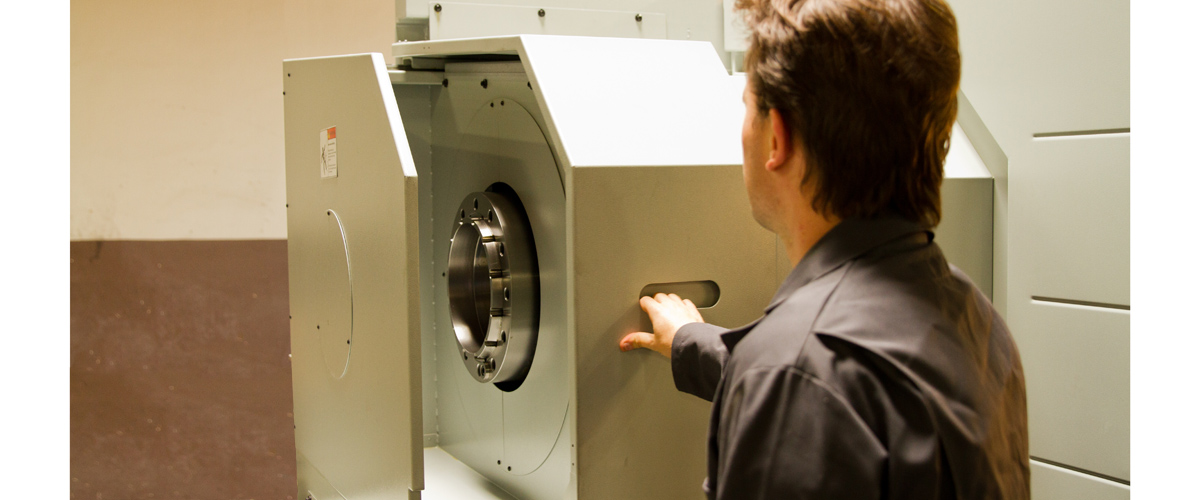

ROTARY TAILSTOCK WITH CHUCK MOUNTING CAPABILITY
HYDRAULIC & MANUAL QUILL MOVEMENT
COOLANT SYSTEM W/ 6-BAR PRESSURE
WATER SPRAY GUN FOR CHIP CLEANUP
REAR CHIP CONVEYOR
FANUC 0ITF CONTROLLER WITH MANUAL GUIDE I, 10.4” LCD MONITOR

OPTIONAL ACCESSORIES
SAUTER V12 LIVE TOOLING TURRET + 2.5° C-AXIS SPINDLE INDEXING
15.9" STEADY REST
ADDITIONAL 9.25" STEADY REST
4.75" FOLLOW REST
A2-11 REAR CHUCK ADAPTER FOR CL38A (4.7" BORE)
BORING BAR SUPPORT ON CROSS SLIDE
EXTRA HIGH PRESSURE COOLANT PUMP
FANUC ARBITRARY SPEED THREADING
FULL ENLCOSURE
MANUAL, HYDRAULIC, & AIR CHUCKS

Kingston’s versatile CL38 model is designed for universal workpieces in a variety of industries, including energy, mining, textile, paper, and transportation. The CL38 features 26” swing, a choice of 4.7” or 7.3” bore, and lengths from 40” – 160". It is equipped with a powerful 30 HP spindle motor, a sub-spindle tailstock ready to mount a chuck, and both V8 and H6 servo turrets – with a maximum cutting diameter of 14.5” between turrets. This flexibility and ease of use make the CL38 one of our most popular CNC models.
