NEW SHARP CNC PRECISION (FLAT-BED) LATHE
MODEL: 2060TC-F
SPECIFICATIONS:
CAPACITY
SWING OVER BED .................. 20 IN.
SWING OVER CROSS SLIDE .......... 11 IN.
DISTANCE BETWEEN CENTERS ........ 59.05 IN.
HEADSTOCK
SPINDLE SPEED ................... 43-250 RPM
SPINDLE NOSE .................... D1-6 CAMLOCK
SPINDLE BORE .................... 3.37 IN.
CARRIAGE
CROSS SLIDE TRAVEL .............. 10.63 IN.
BED
BED LENGTH ...................... 102.2 IN.
BED WIDTH ....................... 14.5 IN.
TAILSTOCK
QUILL DIAMETER .................. 2.93 IN.
QUILL TRAVEL .................... 6.31 IN.
QUILL CENTER TAPER .............. MT #5
SPINDLE MOTOR ................... FANUC 10 HP / 7.4 KW
APPROXIMATE WEIGHT .............. 6,614 LBS.
DIMENSIONS ...................... 10 X 4.58 X 6.08 FT.
EQUIPPED WITH:
• FANUC OI-TF CNC , 8.4” LCD SCREEN
• 20” SWING, 59” BETWEEN CENTERS
• D1-8 CAMLOCK, 3-3/8” SPINDLE BORE,
• 10 HP MOTOR
• 2 STEPS GEAR SPEED CHANGE (40-2,000 RPM)
• PROGRAMMABLE SPINDLE SPEED
• ELECTRONIC HANDWHEEL (MPG)

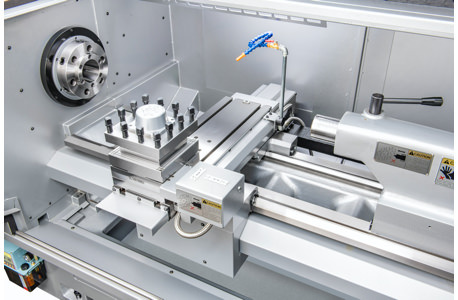

• 4- WAY PROGRAMMABLE TOOL POST
• AUTO LUBE SYSTEM
2060TC-F FEATURES
OPERATE AS MANUAL LATHE WITH ELECTRONIC HANDWHEELS,
OPERATE AS A FULL CNC LATHE WITH PROGRAMMABLE SPEED, USING M CODE OR G CODE LANGUAGE,
OPERATE SEMI AUTOMATICALLY, COMBINING MANUAL AND CNC OPERATIONS
D1-8 CAMLOCK SPINDLE, 2-3/8” SPINDLE BORE
GEARED HEAD WITH 2 STEPS SPEED CHANGE, AUTOMATIC SPEED CHANGE
THE FANUC OITF ALL DIGITAL CONTROL AND DRIVE PACKAGE PROVIDES EXCEPTIONAL VALUE AND RELIABILITY. THE CONTROL FEATURES A CLEAR 8.4” LCD SCREEN THAT PIVOTS OUT OF EASY OPERATOR VIEWING. IT CAN CATALOG 400 PART-PROGRAM NUMBERS AND FEATURES AN INTERNAL 2 GB SOLID STATE DATA SERVER WITH 512 K RAM MEMORY RESERVED FOR PART PROGRAMS. IT FEATURES AN EMBEDDED HIGH SPEED ETHERNET CAPABILITY AND AICC II AND INCLUDES DB-25, RS-232 SERIAL INTERFACE, RJ-45 ETHERNET INTERFACE USB, AND PC MCIA CF MEMORY CARD CONNECTIONS FOR PROGRAM TRANSFER. MANUAL GUIDE-I CONVERSATIONAL PROGRAMMING PROVIDES FAST & EFFICIENT INTUITIVE MENU DRIVEN SHOP FLOOR PROGRAMMING AND INCLUDES A THREAD REPAIR CYCLE. AN MPG HANDWHEEL IS ALSO PROVIDED.
SELECTED FUNCTIONS:
CHUCK & TAILSTOCK BARRIER
CHAMFERING ON/OFF
EXACT STOP MODE OR ONE-TIME
WORK SHIFTS G 52-G59
PROGRAMMABLE PARAMETERS
CANNED CYCLES
RIGID TAPPING
CONSTANT SURFACE SPEED CONTROL
DIRECT INPUT OF OFFSET VALUE MEASURED
STORED STROKE CHECK 1, 2 & 3
CHAMFERING AND CORNER RADIUS
MULTI & CONTINUOUS THREADING
DBC OPERATION WITH MEMORY CARD
SUB PROGRAM CALL
DIRECT INPUT OF COORDINATE SYSTEM SHIFT
64 OFFSET PAIRS
MIRROR IMAGE
PROGRAM & SEQUENCE # SEARCH
VARIABLE LEAD THREAD CUTTING
CUSTOMER MACROS
CIRCULAR INTERPOLATION BY R PROGRAMMING
SPINDLE SPEED OVERRIDE
TOOL NOSE RADIUS COMPENSATION
DNC OPERATION FROM MEMORY CARD
MULTIPLE REPETITIVE CANNED CYCLES 1 & 2
