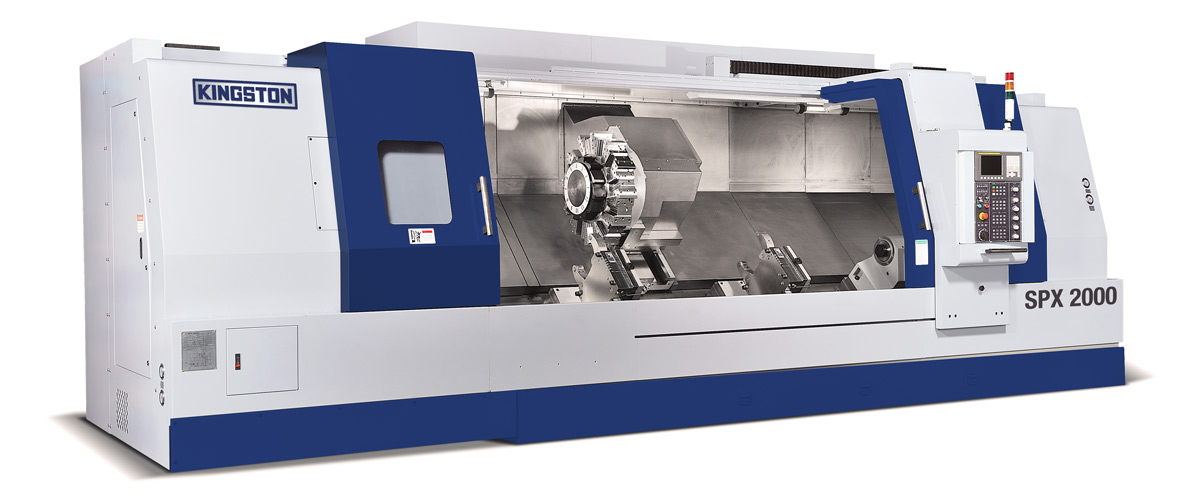

Kingston SPX 35 Big Bore Slant Bed Lathe NEW CNC LATHES

Price on Request

Make:: Kingston

Model:: SPX 35 Big Bore Slant Bed Lathe

Year:: NEW

Ref #:: 169000

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

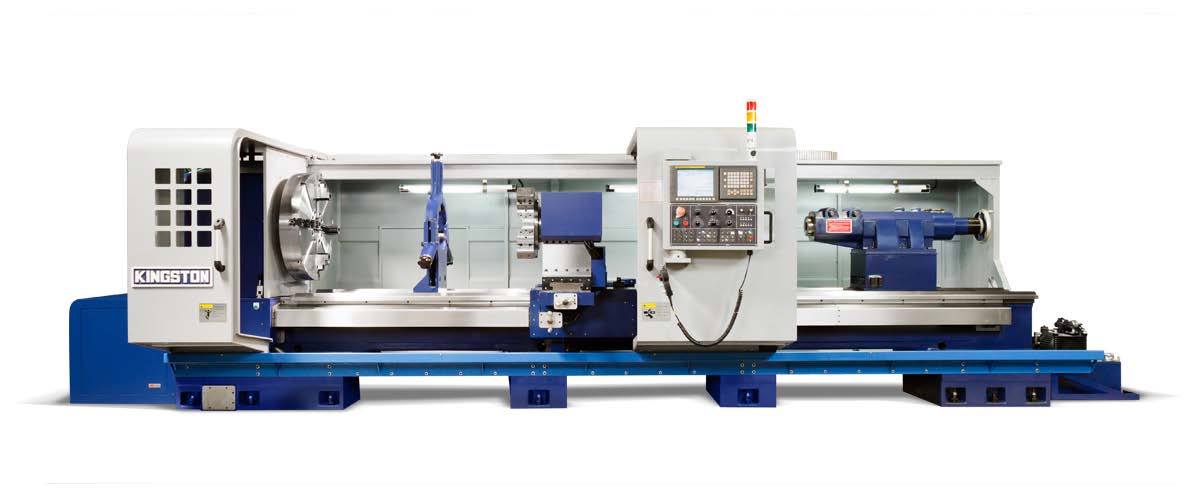

NEW KINGSTON BIG BORE SLANT BED CNC LATHE
MODEL: SPX 35
(CC OPTIONS: 80"/120"/160"/200")
SPECS FOR 80" BELOW

SPECIFICATIONS:
SWING OVER BED .................... 35.4"
SWING OVER SADDLE ................. 29.3"
MAX CUTTING DIAMETER .............. 27.5"
MAX TURNING LENGTH: 5.1" .......... 78.7"
MAX TURNING LENGTH: 8.0" .......... 74.8"
MAX TURNING LENGTH: 9.25" ......... 72.8"
MAX TURNING LENGTH: 10.1" ......... 72.8"

BED
SLANT ANGLE ....................... 45 deg.
GUIDE WAY ......................... Box Way

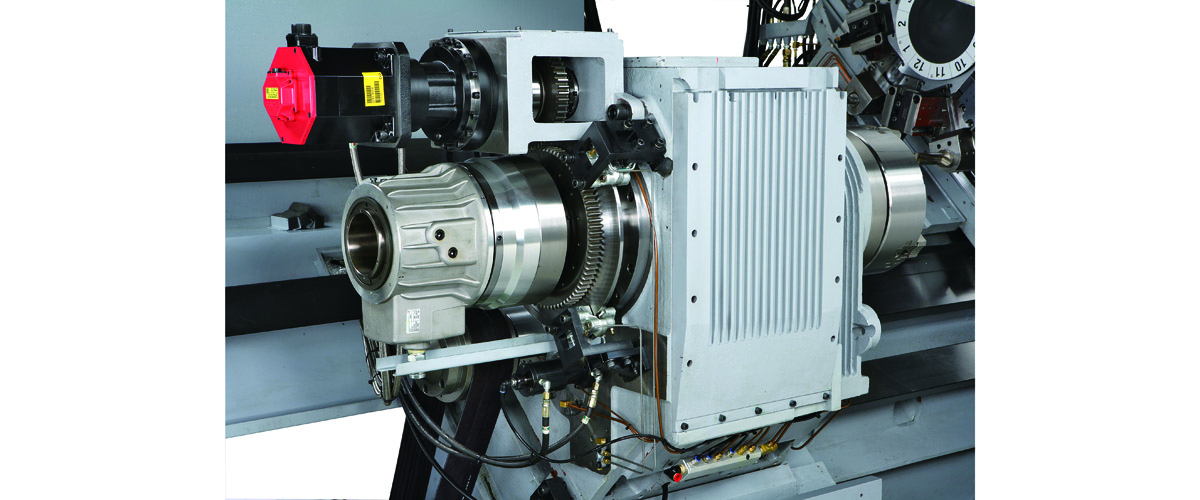

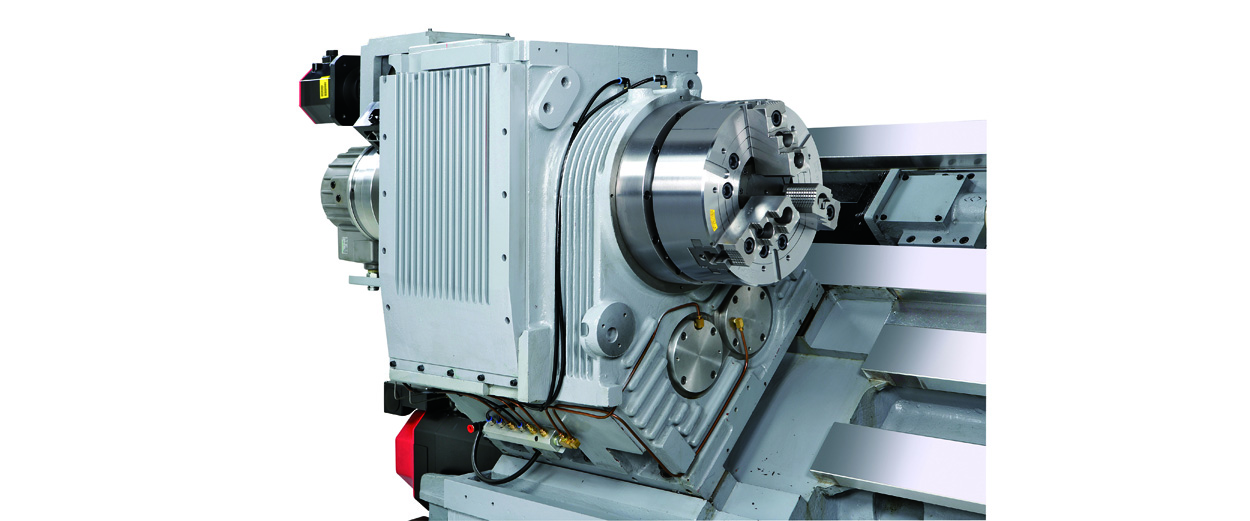

HEADSTOCK
SPINDLE BORE ...................... 5.1"/8.0"/9.25"/10.1"
SPINDLE NOSE TAPER ................ A2-11/A2-15/A2-15/A2-15
SPINDLE SPEED (2-STEP GEAR) ....... 2000 / 1500 / 700 / 700 RPM
SPINDLE MOTOR ..................... 50 HP / 60 HP (30 min)

TURRET
TOOLING SYSTEM .................... BOT
INDEXING TIME: NEXT TOOL .......... 0.6 sec
NUMBER OF TOOLS ................... 12 Station
SQUARE TOOL SIZE .................. 1.25"
ROUND TOOL SHANK SIZE ............. 2" or 3"

TRAVELS
X-AXIS ............................ 13.3" + 1.1”
Z-AXIS ............................ 82.6"
RAPID TRAVERSE: X-AXIS ............ 787 IPM
RAPID TRAVERSE: Z-AXIS ............ 629 IPM

TAILSTOCK
QUILL TAPER ....................... MT#6
QUILL STROKE ...................... 5.9"
QUILL DIAMETER .................... 6.3"

EQUIPPED WITH:
BORE: 5.1", 8.0", 9.25", OR 10.1"
SWING: 35.4”
C.C.: 80” – 200"
50 HP / 60 HP (30 MIN) AC SPINDLE MOTOR (FANUC), 220V, 3 PHASE 60 CYCLE
15” 3-JAW HYDRAULIC CYLINDER & CHUCK (5.1” BORE ONLY)
FANUC 0ITF CONTROLLER W/ MANUAL GUIDE & THREAD REPAIR, 10.4" LCD MONITOR
REGISTERED PART PROGRAM NUMBER: 400 SETS
FANUC ARBITRARY SPEED THREADING
V12 SERVO TURRET
FULLY PROGRAMMABLE TAILSTOCK BODY & QUILL (MT#6)
CHAIN TYPE CHIP CONVEYOR + CHIP CART
POCKETED HEADSTOCK WALL ACCOMMODATES LONG BORING BARS

OPTIONAL ACCESSORIES

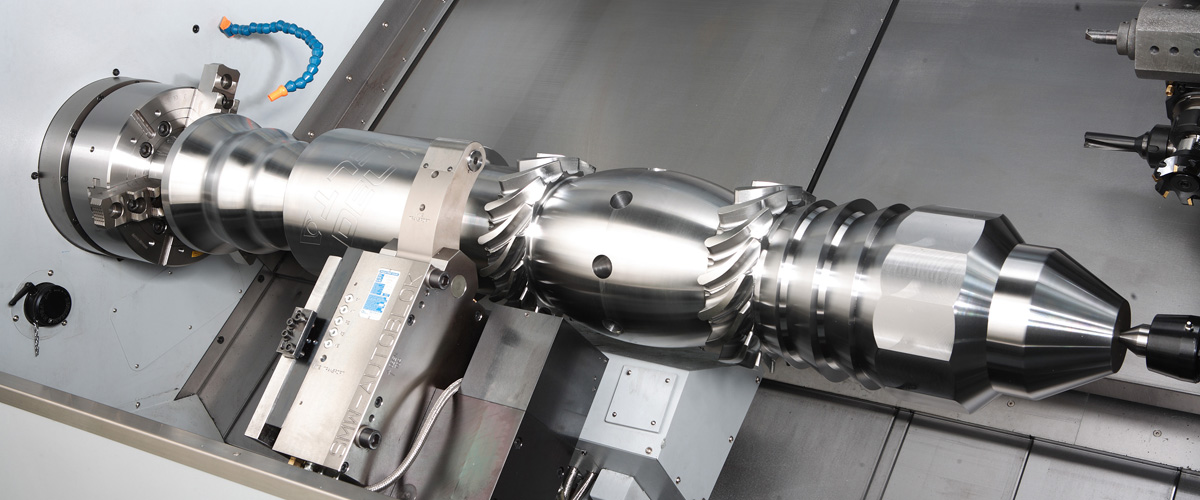

C-AXIS W/ CONTROLLER UPGRADE + APT 60 LIVE TOOLING TURRET
Y-AXIS + C-AXIS W/ CONTROLLER UPGRADE + APT 60 LIVE TOOLING TURRET
ROTARY TOOL HOLDERS
HYDRAULIC STEADY REST
RENISHAW TOOL SETTERS
OIL MIST COLLECTOR
OIL COOLANT SKIMMER

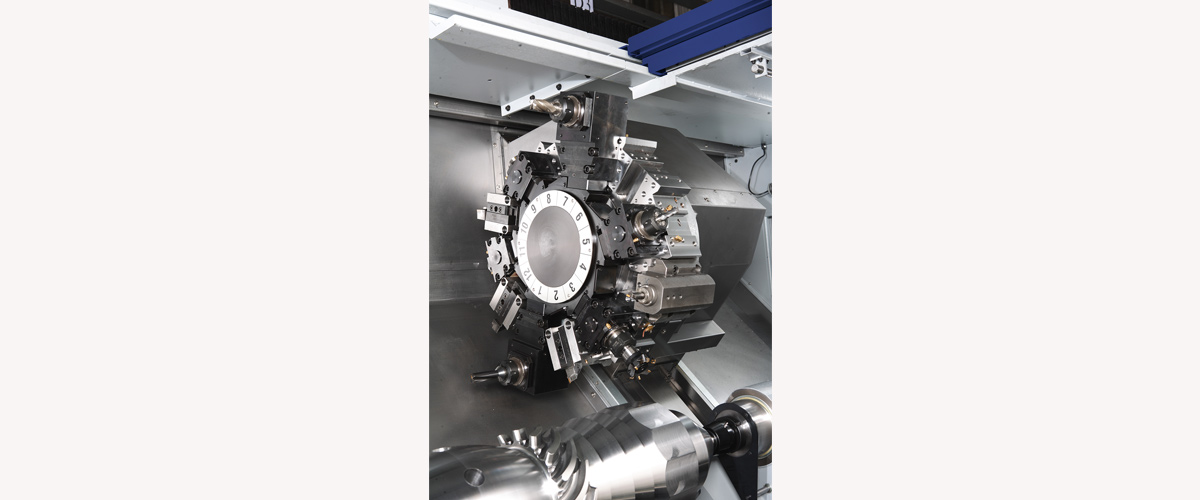

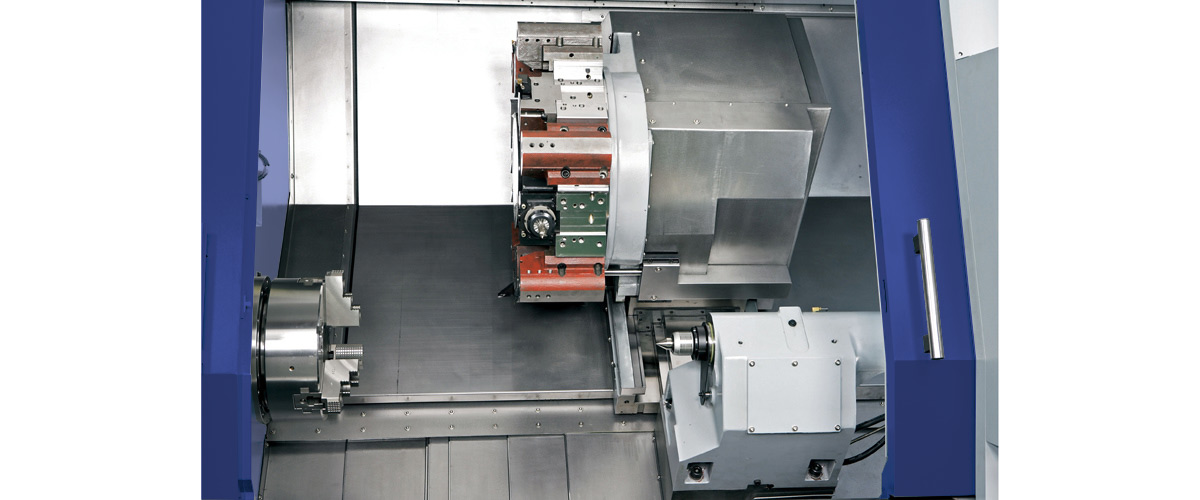

The SPX 35 (formerly the SPX 10) is the cornerstone of Kingston’s large-format slant bed line. Features include 35.4” swing over bed (27.5” max turning), bed lengths to 200”, and available bore sizes up to 10.1”. Optional C-Axis and Y-Axis capability combined with the APT 60 V12 Live Tooling Turret makes the SPX-35 a powerful yet versatile solution for heavy-duty cutting, milling, drilling operations on a slant bed lathe. Our 12-position servo turret is specially designed with a 2-piece large diameter Hirth-type coupling for strong clamping force and high-loading capacity while delivering precise positioning. Each SPX is run by Fanuc’s reliable 0iTF controller with Arbitrary Speed Threading included as standard.
