Milltronics VK1 CNC VERTICAL MILLING MACHINES

$17,950

Make:: Milltronics

Model:: VK1

Year:: 2008

Ref #:: 178269

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

MILLTRONICS CNC VERTICAL MILL
3 AXIS CNC PLUS MANUAL HANDWHEELS

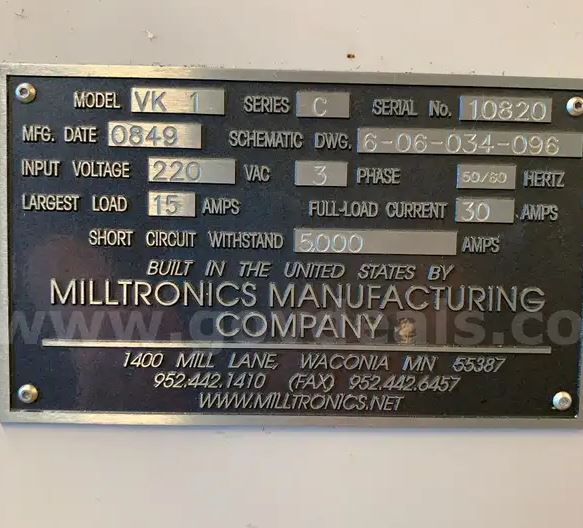

MODEL: VK1, S/N: 10820,  NEW: 2008

SPECIFICATIONS:

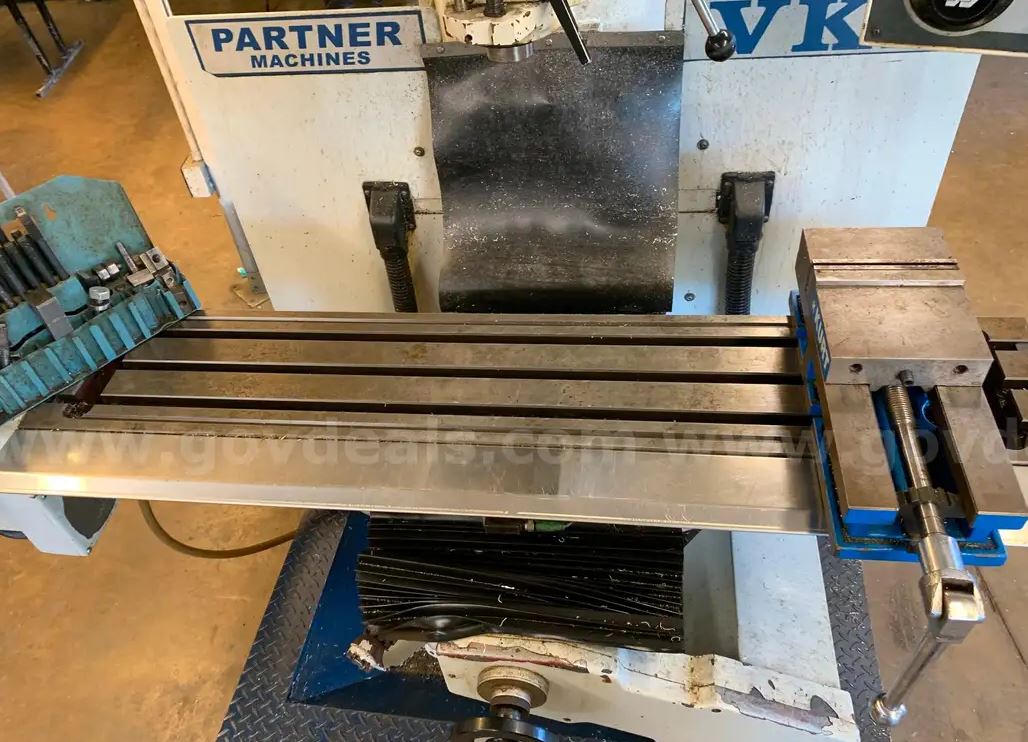

TABLE SIZE ......................... 9" x 49"
TABLE TRAVEL (X-AXIS) .............. 30"
SADDLE TRAVEL (Y-AXIS) ............. 11"
MILLSLIDE (HEAD) TRAVEL (Z-AXIS) ... 5"
QUILL TRAVEL ....................... 5"
KNEE TRAVEL ........................ 16"
RAM TRAVEL ......................... 12"
SPINDLE TAPER....................... R8
SPINDLE SPEEDS TWO RANGES:
   LOW RANGE ....................... 60 - 500 RPM
   HIGH RANGE ...................... 500 - 4000 RPM
SPINDLE DIAMETER ................... 3.375"
HEAD SWIVEL SIDE TO SIDE ........... 90 DEGREES +/-
HEAD TILT FRONT TO BACK ............ 45 DEGREES =/-
APPROXIMATE DIMENSIONS ............. 80"L x 70"W x 82"
APPROXIMATE WEIGHT ................. 3,000 LBS.

EQUIPPED WITH:

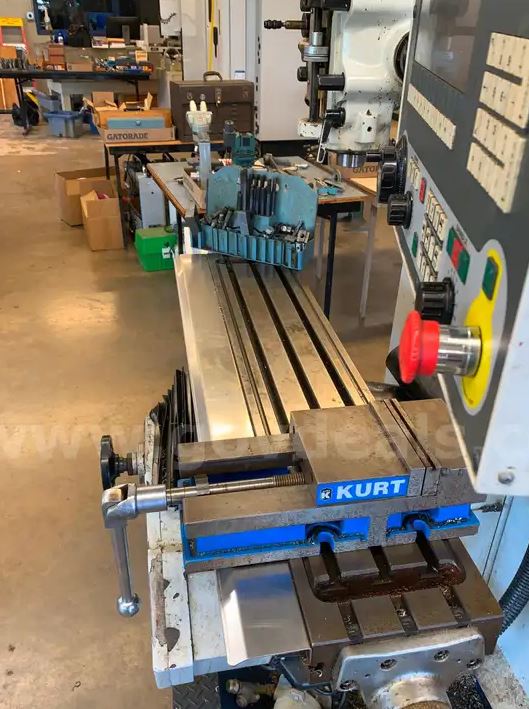

MILLTRONICS CENTURION 7 SLS CONTROL (3-AXIS)
 (SLS) SKILL LEVEL SELECT SOFTWARE ALLOWS THE OPERATOR TO
       CHOOSE A SIMPLE OR FULL-FEATURED SYSTEM
  CONVERSTIONAL & G/M CODE
  10" LCD DISPLAY
  IN MANUAL MODE THREE AXIS DIGITAL READOUT
BALLSCREWS & AC SERVO MOTORS FOR X, Y & Z TRAVELS
HEAVY DUTY MILLSLIDE VERTICAL Z-AXIS TRAVEL
GROUND SOLID WAYS WITH TURCITE SURFACES
LUBRICATION SYSTEM
FLOOD COOLANT SYSTEM
5 HORSE POWER MOTOR & VECTOR SPINDLE DRIVE

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
