Nakamura-Tome SC-250 CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:
Nakamura-Tome
Model:
SC-250
Year:
Ref #:
177716

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

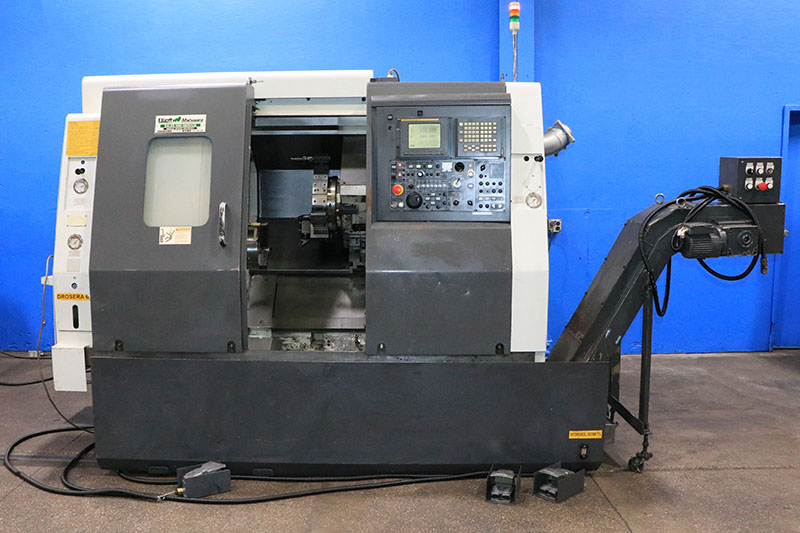

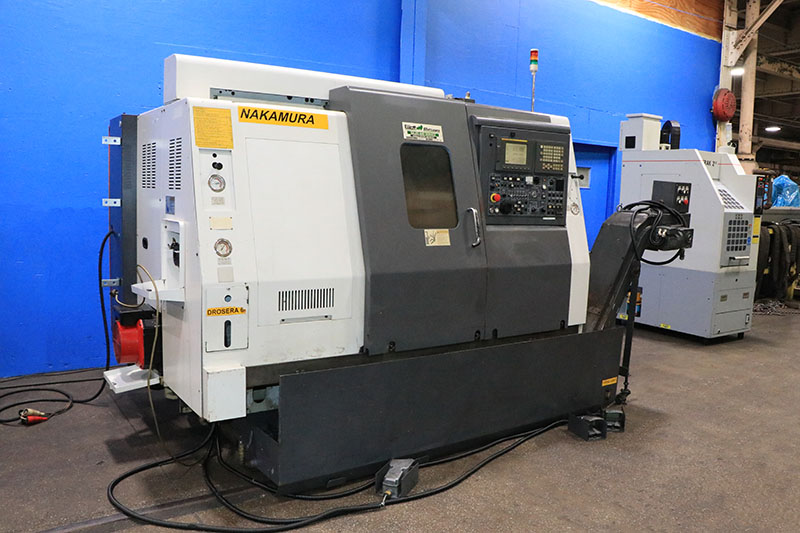

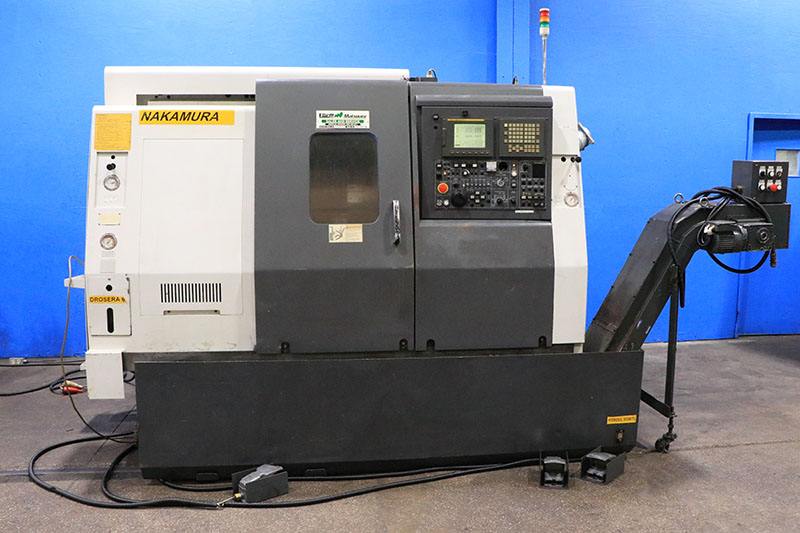

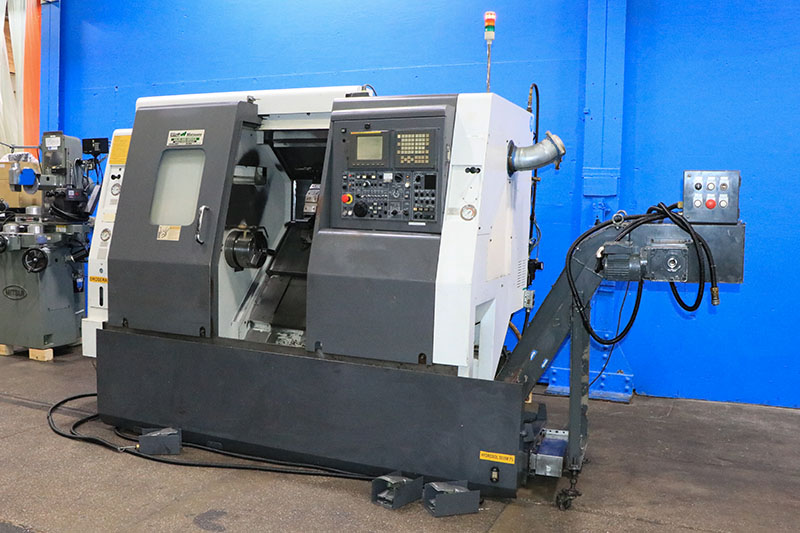

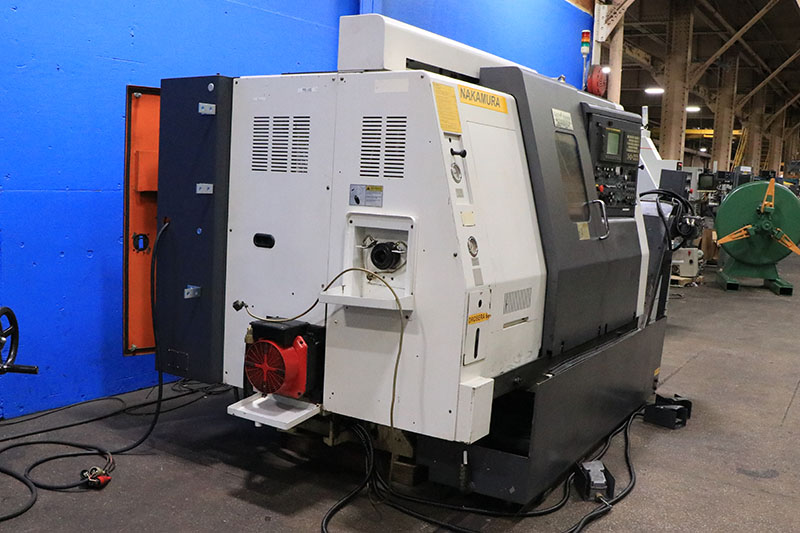

NAKAMURA TOME MODEL: SC-250 2-AXIS CNC TURNING CENTER


SPECIFICATIONS:
SWING OVER BED ...................... 22.04"
SWING OVER CARRIAGE ................. 17.71"
MAX. TURNING DIAMETER ............... 13.77""
DISTANCE BETWEEN CENTERS ............ 28.09"
MAX. TURNING LENGTH ................. 23.62"
MAX. BAR CAPACITY ................... 2.0"
SPINDLE SPEED ....................... 5000 RPM
SPINDLE NOSE ........................ A2-6
X-AXIS TRAVEL ....................... 8.75"
Z-AXIS TRAVEL ....................... 25.0"
NUMBER OF TOOL STATIONS ............. 12
TOOL SIZE ........................... 1"
ID TOOL SIZE ........................ 1.5"
RAPID TRAVERSE X/Z .................. 629/787 IPM

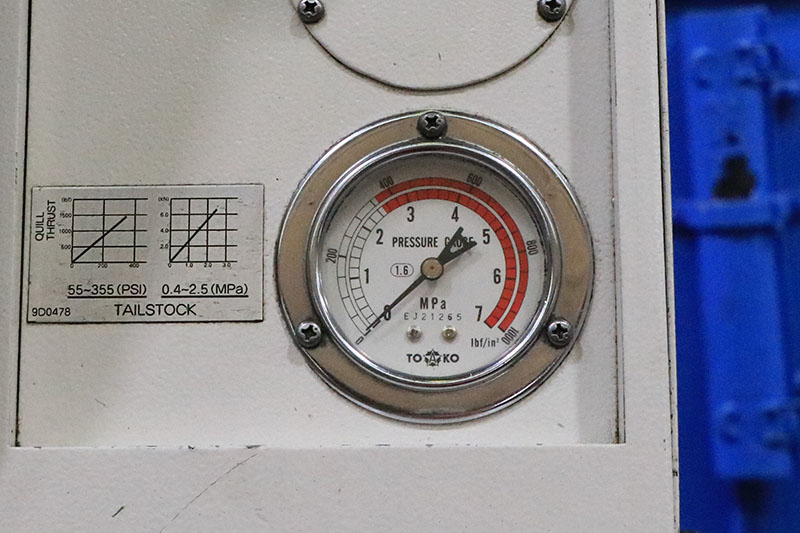

TAILSTOCK QUILL DIAMETER ............ 3.54"
TAILSTOCK QUILL TAPER ............... MT4
TAILSTOCK QUILL STROKE .............. 3.93"
MAIN MOTOR .......................... 20HP
APPROX. WEIGHT ...................... 9,700 LBS

EQUIPPED WITH:

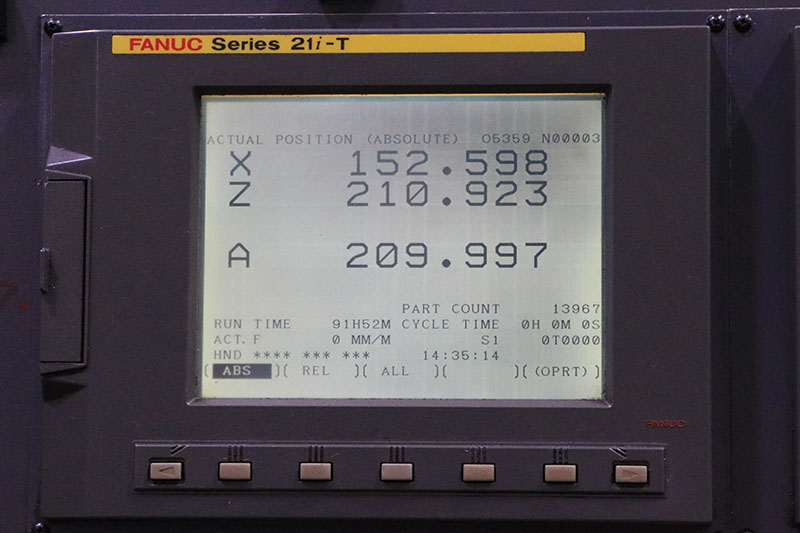

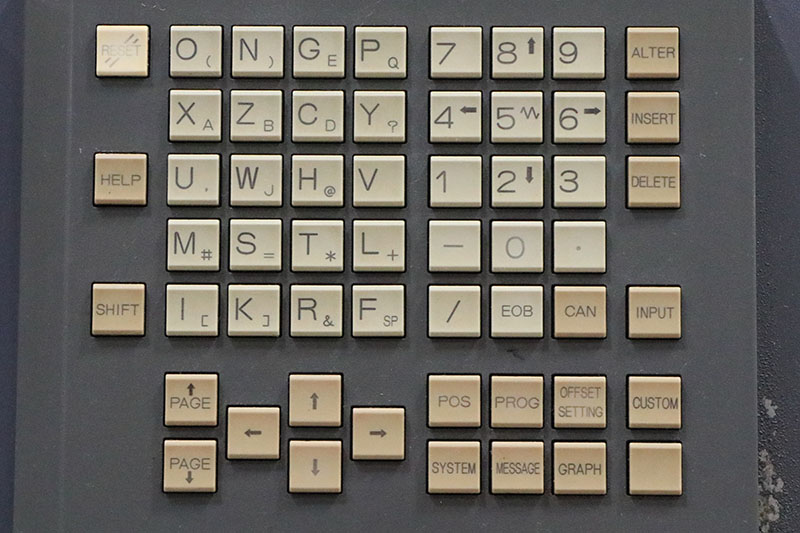

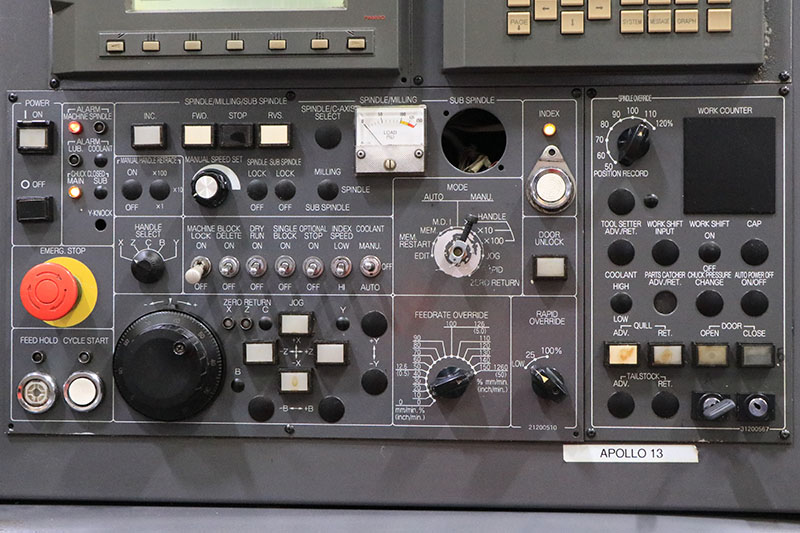

  - FANUC 21iT CNC CONTROL

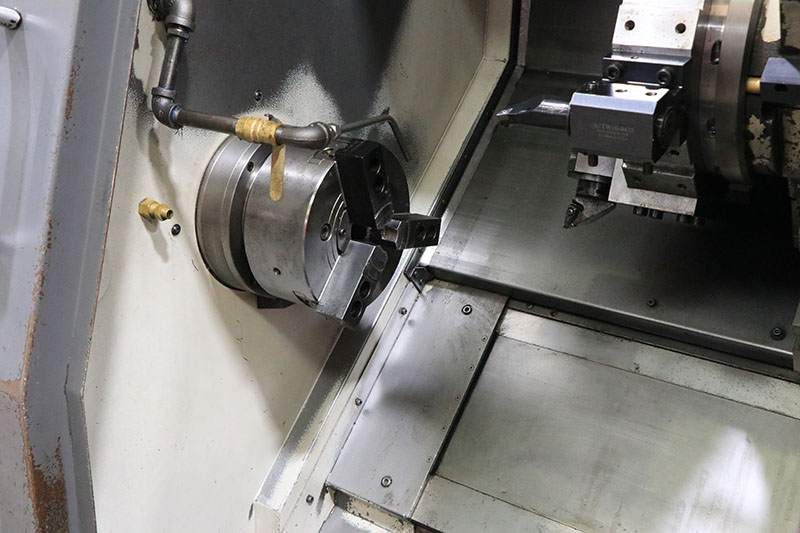

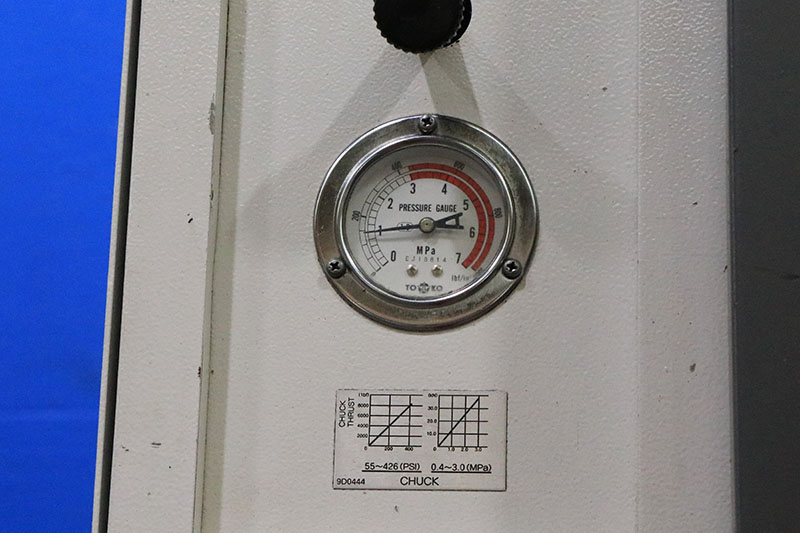

  - 8" 3-JAW HYDRAULIC CHUCK

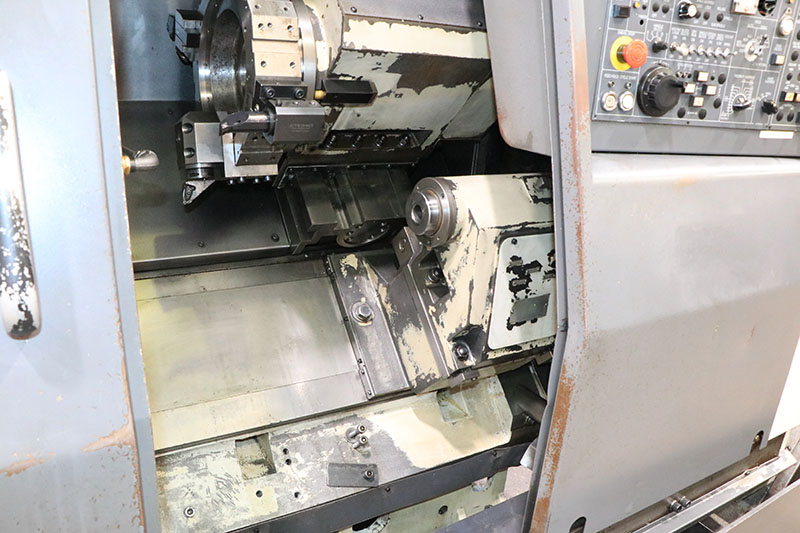

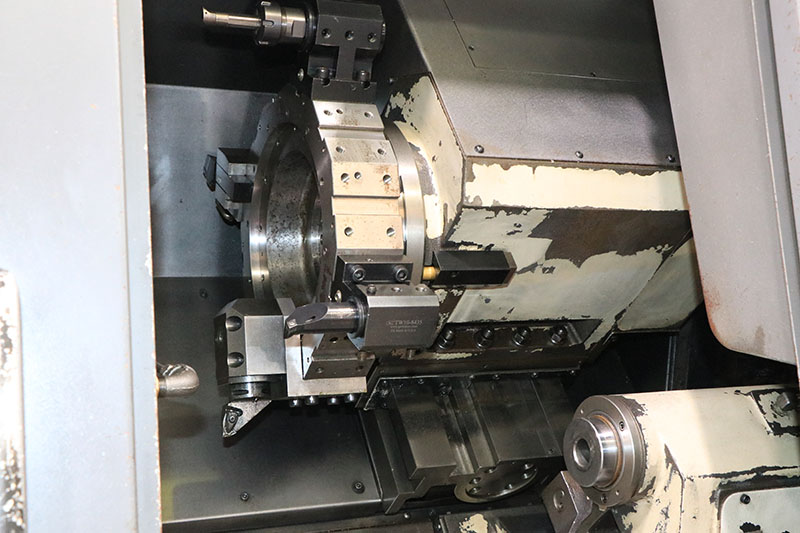

  - 12 POSITION TURRET
  - TAILSTOCK

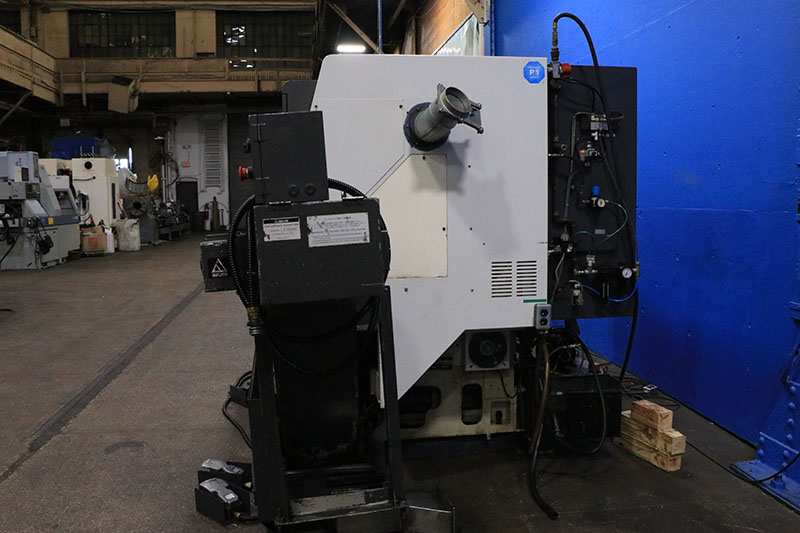

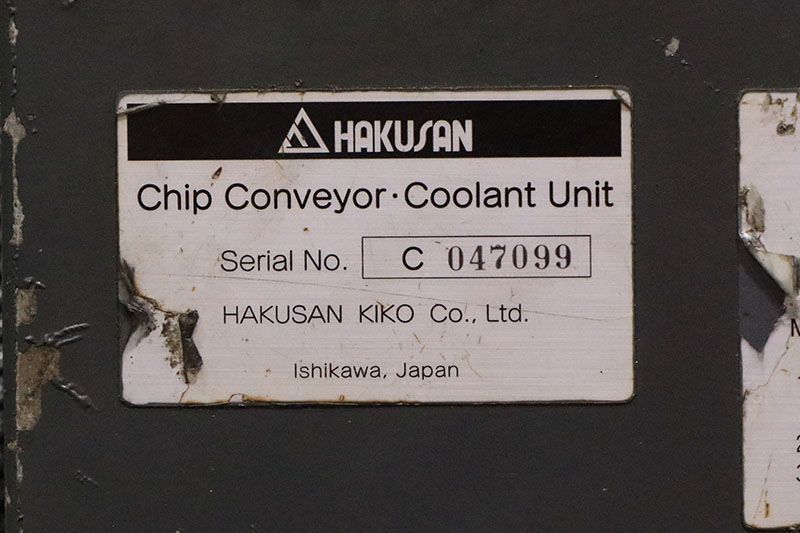

  - CHIP CONVEYOR
  - ALL AVAILABLE TOOLHOLDERS AND MANUALS



DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
