Okuma LU-15M 4-Axis, Live Tool CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Okuma

Model:: LU-15M 4-Axis, Live Tool

Year:: 1996

Ref #:: 164207

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

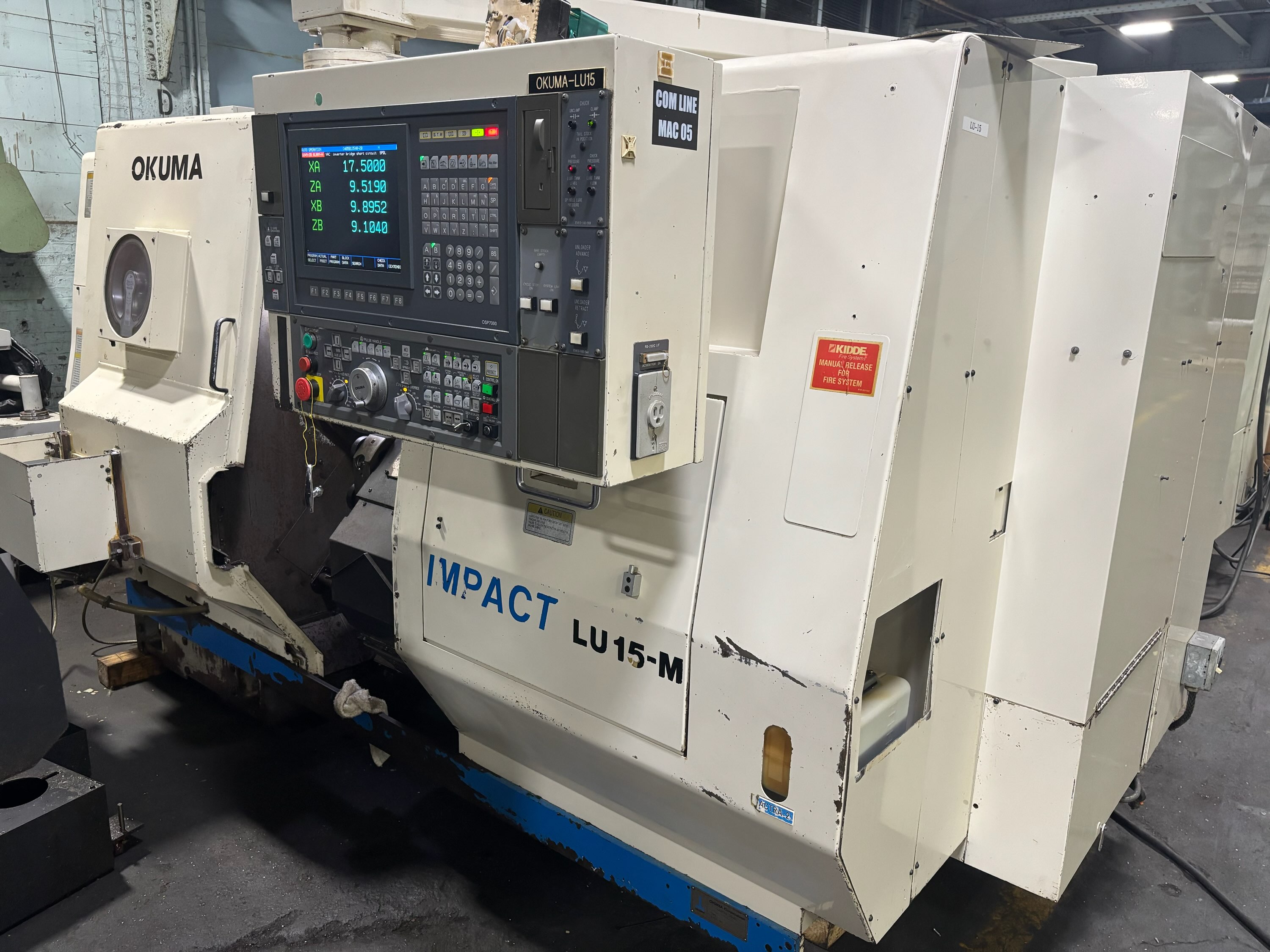

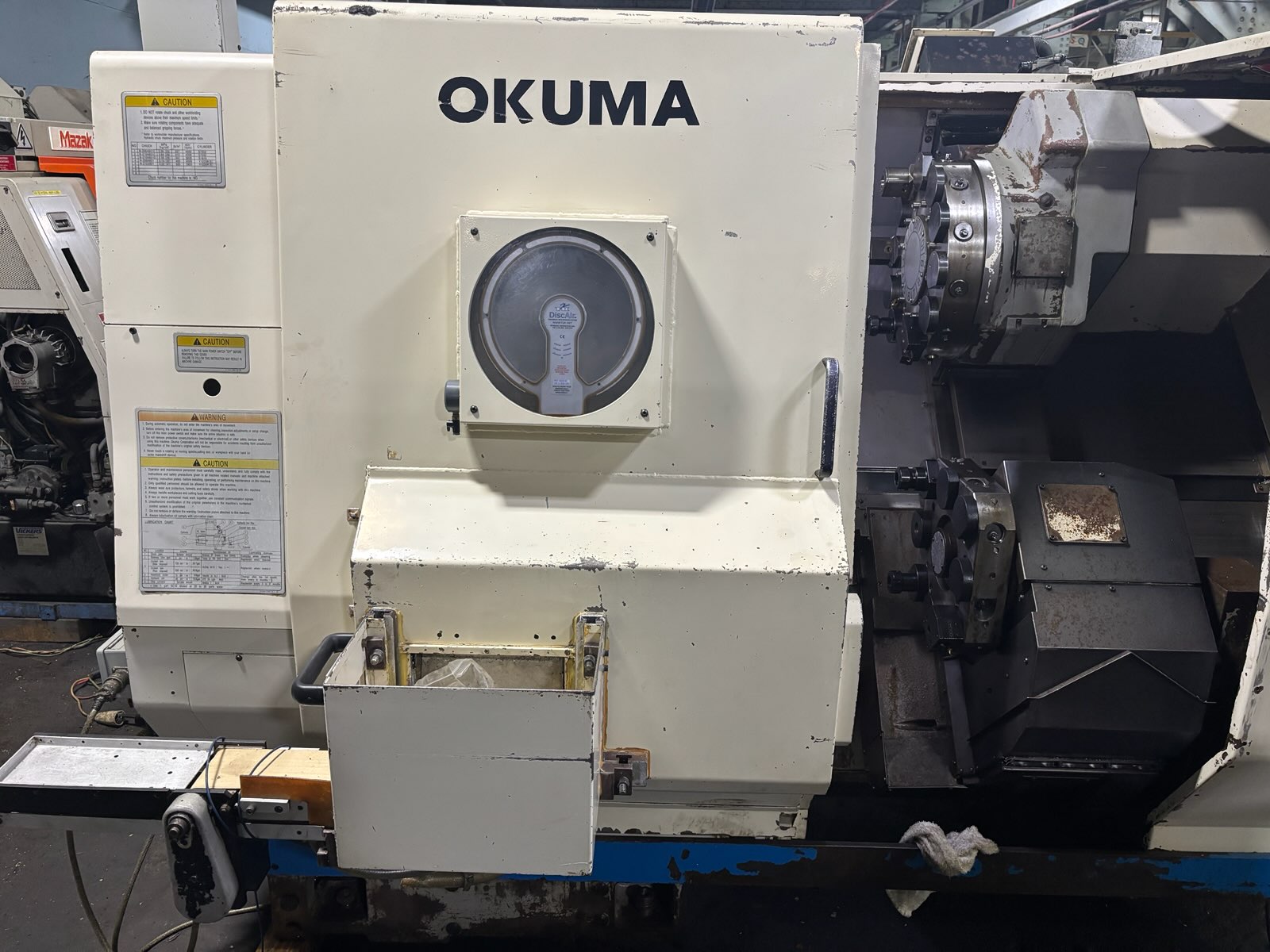

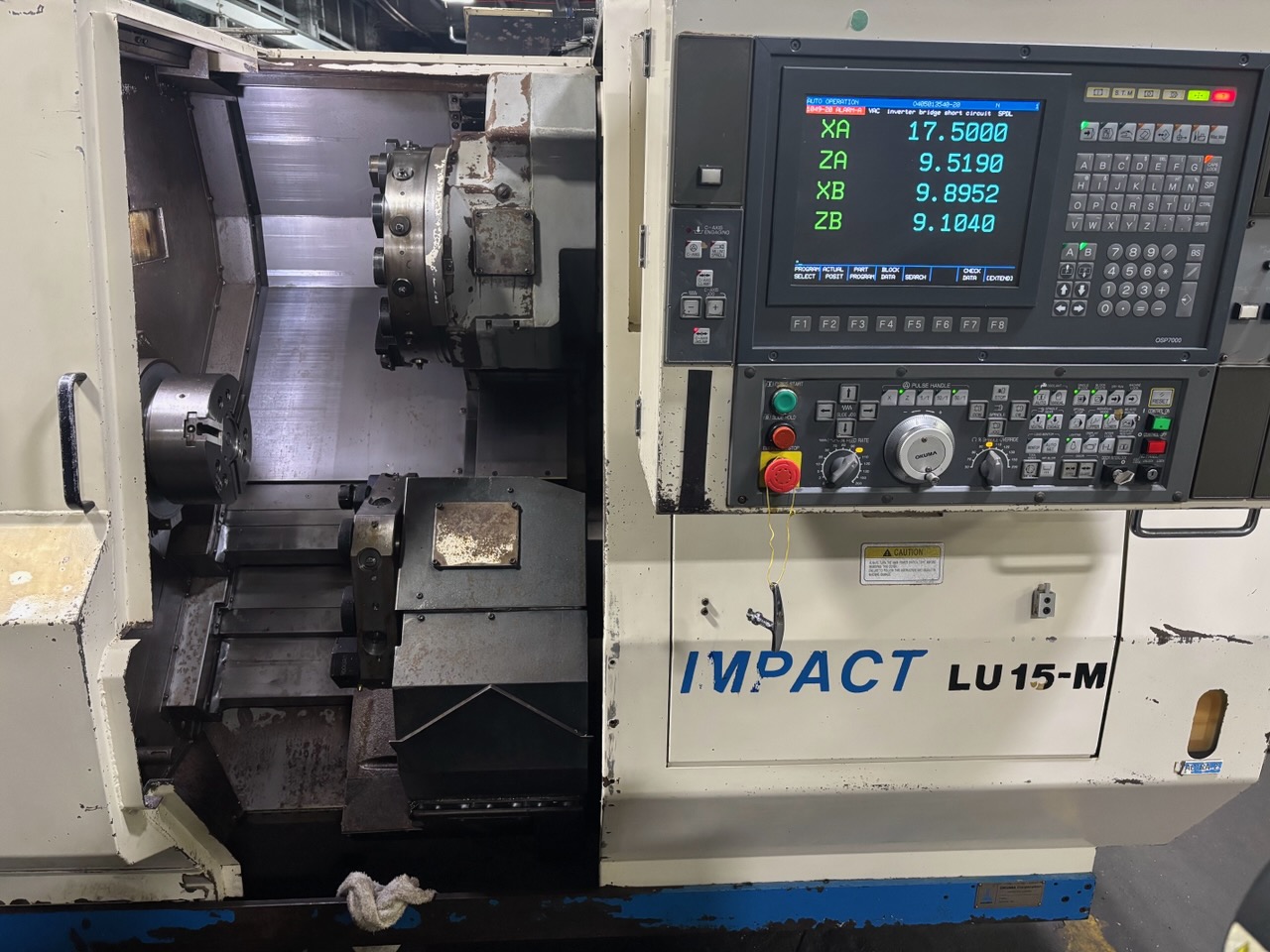

OKUMA LU-15M/2ST-350 4-AXIS CNC LATHE w/LIVE MILLING
NEW: 1996

SPECIFICATIONS:
CONTROL............................... OSP-7000L
CAPACITIES:
SWING OVER BED........................ 20.87
SWING OVER SADDLE..................... 14.96"
MAX. TURNING DIAMETER................. 13.38"
TRAVELS:
X-AXIS UPPER/LOWER.................... 10.24"/ 5.51"
Z-AXIS UPPER/LOWER.................... 25.20"/ 24.41"
SPINDLE:

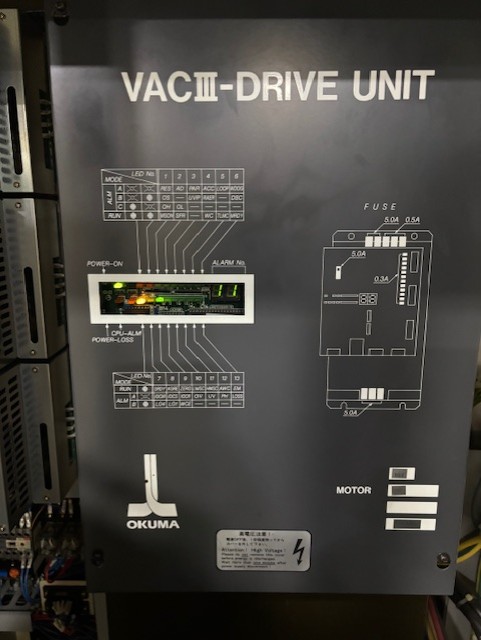

MOTOR (AC DRIVE)...................... 30/20 HP
SPINDLE BORE.......................... 3.15"
SPINDLE NOSE.......................... JIS A2-8
SPINDLE SPEED......................... 38-3800 RPM
M-TOOL SPINDLE SPEED.................. 45-4,500 RPM
M-TOOL SPINDLE MOTOR.................. 5/3 HP
TURRET TYPE UPPER..................... V12 W/LIVE TOOL
TURRET TYPE LOWER..................... V8
CHIP CONVEYOR......................... YES
MACHINE WEIGHT........................ 12,600 LBS.

EQUIPPED WITH:

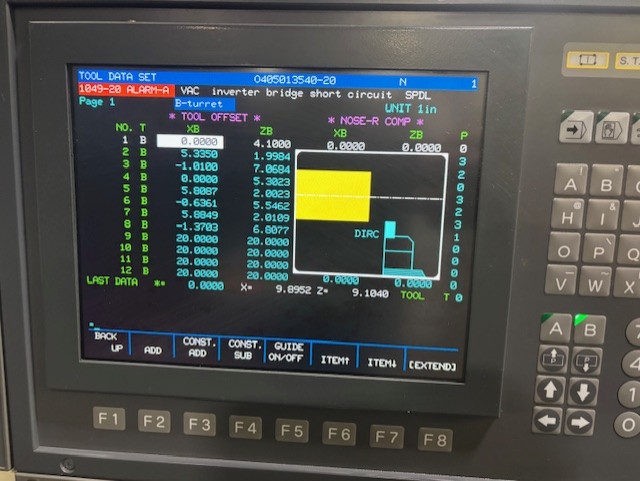

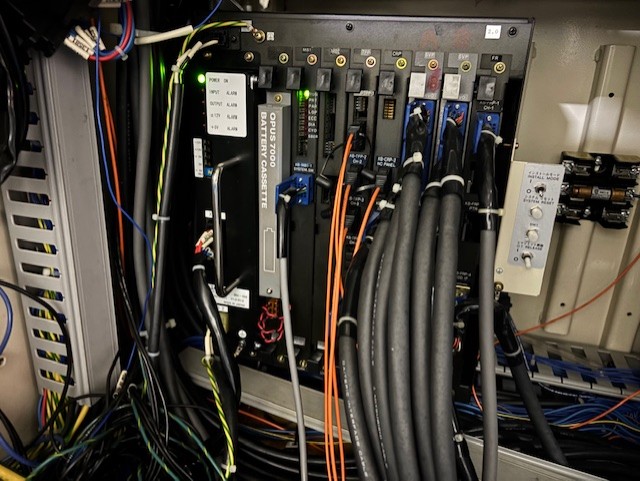

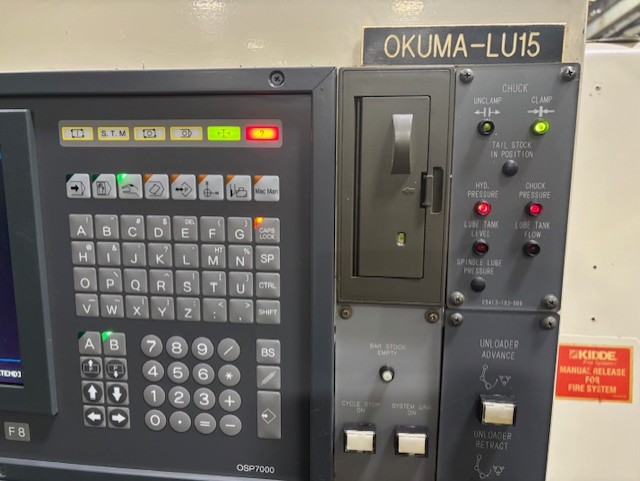

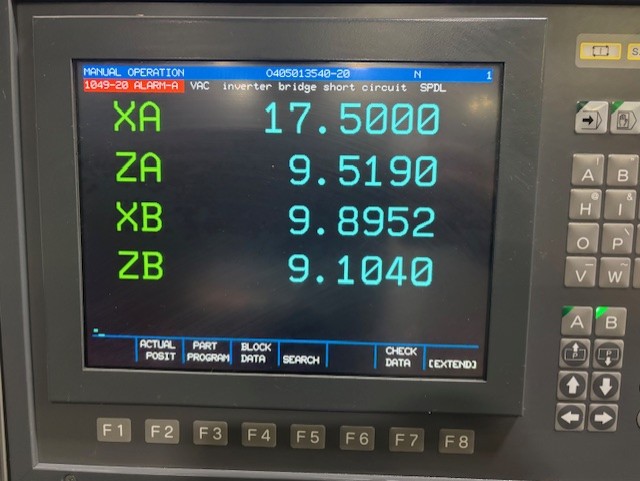

 - OSP 7000L CNC CONTROL

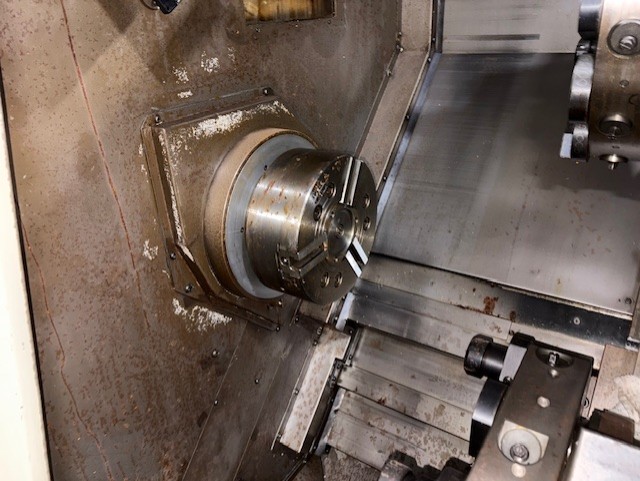

 - 10" KITAGAWA B210- 3-JAW HYDRAULIC CHUCK

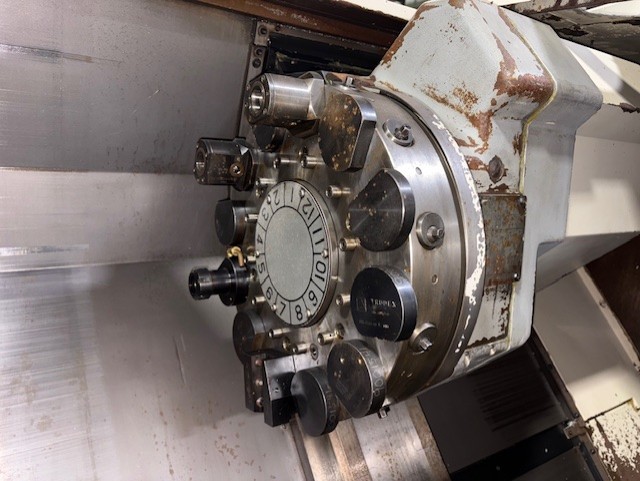

 - 12 STATION VDI STYLE UPPER TURRET w/LIVE TOOL CAPABILITY

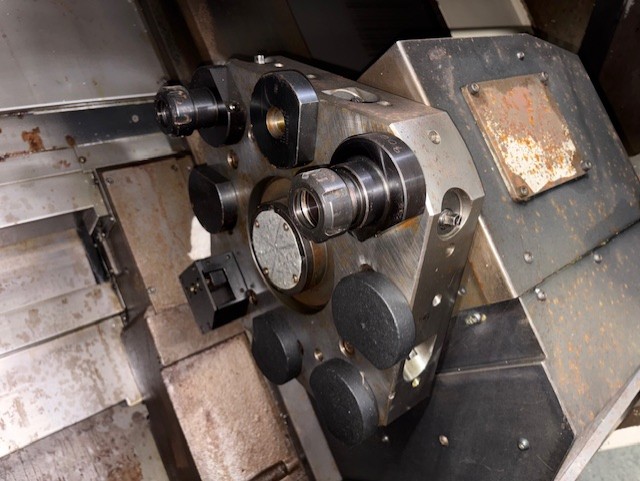

 - 8 STATION VDI STYLE LOWER TURRET
 - CHIP CONVEYOR
 - BARFEED INTERFACE (LNS)

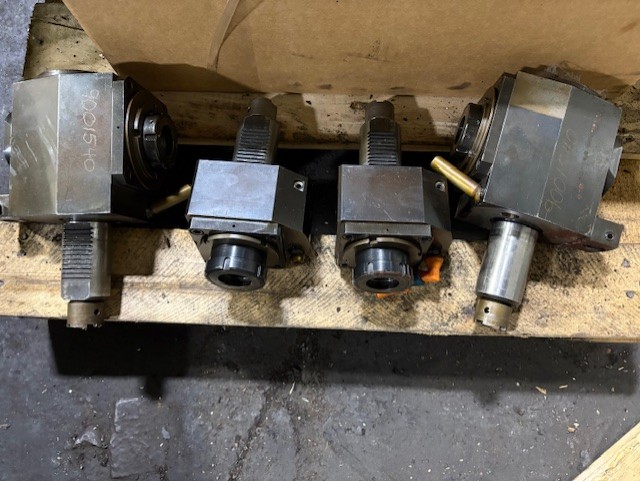

 - ALL AVAILABLE STATIC AND LIVE TOOLHOLDERS
 - ALL AVAILABLE MANUALS
