Optima UNIVERSAL DRILL GRINDERS

Price on Request

Make:

Optima

Model:

UNIVERSAL

Year:

Ref #:

156974

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

---

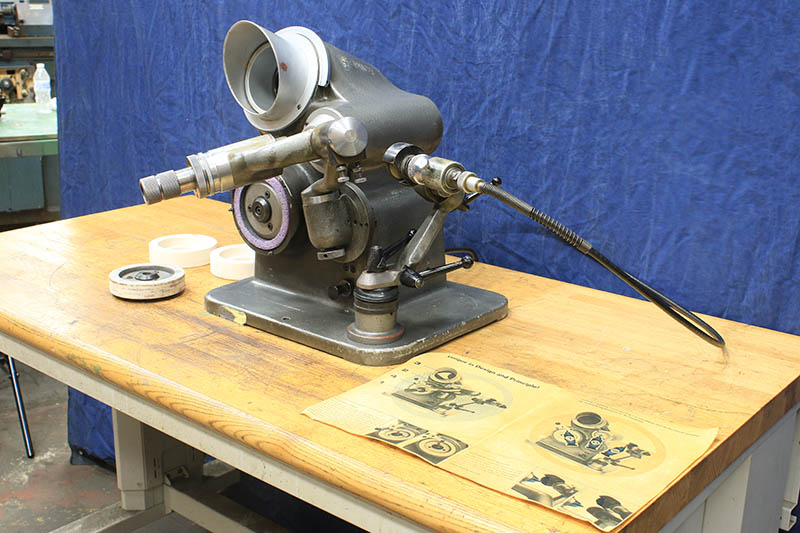

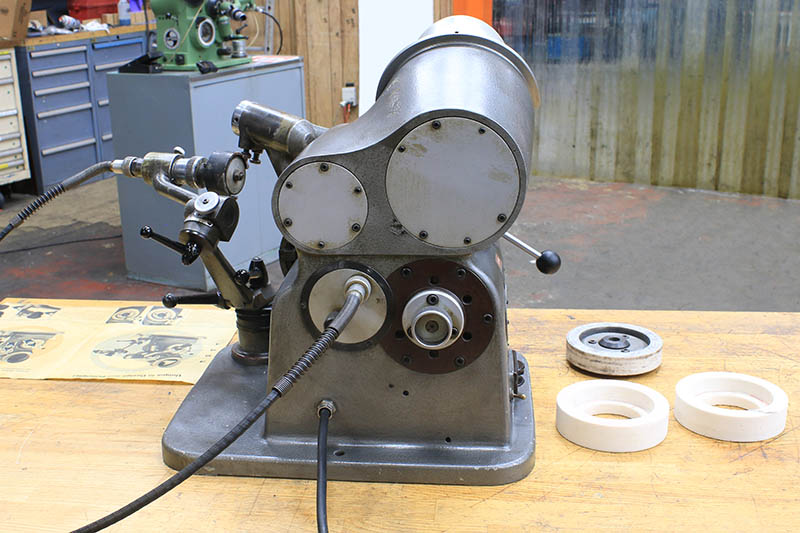

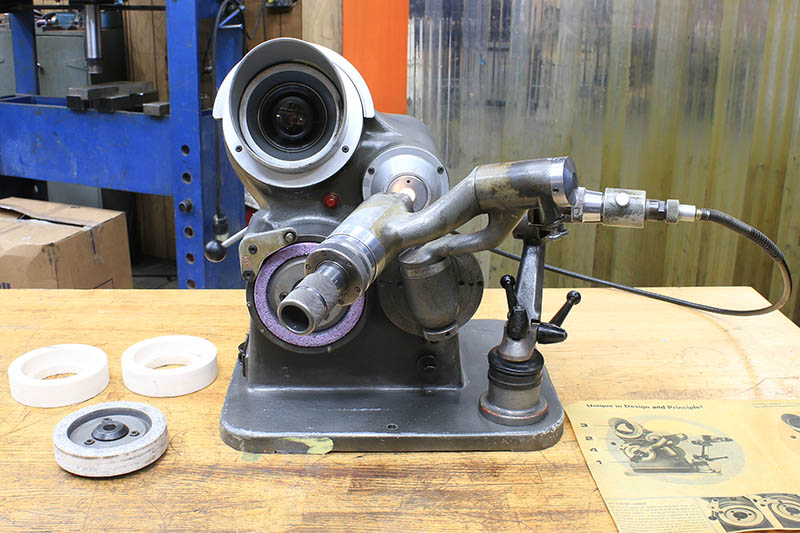

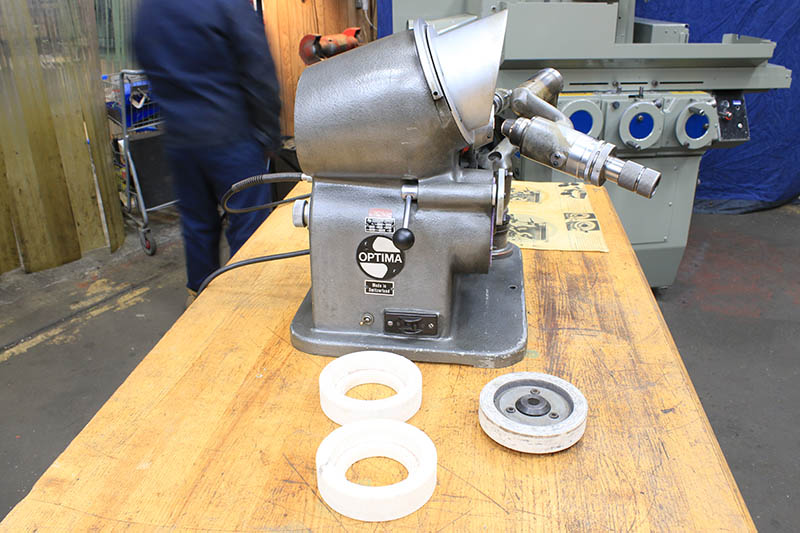

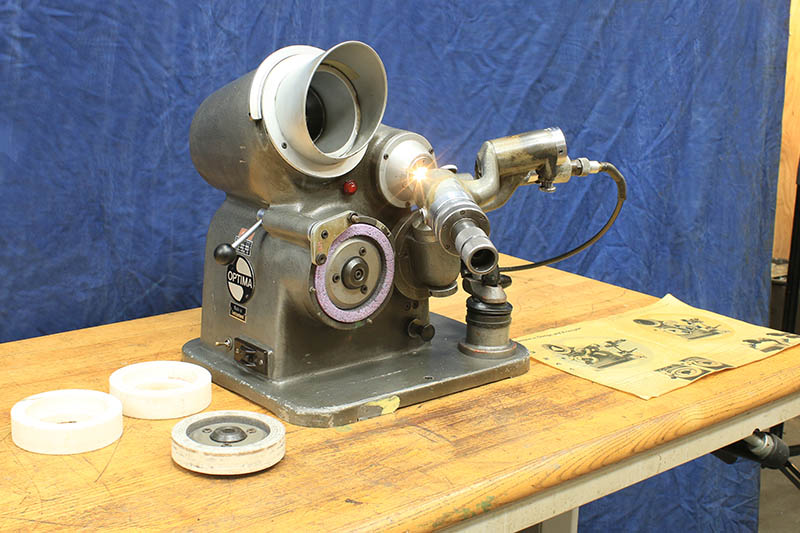

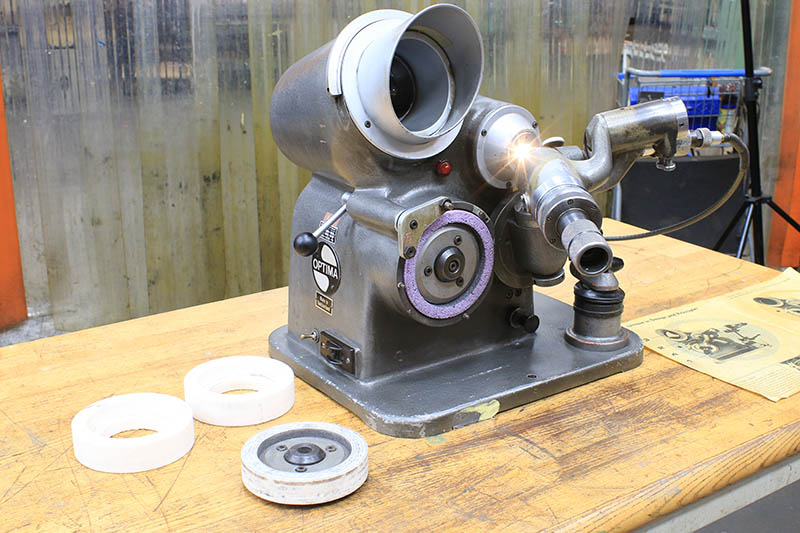

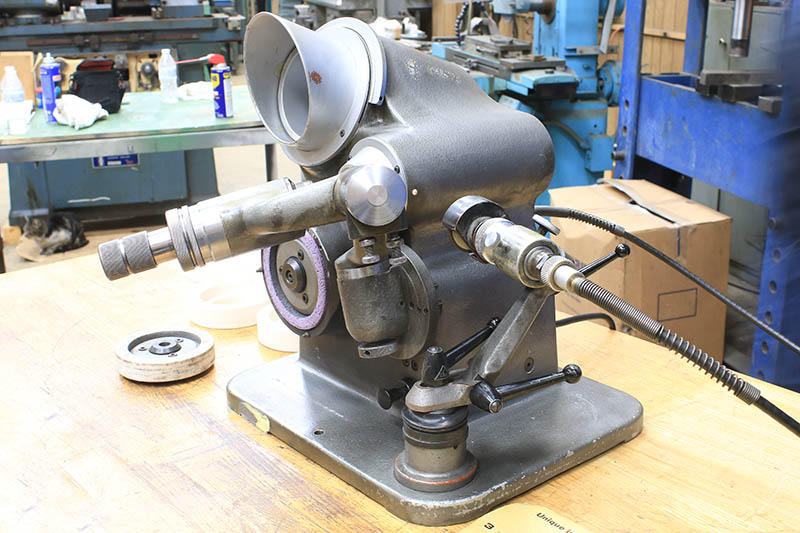

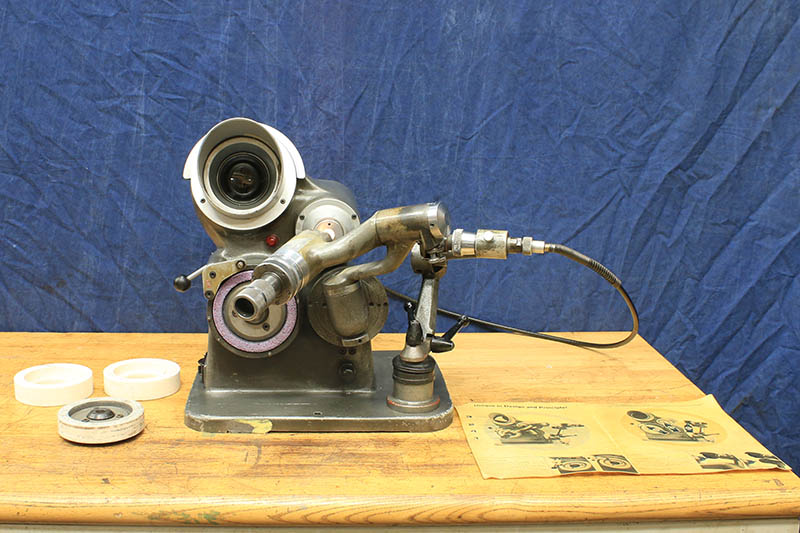

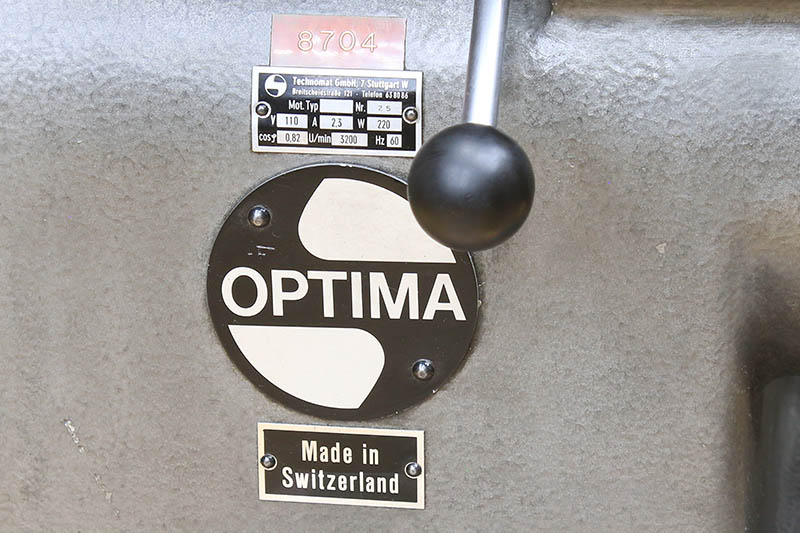

  OPTIMA (MADE IN SWITZERLAND) "HIGH-PRECISION" DRILL GRINDER



MODEL: UNIVERSAL       S/N:  B186.022



RANGE................................. .0135"- 1"DIAMETER

POINT ANGLE.................. 70 DEGREES TO 145 DEGREES &

           (DIFFERENT SETTING) 145 DEGREES TO 180 DEGREES

PRIMARY CUTTING ANGLE............ 0 DEGREES TO 40 DEGREES

SECONDARY CLEARANCE ANGLE........ 0 DEGREES TO 40 DEGREES

POINT THINNING WHEEL............................ 6800 RPM



APPROX. WEIGHT (MACHINE ONLYo .................. 120 LBS.



STANDARD FEATURES:

CAPABILITY TO GRIND RIGHT AND LEFT HAND DRILLS,

  HIGH SPEED   STEEL AND CARBIDE TIPPED OR SOLID CARBIDE DRILLS,

  SPADE   DRILLS, COUNTERSINKS, CENTER DRILLS OF ALL TYPES,

  TWO   AND THREE FLUTED DRILLS AND END MILLS

  (THREE FLUTED OPTIONAL), TAPER SHANK DRILLS NO. 2 AND 3,

  SLOW OR FAST SPIRAL, (UP TO 3/4" DIAMETER ANY LENGTH,

  STANDARD LENGTH  ABOVE 3/4" DIAMETER).

  MACHINE WILL GRIND AND POINT THIN OR SPLIT POINT IN ONE SETTING.

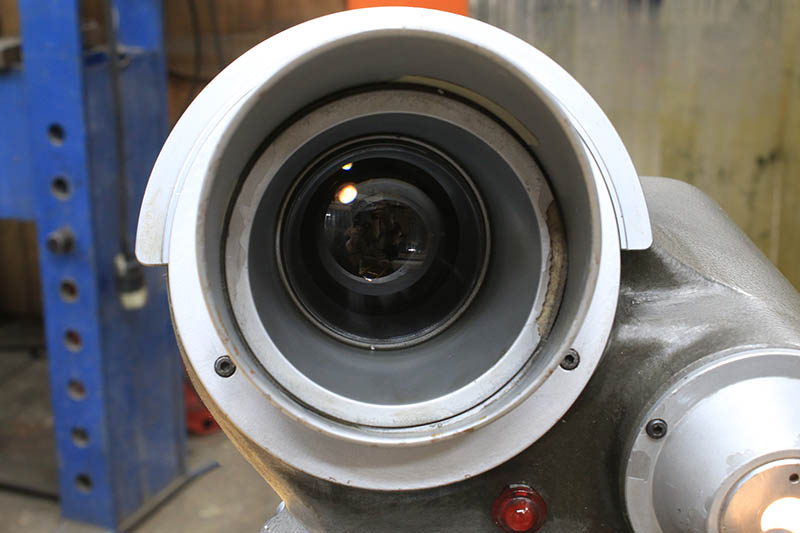

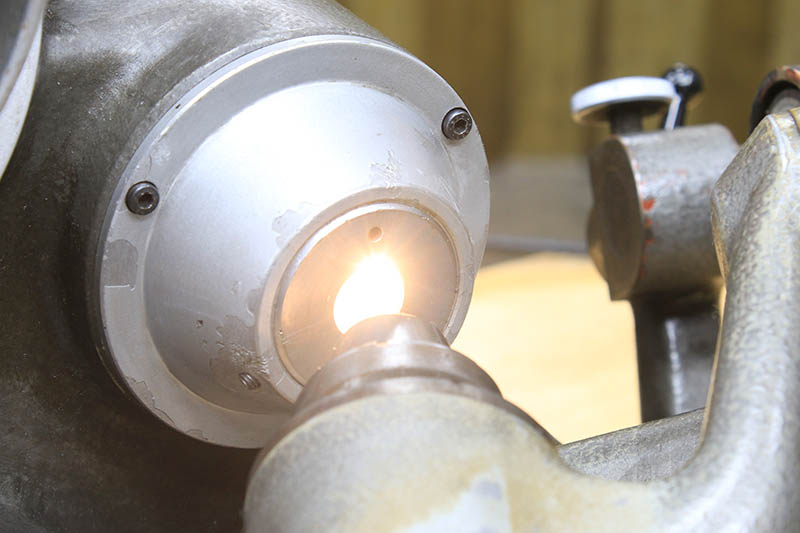

BUILT-IN OPTICAL COMPARATOR WITH MAGNIFYING LENS

BUILT-IN DIAMOND WHEEL DRESSER

BUILT-IN POINT SPLITTING OR WEB THINNING ATTACHMENT

SINGLE PHASE ELECTRICS



Link to video: https://youtu.be/muoJmYFu2QQ?si=PjFYDYf_zbZq7Jzb



* * * INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE * * *

**** EXCELLENT CONDITION & APPEARANCE ****
