Optima UNIVERSAL, OPTICAL SCOPE, TOOLING DRILL GRINDERS

Price on Request

Make:
Optima
Model:
UNIVERSAL, OPTICAL SCOPE, TOOLING
Year:
1990's
Ref #:
161066

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

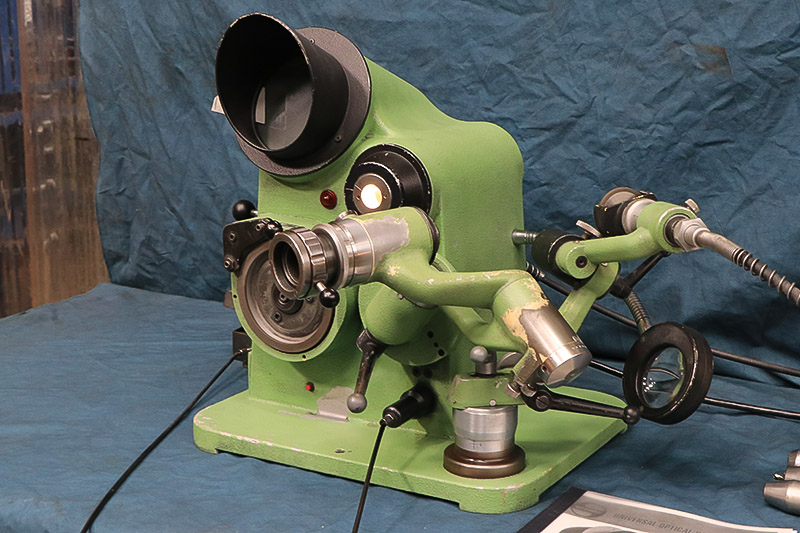

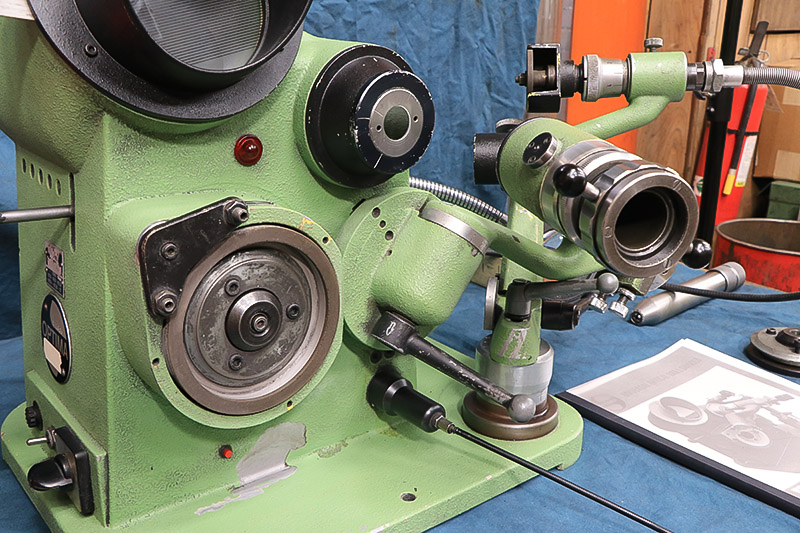

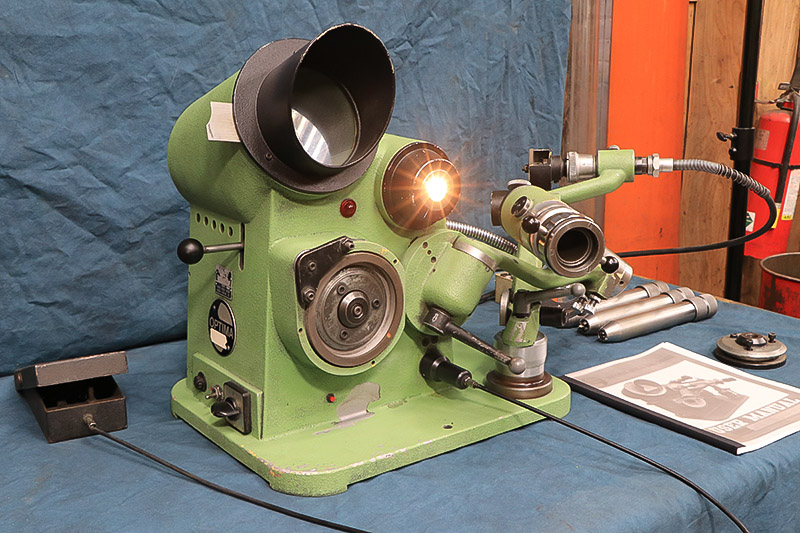

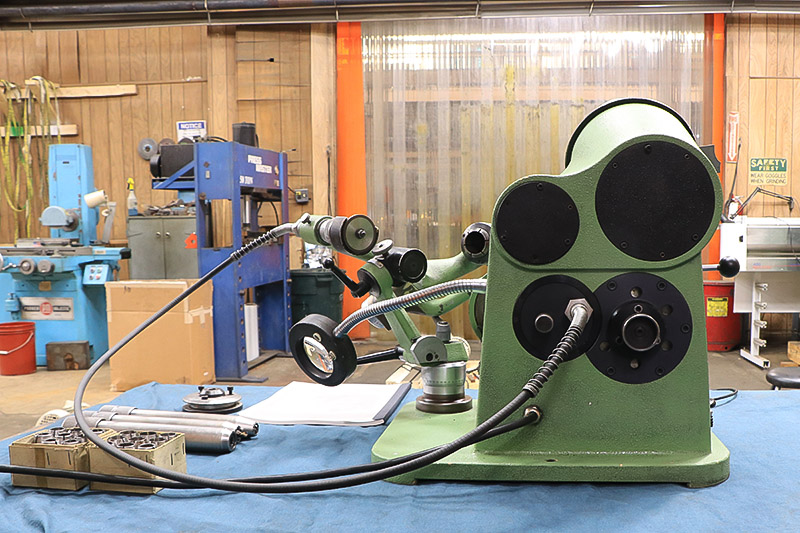

  OPTIMA (MADE IN SWITZERLAND) HIGH PRECISION DRILL GRINDER

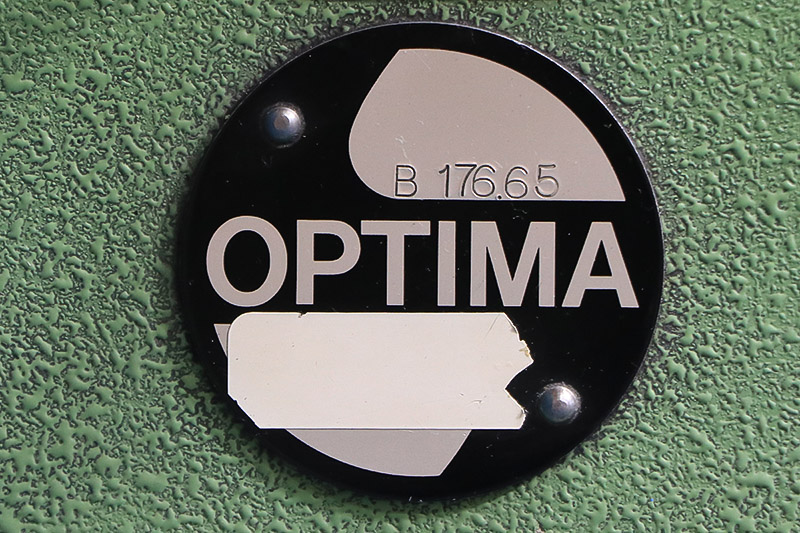

MODEL: UNIVERSAL     S/N: B176.65     NEW: 1990's

RANGE................................. .0135"- 1"DIAMETER
POINT ANGLE.................. 70 DEGREES TO 145 DEGREES &
           (DIFFERENT SETTING) 145 DEGREES TO 180 DEGREES
PRIMARY CUTTING ANGLE............ 0 DEGREES TO 40 DEGREES
SECONDARY CLEARANCE ANGLE........ 0 DEGREES TO 40 DEGREES
POINT THINNING WHEEL............................ 6800 RPM

APPROX. WEIGHT (MACHINE ONLYo .................. 120 LBS.

STANDARD FEATURES:
CAPABILITY TO GRIND RIGHT AND LEFT HAND DRILLS, HIGH SPEED
  STEEL AND CARBIDE TIPPED OR SOLID CARBIDE DRILLS, SPADE
  DRILLS, COUNTERSINKS, CENTER DRILLS OF ALL TYPES, TWO
  AND THREE FLUTED DRILLS AND END MILLS (THREE FLUTED
  OPTIONAL), TAPER SHANK DRILLS NO. 2 AND 3, SLOW OR FAST
  SPIRAL, (UP TO 3/4" DIAMETER ANY LENGTH, STANDARD LENGTH
  ABOVE 3/4" DIAMETER).

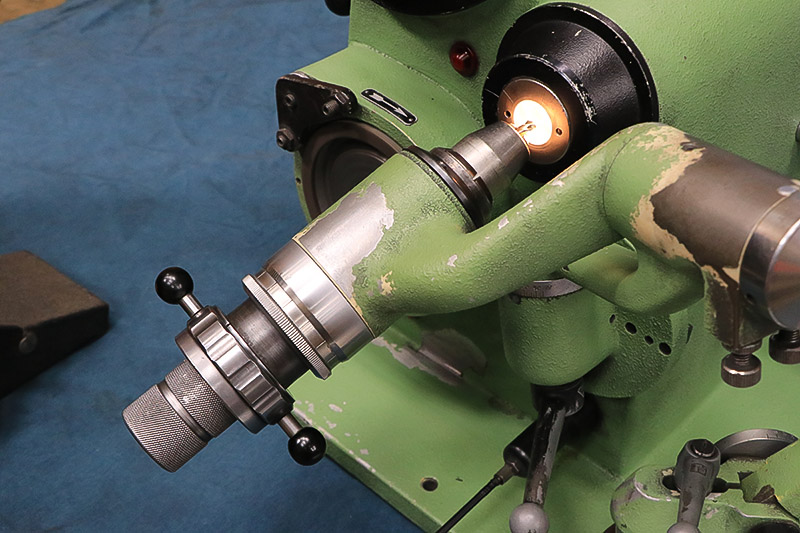

  MACHINE WILL GRIND AND POINT THIN OR SPLIT POINT IN ONE
  SETTING.

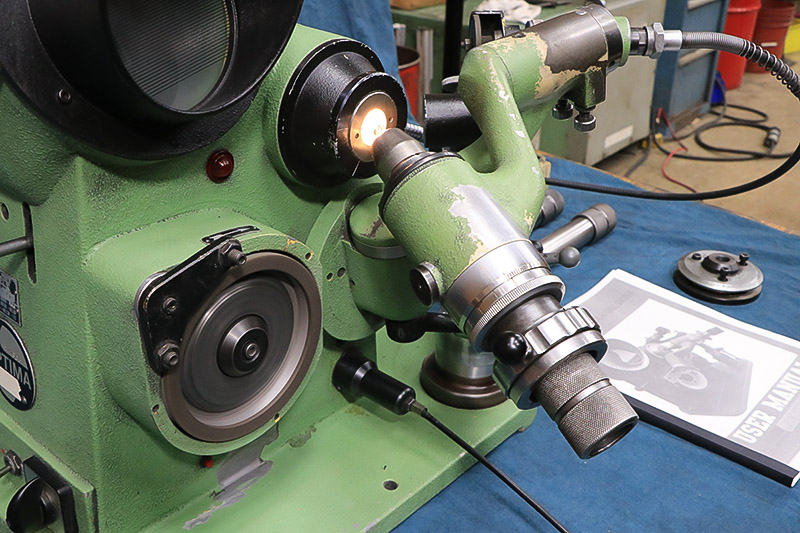

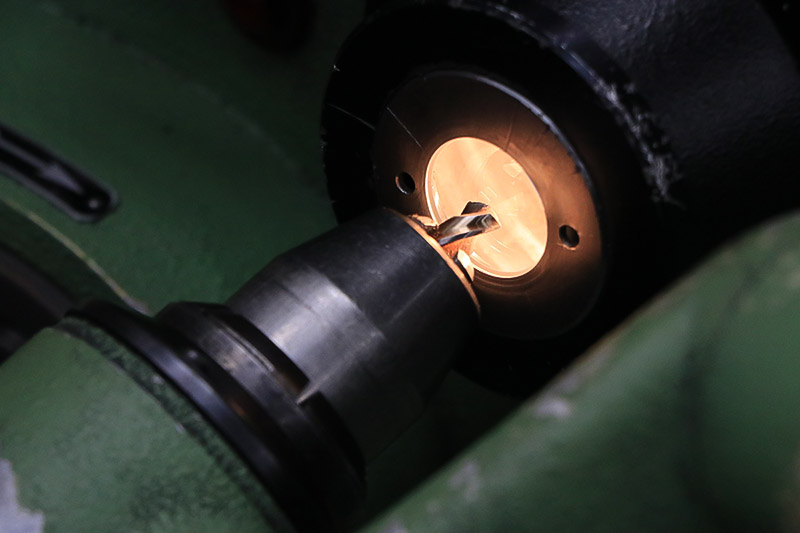

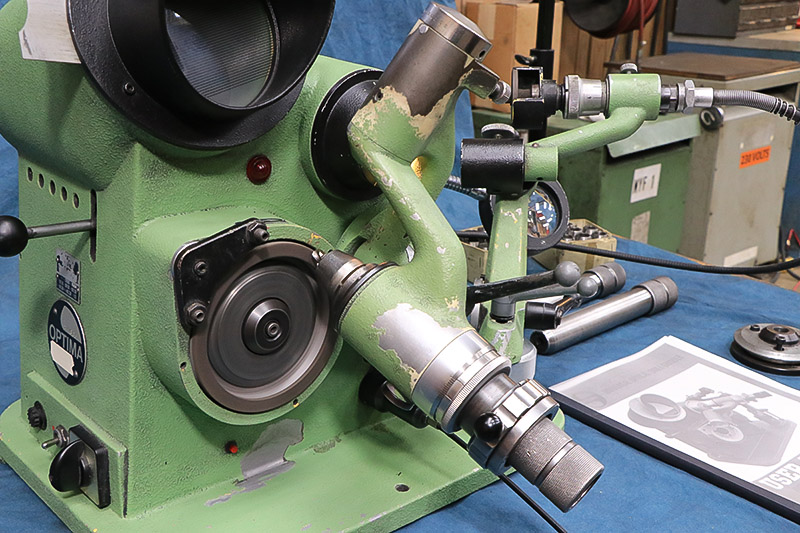

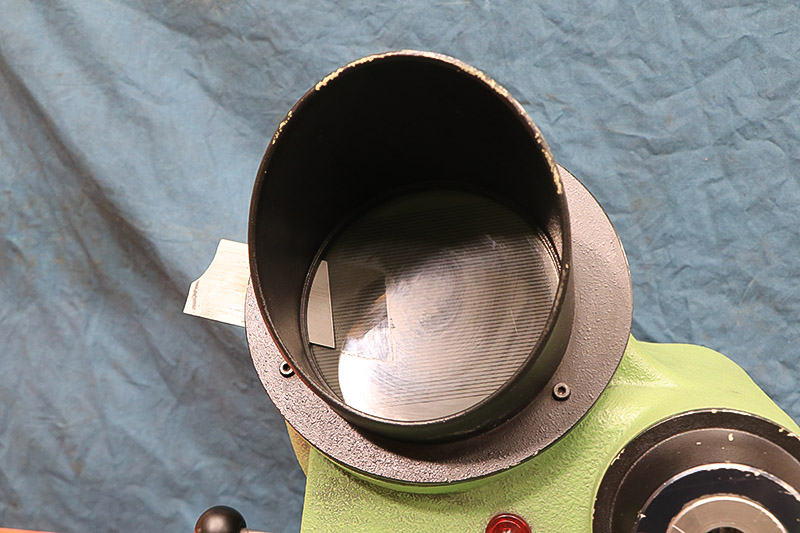

BUILT-IN OPTICAL COMPARATOR WITH MAGNIFYING LENS
BUILT-IN DIAMOND WHEEL DRESSER
BUILT-IN POINT SPLITTING OR WEB THINNING ATTACHMENT

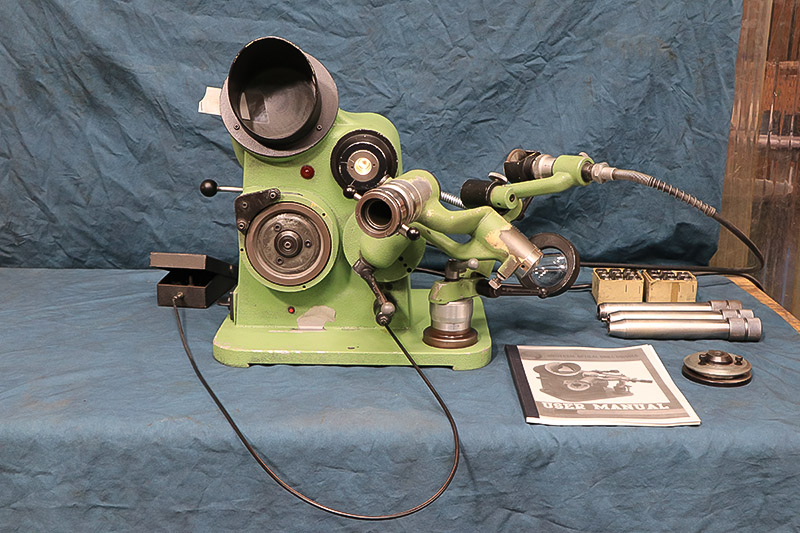

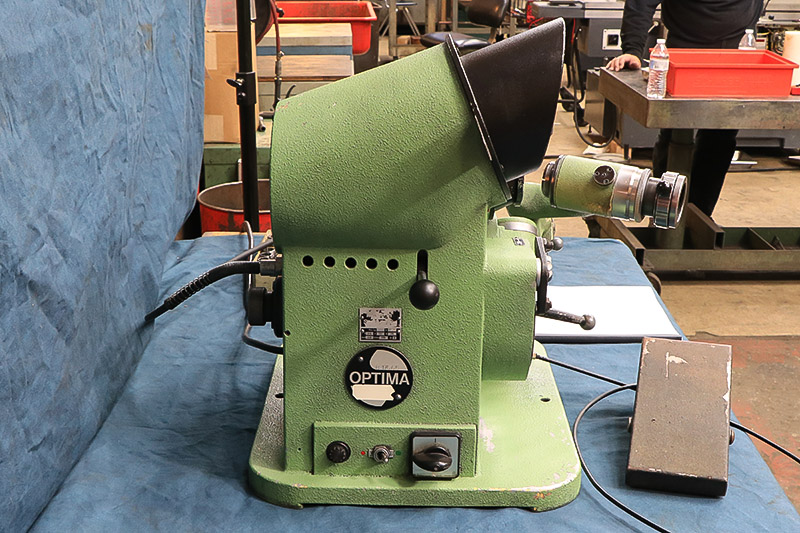

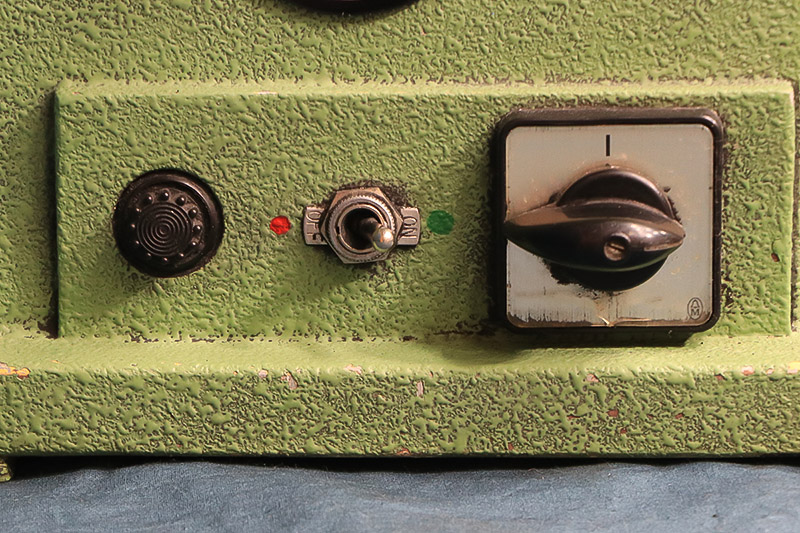

FOOT PEDAL

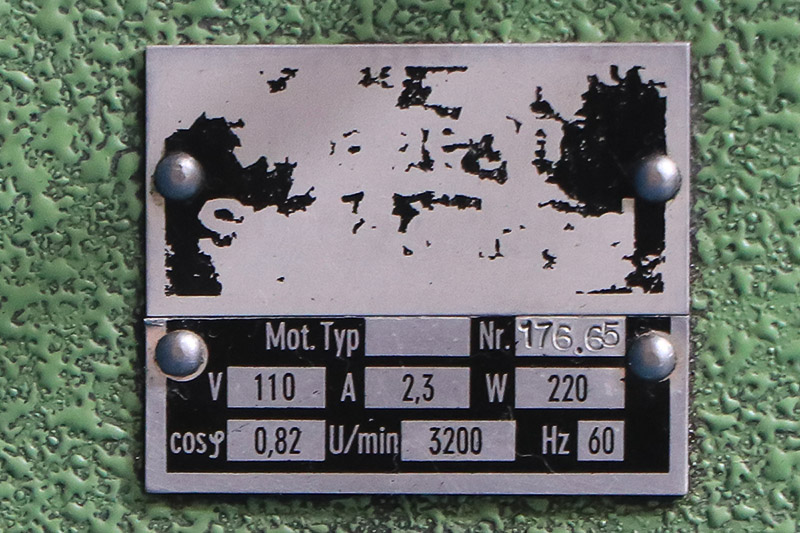

SINGLE PHASE ELECTRICS

EQUIPPED WITH:

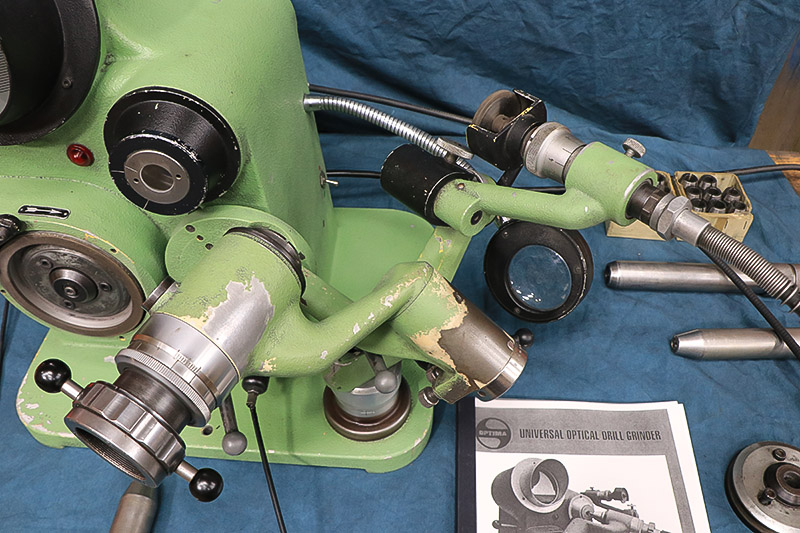

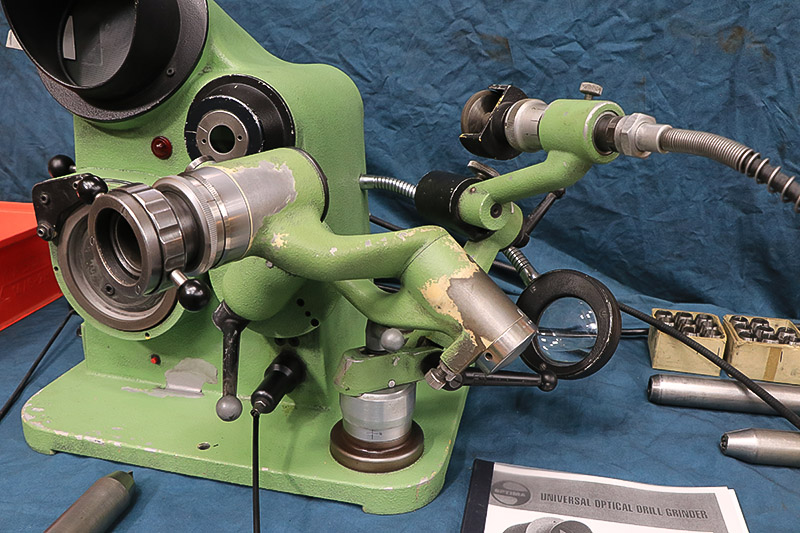

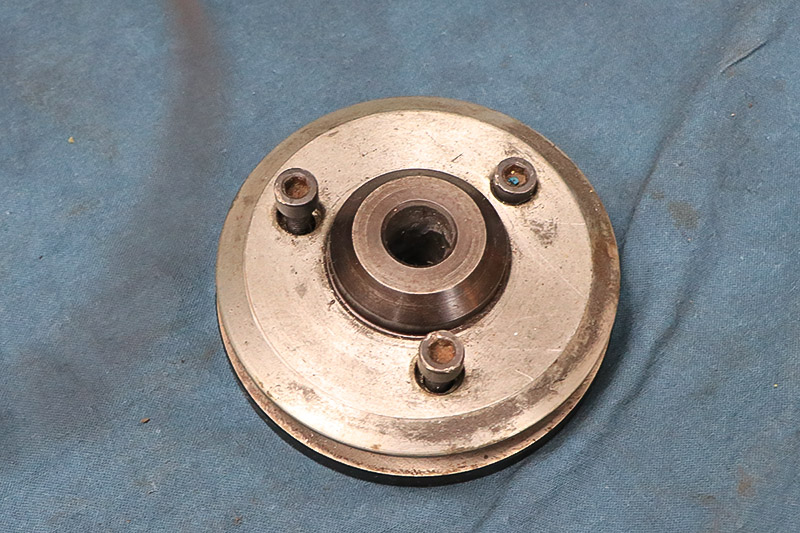

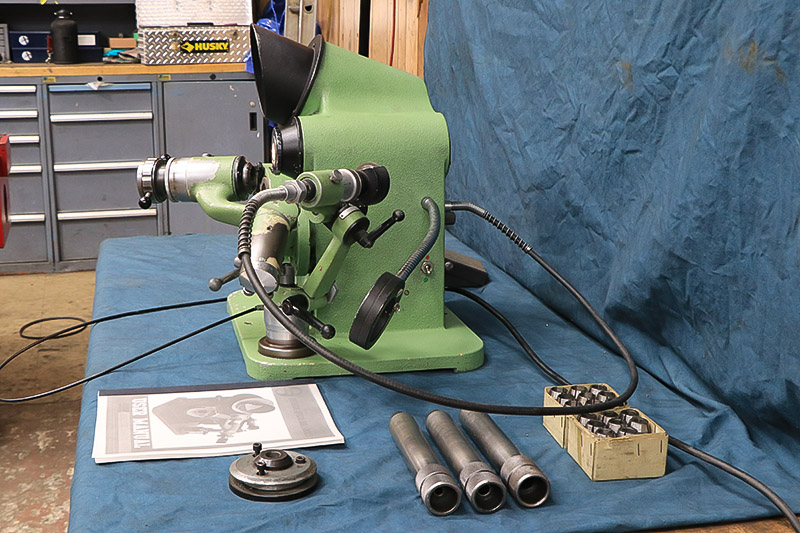

VERY NICE COMPLIMENT OF ACCESSORIES AS SHOWN IN THE PHOTOS

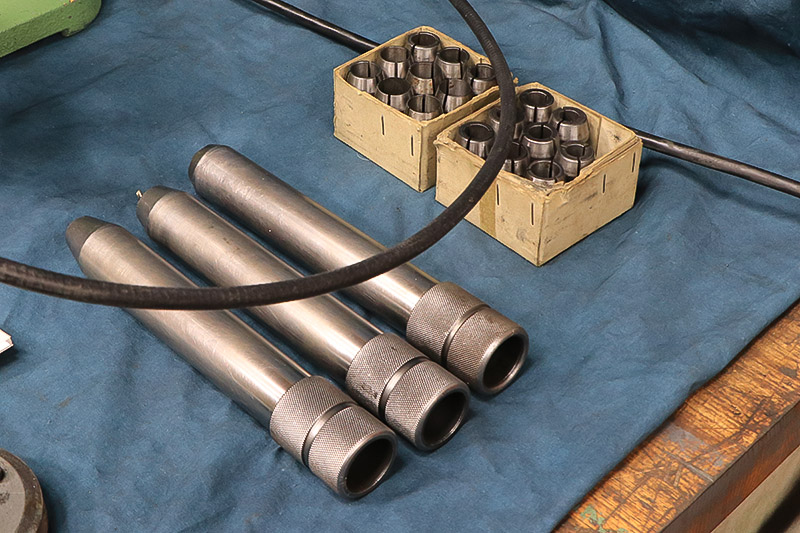

 (2)DRILL CHUCKS
 (1)COLLET CHUCK
 (19) COLLETS

** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **
