Rush 252, 2009, AUTO CYCLE OPTION, AIR-POWERED WORKHEAD DRILL GRINDERS

Price on Request

Make:: Rush

Model:: 252, 2009, AUTO CYCLE OPTION, AIR-POWERED WORKHEAD

Year:: 2009

Ref #:: 175637

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

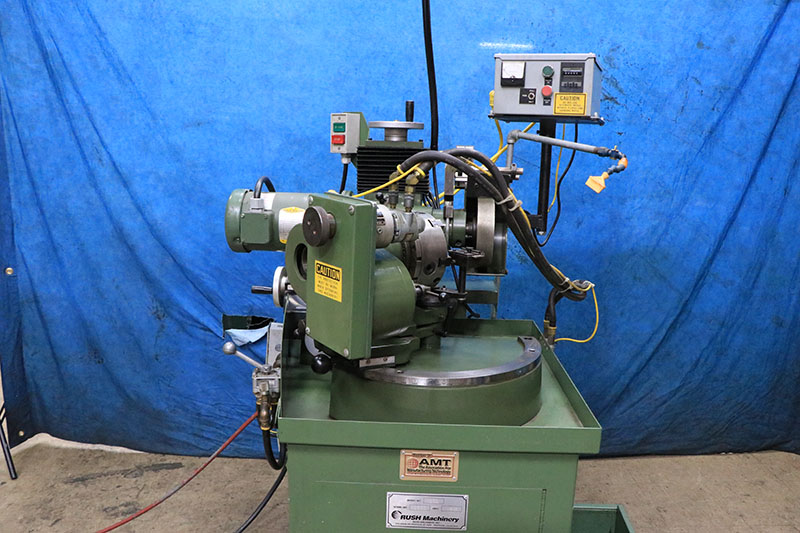

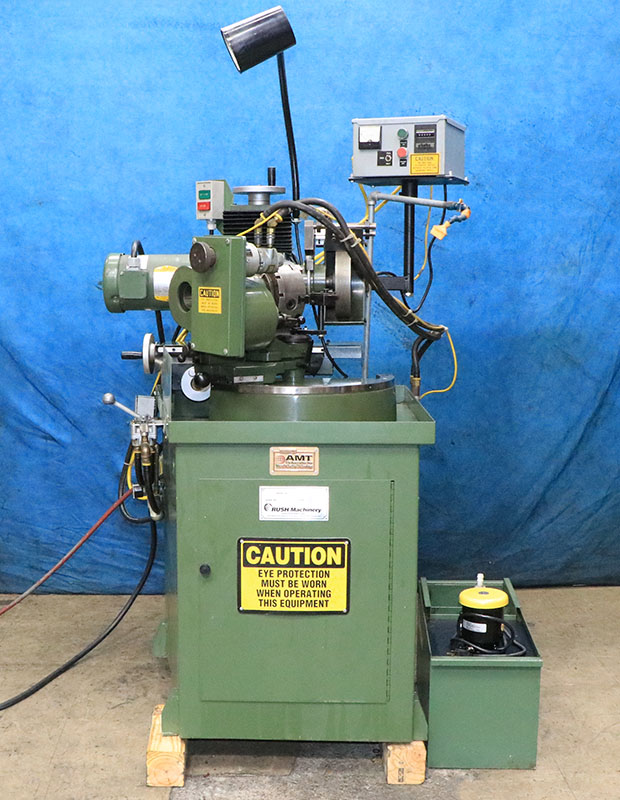

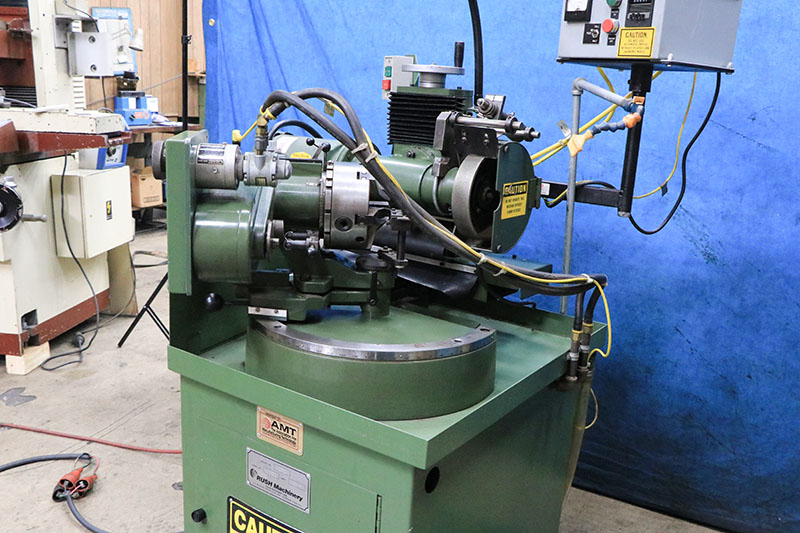

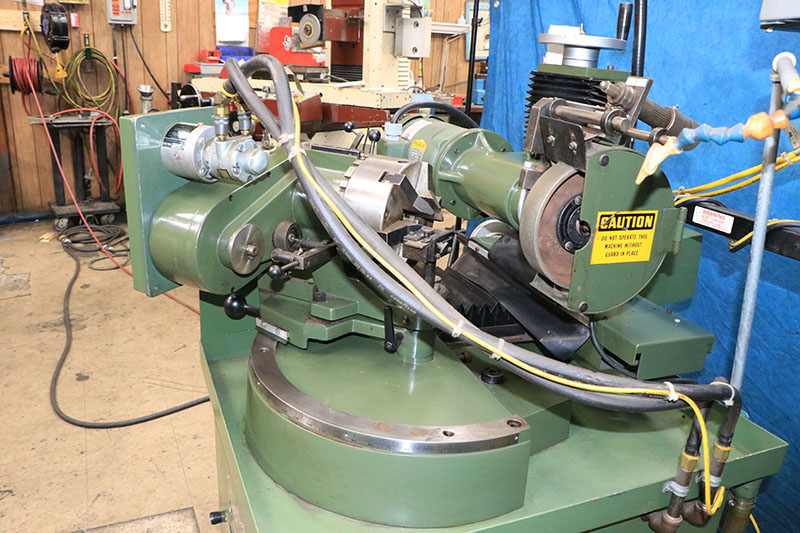

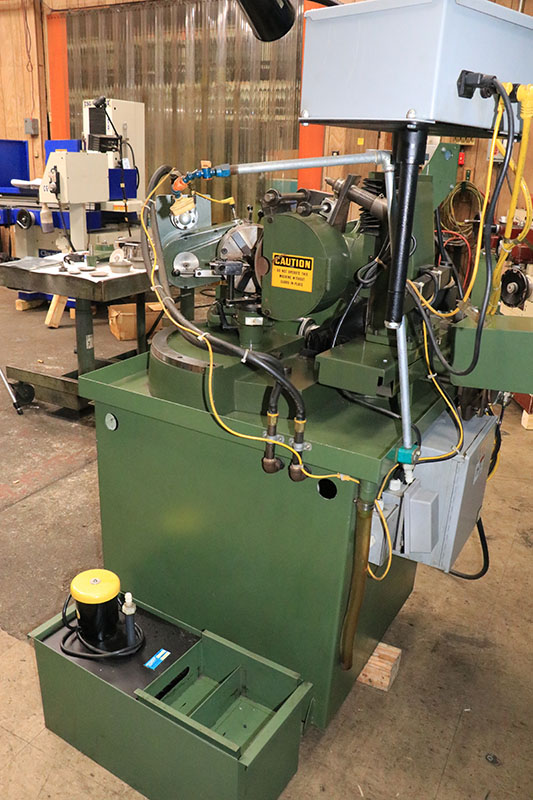

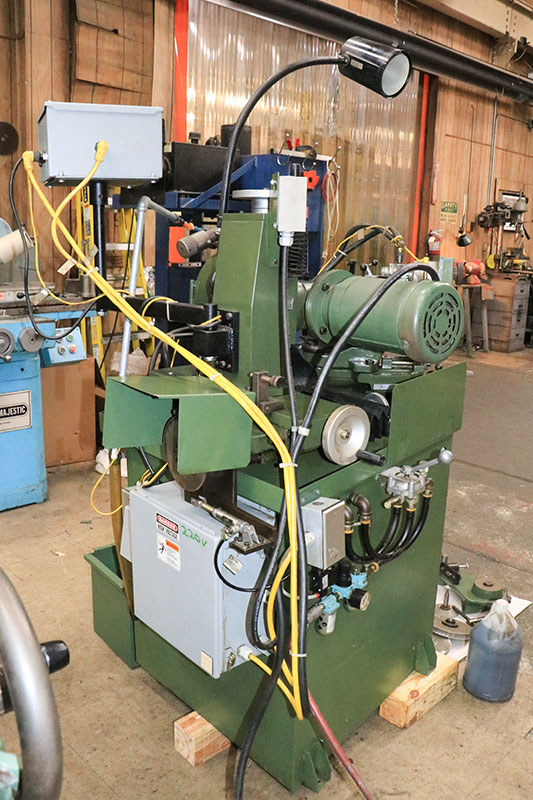

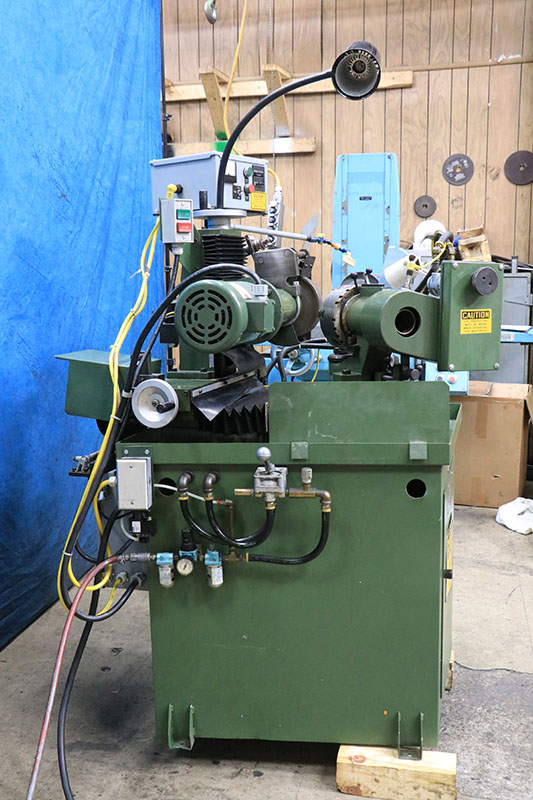

  RUSH MODEL 252 DRILL GRINDER
   WITH AUTOMATIC INFEED OPTION

** LARGE AMOUNT OF ACCESSORIES **

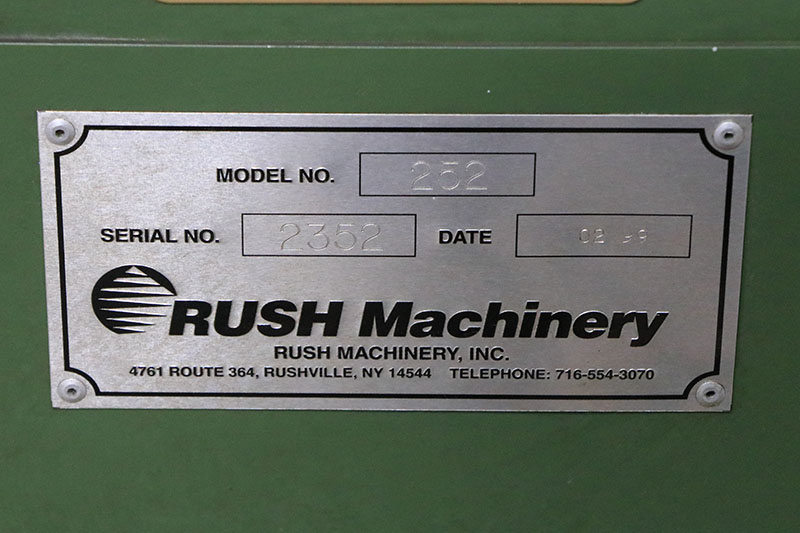

S/N: 2352     NEW:  1999

** CAN DO ODD-FLUTED TOOLS (1, 3, 5, & 7) AS WELL AS
   EVEN-FLUTED TOOLS 2, 4, 6,& 8).  THIS IS ACHEIVED

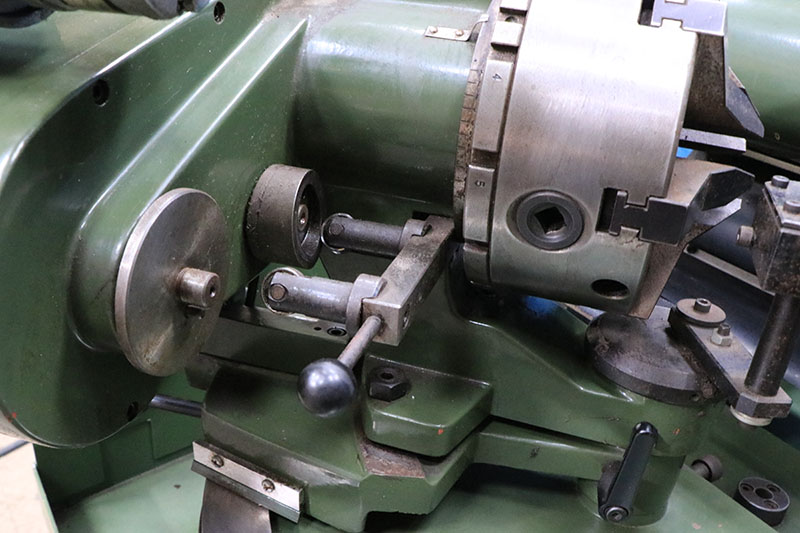

   WITH THE USE OF A UNIQUE DUAL-CAM WORKHEAD.  THE INNER
   CAM DRUM IS TURNING @ A 2:1 GEAR RATIO TO GRIND
   EVEN-FLUTED TOOLS.  THE OUTER DRUM IS TURNING
   @ A 1:1 RATIO FOR ODD-FLUTED TOOLS.

CAPACITY ........................ 3/32" TO 2"
                                 STRAIGHT OR TAPER SHANK

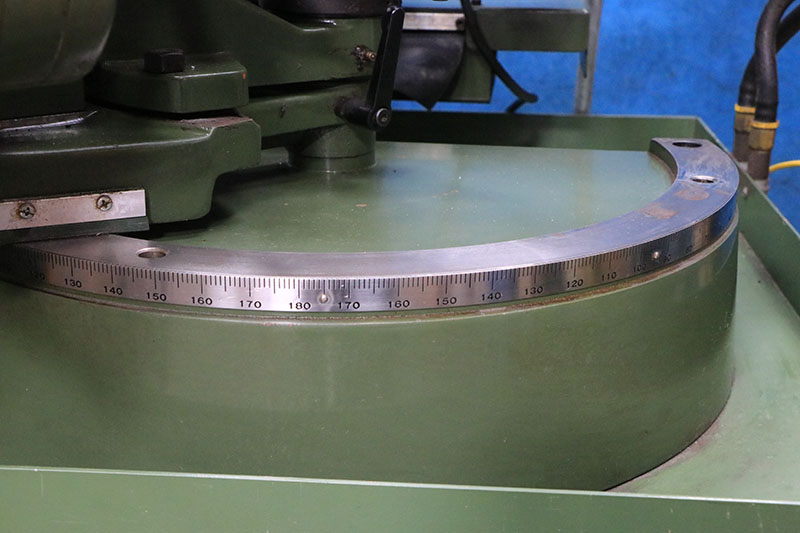

DRILL POINT ANGLES .............. 40 TO 180 DEGREES

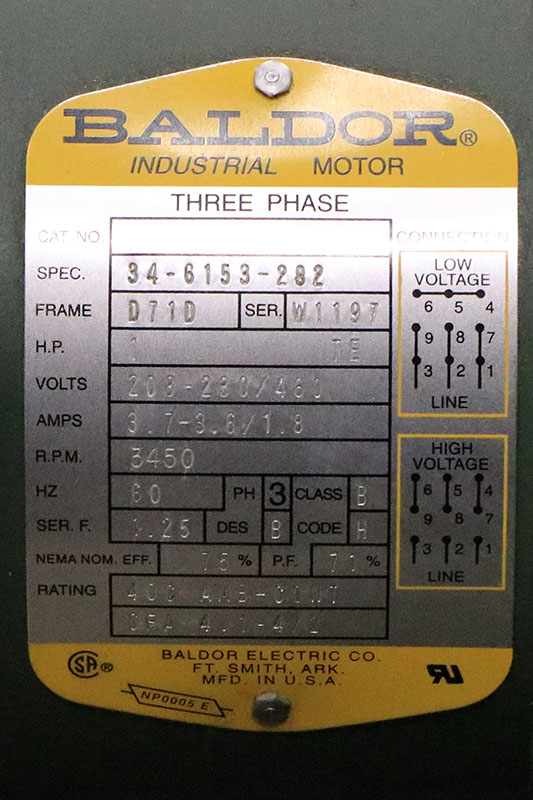

MOTOR ........................... 1 H.P.

DIMENSIONS ...................... 44"W x 42"D x 53"H
APPROX. MACHINE WEIGHT .......... 590 LBS.

AUTOMATIC INFEED:

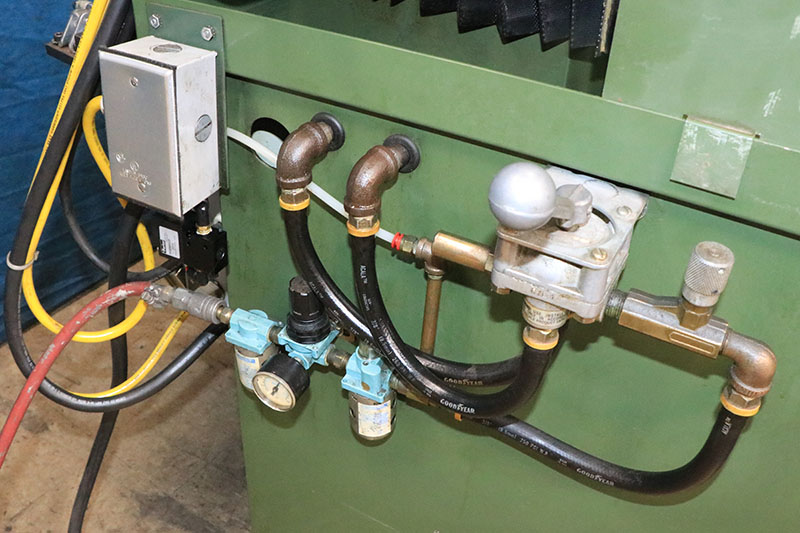

AIR POWERED WORKHEAD FOR ROTATION & CAM ACTION EQUIPPED
 WITH "AUTOMATIC INFEED SYSTEM",  WHICH INCREASES
 PRODUCTIVITY BECAUSE THIS ALLOWS THE OPERATOR
 TO DO OTHER TASKS NEARBY WHILE THE DRILL IS BEING GROUND.
 THE SYSTEM ALLOWS MANUAL OR SEMI-AUTOMATIC OPERATION
 OF ALL TOOL GRINDING AND AUTOMATIC GRINDING OF STANDARD
 DRILL POINTS, COUNTERSINKS AND REAMERS.

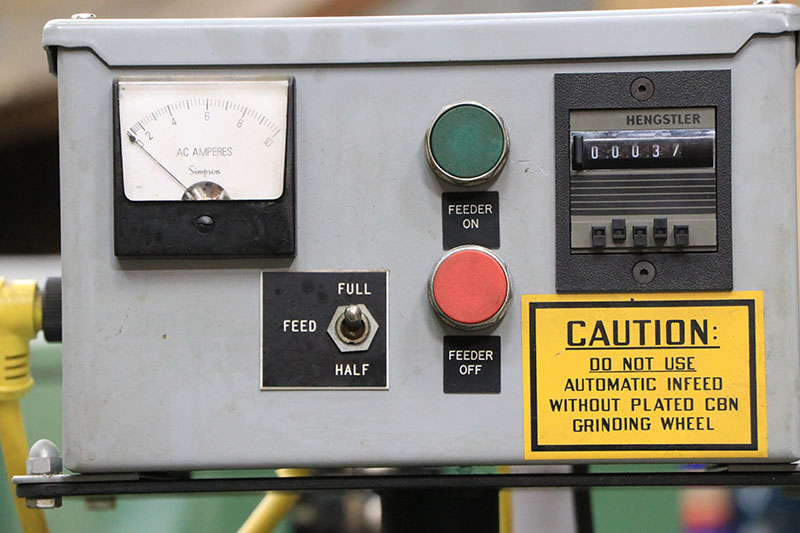

 THE GRINDNG RATE IS ADJUSTABLE FROM THE COUNTER AND
 CAN BE PRESET FOR 1 TO 99 CYCLES.  AN ELECTROPLATED

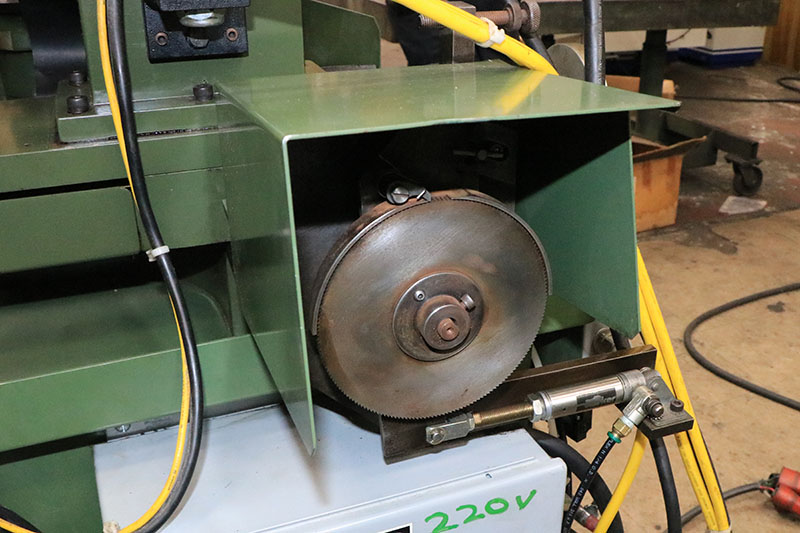

 CBN GRINDING WHEEL (STANDARD) IS USED WITH THE AUTOMATIC
 INFEED AND REQUIRES NO DRESSING."

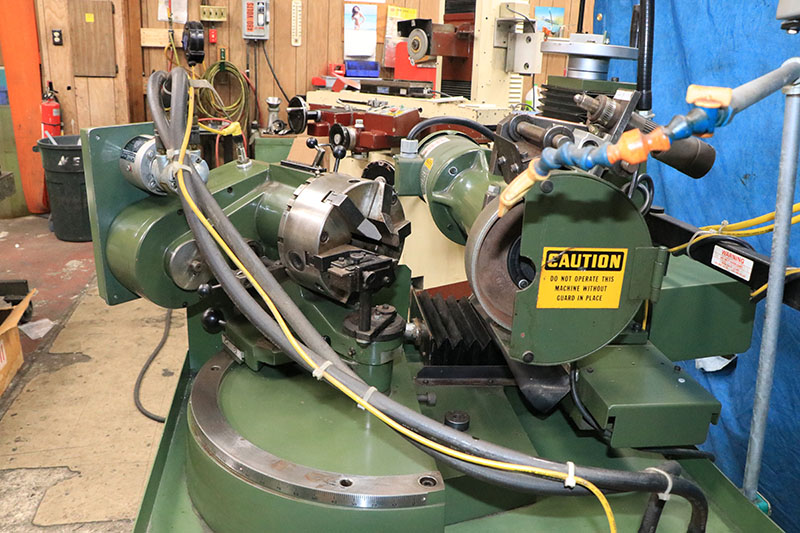

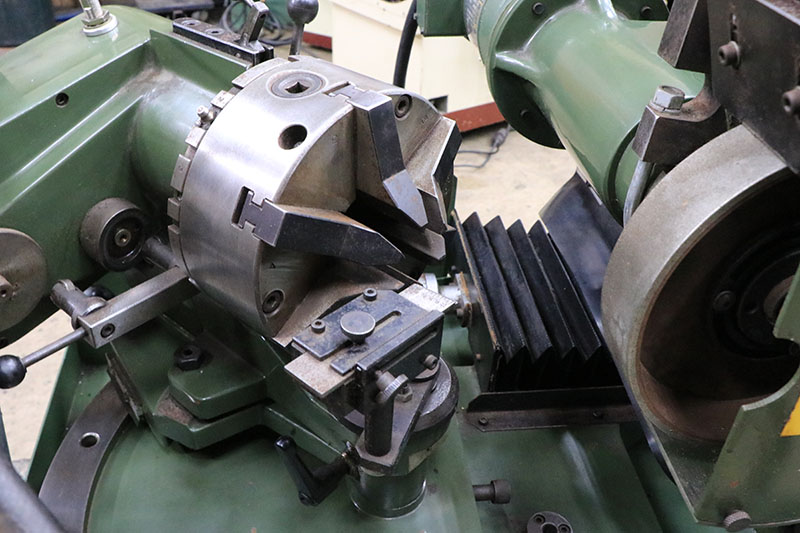

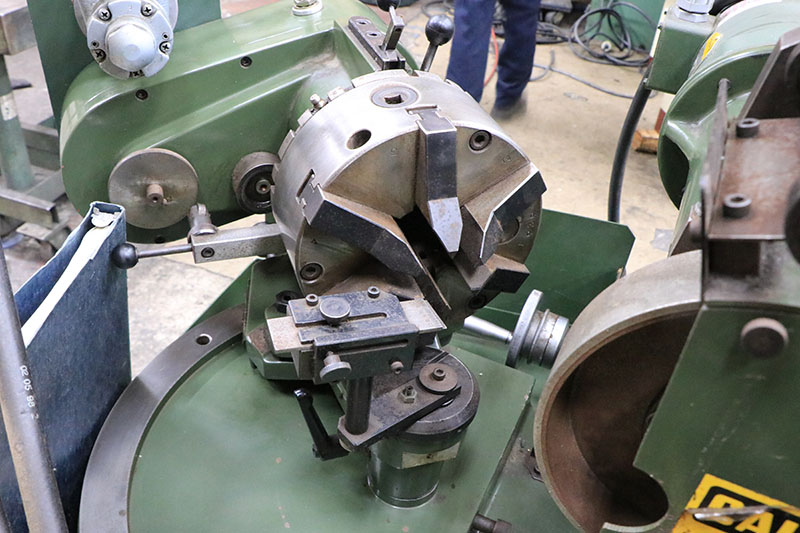

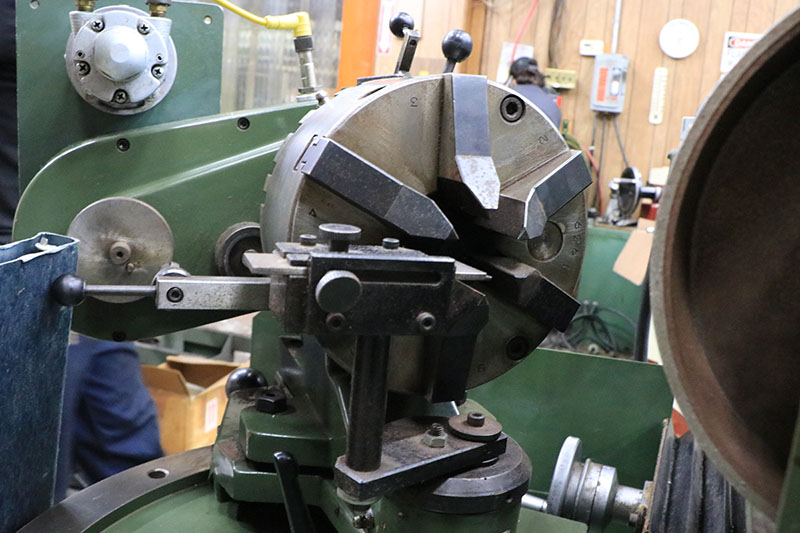

SELF-CENTERING 6-JAW CHUCK

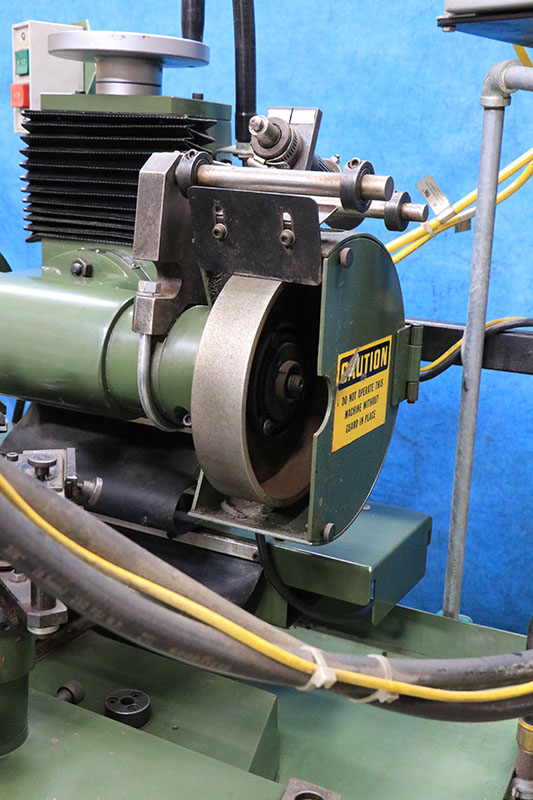

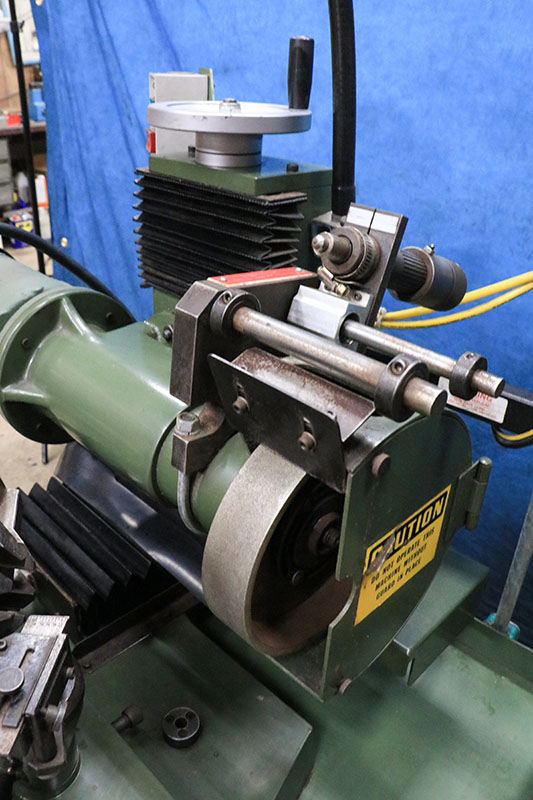

CBN WHEEL
CABINET BASE

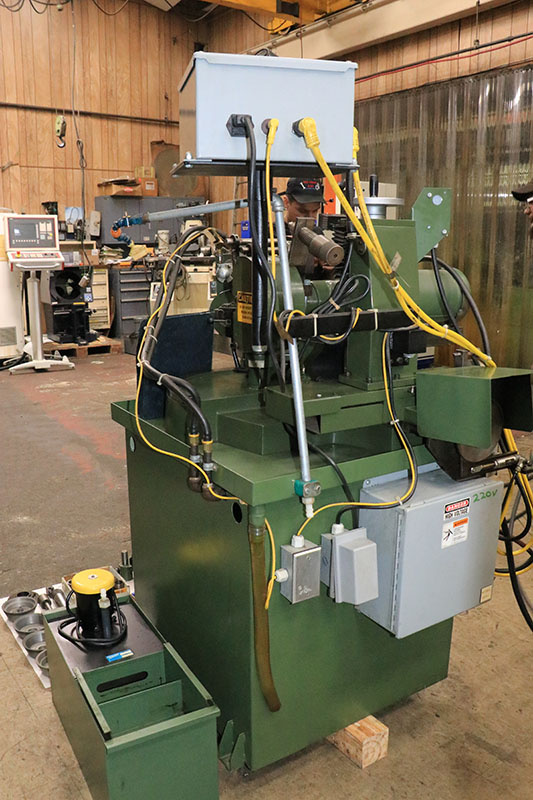

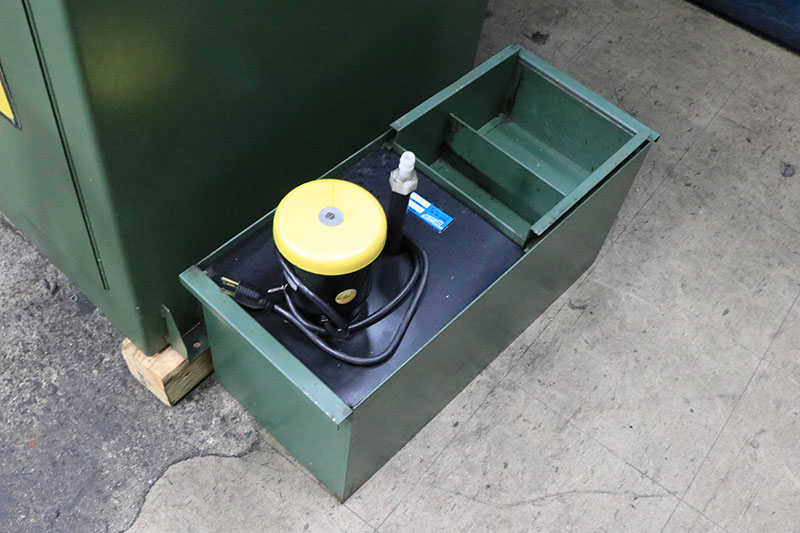

"WESCO" COOLANT TANK & PUMP

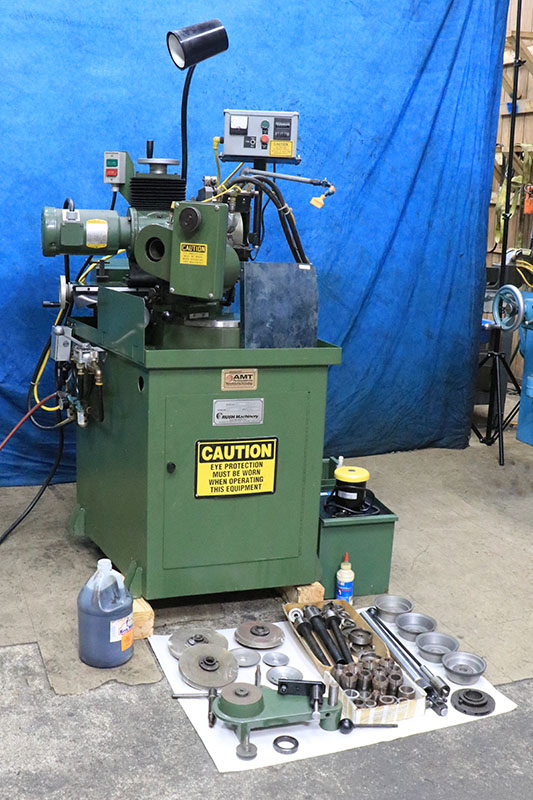

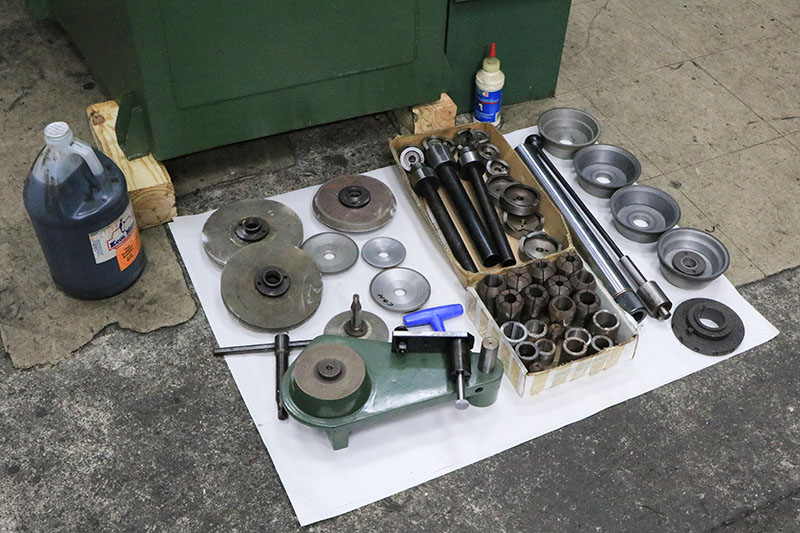

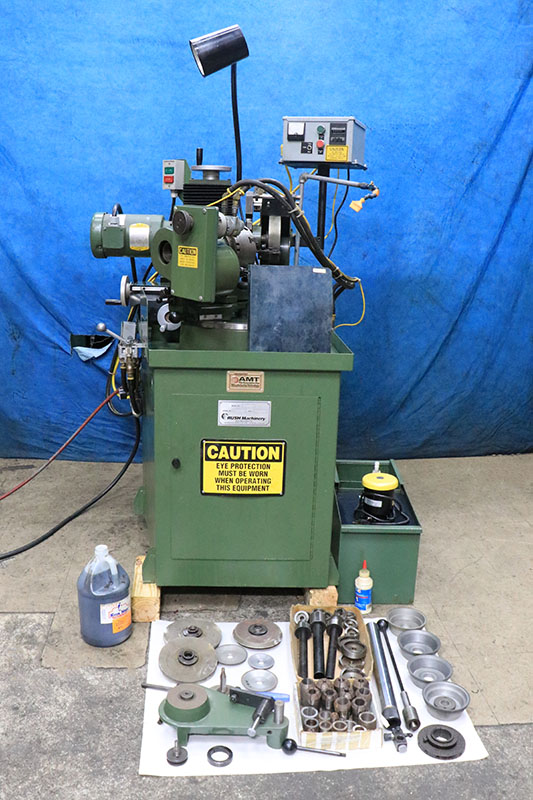

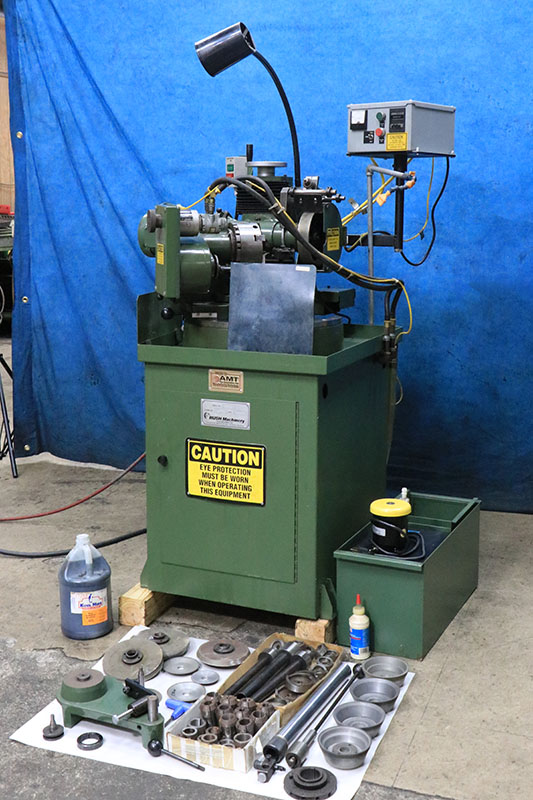

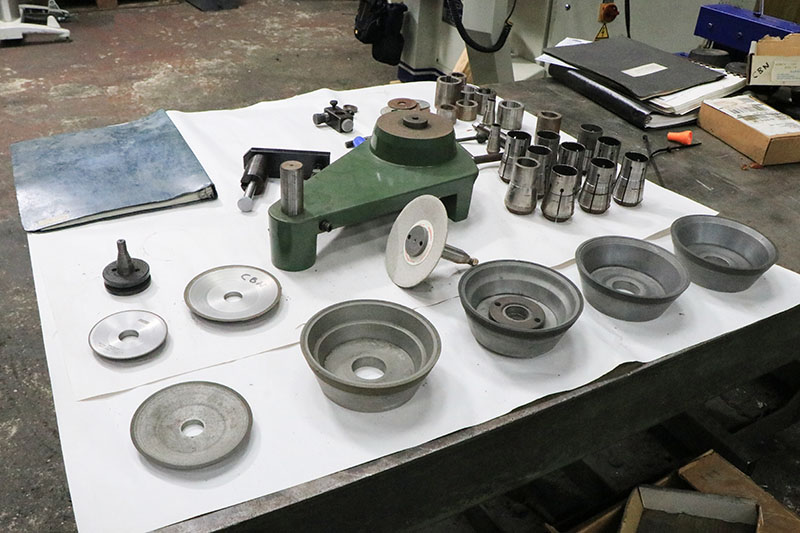

ALL OF THE TOOLING & ACCESSORIES AS SHOWN IN THE PHOTOS

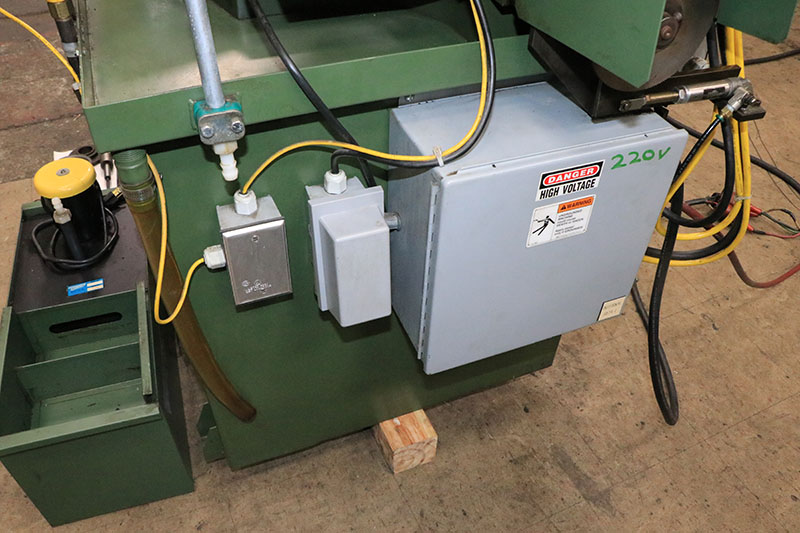

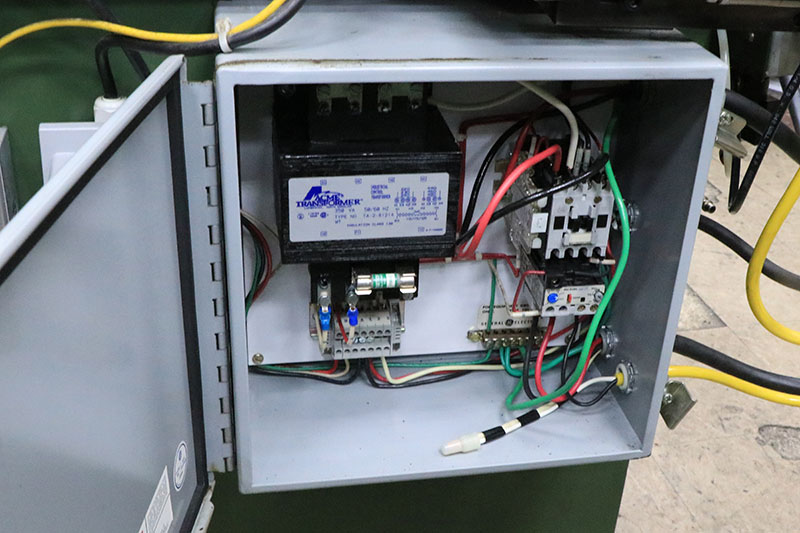

WIRED PRESENTLY FOR 3/60/230 VOLTS

Link to Video: https://youtu.be/sAnz6RQ3Wj4?si=tVGHW_EeARsKCvtn


** FOB OUR HARRISON, NJ WAREHOUSE **
** EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **
