Poreba TPK 90A1/3M ENGINE LATHES

Price on Request

Make:: Poreba

Model:: TPK 90A1/3M

Year:: 1994

Ref #:: 178112

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

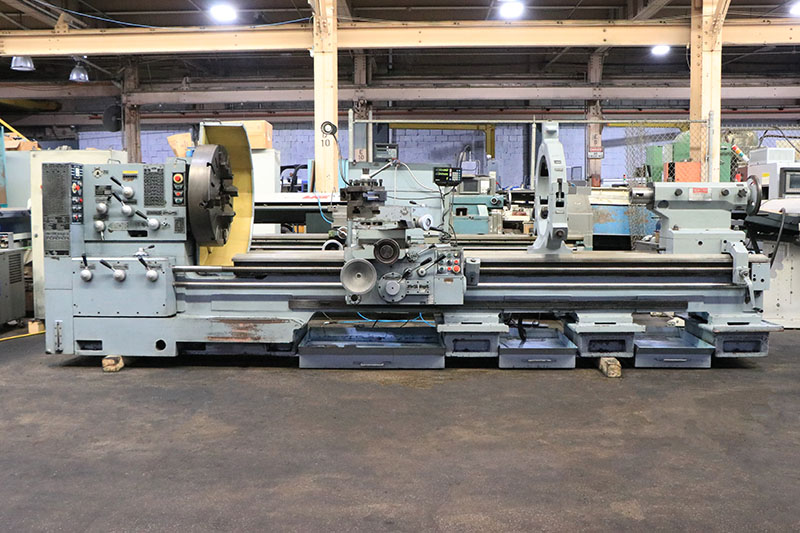

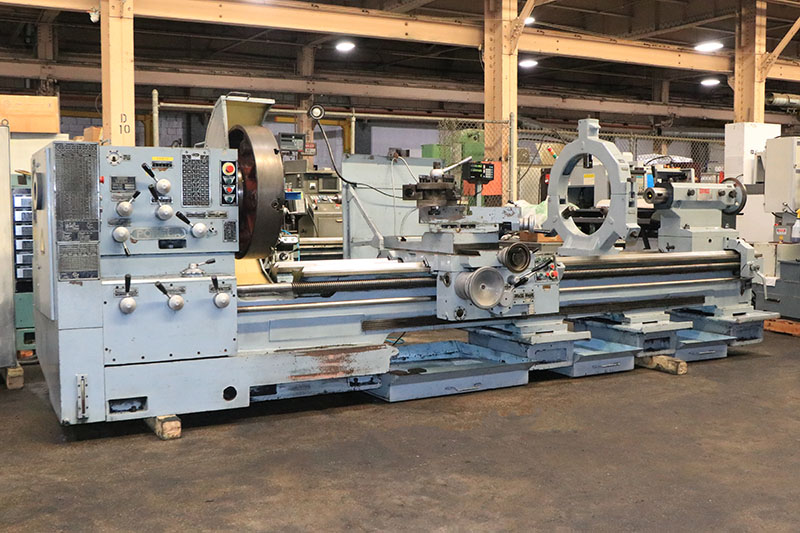

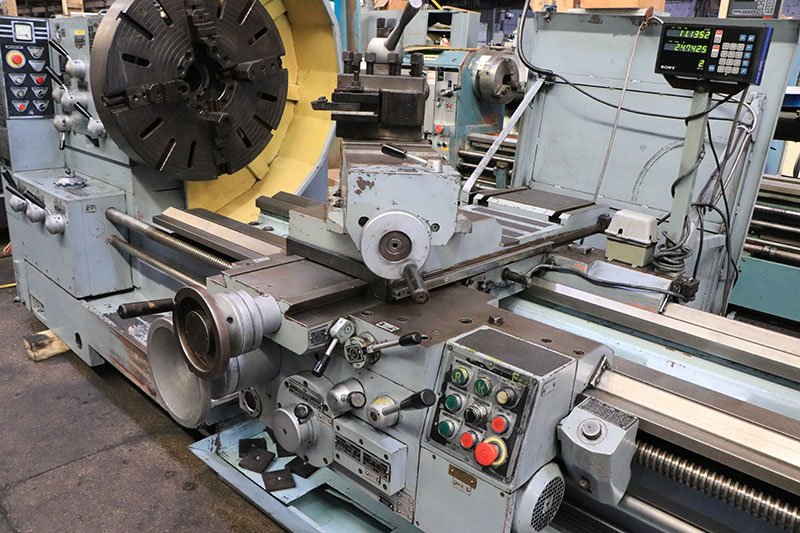

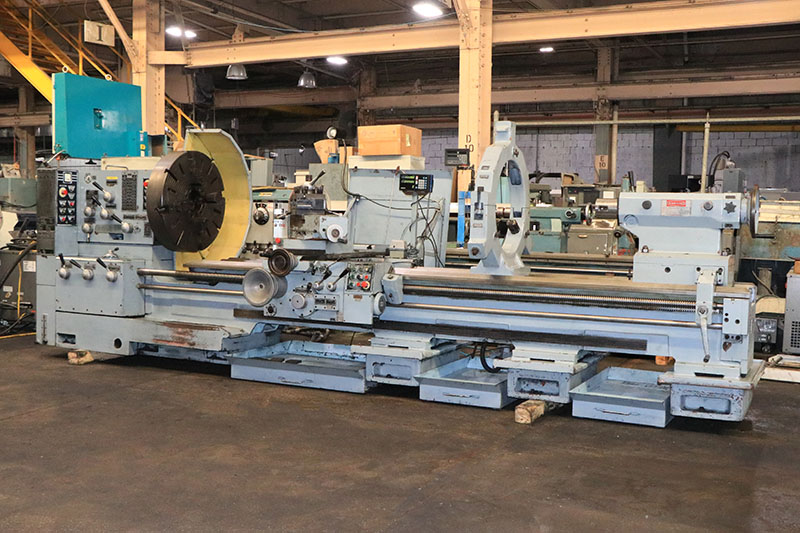

36" X 120" POREBA HEAVY DUTY LATHE

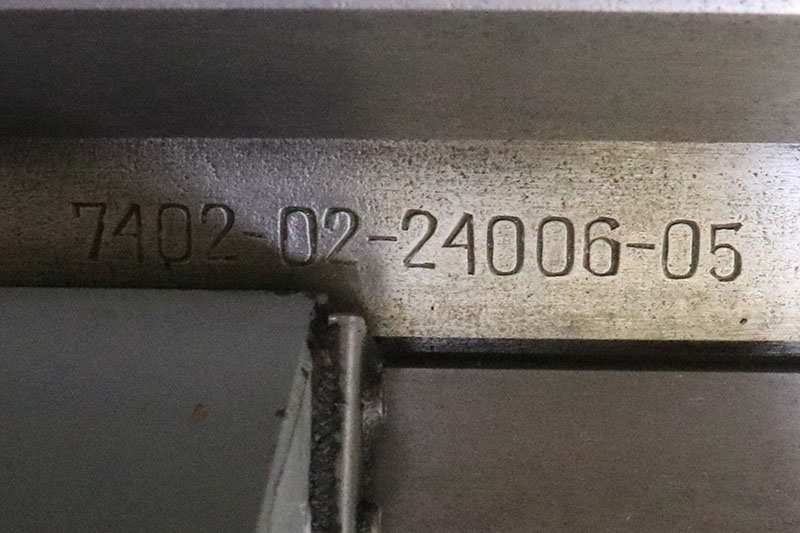

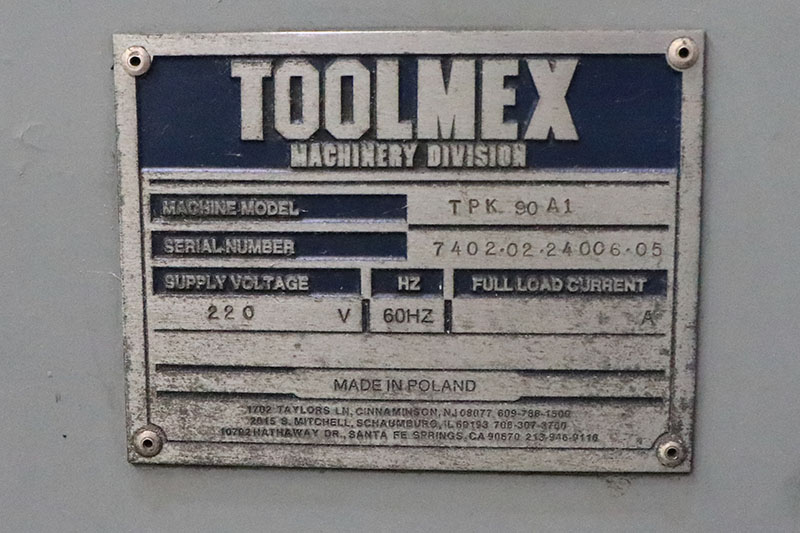

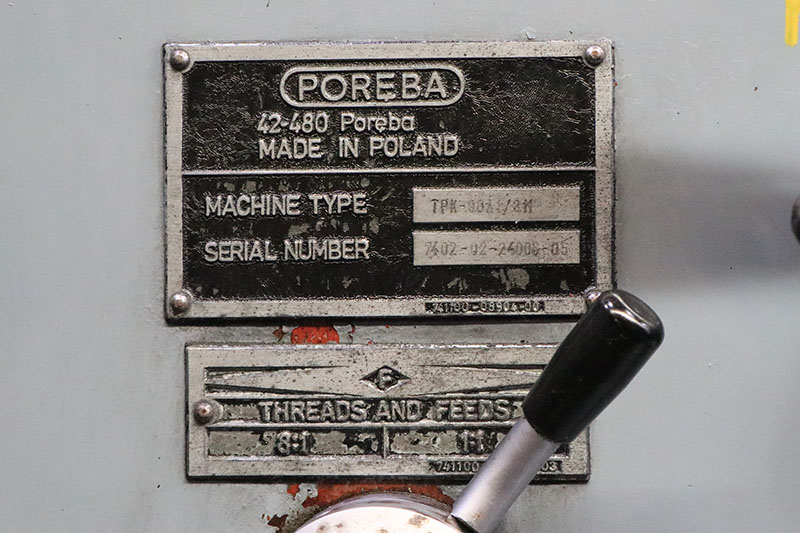

MODEL: TPK90A1/3M, S/N: 7402-02-24006-05, NEW: 1994

SPECIFICATIONS:
SWING OVER BED WAYS ................... 36.5"
SWING OVER CROSS SLIDE ................ 25"
SWING IN GAP .......................... 49"
DISTANCE BETWEEN CENTERS .............. 120"

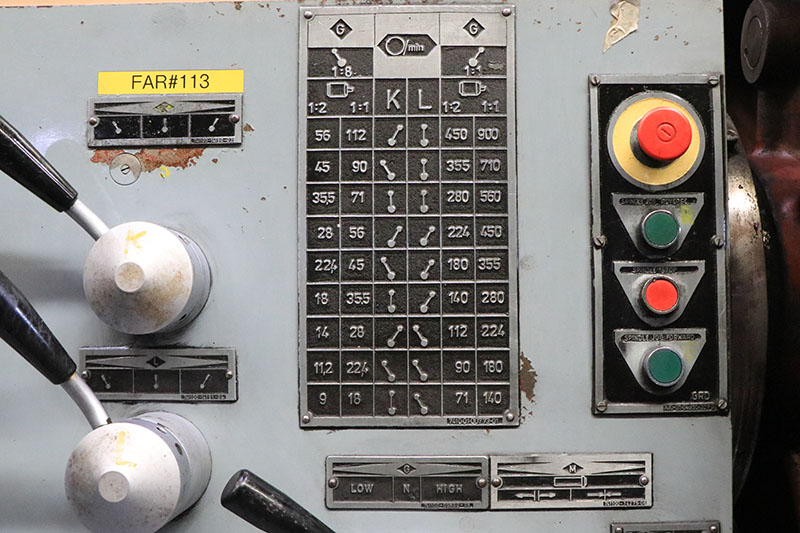

SPINDLE SPEEDS (21) ................... 9 TO 900 RPM
WORKPIECE WEIGHT BETWEEN CENTERS ...... 13,000 LBS
WORKPIECE WEIGHT WITH STEADY REST ..... 16,500 LBS

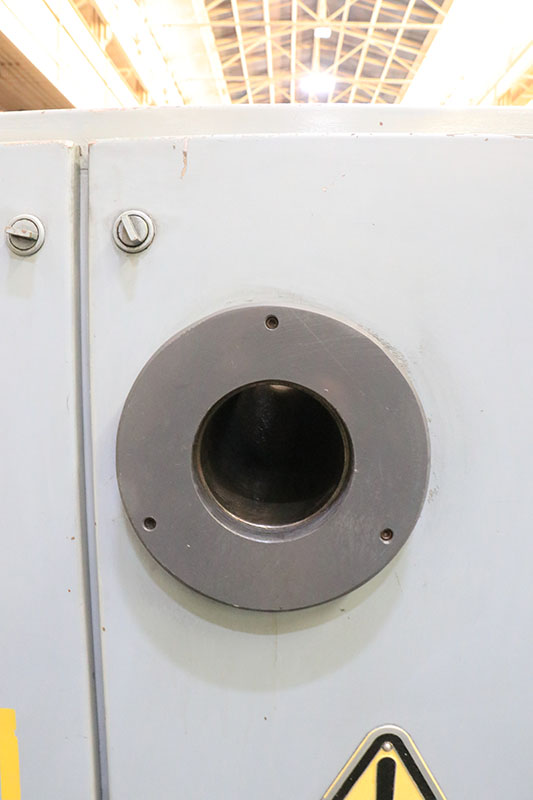

SPINDLE HOLE, SPINDLE NOSE ............ 3-3/4" A1-11
THREADS (56) .......................... 1/4" TO 30 TPI
METRIC PITCHES (62) ................... 1 TO 120 MM/REV.
LONGITUDINAL FEED RANGE (70) .......... .0043 - .500 IPR
CROSS FEED RANGE (70) ................. .0021 - .250 IPR
TOP SLIDE TRAVEL (70) ................. .001 - .125 IPR
CENTERS - HEAD & TAILSTOCK ............ #6 MT
TAILSTOCK QUILL DIAMETER .............. 5-1/8"
QUILL TRAVEL .......................... 11.7"
WIDTHS OF BED ......................... 23"
APPROXIMATE FLOOR SPACE ............... 72"W x 220"L
APPROX WEIGHT ......................... 17,500 LBS.

EQUIPPED WITH:

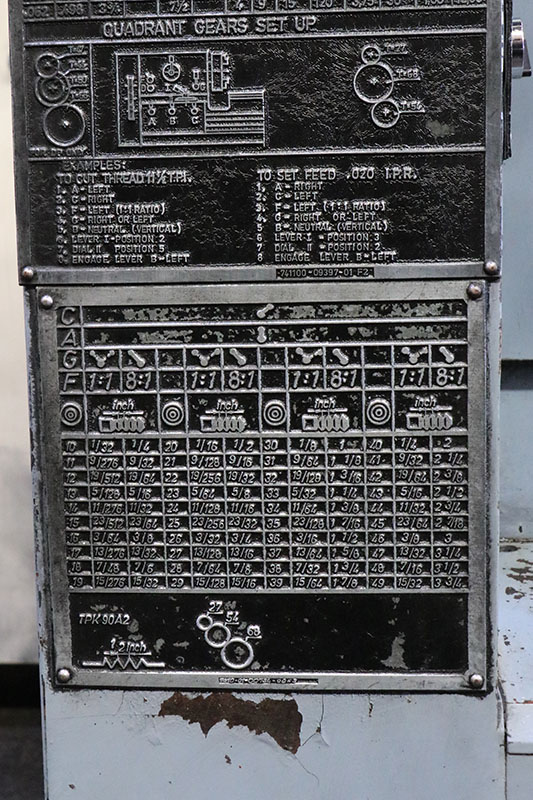

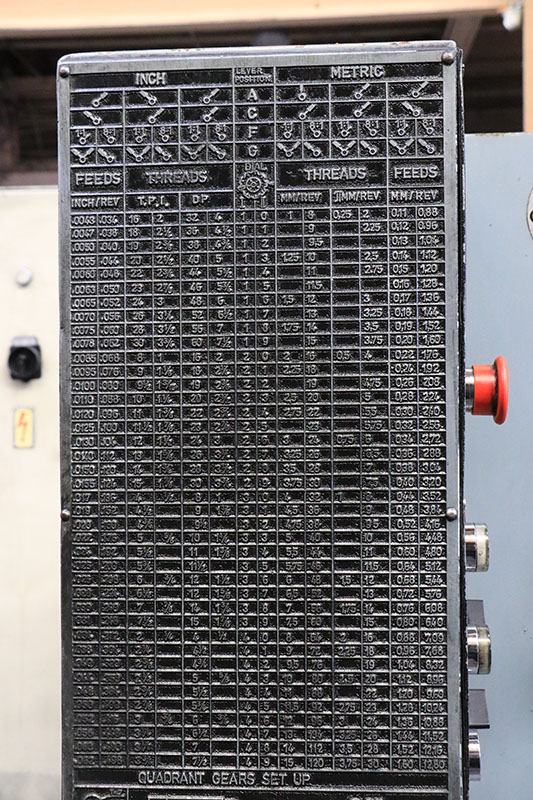

* INCH & METRIC THREADING

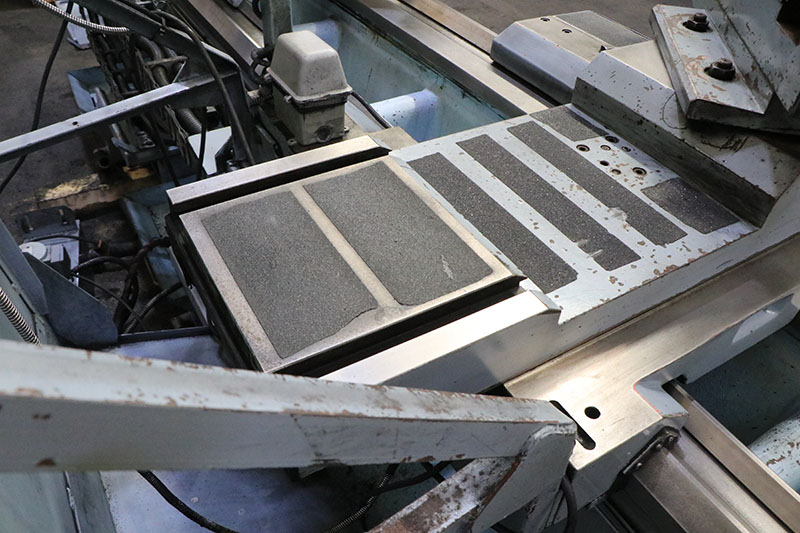

* HARDENED & GROUND BEDWAYS, SOLID TRIPLE V BED

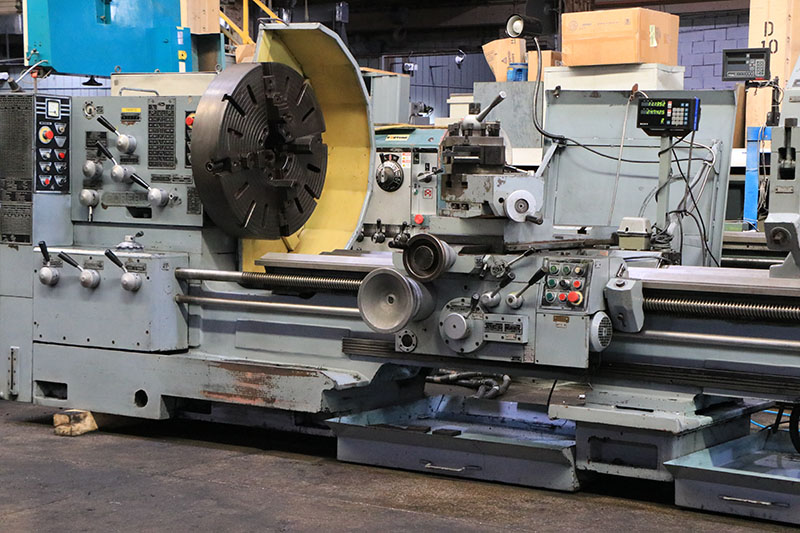

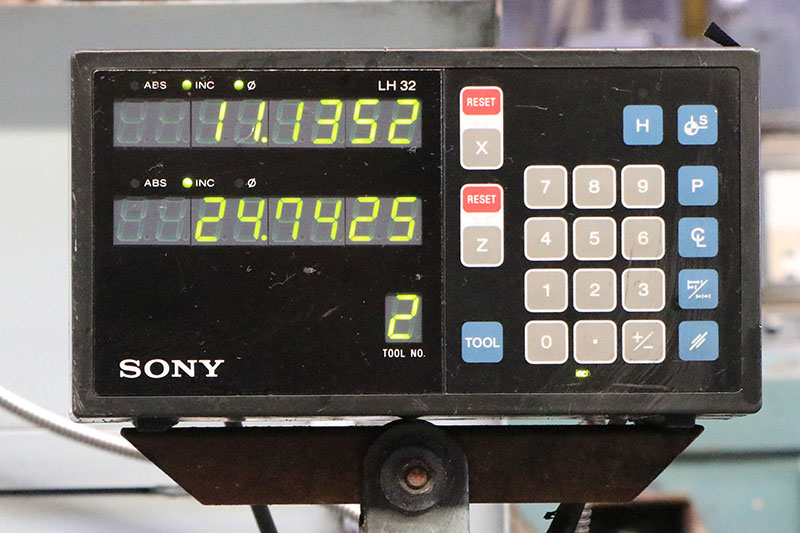

* SONY TWO AXIS DIGITAL READOUT

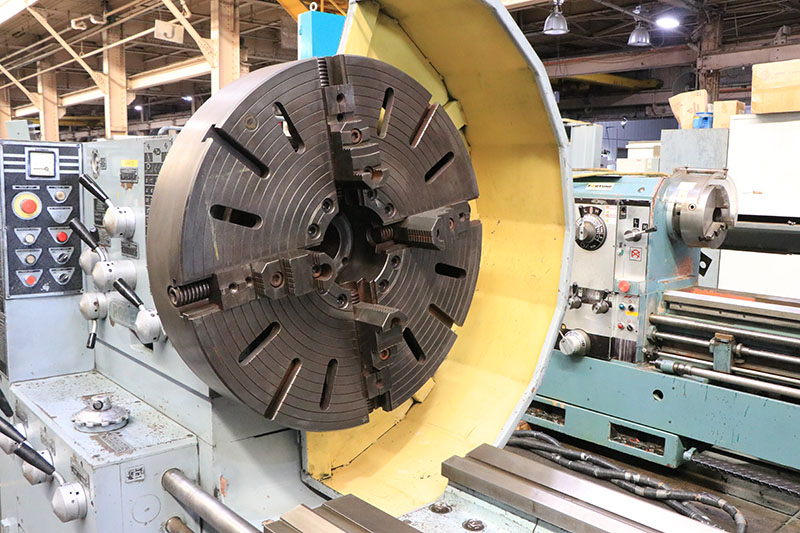

* BISON 4-JAW CHUCK

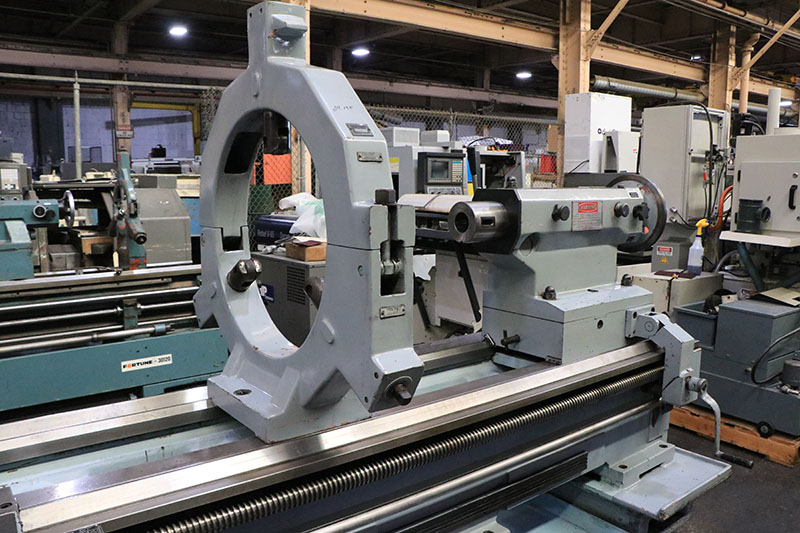

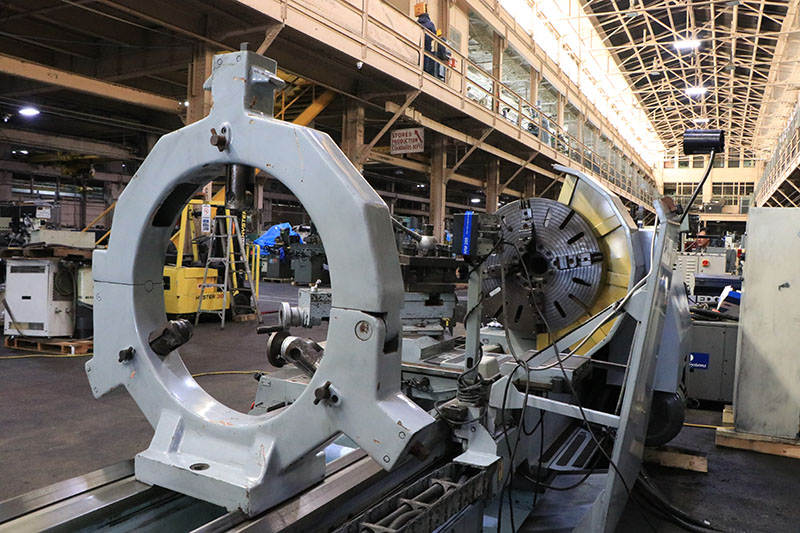

* ROLLER TYPE STEADY REST
* TAPER TURNING THROUGH POWER COMPOUND
* POWER RAPID TRAVERSE

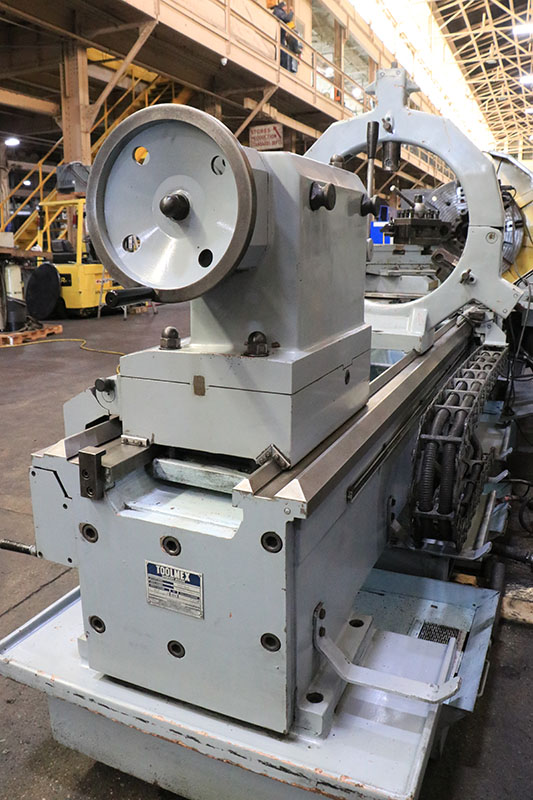

* 2-SPEED TAILSTOCK

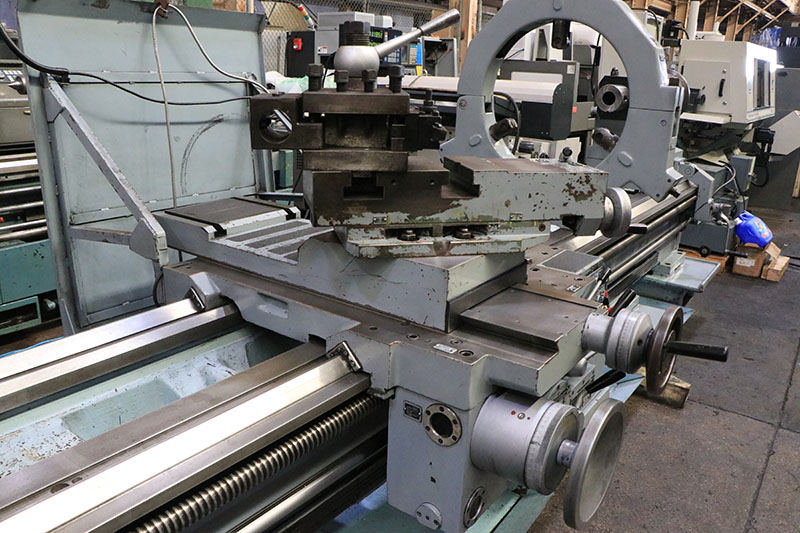

* FOURWAY TOOLPOST
* BORING BAR ATTACHMENT

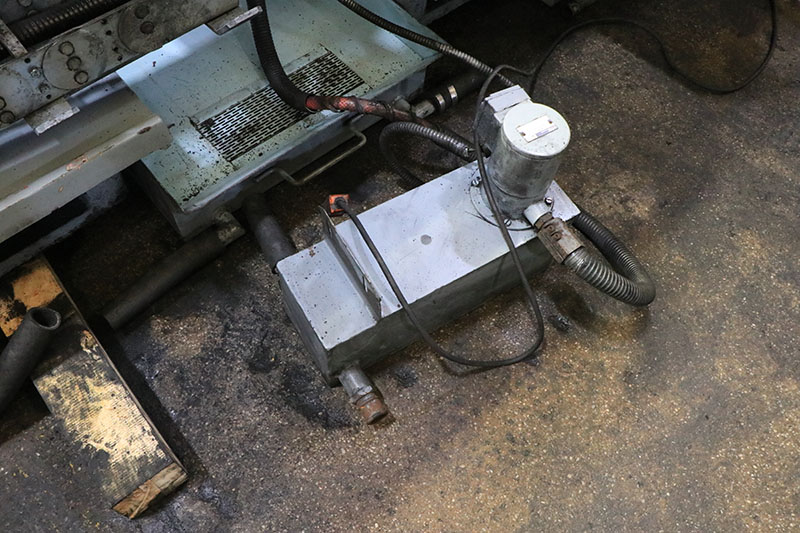

* COOLANT SYSTEM
* 35 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
