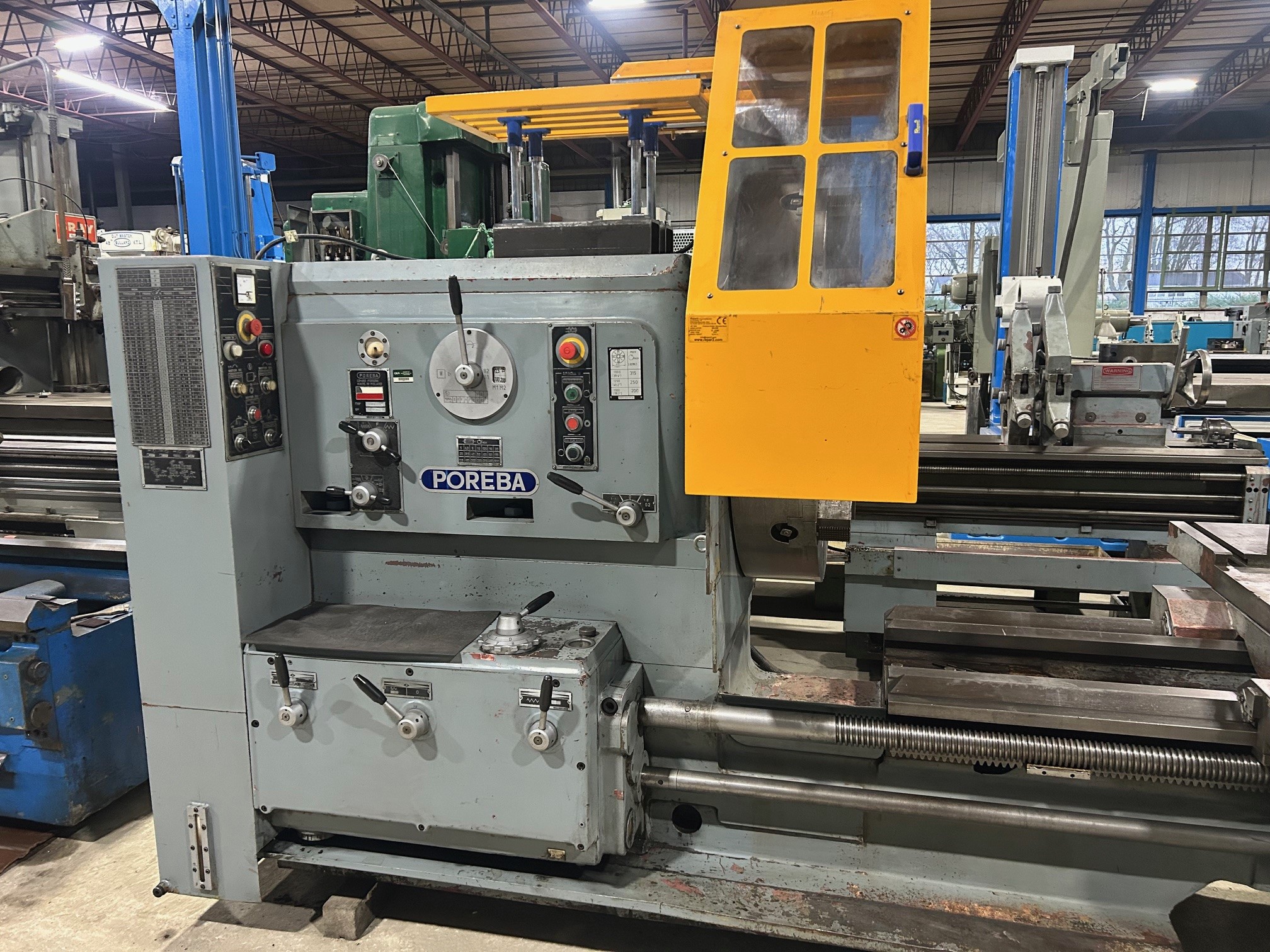

Poreba TR135B2 X 5M ENGINE LATHES

Price on Request

Make:: Poreba

Model:: TR135B2 X 5M

Year:: 1994

Ref #:: 177828

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

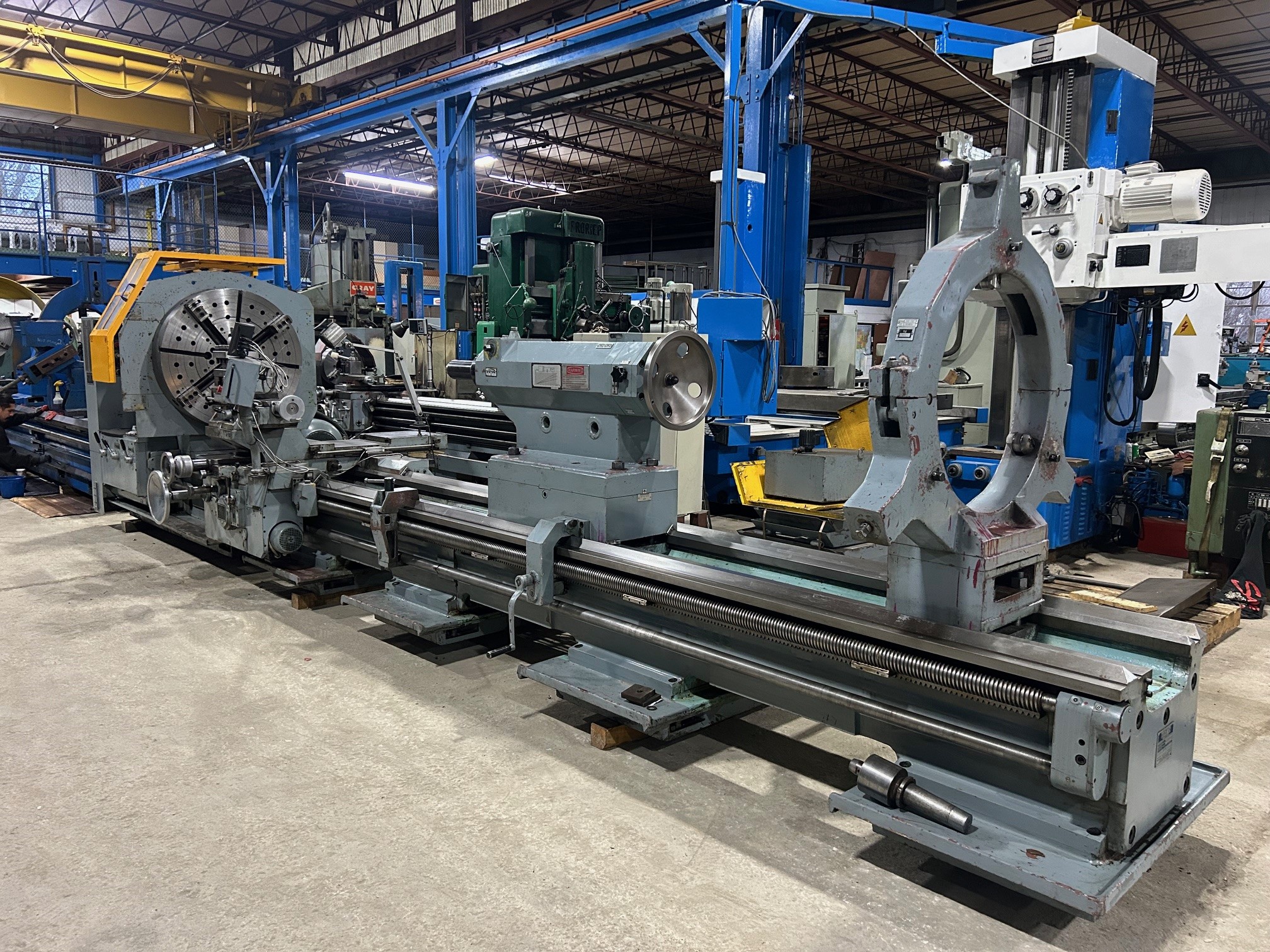

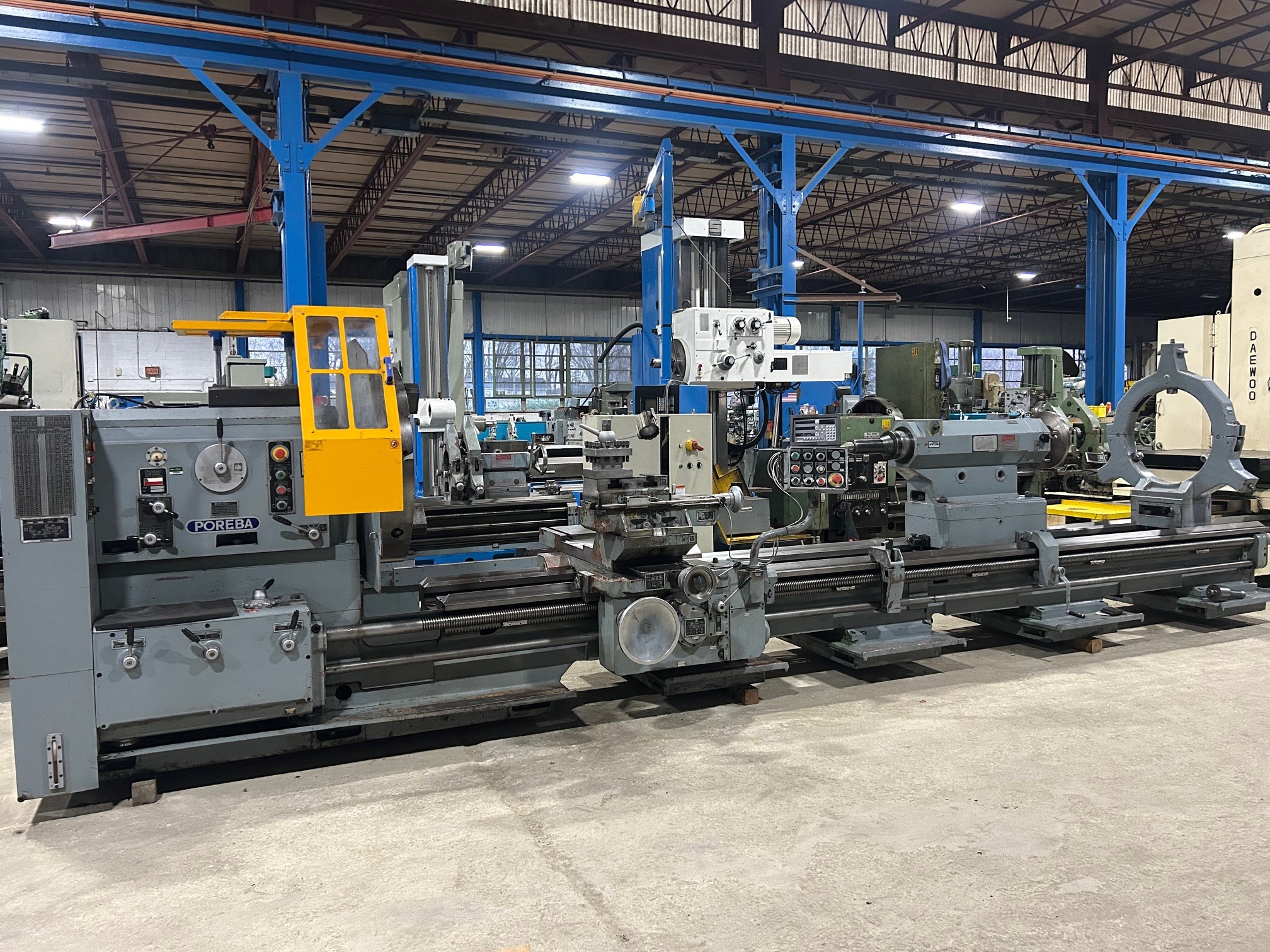

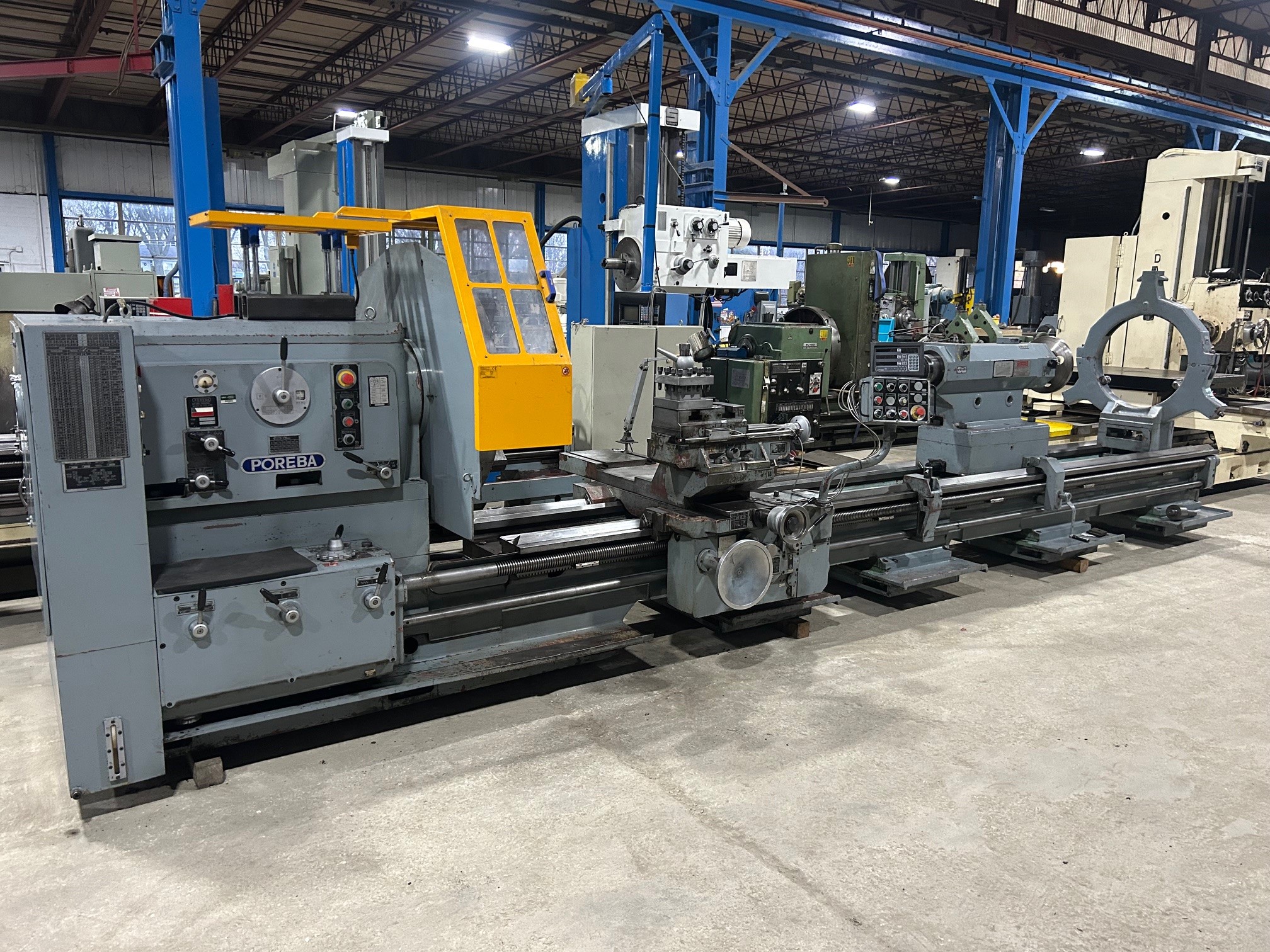

53" X 196" POREBA HEAVY DUTY LATHE

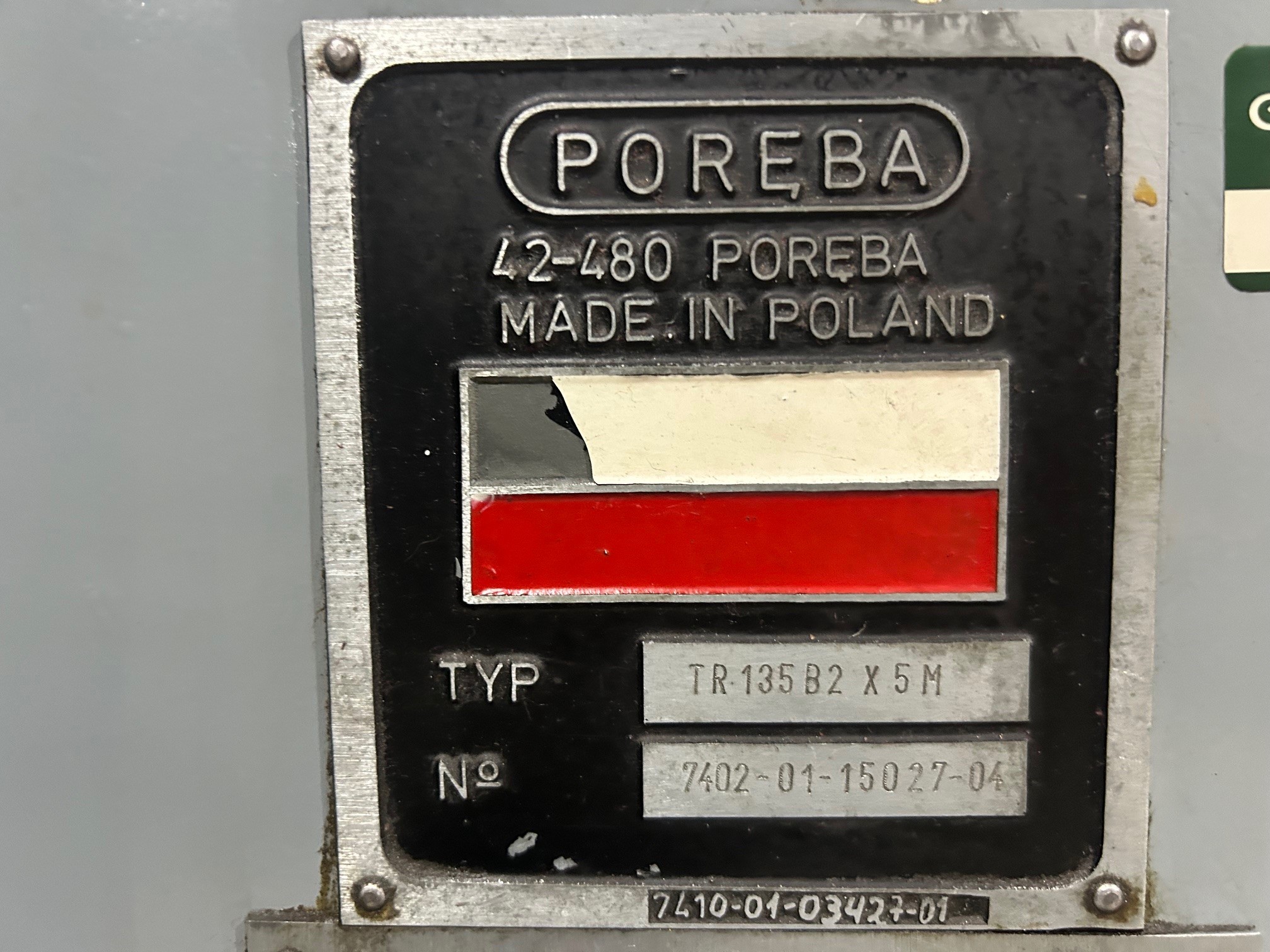

MODEL: TR 135B2/196", S/N: 1502704, NEW: 1994

SPECIFICATIONS:
SWING OVER BED WAYS ................... 53-1/8"
SWING OVER CROSS SLIDE ................ 41-3/8"
SWING IN GAP .......................... 65"
DISTANCE BETWEEN CENTERS .............. 196"
WIDTH OF BED .......................... 26"
SPINDLE SPEEDS (21) ................... 5 TO 500 RPM
WORKPIECE WEIGHT BETWEEN CENTERS ...... 20,000 LBS
HOLE THRU SPINDLE ..................... 4-3/4"
SPINDLE NOSE .......................... A1-15" AMERICAN STANDARD
INCH THREADS (61) ..................... 1/2" TO 60 TPI
METRIC PITCHES (62) ................... 1 TO 120 MM/REV.
LONGITUDINAL FEED RANGE (70) .......... .0035 TO .400 IPR
CROSS FEED RANGE (70) ................. .0017 TO .200 IPR
TOP SLIDE FEED RANGE (70) ............. .0008 TO .100 IPR
TAILSTOCK QUILL DIAMETER .............. 7-1/2"
QUILL TRAVEL .......................... 12"
APPROX WEIGHT ......................... 30,500 LBS.
APPROX DIMENSIONS ..................... 300" X 90" X 66"

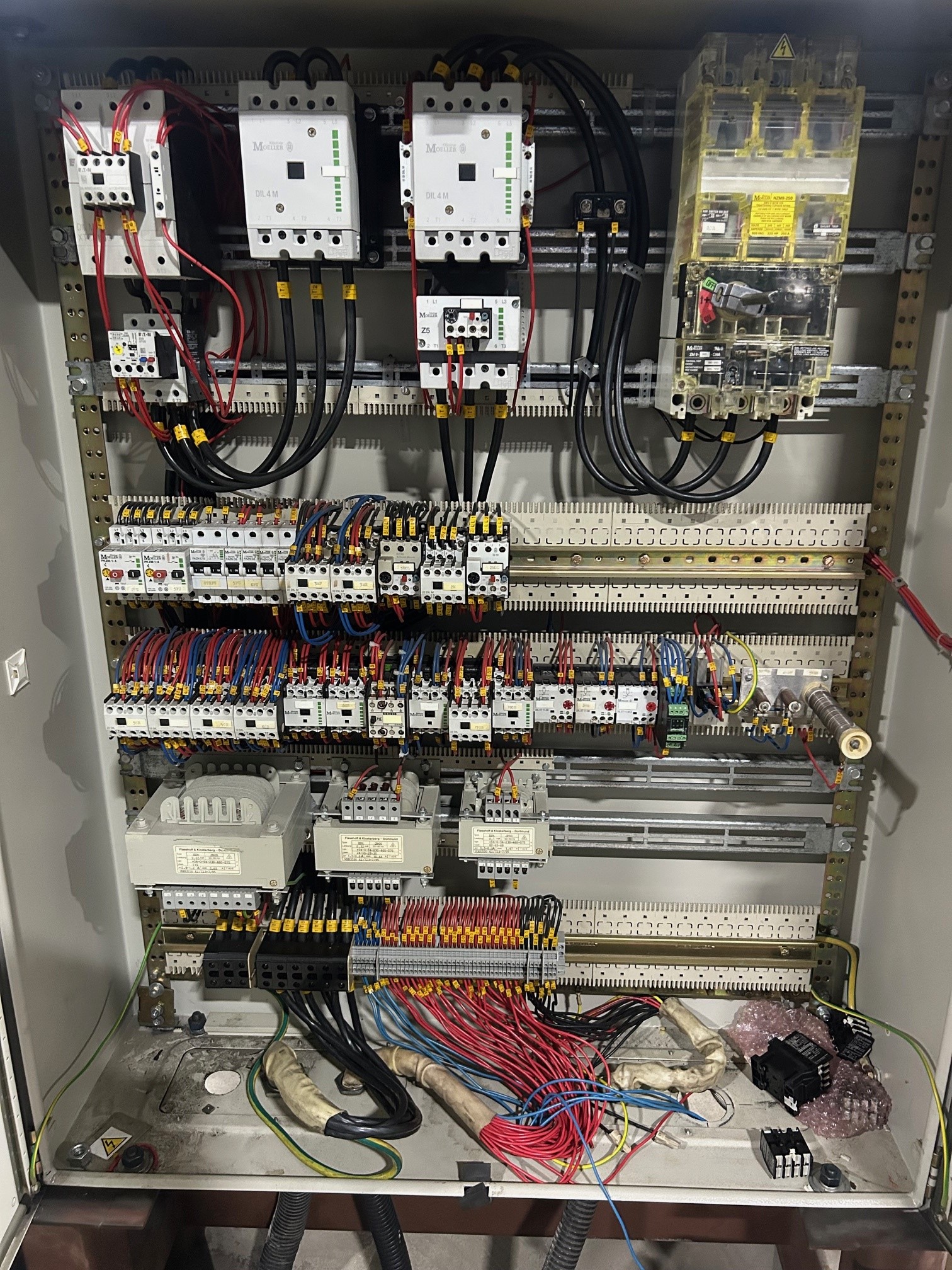

ELEC CABINET .......................... 50" X 28" X 65"

EQUIPPED WITH:
* INCH & METRIC THREADING

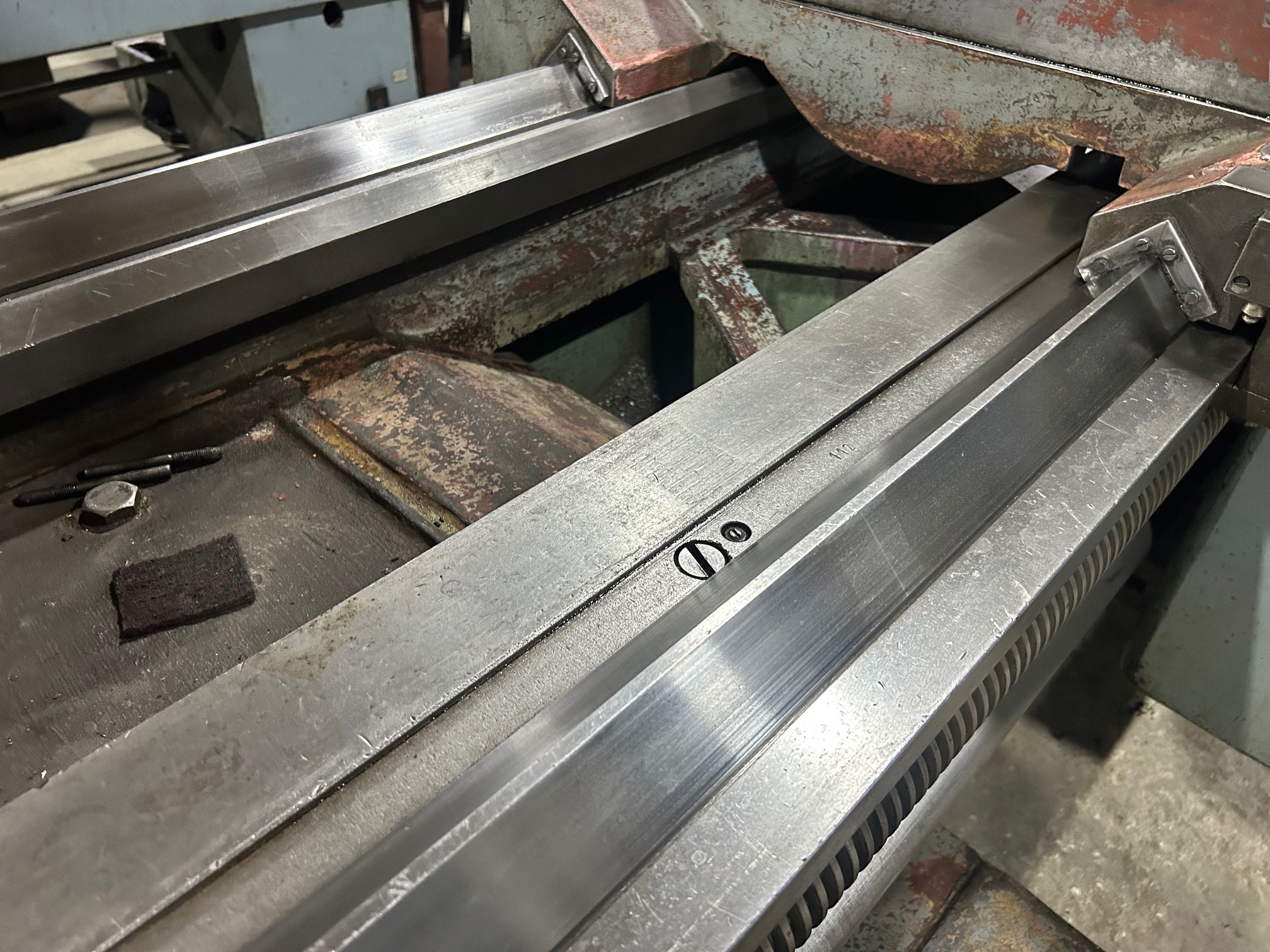

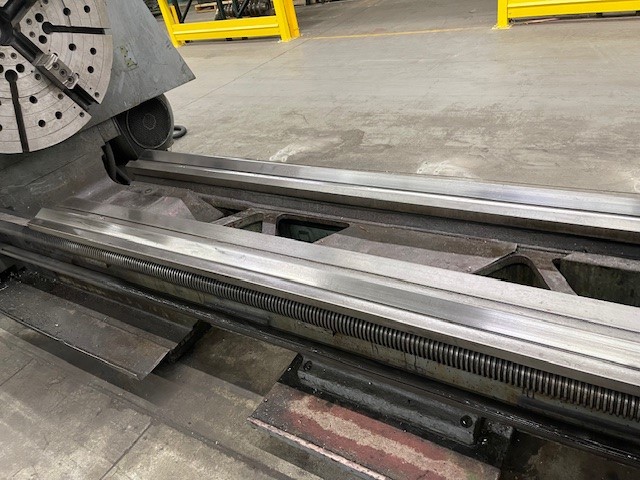

* HARDENED & GROUND BEDWAYS
* TAPER TURNING CAPABILITY THRU POWER COMPOUND
* POWER RAPID TRAVERSE

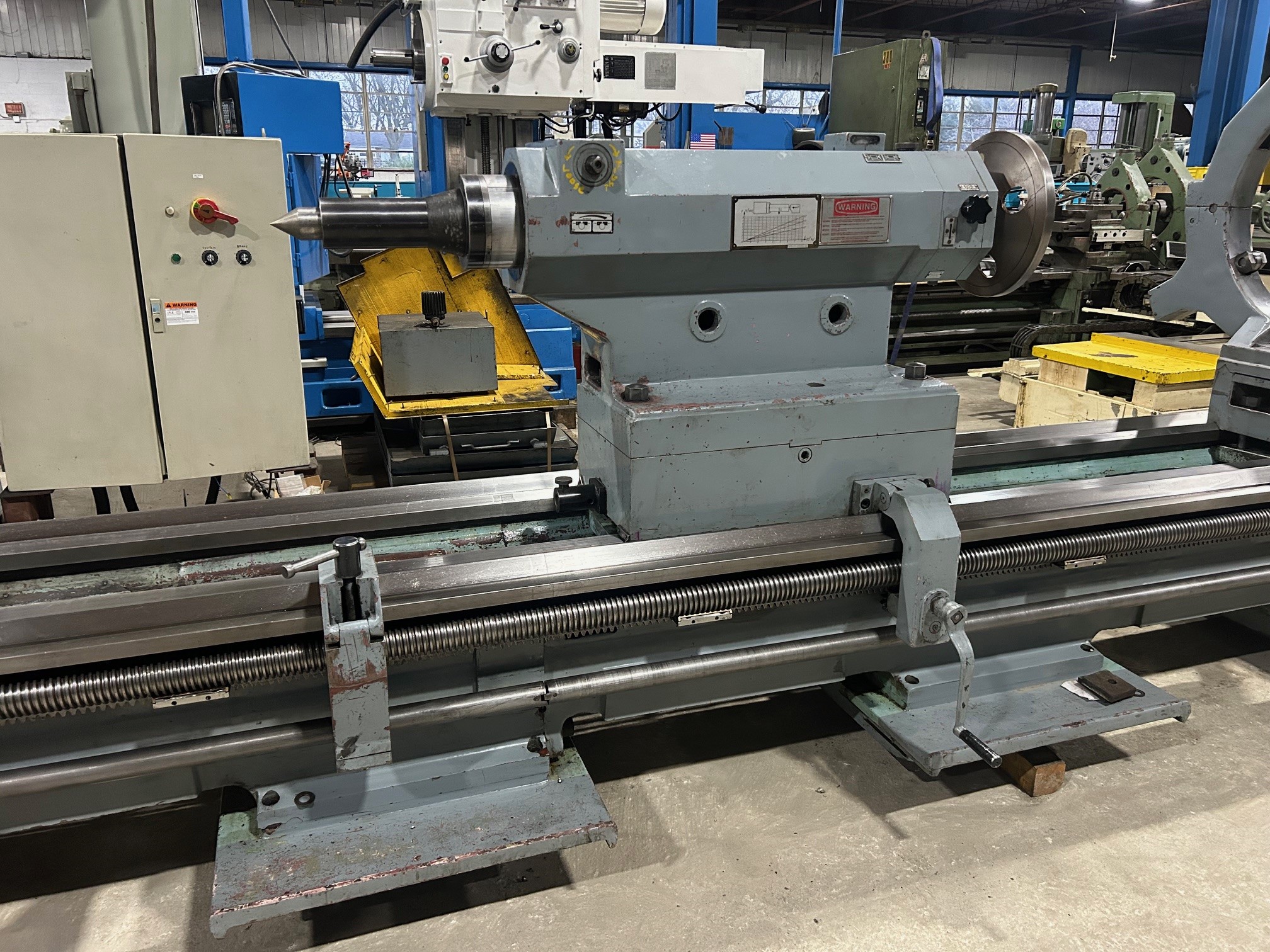

* 2-SPEED TAILSTOCK
* FOUR WAY TOOLPOST

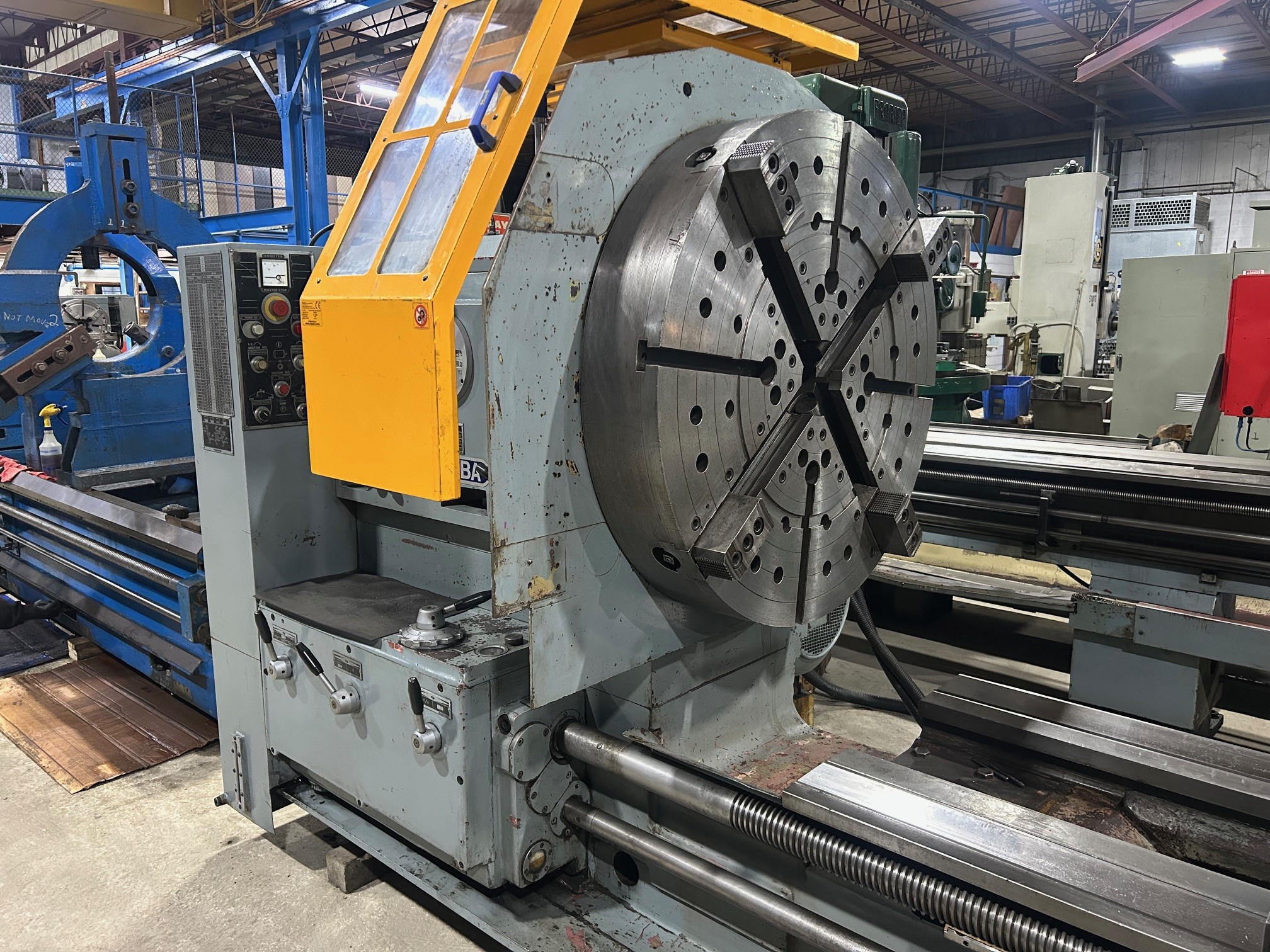

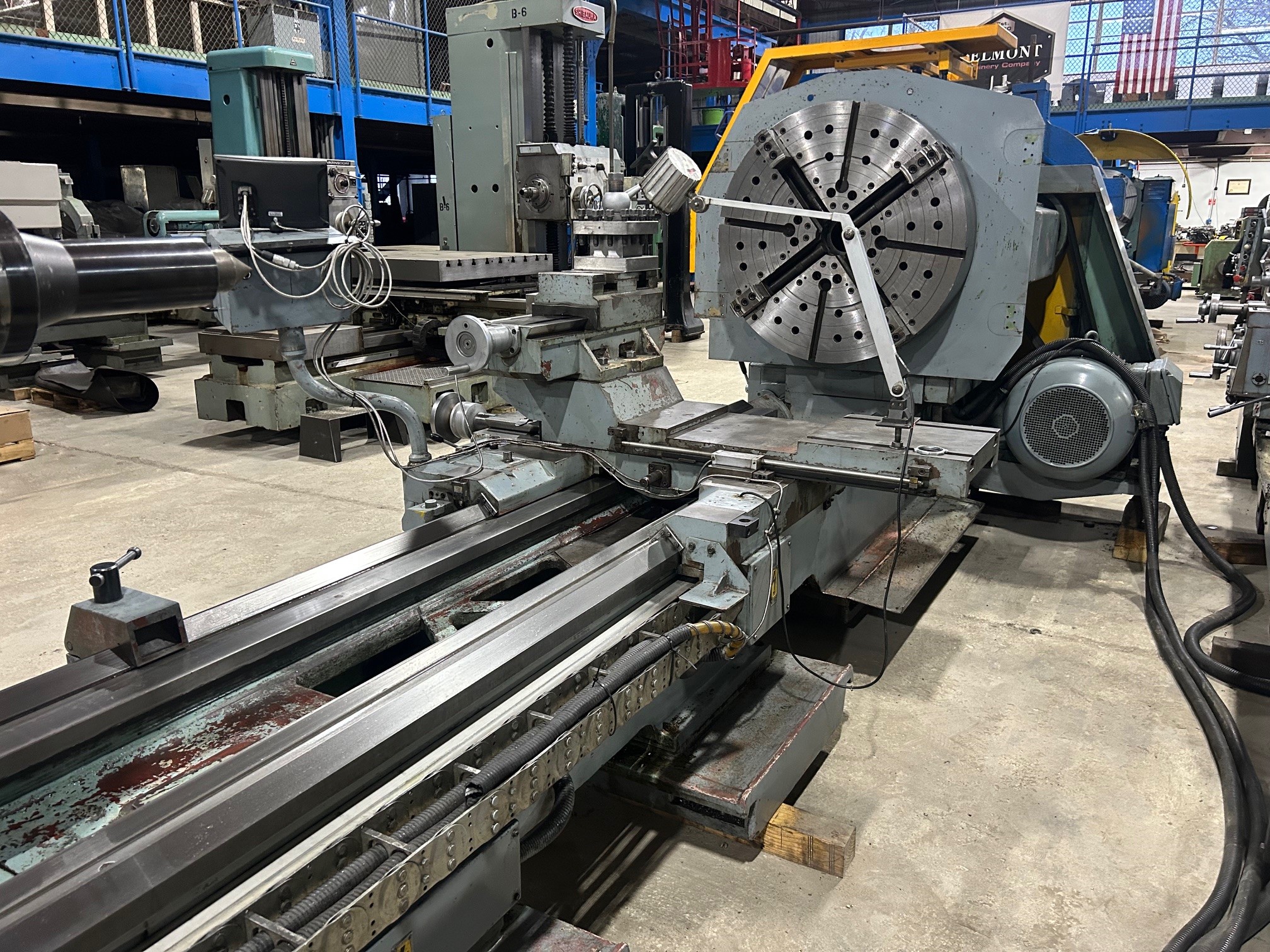

* 39-1/2" 4-JAW CHUCK

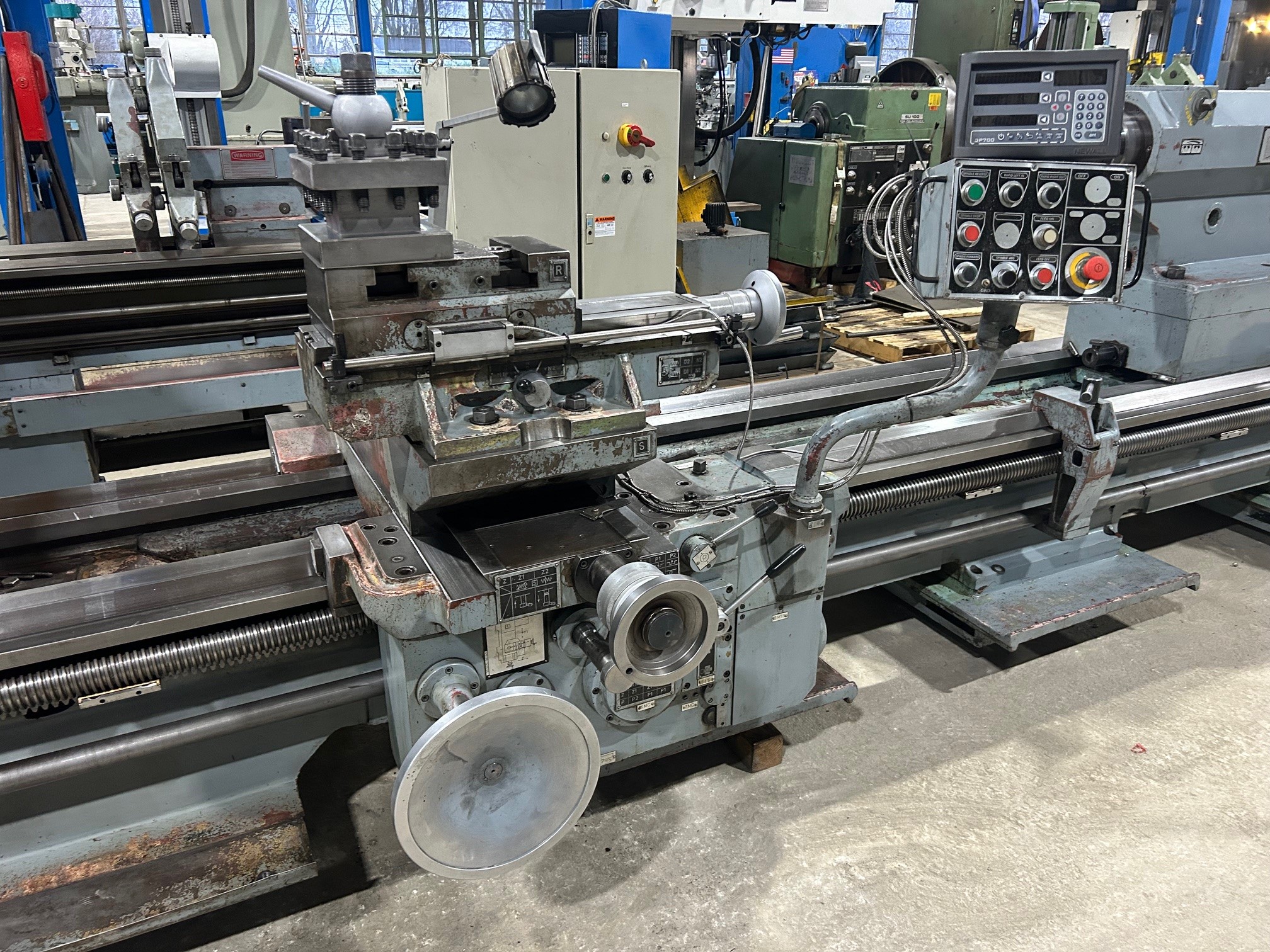

* NEWALL THREE AXIS DIGITAL READOUT
* ROLLER TYPE STEADY REST
* THREAD DIAL INDICATOR
* COOLANT SYSTEM
* 50 HORSE POWER MAIN MOTOR
