Scotchman CPO 350 NF Manual *Made in the USA* NEW COLD SAWS

Price on Request

Make:

Scotchman

Model:

CPO 350 NF Manual *Made in the USA*

Year:

NEW

Ref #:

124335

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

---

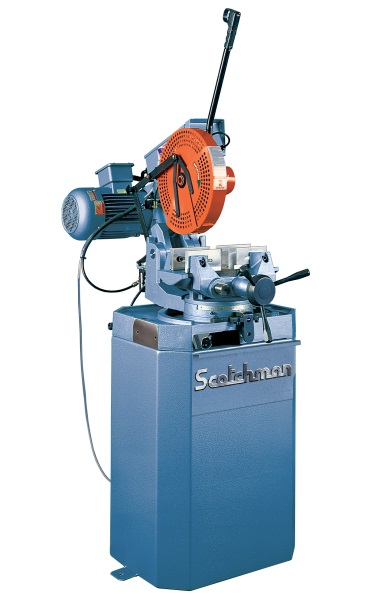

NEW SCOTCHMAN NON-FERROUS MANUAL COLD SAW

MODEL: CPO 350 NF



*MADE IN THE USA*



STANDARD EQUIPMENT & FEATURES:

Manual clamp for material vise

Operator controlled trigger switch

Double self-centering vise assures burr-free cuts

Miter capabilities 45 degrees left to 45 degrees right

Miter locking device: quick, accurate setting-stops at 45 degrees left, 90 degrees, and 45 degrees right

Capable of slotting

Positive cog belt driven

Chip drawer

One gallon coolant tank with mist lubrication system

One 13-1/2" diameter (338 mm) carbide-tipped blade

One blade wrench

One gallon concentrated coolant

230 or 460 volt/3-ph electrics (must specify voltage)

3 year warranty on parts



MAXIMUM CAPACITIES:

WITH A 350 MM/13-7/8" BLADE



TUBING

Round

 @ 90 degrees: 4-1/2" (114 mm)

 @ 45 degrees: 4-1/4" (108 mm)

Square

 @ 90 degrees: 4-1/4" x 4-1/4" (108 x 108 mm)

 @ 45 degrees: 4" x 4" (102 x 102 mm)

Rectangle

 @ 90 degrees: 5-1/2" x 4" (140 x 120 mm)

 @ 45 degrees: 4" x 4" (102 x 102 mm)



SOLID

Round

 @ 90 degrees: 3" (76 mm)

 @ 45 degrees: 2-1/2" (64 mm)

Square

 @ 90 degrees: 3" x 3" (76 x 76 mm)

 @ 45 degrees: 2-1/2" x 2-1/2" (64 x 64 mm)



SPECIFICATIONS:

NON-FERROUS MACHINE DESIGNED FOR ALUMINUM, PLASTIC, COPPER, ETC.



Cutting speeds ............................ 3,000 rpm

Motor rate ................................ 5 hp

Factory wired (specify) ................... 208/230/460/575v 3-ph 60 Hz

Maximum blade diameter .................... 14" (350 mm)

Arbor bore ................................ 1-9/16" (40 mm)

Pin spacing ............................... 4/12/64

Width ..................................... 21-7/8"

Depth ..................................... 43-1/2"

Height

 Not incl. feed handle .................... 56-1/4"

 From floor to vise ....................... 37-7/16"

Shipping weight ........................... 625 lbs. (283 kg)



OPTIONS (CALL FOR PRICING):

Carbide-tipped blades

Laser saw guide

60" or 120" material stop roller conveyor mounted with an advanced measuring quick-loc system

 (available left to right or right to left material feed)

10' and 20' material supply track

96" or 144" SG programmable stop system

 (supplied w/roller conveyor & designed for either right to left or left to right stop position)



*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.
