Scotchman CPO 350 PKPD Semi-Auto *Made in the USA* NEW COLD SAWS

Price on Request

Make:

Scotchman

Model:

CPO 350 PKPD Semi-Auto *Made in the USA*

Year:

NEW

Ref #:

136624

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

---

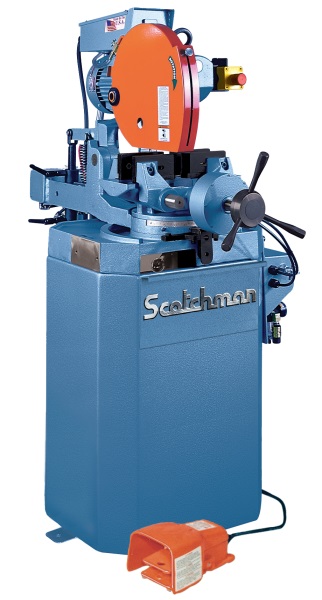

NEW SCOTCHMAN SEMI-AUTO COLD SAW

MODEL: CPO 350 PKPD



*MADE IN THE USA*



STANDARD EQUIPMENT & FEATURES:

Air-operated clamp for material vise

Pneumatic power down feed with electric controls

Emergency stop button

Double self-centering vise assures burr-free cuts

Miter capabilities 45 degrees left to 45 degrees right

Miter locking device: quick, accurate setting-stops at 45 degrees left, 90 degrees, and 45 degrees right

Capable of slotting

Two cutting speeds

Double reduction, hardened and ground worm and wheel gear box

Worm wheel of top quality bronze

Chip drawer

Seven-gallon coolant tank with pump

One 12-1/2" diameter (315 mm) HSS blade

One blade wrench

One gallon concentrated coolant

230 or 460 volt/3-ph electrics (must specify voltage)

3 year warranty on parts



MAXIMUM CAPACITIES:

WITH A 350 MM/13-7/8" BLADE



TUBING

Round

 @ 90 degrees: 4-1/2" (114 mm)

 @ 45 degrees: 4" (102 mm)

Square

 @ 90 degrees: 4-1/4" x 4-1/4" (108 x 108 mm)

 @ 45 degrees: 4" x 4" (102 x 102 mm)

Rectangle

 @ 90 degrees: 5-1/2" x 4" (140 x 120 mm)

 @ 45 degrees: 4" x 4" (102 x 102 mm)



SOLID

Round

 @ 90 degrees: 2" (51 mm)

 @ 45 degrees: 1-3/4" (44 mm)

Square

 @ 90 degrees: 2" x 2" (51 x 51 mm)

 @ 45 degrees: 1-3/4" x 1-3/4" (44 x 44 mm)



SPECIFICATIONS:



CUTTING SPEEDS (must specify when ordering)

 LT (low turn) designed for solid mild steel, solid stainless steel, & thick wall pipe

  22/44 rpm, 3 hp

 HT (high turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material

  44/88 rpm, 2.5 hp

 SS (single speed) designed for 220 1-ph applications

  44 rpm, 3 hp

 VS (variable speed) wired 230/460v 3-ph or 220v 1-ph [note: additional cost for this model]

  11-117 rpm, 5 hp



Factory wired (specify) ................... 208/230/460/575v 3-ph 60 Hz (LT, HT, & VS models)

                        ................... 220v 1-ph 60 Hz (SS & VS models only)

Maximum blade diameter .................... 14" (350 mm)

Arbor bore ................................ 1-9/16" (40 mm)

Pin spacing ............................... 4/12/64

Width ..................................... 21-7/8"

Depth ..................................... 43-1/2"

Height

 Not incl. feed handle .................... 56-1/4"

 From floor to vise ....................... 37-7/16"

Shipping weight ........................... 760 lbs. (344 kg)



OPTIONS (CALL FOR PRICING):

Blades

Variable speed control

 (recommended for cutting multiple shapes, sizes and thicknesses)

Square tube jaws

Special clamping fixture

Blade guide laser light

60" or 120" material stop roller conveyor mounted with an advanced measuring quick-loc system

 (available left to right or right to left material feed)

10' and 20' material supply track

96" or 144" SG programmable stop system

 (supplied w/roller conveyor & designed for either right to left or left to right stop position)
