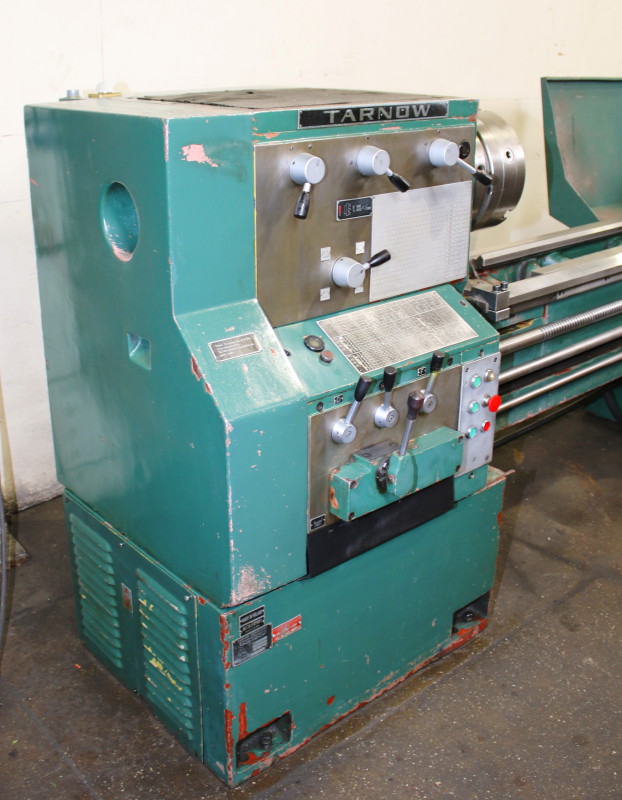

Tarnow TUJ 50M/3000 ENGINE LATHES

Price on Request

Make:: Tarnow

Model:: TUJ 50M/3000

Year:: 1977

Ref #:: 178021

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

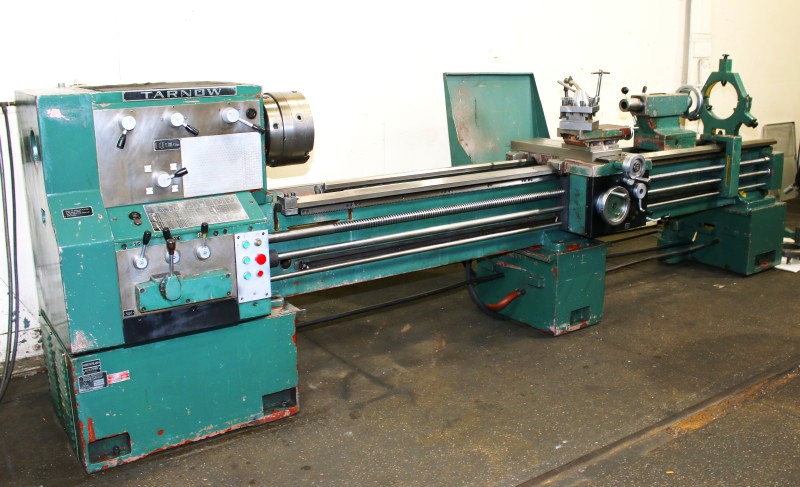

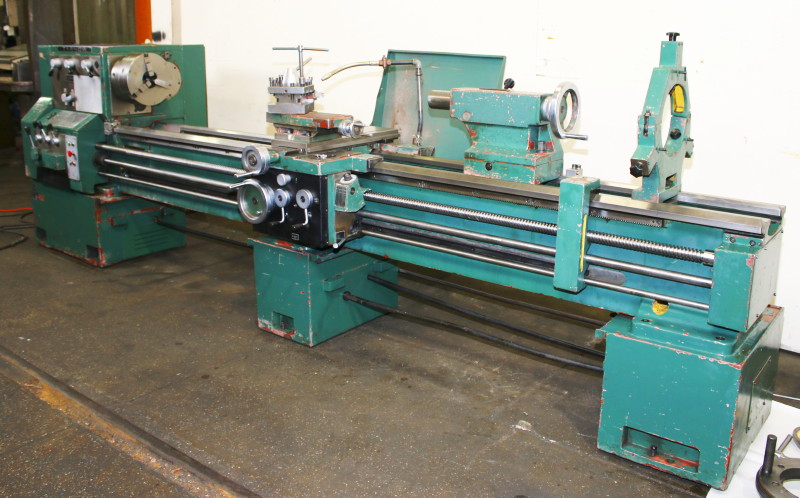

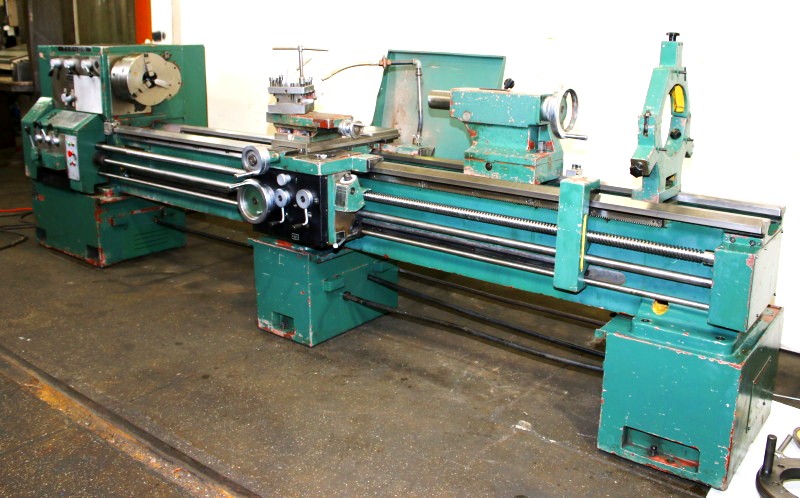

22"/32" x 120" TARNOW GAP BED ENGINE LATHE

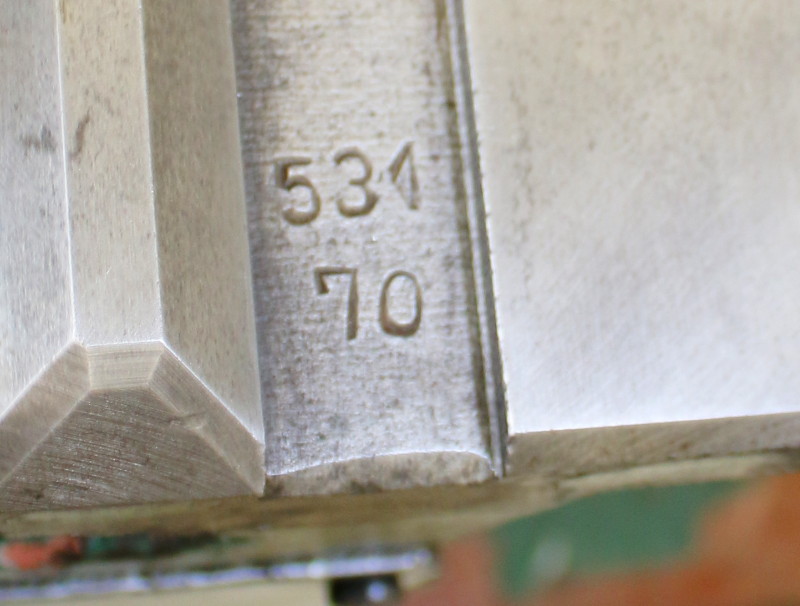

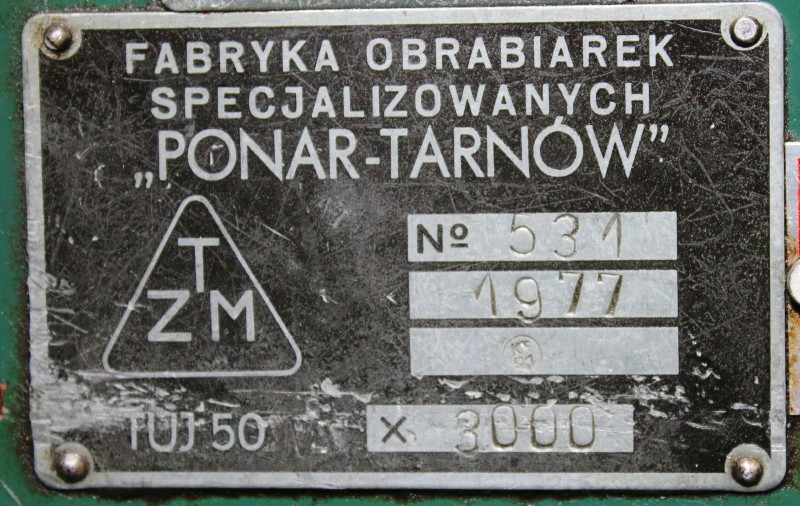

  MODEL: TUJ 50M, S/N: 531, NEW: 1977

SPECIFICATIONS:
SWING OVER BED .......................... 22"
SWING IN GAP ............................ 31-1/2"
SWING OVER CARRIAGE ..................... 14-1/2"
LENGTH OF GAP ........................... 9-3/4"
DISTANCE BETWEEN CENTERS ................ 120"
HOLE THRU SPINDLE ....................... 3-1/2"
SPINDLE NOSE CAMLOCK .................... D1-11"
SPINDLE SPEEDS (18) ..................... 20 - 1600 RPM

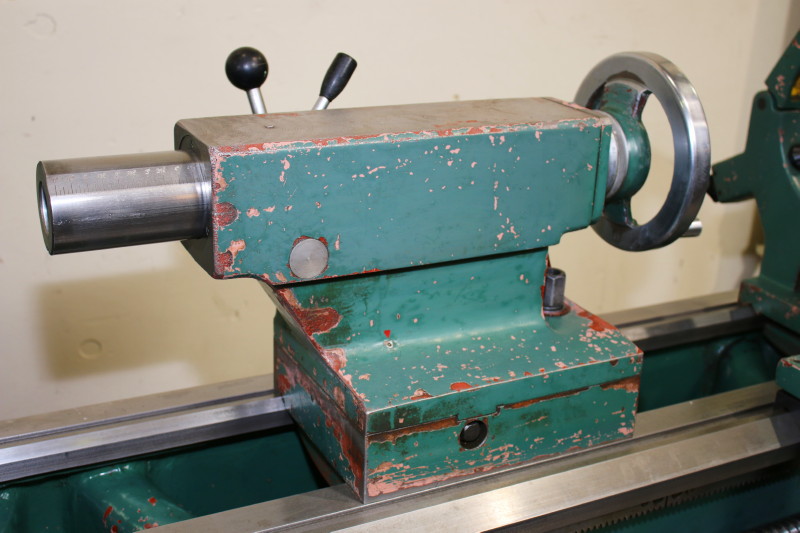

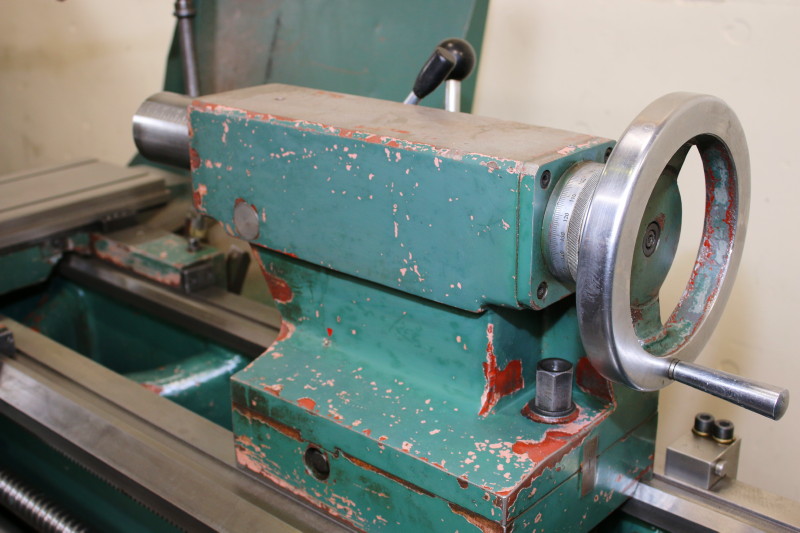

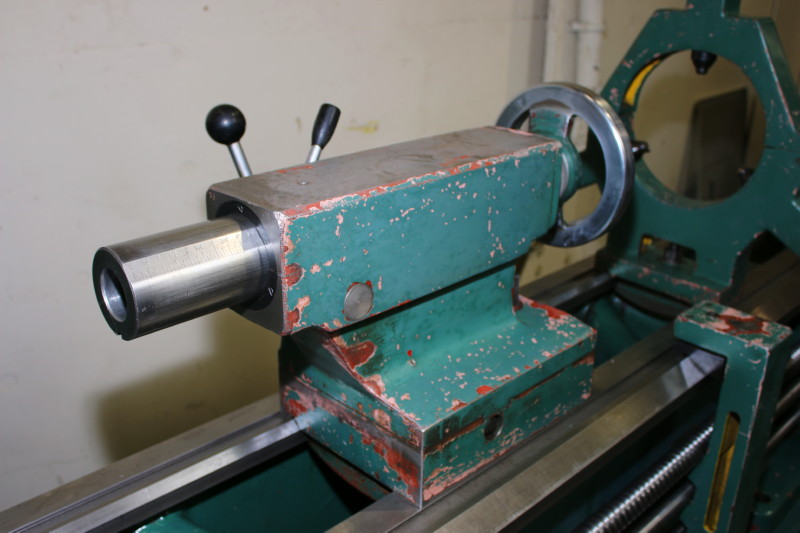

TAILSTOCK SPINDLE CENTER TAPER .......... #5 MORSE
TAILSTOCK SPINDLE TRAVEL ................ 7"
TAILSTOCK SPINDLE DIAMETER .............. 3-1/4"
WIDTH OF BED ............................ 14.57"
FEEDS:
    LONGITUDINAL ...................... .0007 - .720 IPR
    CROSS ............................. .00035 - .360 IPR
THREADS:
    INCH .............................. 1 - 112 TPI
    METRIC ............................ .25 - 28 mm
APPROX WEIGHT ........................... 7,500 LBS

EQUIPPED WITH:

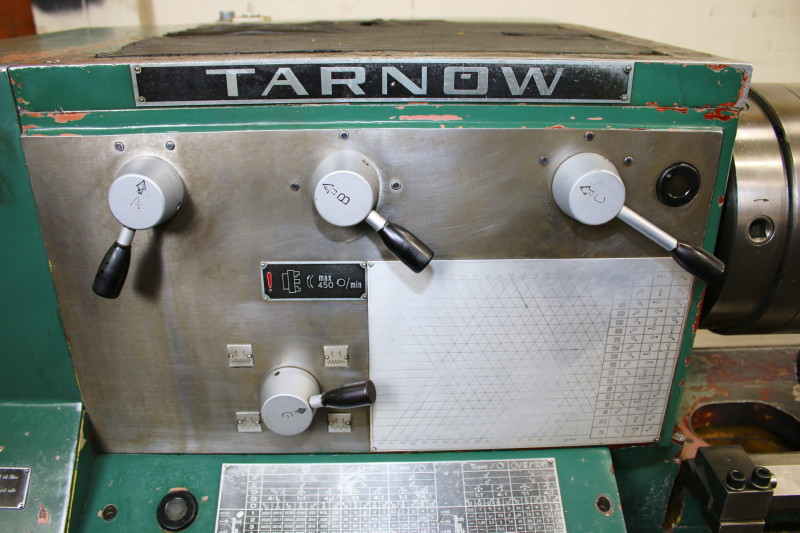

- INCH & METRIC THREADING CAPABILITY THROUGH QUICK CHANGE GEARBOX

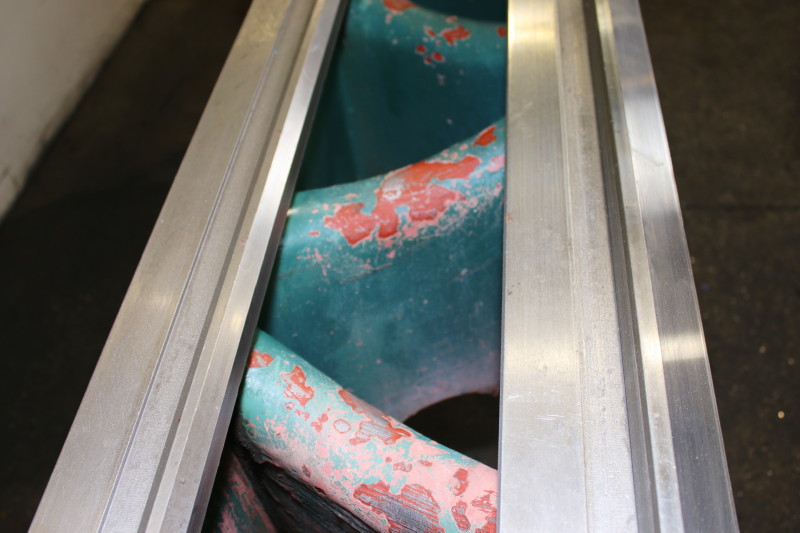

- INDUCTION HARDENED LONGITUDINAL & CROSS SLIDE WAYS
- 15-3/4" 4-JAW CHUCK

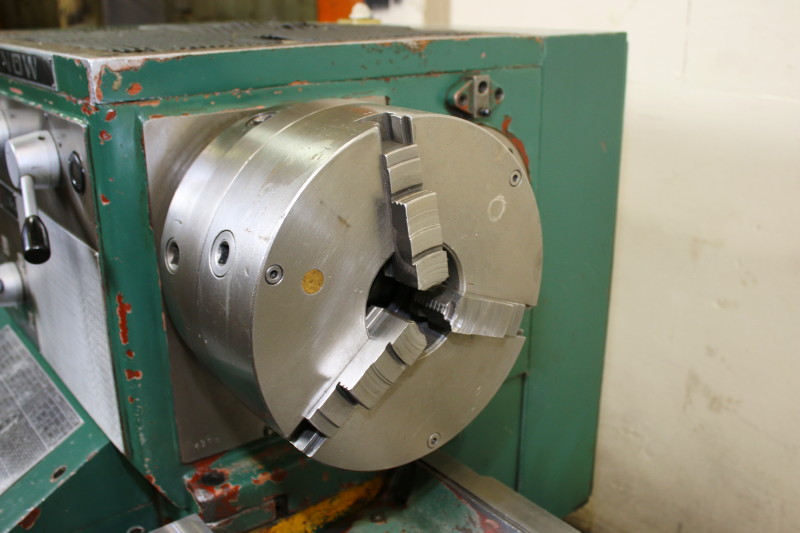

- 12" BISON 3-JAW CHUCK
- FOLLOW REST

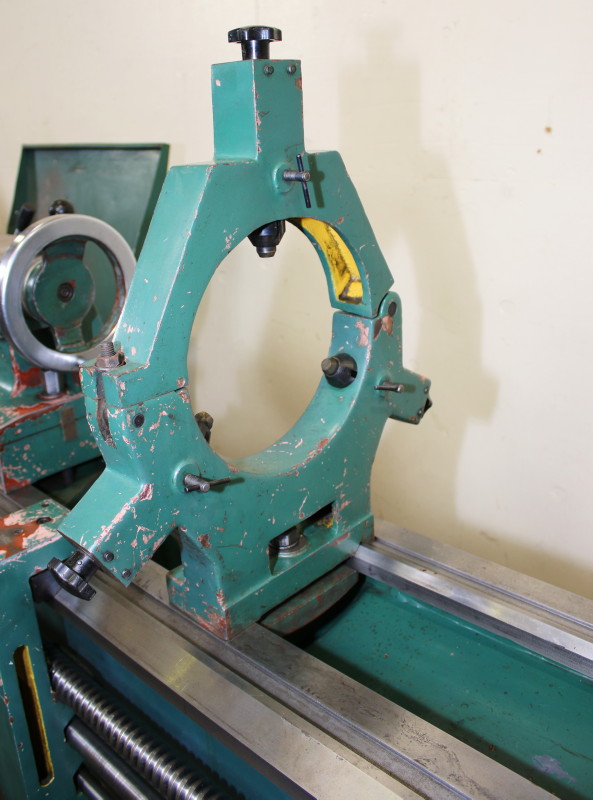

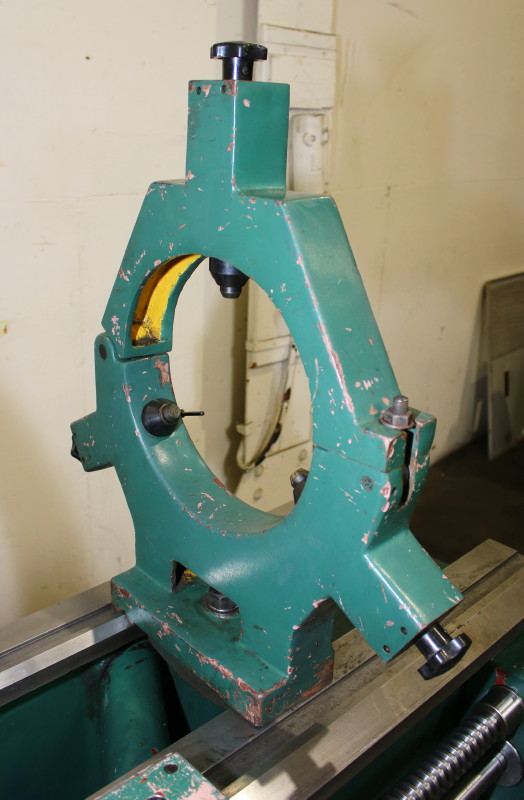

- STEADY REST

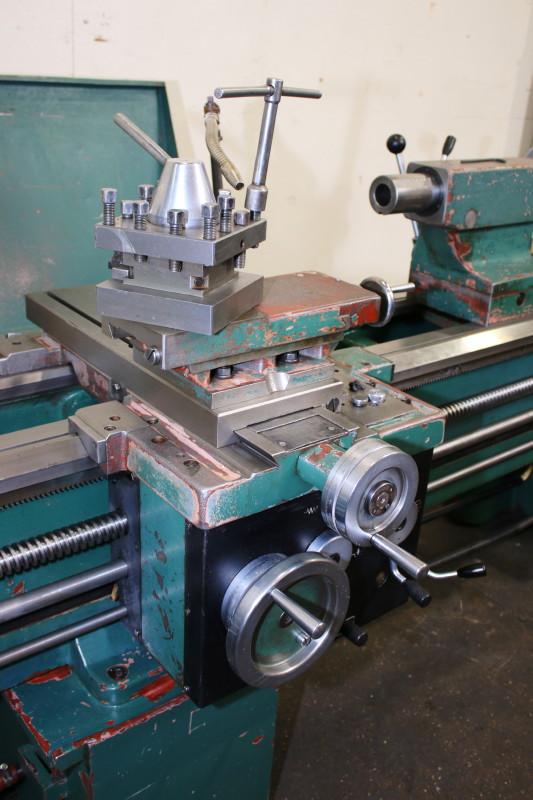

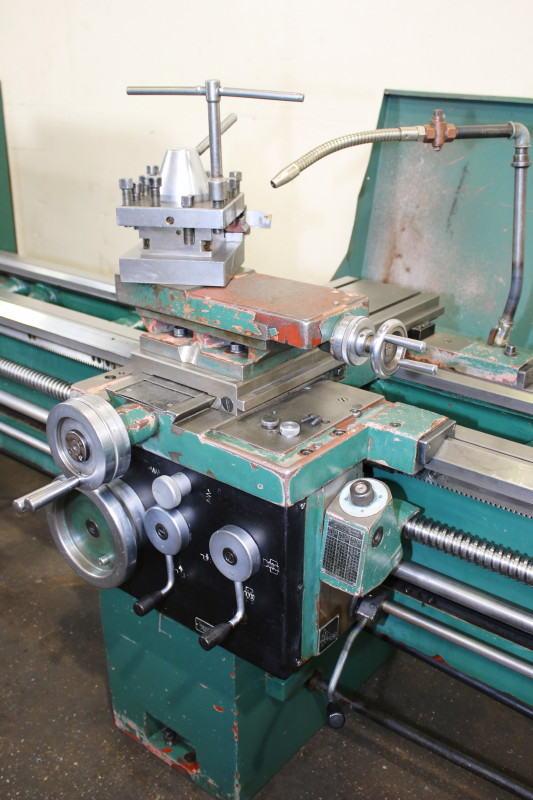

- FOUR WAY TURRET TOOLPOST
- THREADING DIAL
- SELF CONTAINED COOLANT SYSTEM
- 15 HORSE POWER SPINDLE DRIVE MOTOR

CONDITION:   ****  EXCELLENT  ****
