Acer 1440G Dynamic Series NEW LATHES

Price on Request

Make:: Acer

Model:: 1440G Dynamic Series

Year:: NEW

Ref #:: 137476

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

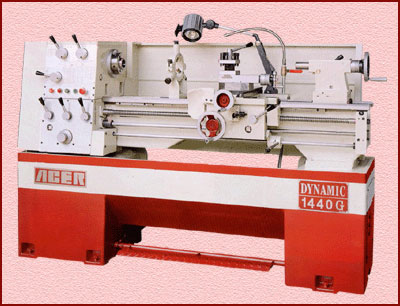

"NEW" ACER HighPrecision Engine Lathe
  MODEL: Dynamic  1440G

SPECIFICATIONS:
Center Height: 6-3/4"
Swing Over Bed: 14"
Swing Over Gap (gap type only): 21"
Swing Over Cross Slide: 9"
Distance Between Centers: 40"
Spindle Nose: D1-4 or A1-5
Spindle Bore Diameter: 1-9/16"
Type of Spindle Nose: MT#5
Taper of Center: MT#3
Spindle Speeds: 85-2000 RPM (8 steps)
Cross Slide Travel: 8-1/16"
Compound Rest Travel: 3-3/4"
Max Size Cutting Tool: 3/4" x 3/4"
Spindle Diameter: 1-1/2"
Spindle Travel: 4-3/8"
Taper of Center: MT#3
Bed Length: 58"
Bed Width: 10"
Width of Gap: 10"
System: Inch/Metric
Pitch of Leadscrew: 25 Diameter, 4 TPI
Metric Pitch Threads: 0.25 - 6mm/pitch (22 kinds)
Inch Pitch Threads: 4-112 TPI (40 kinds)
Module Pitch Threads (optional): 0.25-3.0 MP
Diametral Pitch Threads (optional): 8-112 DP
Range of Longitudinal Feeds: 0.002" - 0.04"/rev.  0.05 -1.0mm/rev.
Range of Cross Feeds: 0.001"-0.02"/rev.  0.025 - 0.5mm/rev.
Main Drive Motor: 3 hp
Coolant Pump Motor: 1/8 hp
Floor Dimensions: 75" x 30"
Net Weight: 1590 lbs.
Gross Weight: 1850 lbs.
Packing Dimensions: 78" x 30" x 60"

Safety Features:
Built-In Safety Overload Friction Clutch
Auto. Feed & Threading are interlocked to prevent simultaneous functions.

Machine Specifications:
Spindle Motor: 3hp/220V
8 Spindle Speeds: 85 ~ 2,000 rpm
Hardened and Ground Bed Way
New Welded Steel Construction Machine Base
Ground Gears and Spindle Headstock
Spindle Mounted with Precision Taper Roller Bearings
Enclosed Gearbox & Apron
Apron Hand wheel is supplied at Left Side Carriage
Imperial Specification, Tailstock Barrel with Inch Scale
Fitted with Electro-Magnetic Controlled Switch

Standard Accessories:
6" 3-jaw chuck
8" 4-jaw chuck
12" face plate
Steady rest (.4" - 4.3")
4-way tool post
Built-in Coolant system
Full length splash guard
Foot Brake
Halogen work light
Tool box with tools

Optional Accessories (call for pricing):
3-Jaw Scroll Chuck
4-Jaw Indepedent Chuck
3-Jaw Adaptor Plate
4-jaw Adaptor Plate
Steady Rest
Follow Rest
LED light
4-Position Carriage Stop
Micro Carriage Stop
Live Centers
Taper Turning Attachment
Splash Guard
chuck Guard W/Safety Switch
Change Gears for DP & MP Thread
5C Collet Closer
Drive Plate
Quick Change Tool Post
Digital Readout
Chip Guard
