Acer 21120GH Dynamic Series NEW LATHES

Price on Request

Make:: Acer

Model:: 21120GH Dynamic Series

Year:: NEW

Ref #:: 137482

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

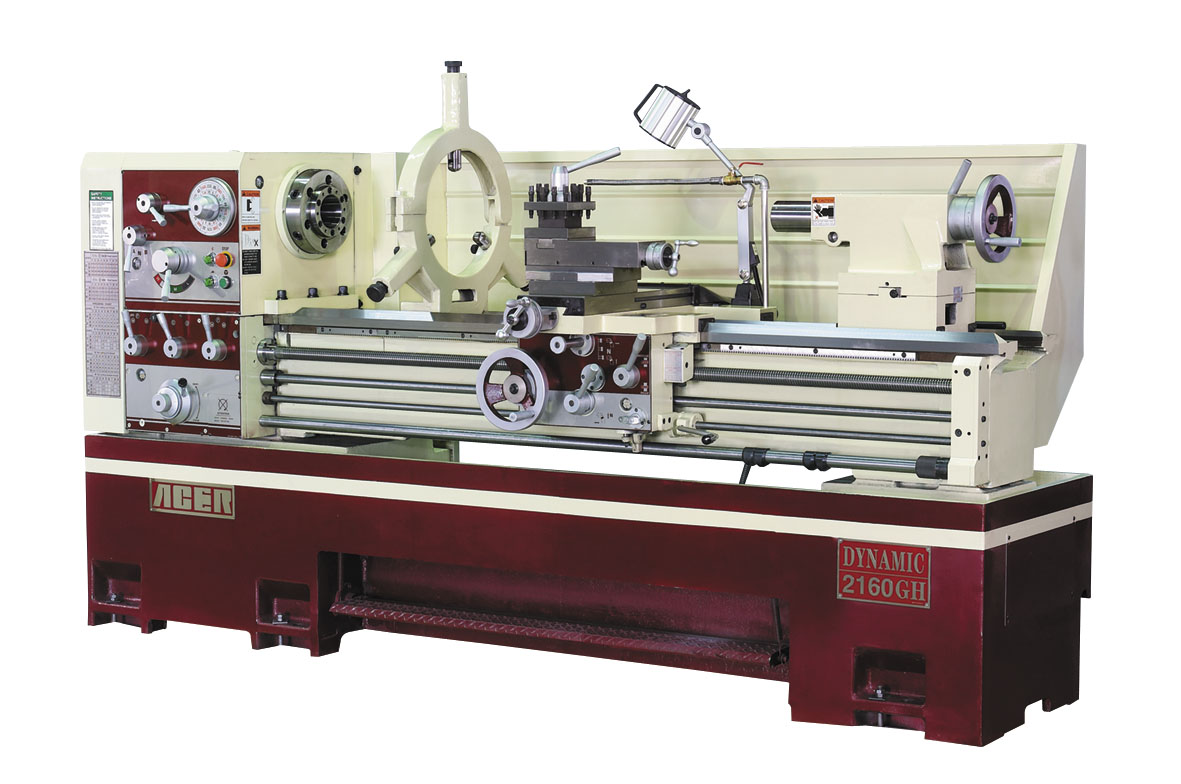

(Photo shown Model 2160GH)

"NEW" ACER High Speed Precision Engine Lathe
  MODEL: Dynamic Series - 21120GH

Features:
NEW WELDED STEEL CONSTRUCTION MACHINE BASE
3.34" Spindle Bore with D1-8 Camlock Spindle Nose
10 HP Single Speed Motor for 220V/440V 3 Phase 60HZ / Wiring
18-Spinlde Speed: 25 ~ 1,540 RPM
Auto Feed & Threadig are interlocked to prevent simultaneious functions.
Hardened and Ground Meehanite Casting Bedway
Hardened and Ground Gears and Spindle
Quick Change Gear Box w/Direct Selection for Inch/Metric Thread
Automatic Longitudinal Multiple Feed Stop


SPECIFICATIONS:
Center Height: 10.62"
Swing Over Bed: 21.25"
Swing Over Gap: 26.77"
Swing Over Cross Slide: 14.17"
Distance Between Centers: 118.11"
Spindle Nose: D1-8
Spindle Bore Diameter: 3.34"
Spindle Speeds: 25-1545 RPM (18 steps)
Cross Slide Travel: 12.99"
Compound rest travel: 5.90"
Tailstock:
  tailstock spindle dia.: 2.95"
  tailstock spindle travel: 6.69"
  Tailstock spindle taper: MT#5
Bed width: 13.77"
Threading:
  Leadscrew: 4TPI or 6mm/pitch
  Metric pitch threads: 0.5-7mm/pitch (24 kinds)
  Inch threads: 4-56 TPI (36 kinds)
  Module pitch threads: 0.25-3.5 (16 kinds)
  DP threads: 8-112DP (36 kinds)
Range of longitudinal feeds: 0.002"~0.035"/rev./0.06-0.88mm/rev
Range of cross feeds: 0.001"~0.0175"/rev. /0.03-0.44mm/rev.
Main spindle motor: 10 hp
Rapid feed motor: 90W(opt)
Coolant Pump Motor: 1/8 hp
Packing Dimensions: 170" x 48" x 67"
Net Weight: 7050 lbs.
Gross Weight: 7920 lbs.
Packing Dimensions: 180.32" x 44.48" x 66.15"


Standard Accessories:
12" D1-8 three jaw chuck
12" D1-8 four jaw chuckk
Bearing Type Steady Rest (3.14" - 11.02")
4-Way tool post
Halogen work light
Built-in Coolant system
Full length splash guard
Longitudinal Carriage stop
17" Face plate
Tool box with tools

Optional Accessories:
16" 4-jaw independent chuck (D1-8)
12" 3-jaw independent chuck (D1-8) (SC Strong)
Follow rest (1.18" 6.69")
20" face plate
ALORIS Tool Post & 4 holder set (#4-BS)
ALORIS Tool Post & 6 holder set (#4 set)
DORIAN Tool Post & 4 holder set (SD40CA-TS)
Five position carriage stop
Micrometer stop
5C Collet Closer (lever type)
5C Collet Set (1/16" to 1-1/16" x 16ths; 17pcs/set
Taper turning attachment
MAGNESCALE 2-Axis D.R.O.
NEWALL 2-Axis D.R.O.
