Acer 24120GH Dynamic Series NEW LATHES

Price on Request

Make:: Acer

Model:: 24120GH Dynamic Series

Year:: NEW

Ref #:: 137485

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

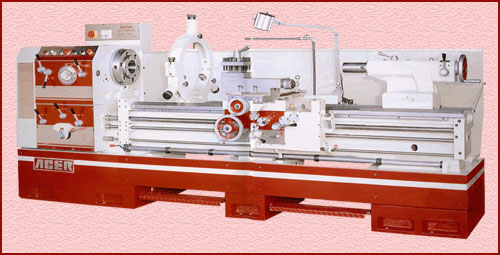

"NEW" ACER High Speed Precision Engine Lathe
  MODEL: Dynamic Series - 24120G

SPECIFICATIONS:
Center Height: 11-7/8"
Swing Over Bed: 23-5/8"
Swing Over Gap (gap type only): 32-1/4"
Swing Over Cross Slide: 15"
Distance Between Centers: 120"
Spindle Nose: ASA 1-11 or D1-11
Spindle Bore Diameter: 4-1/8"
Type of Spindle Nose: 108 x 1:12
Taper of Center: MT#5
Spindle Speeds: 25-1200 RPM (12 steps)
Cross Slide Travel: 13"
Compound Rest Travel: 9"
Max Size Cutting Tool: 1" x 1"
Spindle Diameter: 3-1/32"
Spindle Travel: 7"
Taper of Center: MT#5
Bed Length: 164"
Bed Width: 16-1/2"
Width of Gap: 20-1/4"
System: Inch/Metric
Pitch of Leadscrew: 1-1/2" Diameter, 4 TPI
Metric Pitch Threads: 0.5 - 14mm/pitch (31 kinds)
Inch Pitch Threads: 2-56 TPI (45 kinds)
Module Pitch Threads (optional): 0.25-7 MP (23 kinds)
Diametral Pitch Threads (optional): 4-112 DP (43 kinds)
Range of Longitudinal Feeds: 0.0012" - 0.0287"/rev.  0.03 -.73mm/rev.
Range of Cross Feeds: 0.0004"-0.0118"/rev.  0.01 - .03mm/rev.
Main Drive Motor: 15 hp
Rapid Traverse Motor: 1/2 hp (optional)
Coolant Pump Motor: 1/8 hp
Floor Dimensions: 169 x 50"
Net Weight: 8690 lbs.
Gross Weight: 10,010 lbs.
Packing Dimensions: 181.3" x 50" x 74"

Features:
Ampere meter for indicating power consumption.
Magnetic multiple-disc clutches in the headstock are used for
efficient starting and reversing the spindle.
Manual jog button.
12 speeds range from 25 to 1,200 RPM.
Oil flood indicator.
One of the outside gears on the gear box is designed with a safety
ring to protect it from damage.
Optional 2nd starting lever.
Drip-proof 15 HP spindle motor.
Magnetic disc brake with foot pedal allows for rapid control of the
spindle rotation.
Hardened & ground bedways at Rockwell C 55°.
Electro-trochoid pump forces lubrication oil to all running parts
outside of the headstock.
Handwheel with direct inch/metric reading micro-collar.
Precision ground cross slideways.
Saddle-lock device for heavy cutting.
Rapid four directional travel.
Safety clutched and longitudinal lead screw.
4 TPI and oil bathed longintudinal lead screw.
Oil level indicator.
Forward/stop/reverse lever with safety device.
Multi-position length stop.
Removable chip pan.
Machine bed with FC-30 casting iron.

Standard Accessories:
Gap Bed
20" D1-11 4-jaw chuck
Rapid Carriage Traverse
20" face plate
Longitudinal Carraige Stop
Bearing Tpe Steady Rest
Long Shaft: 3.1" ~ 9.5"
Short Shaft: 7.8" ~ 14.5"
Built-In Coolant System
Halogen Wrok Light
Follow Rest (0.4" ~ 3.4")
4-Way Tool Post
Chuck Guard with Safety Switch
Followable Splash Guard (34" wide)

Optional Accessories (call for pricing):
Aloris or Dorial Tool Posts and Holders
Larger Chucks & Faceplates
Four Position Carriage Stop
5C Lever Operated Collet Closer
5C Handwheel Type Collet Closer
Taper Turning Attachment
Newall or Sony 2 Axis Digital Readouts
