Acer DYNAMIC 2180S NEW LATHES

Price on Request

Make:: Acer

Model:: DYNAMIC 2180S

Year:: NEW

Ref #:: 160362

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

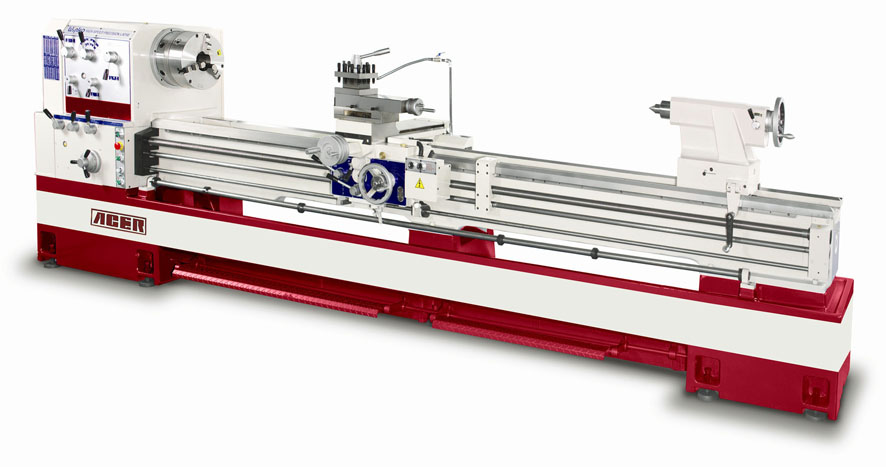

NEW 21" x 80" ACER LARGE BORE ENGINE LATHE
MODEL: DYNAMIC 2180S

SPECIFICATIONS:
SWING OVER BED: ............... 20.5"
SWING OVER GAP: ............... 29.1"
SWING OVER CROSS SLIDE: ....... 13"
CENTER DISTANCE: .............. 78.7"
WIDTH OF BED: ................. 11.8"
HEADSTOCK:
SPINDLE NOSE: ................. ASA D1-8
SPINDLE BORE: ................. 3.1"
SPINDLE SPEEDS: ............... 20 ~ 2,000 RPM (12 STEPS)
THREADING:
INCH THREADS RANGE: ........... 4 ~ 56 T.P.I.
METRIC THREADS RANGE: ......... P0.5 ~ P7
LEADSCREW DIAMETER: ........... 1.4"
TAPER OF TAIL CENTER: ......... MT4
CARRIAGE:
COMPOUND REST TRAVEL: ......... 4.9"
CROSS SLIDE TRAVEL: ........... 10.8"
TAILSTOCK:
TAIL SPINDLE TRAVEL: .......... 5.9"
TAIL SPINDLE DIAMETER: ........ 2.7"
POWER:
MAIN DRIVE MOTOR: ............. 7/5 HP/10 HP
COOLANT PUMP: ................. 1/8 HP
WEIGHT & DIMENSIONS:
GROSS WEIGHT .................. 5,710
NET WEIGHT .................... 5,379
MACHINE DIMENSIONS: ........... 124.8" L X 31.9" W X 48.4" H
PACKING DIMENSIONS: ........... 132.7"L X 37.4" W X 63.8" H

STANDARD ACCESSORIES:
10" D1-8 3 JAW CHUCK
STEADY REST - BRONZE TIP (.039" ~ 6.29")
LONGITUDINAL CARRIAGE STOP
HALOGEN WORK LIGHT
BUILT-IN COOLANT SYSTEM
FOLLOWABLE SPLASH GUARD
4-WAY TOOL POST
TOOL BOX W/TOOLS

FEATURES:
SPINDLE BORE: 3.1"
SPINDLE NOSE: D1-8
10 HP SPINDLE MOTOR
SPINDLE SPEED: 20 ~ 2,000 RPM (12 SPINDLE SPEED)
AUTO. FEED & THREADING ARE INTERLOCKED TO PREVENT SIMULTANEOUS FUNCTIONS
THERMAL REATED MEEHANITE CASTING BED: BED HARDNESS REACHES HS70
HEAT TREATED AND PRECISION GROUND ALLOY GEARS
UNIVERSAL GEARBOX FOR BOTH INCH/METRIC THREAD & CONVERSION CHART
AUTOMATIC LONGITUDINAL MULTIPLE FEED STOP
BED WIDTH: 11.81"

OPTIONAL ACCESSORIES:
12" 4 JAW INDEPENDENT CHUCK (D1-8) (SC STRONG)
FOLLOW REST - BRONZE TIP (0.59" ~ 3.14")
16" FACE PLATE
ALORIS TOOL POST & 4 HOLDER SET (#4 BS)
ALORIS TOOL POST & 6 HOLDER SET (#4 SET)
DORIAN TOOL POST & 4 HOLDER SET (SD40CA-TS)
FOUR POSITION CARRIAGE STOP
MICROMETER STOP
5C COLLET CLOSER (LEVER-TYPE)
5C COLLET SET (1/16" TO 1-1/16" X 16THS; 17PCS/SET)
TAPER TURNING ATTACHMENT
MAGNESCALE 2-AXIS DRO
NEWALL 2-AXIS DRO
UPGRADE TO 10 HP

OTHER MODELS: 2130S, 2140S, 2160S AVAILABLE
CALL FOR PRICING AND AVAILABILITY
