Acra 1760TE-3 NEW LATHES

Price on Request

Make:: Acra

Model:: 1760TE-3

Year:: NEW

Ref #:: 163542

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

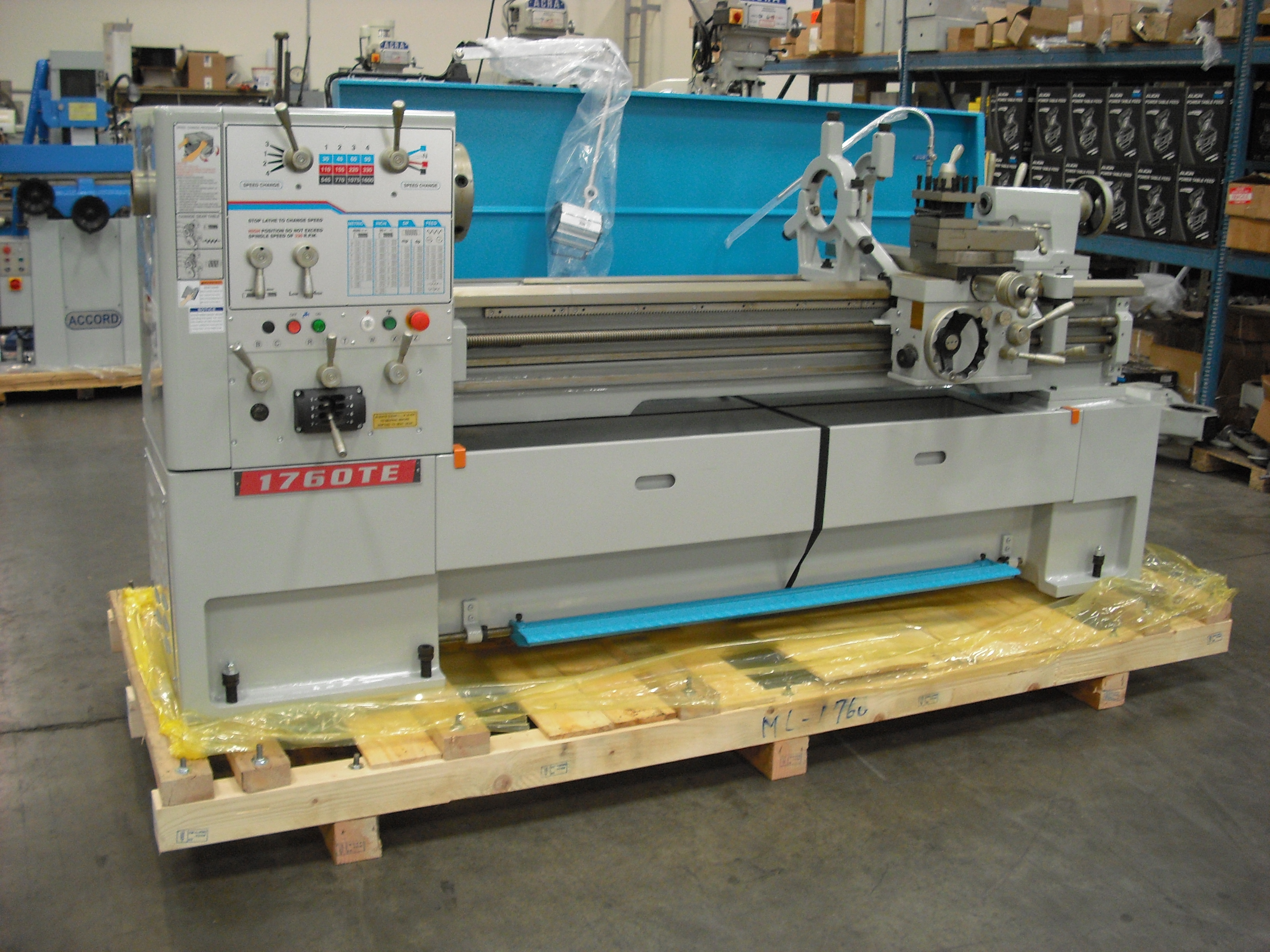

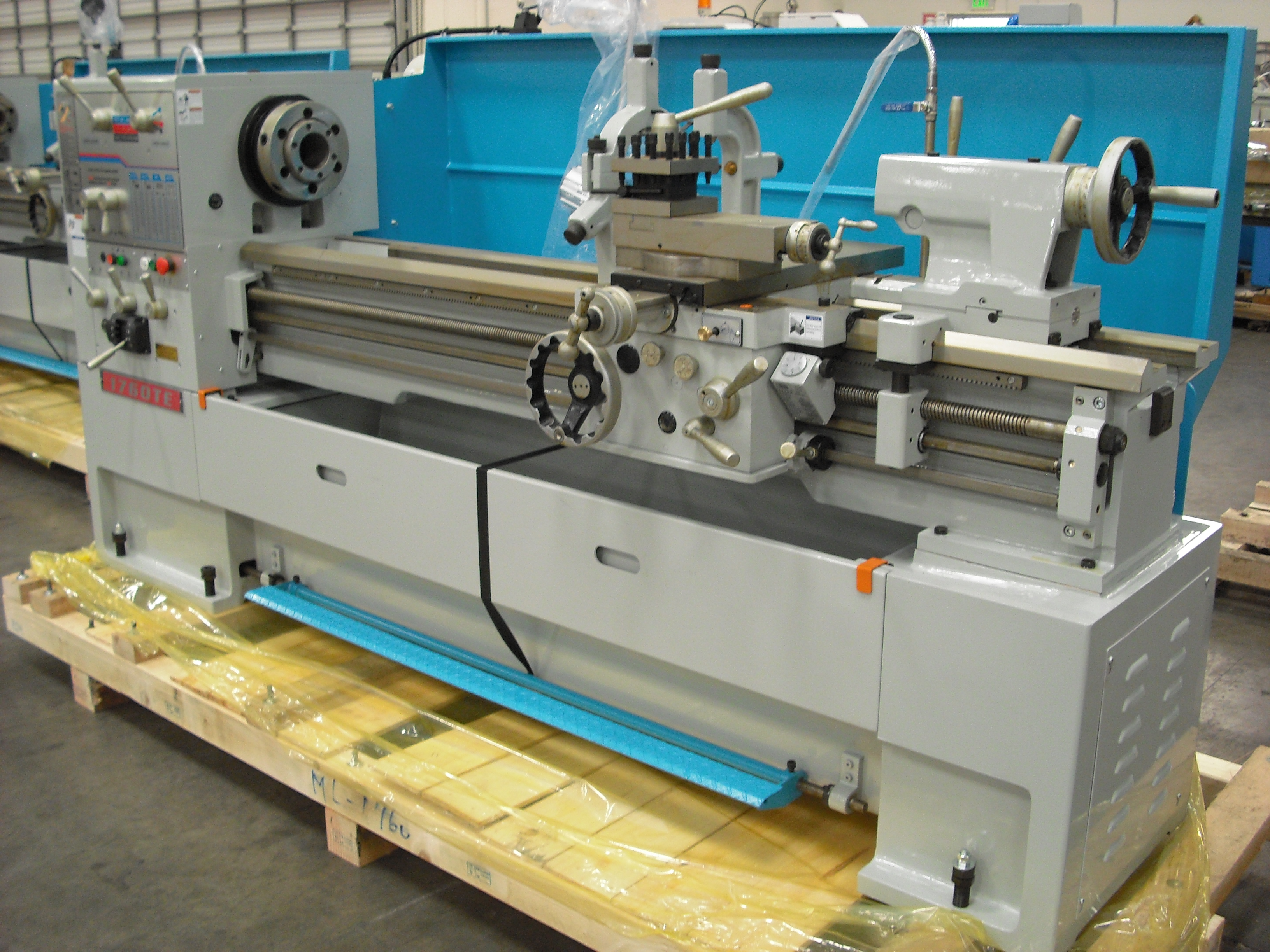

NEW Acra Model 1760TE-3
Precision High Speed Gap Bed Engine Lathe


FEATURES:
Bed
One-piece casting base.
Meehanite casting, vibration stress relieved.
Induction hardened and precision ground bed ways, precision hand scraped removable gap.
Foot brake.
Turcite B coating between bed and carriage.

Gearbox:
Universal type allowing a wide range of inch, metric, M.P., D.P. threads without change gears.

Headstock:
Housing is vibration-absorbent, deflection-free.
Gears are hardened & MMG or REISHAUER ground.

Heavy Duty Spindle:
Machined from forged alloy steel, hardened ground & dynamically balanced.
Three point support by high grade precision, machine tool taper roller & ball bearings.

Apron:
RIH or LJH wheel can be available on request.
Integrated automatic control for longitudinal & cross feeds, forward & reverse feeds.

Carriage & Slide:
Anti-Float design backlash eliminator fitted in cross slide nut.
Safety clutch at feed shaft.
One shot lubrication in carriage & top slide.
Dual dials supply inch system screw.
Metric dial supply metric system only.

Safety Features:
Nylon safety gears in end train.
Shear pin in leadscrew.


Specifications:
Capacity: 17″/24″ x 60″
Swing Over Bed: 17″
Swing Over Cross Slide: 10-5/8″
Swing In Gap: 24-7/16″
Distance Between Centers: 60″
Center Height: 8-1/2″
Bed Width: 12-1/2″

Headstock:
Spindle Nose: D1-8
Spindle Bore: 3-1/8″
Taper of Spindle: MT NO.5
Spindle Speeds – Steps: 12 step
Spindle Speeds – Range: 26 ~ 1,500 RPM

Carriage:
Cross Slide Travel: 9.84″
Compound Slide Travel: 5-13/16″

Threads & Feeds:
Inch Threads: 2~72 TPI
Metric Threads: 0.2 ~ 14 mm
Longitudinal Feeds: 0.0015 ~ 0.04″/rev
Cross Feeds: 0.00075 ~ 0.02″/rev

Tailstock:
Quill Diameter: 2-3/16″
Quill Travel: 5″
Quill Taper: MT NO.4

Power:
Spindle Drive Motor: 10 HP
Voltage: 230V/460V AC / 3 PH

Standard Equipment:
10″ 3-Jaw Chuck
12″ 4-Jaw Chuck
Full Length Splash Guard
Steady Rest/Follow Rest
Coolant System
Foot Brake
Work Lamp
Gap Bed
4 position square tool post
Tool box with tools
