Acra Atel 1660TE NEW LATHES

Price on Request

Make:: Acra

Model:: Atel 1660TE

Year:: NEW

Ref #:: 160661

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

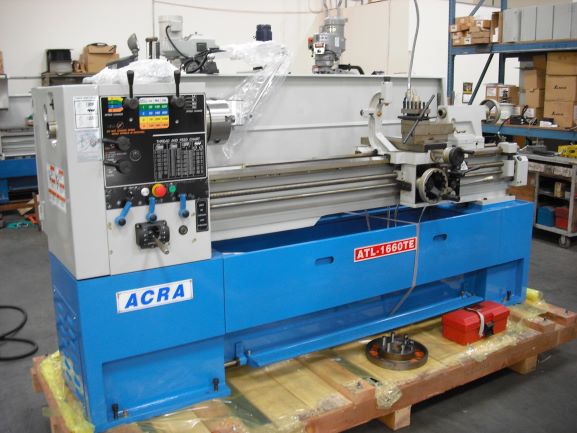

NEW ACRA ATL-1660TE
Precision Engine Lathe



SPECIFICATIONS
Swing Over Bed: 16-3/16"
Swing Over Cross Slide: 10-3/8"
Swing over Gap: 30"
Gap in front of face plate: 4-1/2"
Distance between centers: 60"
Bed width: 10-1/4"
Spindle Bore: 2-1/16"
Spindle Nose: D1-6
Taper of spindle bore: MT#6
Spindle RPM: 8 steps to 1800 RPM
Cross slide: 8-11/16"
Compound slide 5-1/2"
Inch threads: 2-72 TPI (45)
Metric threads: 0.2-14PITCH (39)
Module threads: 0.3-3.5 (18)
Diametrical threads: 8-44 (21)
Longitudinal feed: 0.002-0.067 IPR
Cross feed: 0.001-0.034 IPR
Quill diameter: 2"
Quill travel: 6"
Quill taper: MT#4
Spndle Motor: 5/2.5 HP 2 speed
Weight: 3,750 lbs.
Gross weight: 4,200 lbs

STANDARD EQUIPMENT
8" 3 jaw scroll chuck
10" 4 jaw independent chuck
Steady rest/follow rest
Full length splash guard
Coolant system
Face plate
4 way tool holder
centers/center sleeve

OPTIONAL ACCESSORIES
5C collet closer
Taper attachment
Quick change tool post
DRO
micro bed stop
Halogen worklight
