Acra FEL-1640GCY NEW LATHES

Price on Request

Make:: Acra

Model:: FEL-1640GCY

Year:: NEW

Ref #:: 160610

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

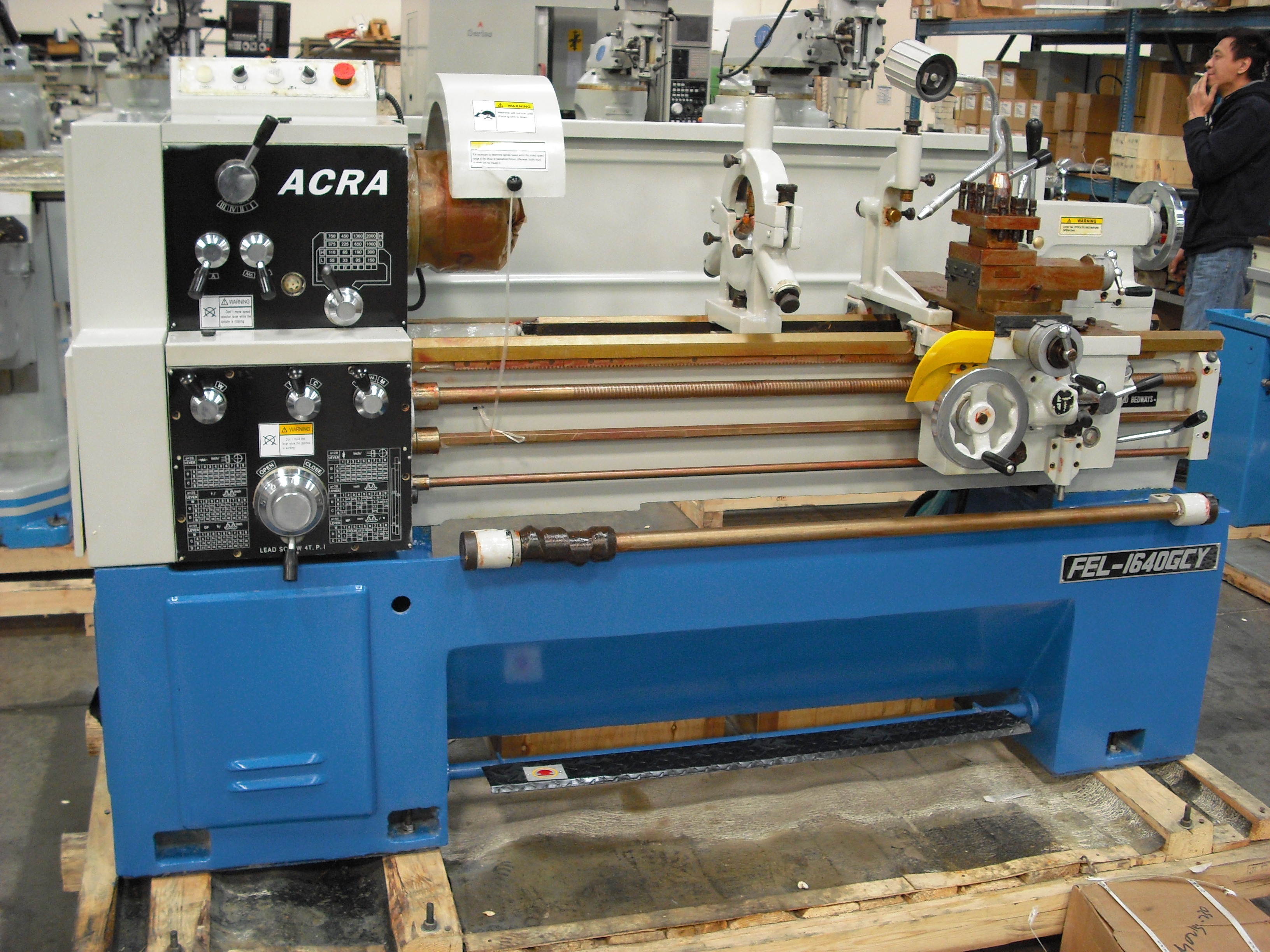

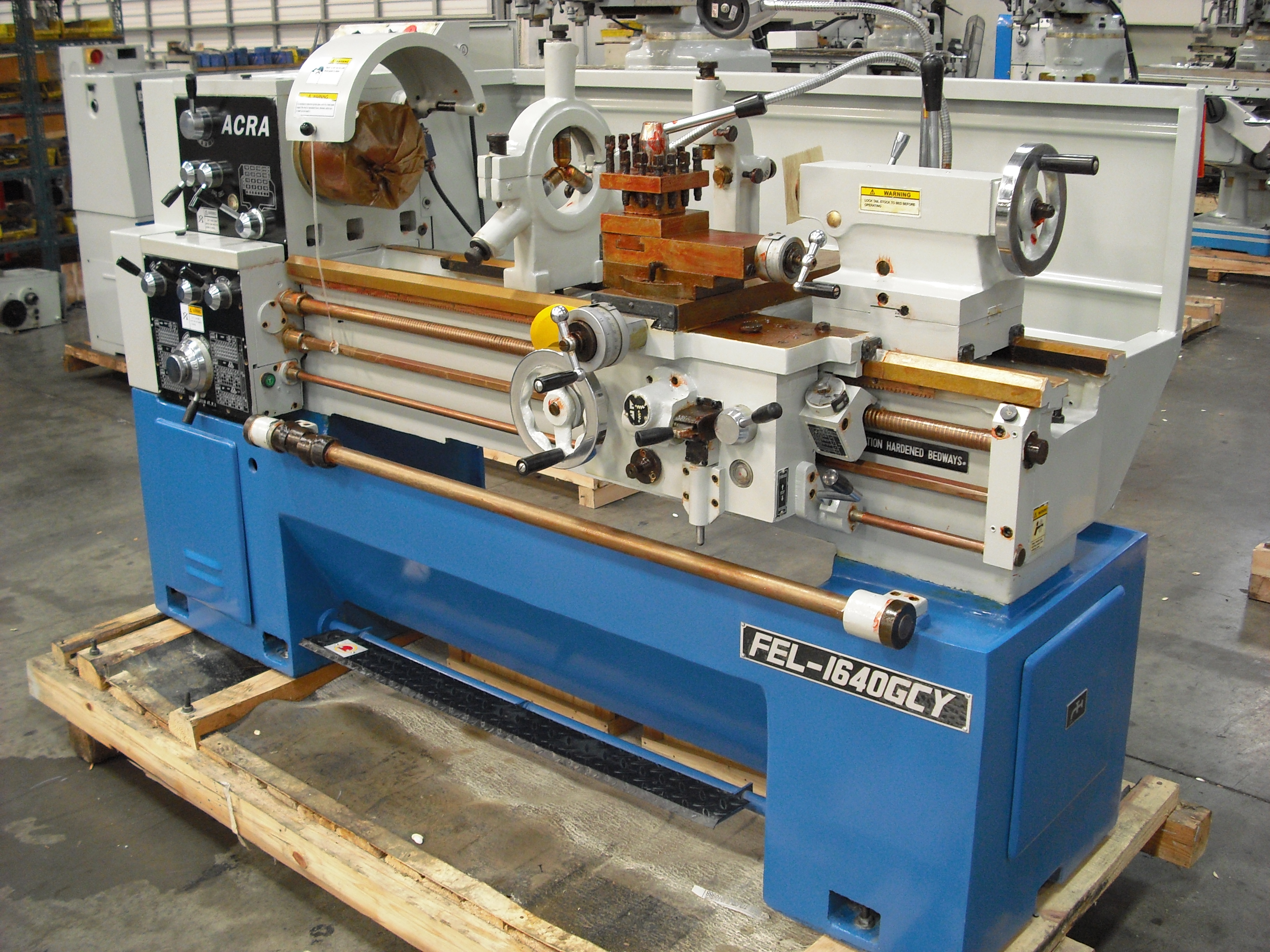

NEW ACRA MAGNUM-CUT HIGH SPEED PRECISION ENGINE LATHE
MODEL: FEL-1640GCY
WITH 2-AXIS NEWALL DRO & 10" 4-JAW CHUCK
"LIMITED TIME SPECIAL"

Features:
One piece cast iron base with high rigidity
Gears in head stock are hardened and ground
All bed ways are hardened and ground
3 bearing support for spindle for smooth turning at high speed
High spindle speeds 33 ~ 2000 rpm (16 steps)
7.5 HP spindle motor
Apron and slideways are lubricated by one shot lubricator
Camlock D1-6 spindle with 52mm (2-1/32") bore

Specifications:
Swing over bed: 410 mm (16.1")
Swing over carriage: 258 mm (10.2")
Swing over gap: 580 mm (22.8")
Width of gap: 250 mm (9.8")
Distance between centers: 1000 mm (39.4")
Width of bed: 274 mm (10.8")
Spindle bore: 52 mm (2-1/32")
Spindle nose: D1-6
Taper of spindle bore & center: MT#6
Number of spindle speeds: 16 steps
Spindle speed: 33 ~ 2000 rpm
Range of longitudinal feeds: 0.08~1.15 mm/rev
                             (0.003~0.452 in/rev
Range of cross feeds: 0.06~0.92 mm/rev (0.002~0.036 in/rev)
Lead screw diameter: 28 mm (1.1")
Range of inch pitches: 4~56 TPI
Range of metric pitches: 0.5~7 mm
Quill stroke: 100 mm (3.94")
Quill diameter: 52 mm (2")
Quill taper: MT#4
Main motor: 7.5 HP
Coolant pump motor: 1/8 HP
Height: 1700 mm (66.9")
Floor space: 89.8" x 45.3"
Net weight: 3085 lbs.

Standard Accessories:
8" 3 Jaw scroll chuck
5" Steady Rest
Follow Rest
Dead Center: MT#4
4-Position length stop
Full length splash guard
Coolant System
Live Center MT#4
Center Sleeve
Chuck Guard
Operation manual & parts list
Tool box and tools
Halogen work light

Optional Accessories:
Taper Turning Attachment
10" 4-Jaw Independent chuck
15-3/8" Face Plate
Turret Carriage Stop
Micro Saddle Stop
Quick Change Tool Post
Digital Readout
CE Norms
