Acra SCH Series NEW LATHES

Price on Request

Make:: Acra

Model:: SCH Series

Year:: NEW

Ref #:: 170384

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

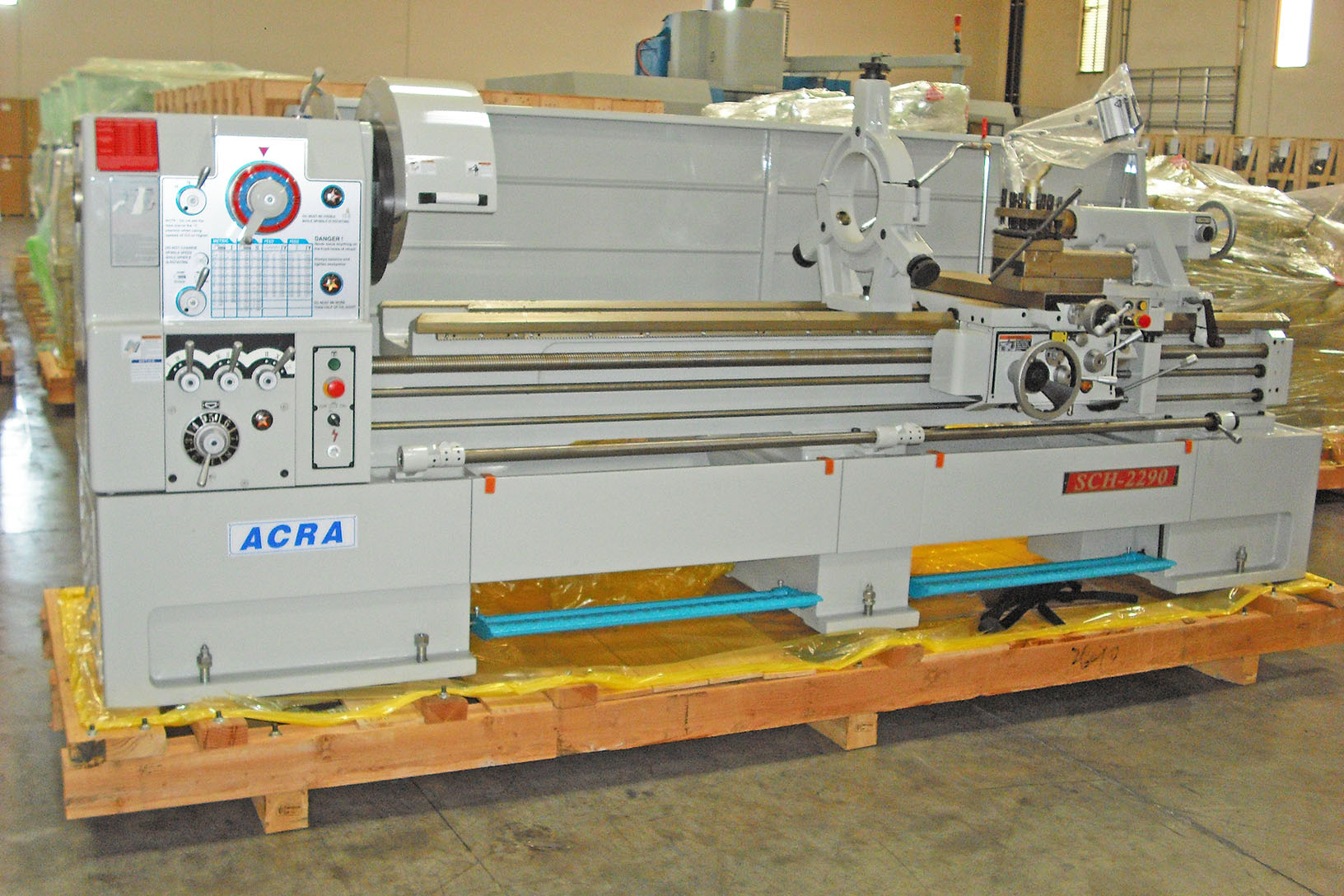

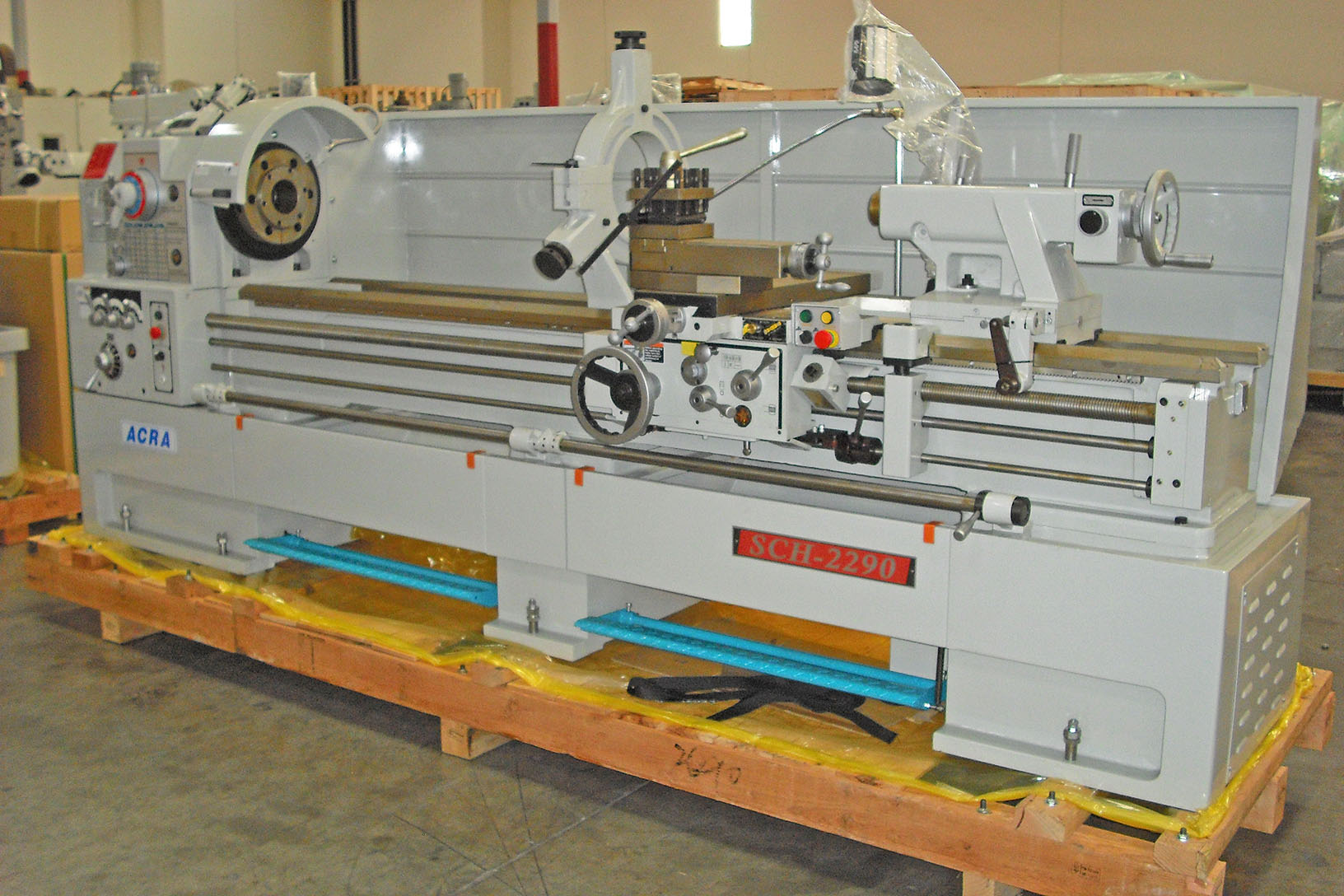

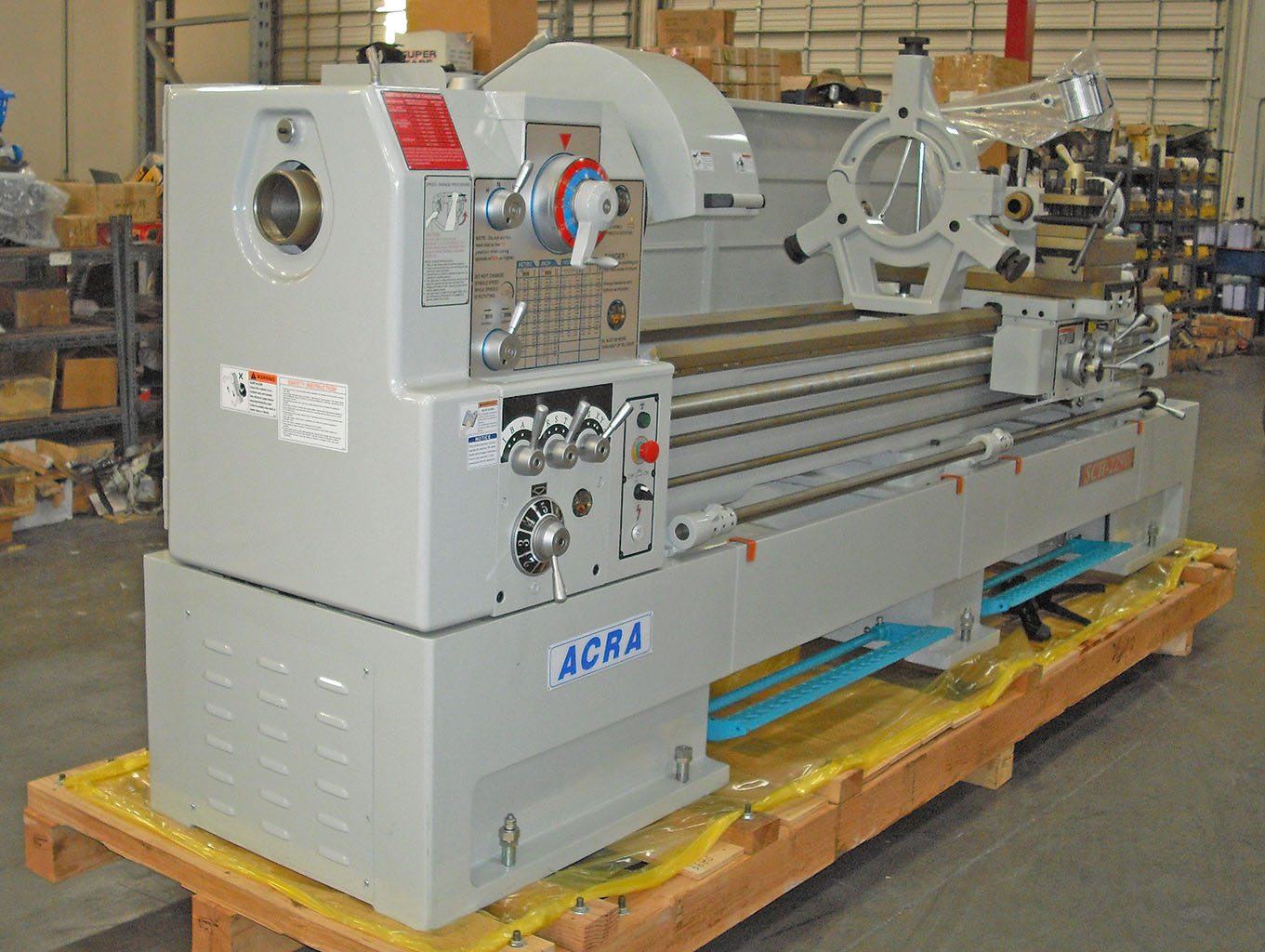

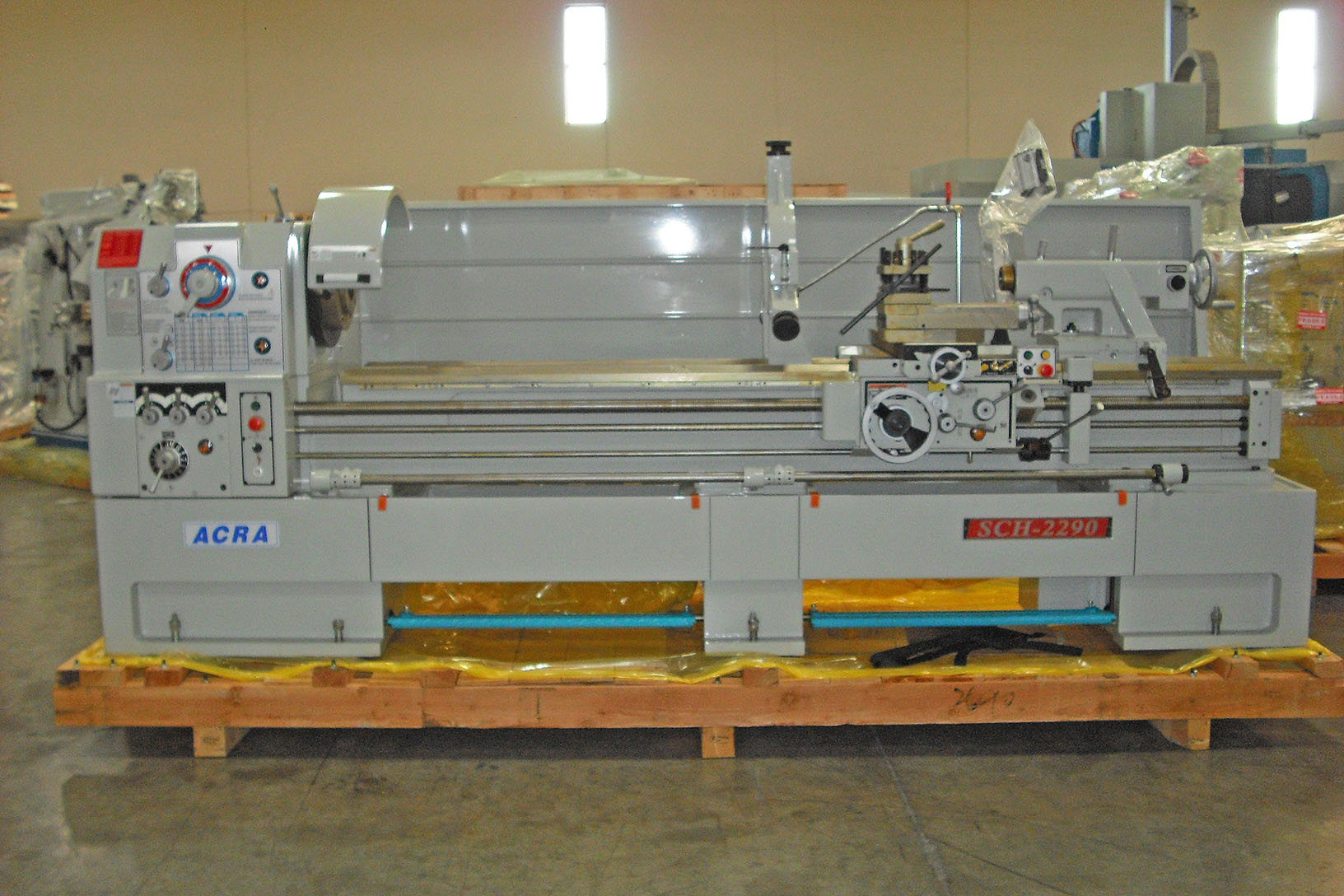

NEW ACRA PRECISION ENGINE LATHE
MODEL: SCH Series
 MADE IN TAIWAN

MODELS AVAILABLE: 2260 / 2290 / 22120 / 22160 / 22200
2660 / 2690 / 26120 / 26160 / 26200

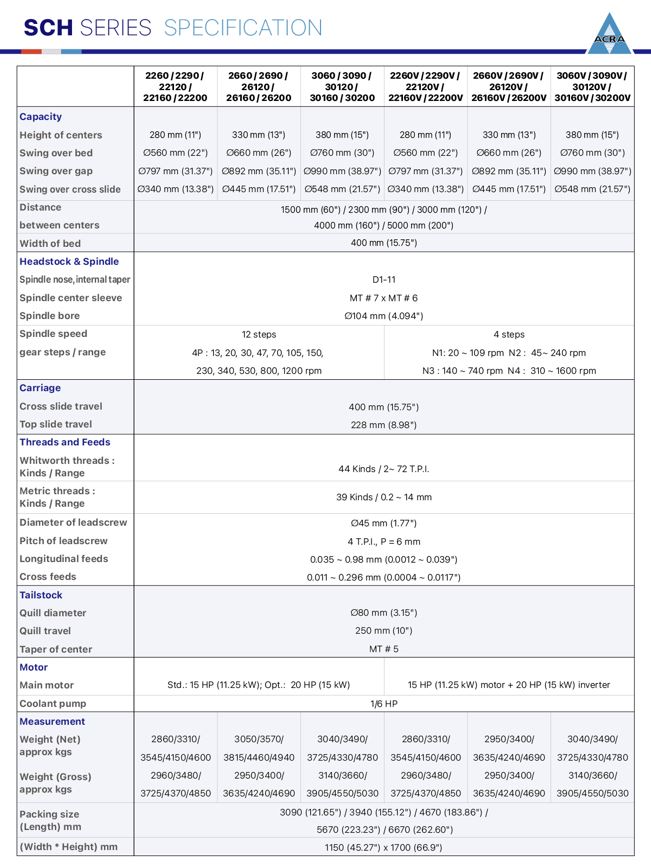

SPECIFICATIONS (22" MACHINE)
SWING OVER BED: ................ 22"
SWING OVER CROSS SLIDE: ........ 13.38"
SWING OVER GAP: ................ 31-3/8"
SPINDLE BORE: .................. 4-1/16"
SPINDLE NOSE: .................. D1-11
SPINDLE RPM (12): .............. 13~1200
MAIN MOTOR: .................... 15HP/4P
VOLTAGE: ....................... 230/460V AC/3PH

STANDARD EQUIPMENT
15" 3-JAW CHUCK
STEADY REST (1-3/5" ~ 10")
COOLANT SYSTERM
LED LIGHT
4 WAY TOOL HOLDER
FULL LENGTH SPLASH GUARD
REMOVABLE GAP
CHUCK GUARD
FRONT CHIP DRAWER
ELECTRIC FOOT BRAKE

OPTIONAL ACCESSORIES
LARGE STEADY REST 7-1/2" ~ 15")
7" FOLLOW REST
20" FACE PLATE
TAPER ATTACHMENT
NEWALL DRO
ACU-RITE DRO
SONY OR FAGOR OR MITUTOYO DRO
IMPORT QUICK CHANGE TOOL HOLDER
ALORIS TOOL POST SET (DA) 5PC
LIVE CENTER MT5
20" 4-JAW CHUCK (CHINA)
16" 4-JAW CHUCK
4-POSITION TURRET CARRIAGE STOP
MICRO CARRIAGE STOP

**60" & 90" RAPID TRAVEL AVAILABLE.
