Baileigh PL-1440E NEW LATHES

Price on Request

Make:: Baileigh

Model:: PL-1440E

Year:: NEW

Ref #:: 151159

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

										NEW BAILEIGH 220V 1-PHASE LATHE
 MODEL: PL-1440E



 FEATURES:

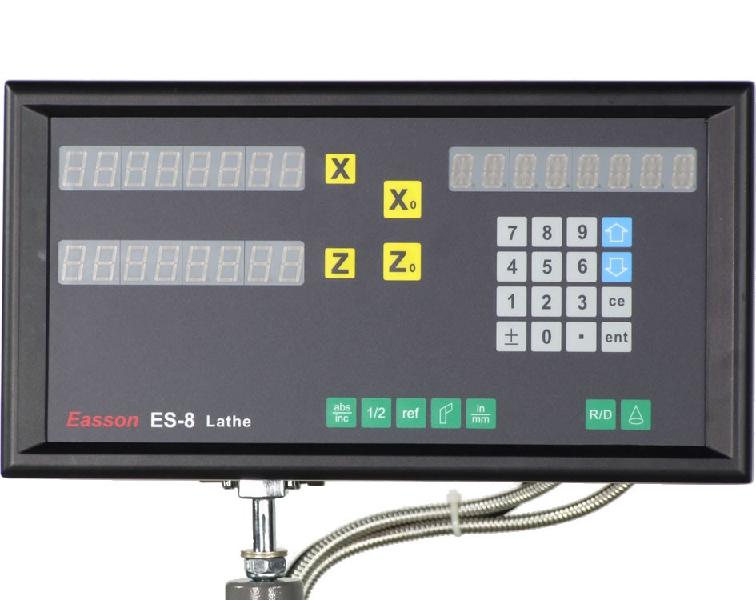

 2-axis digital readout
 6" three jaw chuck
 8" four jaw chuck
 Face plate

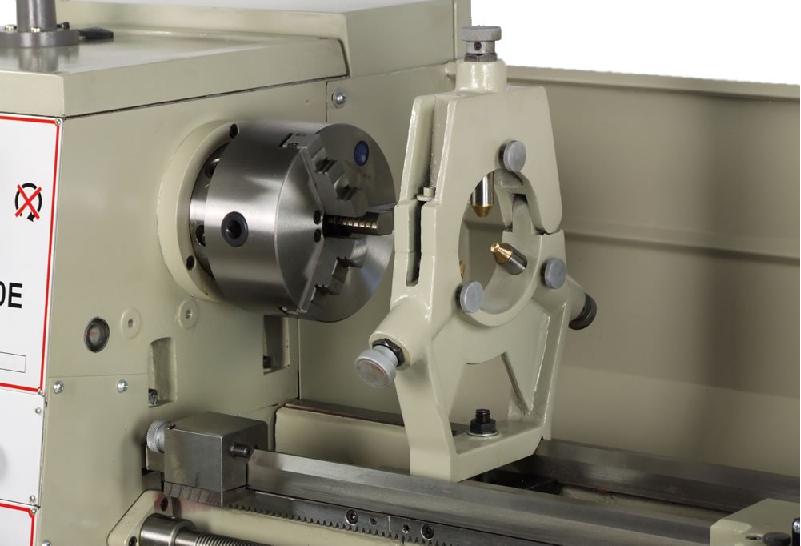

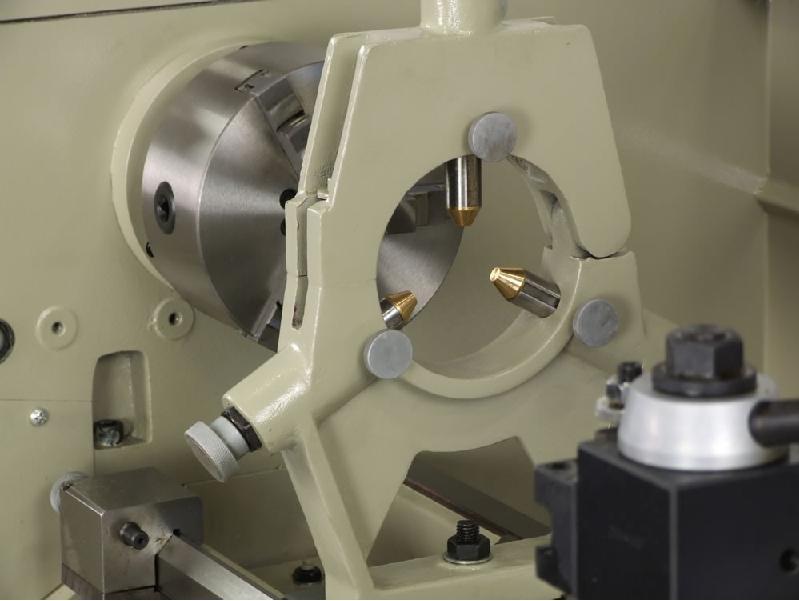

 Steady rest
 Follow rest
 Micrometer saddle stop
 Live center

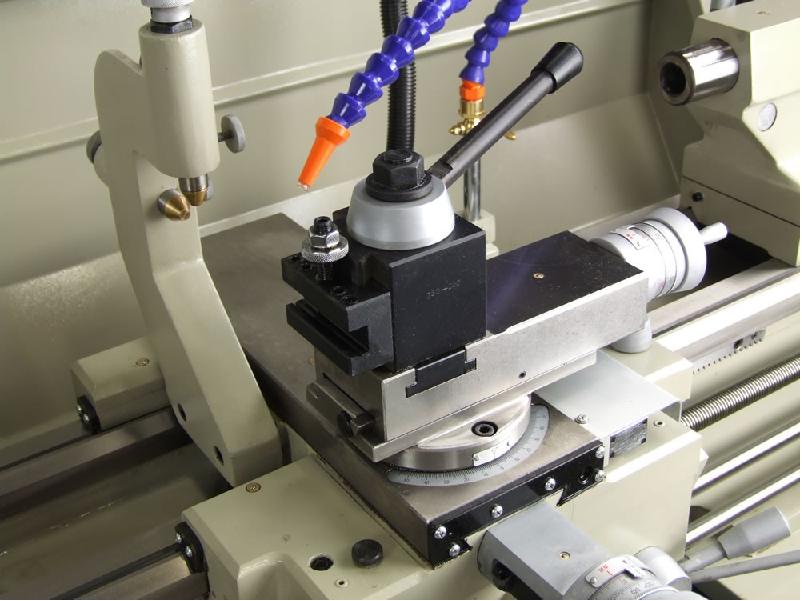

 Quick change tool holder
 Foot brake
 Coolant system with splash guard
 Removable chip tray
 Fully assembled
 220v 1-phase


 SPECIFICATIONS:

 Swing over bed:  14"
 Swing over cross slide:  8.6"
 Swing in gap:  19.9"
 Center length:  40"
 Bed width:  7.086"
 Bed length:  40"
 Spindle nose:  D1-4"
 Spindle bore:  1.50"
 Spindle taper (nose):  Morse #5
 Spindle taper (sleeve):  Morse #3
 Speeds:  8

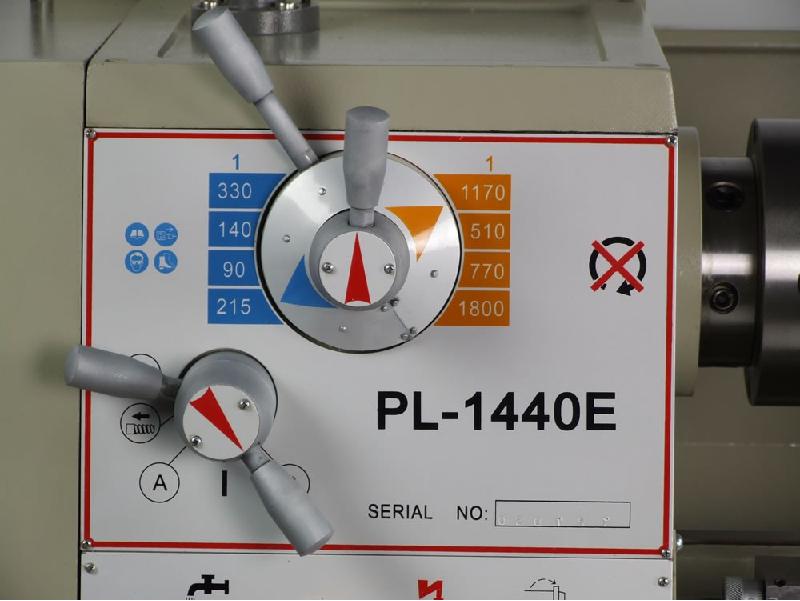

 Speed range:  90-1800 rpm
 Lead screw diameter:  .866"
 Lead screw thread:  4 T.P.I.
 Feed rod:  .708" dia.
 Threads imperial (qty/speed):  44/4-112 T.P.I.
 Threads metric (qty/speed):  22/.45-7.5 mm
 Longitudinal feed range:  0.0012"-0.0294"/rev
 Cross feed range:  0.0003"-0.01"/rev
 Tailstock (quill) diameter:  1.772"
 Tailstock (quill) travel:  4.72"
 Tailstock (quill) taper:  Morse #3
 Motor coolant:  1/8 hp
 Motor main:  3 hp
 Shipping dimensions (LxWxH):  76" x 30" x 61"
 Shipping weight:  1,936 lbs.
