Baileigh PL-1640 NEW LATHES

Price on Request

Make:: Baileigh

Model:: PL-1640

Year:: NEW

Ref #:: 151183

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

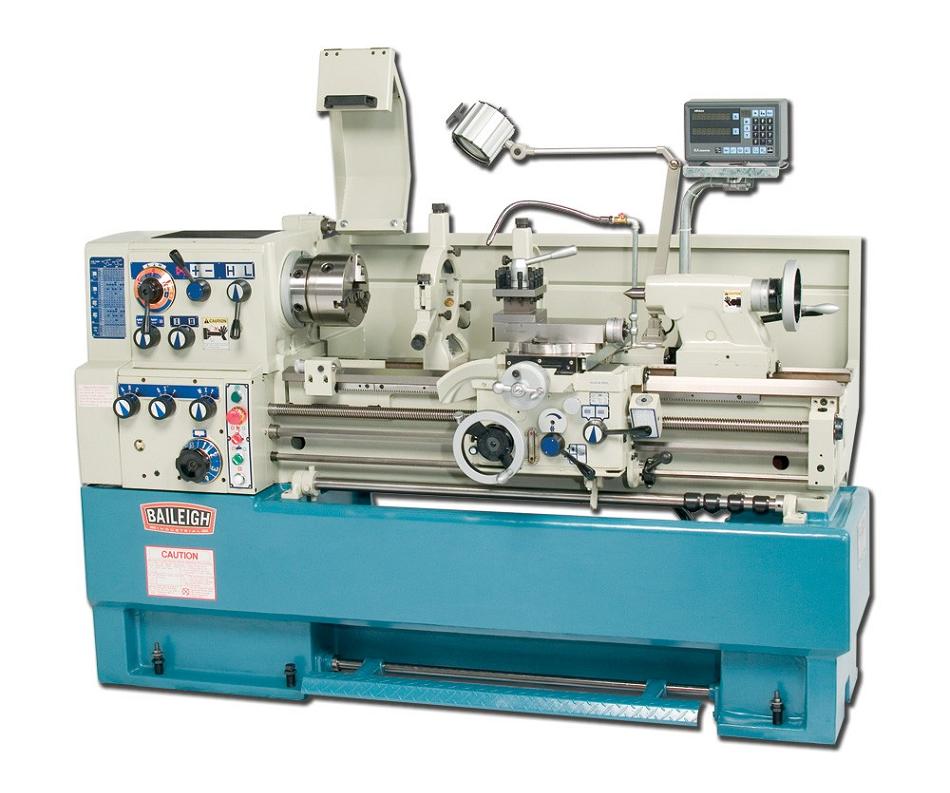

NEW BAILEIGH PRECISION LATHE
MODEL: PL-1640
220V 3-PHASE 7-1/2 HP

SPECIFICATIONS:
SWING OVER BED: ................. 16"
SWING OVER CROSS SLIDE: ......... 9.45"
SWING IN GAP:
DIAMETER: ....................... 23.42"
LENGTH: ......................... 6.125"
CENTER:
HEIGHT: ......................... 7.086"
LENGTH: ......................... 40"
BED:
WIDTH: .......................... 11.81"
LENGTH: ......................... 74.75"
HEIGHT: ......................... 12.20"
SPINDLE:
BORE: ........................... 2.0625"
NOSE: ........................... D1-6"
TAPER (NOSE): ................... MORSE #6
TAPER (SLEEVE): ................. MORSE #4
SPEEDS:
NUMBER: ......................... 12
RANGE: .......................... 30-2000 RPM
CROSS SLIDE:
WIDTH: .......................... 7.08"
TRAVEL: ......................... 9"
COMPOUND REST:
WIDTH: .......................... 4.33"
TRAVEL: ......................... 4.75"
LEAD SCREW:
DIAMETER: ....................... 1.25"
THREAD: ......................... 4 T.P.I.
FEED ROD: ....................... 0.708 DIA.
CUTTING TOOL (MAX. SECTION): .... .625" X .625"
THREADS:
IMPERIAL (QTY/TYPE): ............ 40/2-56 T.P.I.
METRIC (QTY/TYPE): .............. 53/.4-14 MM PITCH
DIAMETRICAL (QTY/TYPE): ......... 32/4-32 D.P.
MODULE (QTY/TYPE): .............. 44/.4-7 M.P.
LONGITUDINAL FEEDS:
IMPERIAL (QTY/TYPE): ............ 40/.0012"-.0252"/REV
METRIC (QTY/TYPE): .............. 40/.032-.64 MM/REV
CROSS FEEDS:
IMPERIAL (QTY/SPEED): ........... 40/.0006"-.0126"/REV
METRIC (QTY/SPEED): ............. 40/.015-.32 MM/REV
TAILSTOCK:
DIAMETER: ....................... 2.125"
TRAVEL: ......................... 4.75"
TAPER: MORSE .................... #4
MOTOR COOLANT: .................. 1/8 HP
MOTOR MAIN: ..................... 7.5 HP
POWER REQUIREMENT: .............. 220V/3-PHASE
SHIPPING DIMENSIONS (LXWXH): .... 91" X 65" X 44"
SHIPPING WEIGHT: ................ 4,400 LBS.

FEATURES:
16" SWING OVER BED, 40" BETWEEN CENTERS
MITUTOYO 2-AXIS DRO-STANDARD
12-STEP SPINDLE SPEED
8" THREE JAW CHUCK
INTEGRATED COOLANT SYSTEM
HEADSTOCK CHUCK GUARD WITH MICRO SWITCH CUTOUT
4-WAY QUICK CHANGE TOOL POST WITH GUARD
220V 3-PHASE
