Baileigh PL-2060 NEW LATHES

Price on Request

Make:: Baileigh

Model:: PL-2060

Year:: NEW

Ref #:: 151185

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

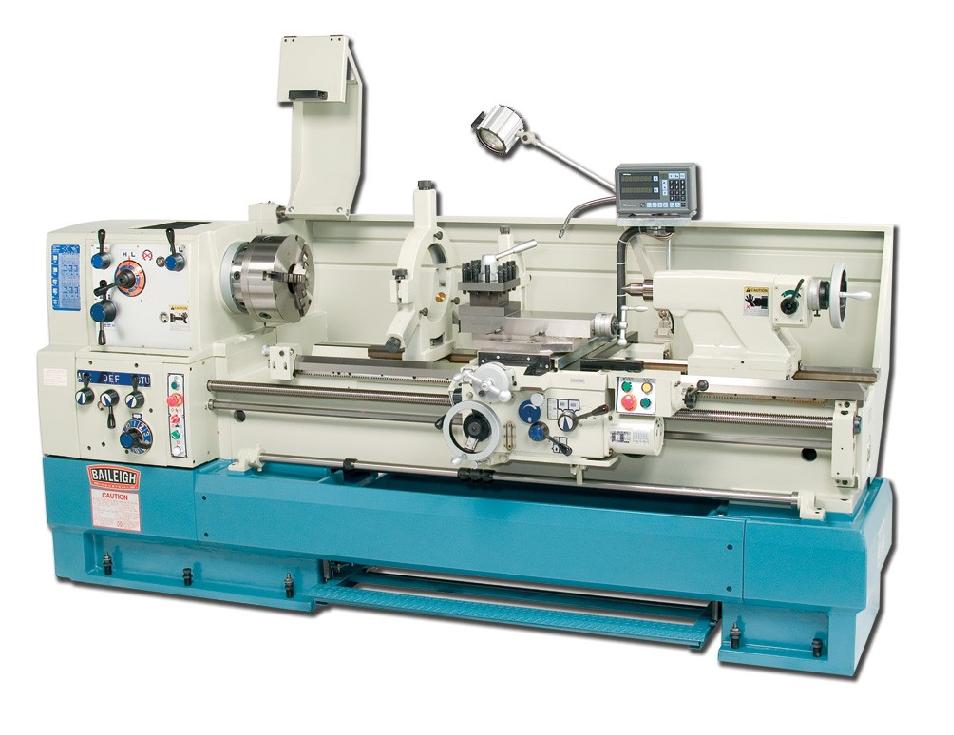

										NEW BAILEIGH 220V 3-PHASE 15 HP PRECISION LATHE
 MODEL: PL-2060



 FEATURES:

 20" swing over bed, 60" between centers
 Mitutoyo 2-axis DRO-standard
 12-step spindle speed
 12" three jaw chuck
 Integrated coolant system
 Headstock chuck guard with micro switch cutout
 4-way quick change tool post with guard
 Micrometer saddle stop
 Longitudinal rapid traverse
 220v 3-phase


 SPECIFICATIONS:

 Swing over bed:  20"
 Swing over cross slide:  13"
 Swing in gap:
     Diameter:  26.375"
     Length:  7.0625"
 Center:
     Height:  10"
     Length:  60.25"
 Bed:
     Width:  16.125"
 Spindle:
     Bore:  3.125"
     Nose:  D1-8"
     Taper (nose):  Morse #7
     Taper (sleeve):  Morse #5
 Speeds:
     Number:  12
     Range:  20-1550 rpm
 Cross slide:
     Travel:  12.5"
 Compound rest:
     Travel:  10"
 Lead screw:
     Diameter:  1.5"
     Thread:  4 T.P.I.
 Threads:
     Imperial (qty/type):  60/2-112 T.P.I.
     Metric (qty/type):  60/.2-14 mm pitch
     Diametrical (qty/type):  50/4-112 D.P.
     Module (qty/type):  50/.2-7 M.P.
 Longitudinal feeds:
     Imperial (qty/type):  50/.0014"-.0387"/rev
     Metric (qty/type):  50/.037-.983 mm/rev
 Cross feeds:
     Imperial (qty/speed):  50/.0007"-.01935"/rev
     Metric (qty/speed):  50/.0185-.52 mm/rev
 Tailstock:
     Diameter:  2.9375"
     Travel:  6.3125"
     Taper:  Morse #5
 Motor coolant:  1/8 hp
 Motor main:  15 hp
 Power requirement:  220v/3-phase
 Shipping dimensions (LxWxH):  121" x 54" x 67"
 Shipping weight:  5,456 lbs.
