Birmingham YCL-1440KGY NEW LATHES

Price on Request

Make:: Birmingham

Model:: YCL-1440KGY

Year:: NEW

Ref #:: 137169

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

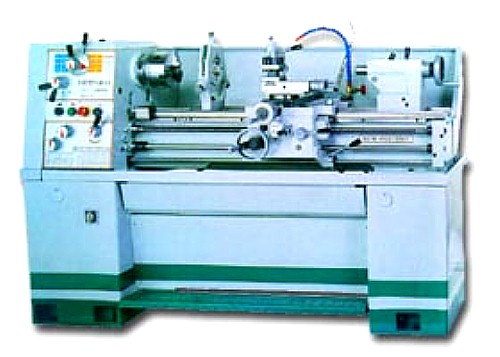

New 'Birmingham' 14"x40" Precision Gearhead Lathe
Model: YCL-1440KGY



Specifications:
Swing over bed: 14"
Swing over cross slide: 8-13/16"
Center height: 7"
Admits between: 30"(750mm) or 40"(1000mm)
Spindle bore: 1-1/2"
Spindle Nose: D1-4 or D1-5
Taper in Nose: No 5 Morse
Speeds number: 8
Speeds range: 70-2000 r/min
Cross slide travel: 6-11/16"
Compound rest travel: 3-9/16"
Lead screw thread: 8 T.P.I or 3mm pitch
Feed rod diameter: 3/4"
Cutting tool max section: 5/8"x5/8"
Threads imperial pitches: 42 Nos. 4-112 T.P.I.
Threads metric pitches: 44 Nos. 0.1-7mm
Threads diametral pitches: 25 Nos. 16-112DP
Threads module pitches: 34 Nos. 0.1-1.75MP
Longitudinal feeds imperial: 24 Nos. 0.00168-0.1175"/rev
Longitudinal feeds metric: 24 Nos. 0.046-3.249 mm/rev
Cross feeds imperial: 32 Nos. 0.00046-0.03231"/rev
Cross feeds metric: 24 Nos. 0.01-0.703 mm/rev
Quill diameter: 32mm (1-1/4") or 42mm (1-21/32")
Quill travel: 3-15/16" (100mm)
Quill taper: No 3 Morse
Main motor power: 2 HP (1.5kW)
Coolant pump power: 1/16HP (40W)
Packing size: 168"x76"x153" or 193"x76"x153"

Standard Accessories
Reduction Sleeve 5/3#
Center MT3#(Dead Center, Alloy Center)
Three Jaw chuck
Four Jaw chuck
Chip tray
Splash guard
Tool Box & tools (1 set)
Face plate
Steady rest
Follow rest
Brake
Coolant system
Work light

Optional Accessories:
Quck change tool post
taper turning attachment
Live center
Drill chuck
Chuck cover
tool post cover
Leadscrew cover
Driving plate
