Birmingham YCL-2260 NEW LATHES

Price on Request

Make:: Birmingham

Model:: YCL-2260

Year:: NEW

Ref #:: 139055

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

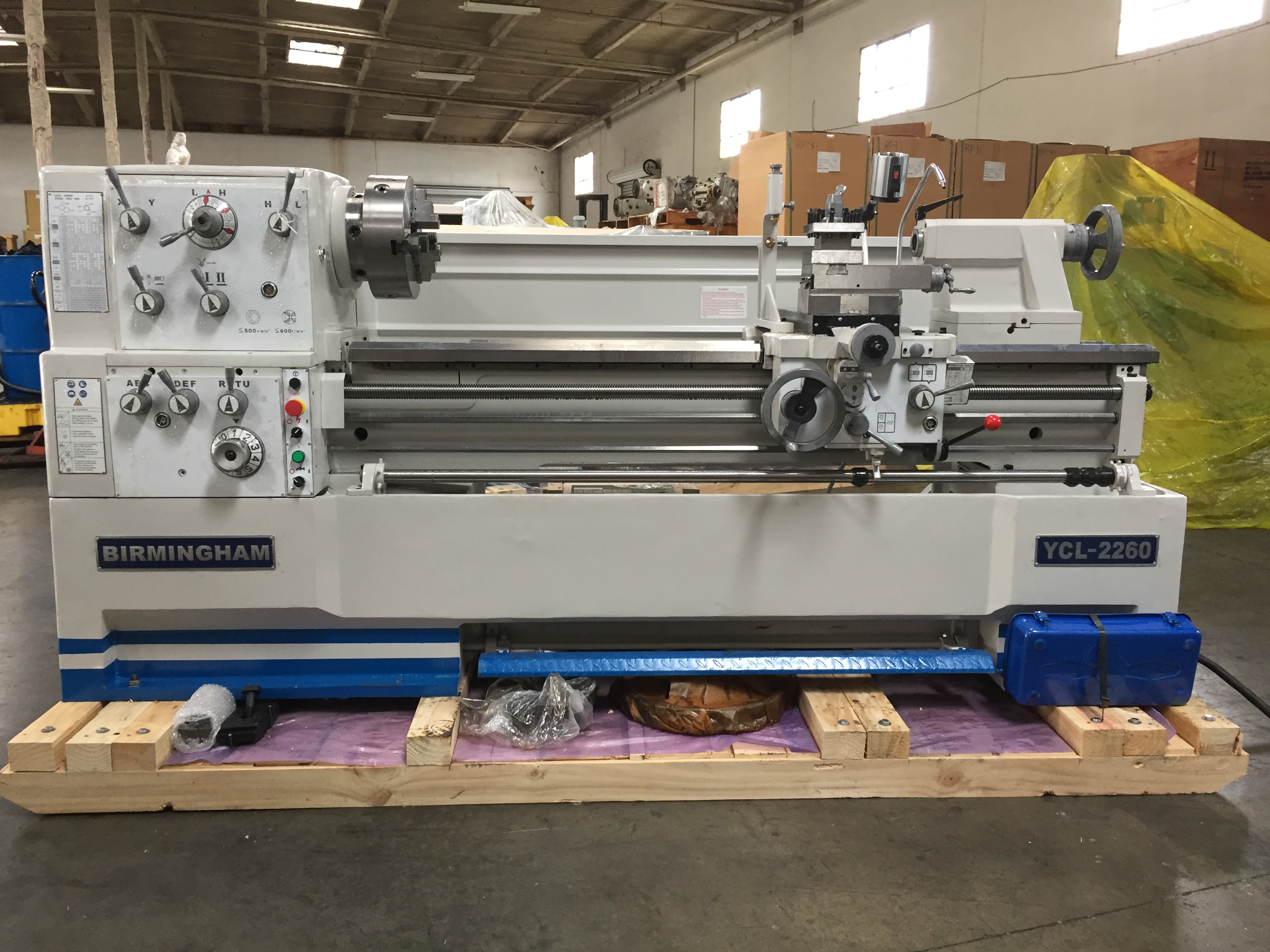

NEW 22" x 60" BIRMINGHAM PRECISION GAP BED LATHE
MODEL: YCL-2260

SPECIFICATIONS:
MAX. SWING OVER BED: .................. 22"
DISTANCE BETWEEN CENTERS: ............. 60"
MAX. EFFECTIVE CUTTING LENGTH: ........ 56"
MAX. SWING OVER CROSS SLIDE: .......... 13-3/4"
MAX. SWING IN GAP: .................... 31"
EFFECTIVE LENGTH IN GAP: .............. 6"
WIDTH OF BED: ......................... 13-3/4"
SPINDLE NOSE: ......................... D1-8
DIAMETER OF SPINDLE THRU BORE: ........ 3-1/8"
TAPER OF SPINDLE CENTER: .............. MT#7 / MT#5
SPINDLE SPEEDS, 12 STEPS: 25,35,55,80,120,170,235,350,525,700,1100,1600 RPM
LONGITUDINAL FEEDS: 35 KINDS, ......... 0.0022" - 0.0612" REV.
CROSS FEEDS: 35 KINDS, ................ 0.00048" - 0.01354" REV.
METRIC THREADS: 47 KINDS, ............. 0.2 - 14MM
INCH THREADS: 60 KINDS, ............... 112 - 2 TPI
MODULE THREADS: 39 KINDS, ............. 0.1 - 7MM
DIAMETRAL PITCH THREADS: 50 KINDS, .... 4 - 112 DP
MAX. TRAVEL OF CROSS SLIDE: ........... 12-15/16"
MAX. TRAVEL OF TOP SLIDE: ............. 5-1/8"
4-WAY TOOL POST SIZE: ................. 1" X 1"
LONGITUDINAL LEADSCREW DIA/PITCH: DIA.. 1-5/8" / 4 TPI
DIAMETER OF TAILSTOCK QUILL: .......... 3"
TAPER OF TAILSTOCK QUILL CENTER: ...... MT#5
MAX. TRAVEL OF TAILSTOCK QUILL: ....... 7"
POWER OF MAIN MOTOR: 10 HP, 230/460V/60HZ, 3 PHASE PREWIRED 230V
POWER OF COOLANT PUMP: 1/8 HP, 230/460V/60HZ, 3 PHASE PREWIRED 230V

EQUIPPED WITH:
3 JAW CHUCK
4 JAW CHUCK
FACE PLATE
STEADY REST WITH ROLLER JAWS
FOLLOW REST
GAP
4 WAY TOOL POST
THREADING CHASING DIAL
(2) DEAD CENTERS
REDUCING SLEEVE
FULL LENGTH SPLASH GUARD
ONE PIECE CAST IRON BASE
FOOT BRAKE
HALOGEN WORK LIGHT
COOLANT SYSTEM
LEVELING PADS
4 POSITION AUTO KICK OUT LONGITUDINAL CARRIAGE STOP
TOOL BOX
TAPER TURN ATTACHMENT

FEATURES:
10 HP MAIN MOTOR
ONE PIECE CAST IRON BASE
D1-8 SPINDLE WITH 3-1/8" SPINDLE BORE
NO CHANGE GEARS REQUIRED
12 SPEEDS FROM 45 - 1,600 RPM
60 KINDS OF INCH THREADS FROM 112 - 2 TPI
47 KINDS OF METRIC THREADS FROM 0.2 - 14MM
MAIN SPINDLE HARDENED & PRECISION GROUND
BED MADE OF FINE GRAIN HIGH TENSILE CAST IRON
BEDWAYS INDUCTION HARDENED & PRECISION GROUND
ALL GEARS & SHAFTS HARDENED & PRECISION GROUND
MAIN SPINDLE SUPPORTED AT 3-POINT BY PRECISION BEARINGS

OPTIONAL EQUIPMENT (CALL FOR PRICING):
10" LARGE STEADY REST W/ROLLER JAWS FOR YCL-2060/80/120 & YCL2260/80/120
5C HAND LEVER TYPE COLLET CLOSER "JFK" USA
5C COLLET CHUCK (FRONT OPEATE) D1-6 MOUNT
DIGITAL READOUT: NEWALL DP-700 OR ACU-RITE OR UNIQ IMPORT
