Birmingham YCL-26120 NEW LATHES

Price on Request

Make:: Birmingham

Model:: YCL-26120

Year:: NEW

Ref #:: 146562

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

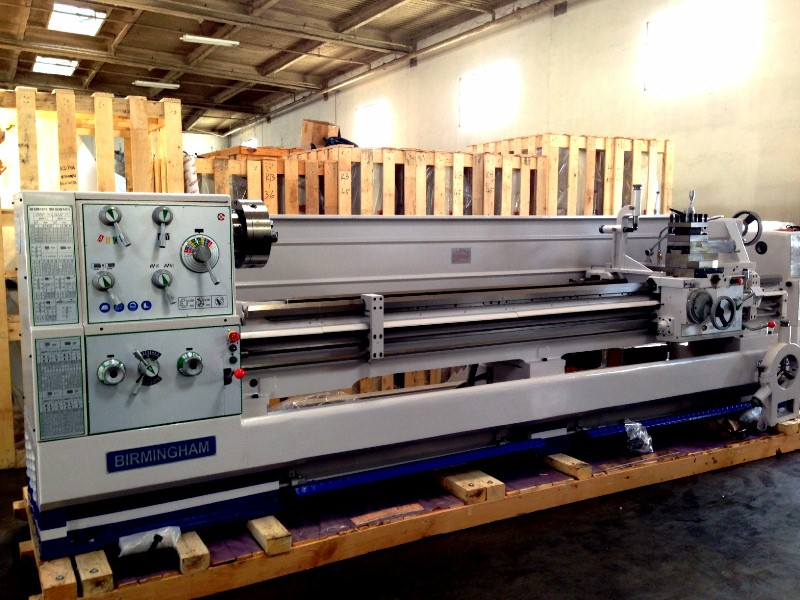

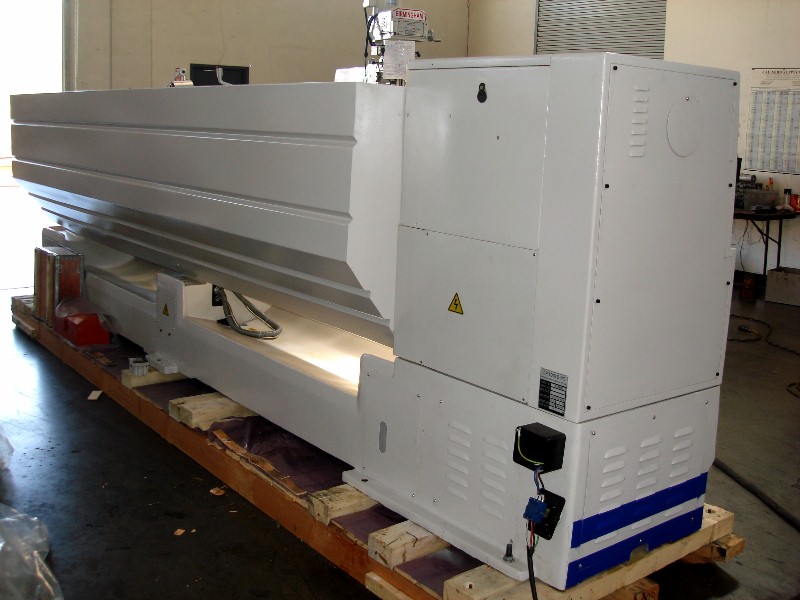

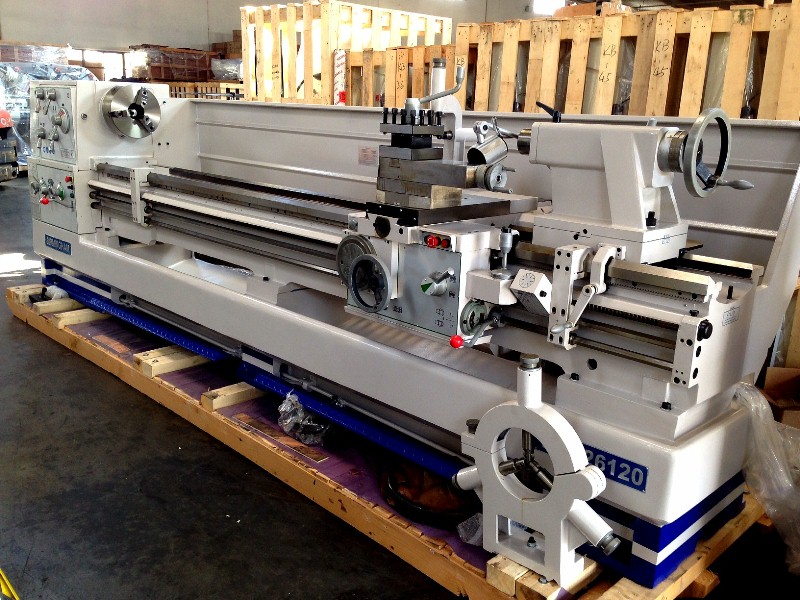

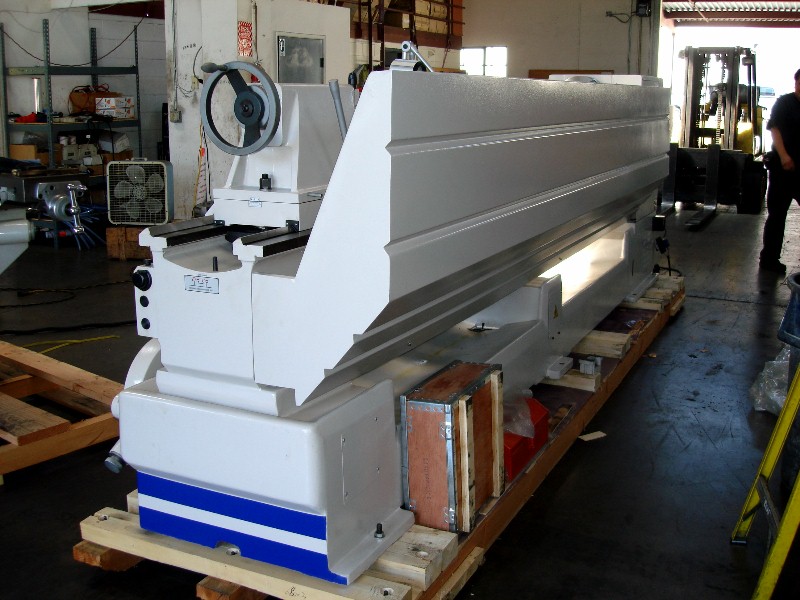

NEW 26" X 120" BIRMINGHAM
PRECISION GAP BED LATHE
MODEL: YCL-26120

SPECIFICATIONS:
SWING OVER BED: ................ 26"
SWING OVER CROSS SLIDE: ........ 17-1/4"
SWING IN GAP DIAMETER: ......... 36"
LENGTH OF GAP: ................. 10"
CENTER HEIGHT: ................. 13"
DISTANCE BETWEEN CENTERS: ...... 120"
WIDTH OF BED: .................. 16"
MAX SECTION OF TOOL: ........... 1" X 1"
MAX TRAVEL OF CROSS SLIDE: ..... 14-1/2"
MAX TRAVEL OF COMPOUND REST: ... 9"
SPINDLE BORE: .................. 4-1/8"
SPINDLE NOSE: .................. D1-8
TAPER OF SPINDLE BORE: ......... MT5
SPINDLE SPEED STEP: ............ 16
RANGE OF SPINDLE SPEED: ........ 25-1600 RPM
LEADSCREW PITCH: ............... 40MM X 2 TPI
INCH THREADS RANGE: ............ 7/16 ~ 80 TPI
METRIC THREADS RANGE: .......... 0.45 ~ 120MM (54 KINDS)
DIAMETRICAL PITCHES RANGE: ..... 7/8 ~ 160 DP (42 KINDS)
MODULE PITCHES RANGE: .......... 0.25 ~ 60MP (46 KINDS)
CROSS FEEDS RANGE
-IN METRIC LEAD SCREW: ......... 0.044 ~ 1.48MM/REV (25 KINDS)
-IN INCH LEAD SCREW: ........... 0.00165" X 0.05497"/REV (25 KINDS)
LONGITUDINAL FEEDS RANGE
-IN METRIC LEAD SCREW: ......... 0.022 - 0.74MM/REV (25 KINDS)
-INCH LEAD SCREW: .............. 0.00083" - 0.02774"/REV (25 KINDS)
TRAVEL OF TAILSTOCK SLEEVE: .... 9-1/4"
DIAMETER OF TAILSTOCK SLEEVE: .. 3-1/2"
MORSE TAPER OF TAILSTOCK SLEEVE. MT#5
POWER OF MAIN MOTOR: ........... 10 HP
POWER OF COOLANT PUMP: ......... 1/8HP
DIMENSIONS: .................... 4740 X 1230 X 1840
WEIGHT: ........................ 4,300 KGS

EQUIPPED WITH:
3 JAW CHUCK
4 JAW CHUCK
FACE PLATE
STEADY REST WITH ROLLER JAWS
FOLLOW REST
GAP
4 WAY TOOL POST
THREADING CHASING DIAL
(2) DEAD CENTERS
REDUCING SLEEVE
FULL LENGTH SPLASH GUARD
ONE PIECE CAST IRON BASE
FOOT BRAKE
HALOGEN WORK LIGHT
COOLANT SYSTEM
LEVELING PADS
4 POSITION AUTO KICK OUT LONGITUDINAL CARRIAGE STOP
TOOL BOX
TAPER TURN ATTACHMENT

STANDARD FEATURES:
10 HP MAIN MOTOR
ONE-PIECE CAST IRON BASE
NO CHANGE WITH 4" BORE
NO CHANGE GEARS REQUIRED
16 SPDS FROM 25-1600 RPM
54 KINDS OF INCH THREADS
54 KINDS OF METRIC THREADS
MAIN SPINDLE HARDENED & PRECISION GROUND
BED MADE OF FINE GRAIN HIGH TENSILE CAST IRON
BEDWAYS INDUCTION HARDENED & PRECISION GROUND
ALL GEARS & SHAFTS HARDENED & PRECISION GROUND
MAIN SPINDLE SUPPORTED AT 3-POINT BY PRECISION BEARINGS

OPTIONAL EQUIPMENT (CALL FOR PRICING):
10" LARGE STEADY REST W/ROLLER JAWS FOR YCL-2060/80/120 & YCL2260/80/120
5C HAND LEVER TYPE COLLET CLOSER "JFK" USA
5C COLLET CHUCK (FRONT OPEATE) D1-6 MOUNT
DIGITAL READOUT: NEWALL DP-700 OR ACU-RITE OR UNIQ IMPORT
