Birmingham YCL-2680 NEW LATHES

Price on Request

Make:: Birmingham

Model:: YCL-2680

Year:: NEW

Ref #:: 146560

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

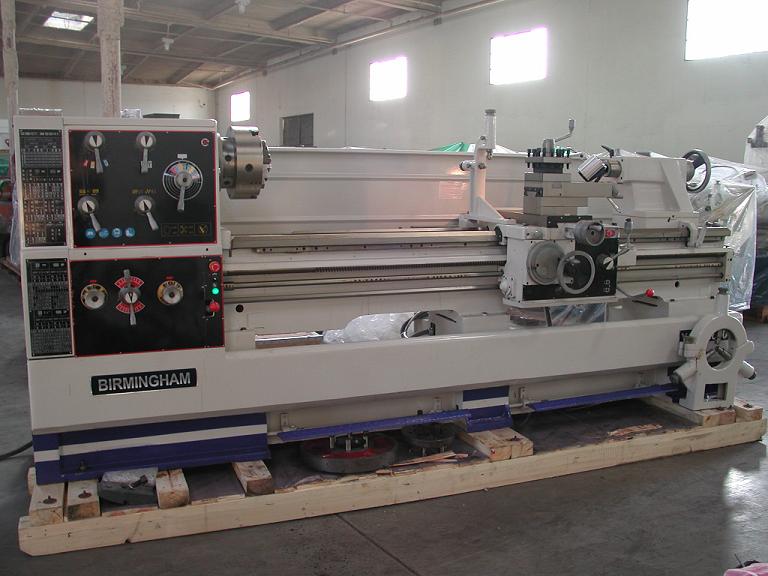

NEW 26" X 80" BIRMINGHAM PRECISION
GAP BED LATHE
MODEL: YCL-2680

SPECIFICATIONS:
SWING OVER BED: ..................... 26"
SWING OVER CROSS SLIDE: ............. 17-1/4"
SWING IN GAP DIAMETER: .............. 36"
LENGTH OF GAP: ...................... 10"
CENTER HEIGHT: ...................... 13"
DISTANCE BETWEEN CENTERS: ........... 80"
WIDTH OF BED: ....................... 16"
MAX SECTION OF TOOL: ................ 1" X 1"
MAX TRAVEL OF CROSS SLIDE: .......... 14-1/2"
MAX TRAVEL OF COMPOUND REST: ........ 9"
SPINDLE BORE: ....................... 4-1/8"
SPINDLE NOSE: ....................... D1-8
TAPER OF SPINDLE BORE: .............. MT5
SPINDLE SPEED STEP: ................. 16
RANGE OF SPINDLE SPEED: ............. 25-1600 RPM
LEADSCREW PITCH: .................... 40MM X 2 TPI
INCH THREADS RANGE: ................. 7/16 ~ 80 TPI
METRIC THREADS RANGE: ............... 0.45 ~ 120MM (54 KINDS)
DIAMETRICAL PITCHES RANGE: .......... 7/8 ~ 160 DP (42 KINDS)
MODULE PITCHES RANGE: ............... 0.25 ~ 60MP (46 KINDS)
CROSS FEEDS RANGE
-IN METRIC LEAD SCREW: .............. 0.044 ~ 1.48MM/REV (25 KINDS)
-IN INCH LEAD SCREW: ................ 0.00165" X 0.05497"/REV (25 KINDS)
LONGITUDINAL FEEDS RANGE
-IN METRIC LEAD SCREW: .............. 0.022 - 0.74MM/REV (25 KINDS)
-INCH LEAD SCREW: ................... 0.00083" - 0.02774"/REV (25 KINDS)
TRAVEL OF TAILSTOCK SLEEVE: ......... 9-1/4"
DIAMETER OF TAILSTOCK SLEEVE: ....... 3-1/2"
MORSE TAPER OF TAILSTOCK SLEEVE: .... MT#5
POWER OF MAIN MOTOR: ................ 10 HP
POWER OF COOLANT PUMP: .............. 1/8HP
DIMENSIONS: ......................... 3740 X 1230 X 1840
WEIGHT: ............................. 3,900 KGS

STANDARD FEATURES:
10 HP MAIN MOTOR
ONE-PIECE CAST IRON BASE
NO CHANGE WITH 4" BORE
NO CHANGE GEARS REQUIRED
16 SPDS FROM 25-1600 RPM
54 KINDS OF INCH THREADS
54 KINDS OF METRIC THREADS
MAIN SPINDLE HARDENED & PRECISION GROUND
BED MADE OF FINE GRAIN HIGH TENSILE CAST IRON
BEDWAYS INDUCTION HARDENED & PRECISION GROUND
ALL GEARS & SHAFTS HARDENED & PRECISION GROUND
MAIN SPINDLE SUPPORTED AT 3-POINT BY PRECISION BEARINGS
STANDARD EQUIPMENT:
3 JAW CHUCK
4 JAW CHUCK
FACE PLATE
STEADY REST WITH ROLLER JAWS
FOLLOW REST
GAP
4 WAY TOOL POST
THREADING CHASING DIAL
(2) DEAD CENTERS
REDUCING SLEEVE
FULL LENGTH SPLASH GUARD
ONE PIECE CAST IRON BASE
FOOT BRAKE
HALOGEN WORK LIGHT
COOLANT SYSTEM
LEVELING PADS
4 POSITION AUTO KICK OUT LONGITUDINAL CARRIAGE STOP
TOOL BOX
TAPER TURN ATTACHMENT

OPTIONAL EQUIPMENT:
10" LARGE STEADY REST W/ROLLER JAWS FOR YCL-2060/80/120 & YCL2260/80/120
5C HAND LEVER TYPE COLLET CLOSER "JFK" USA
5C COLLET CHUCK (FRONT OPEATE) D1-6 MOUNT
DIGITAL READOUT: NEWALL DP-700 OR ACU-RITE OR UNIQ IMPORT
